NZE121N-FPPVK (2001)
Toyota Corolla Spacio
Production
May 2001
-
Apr 2003
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

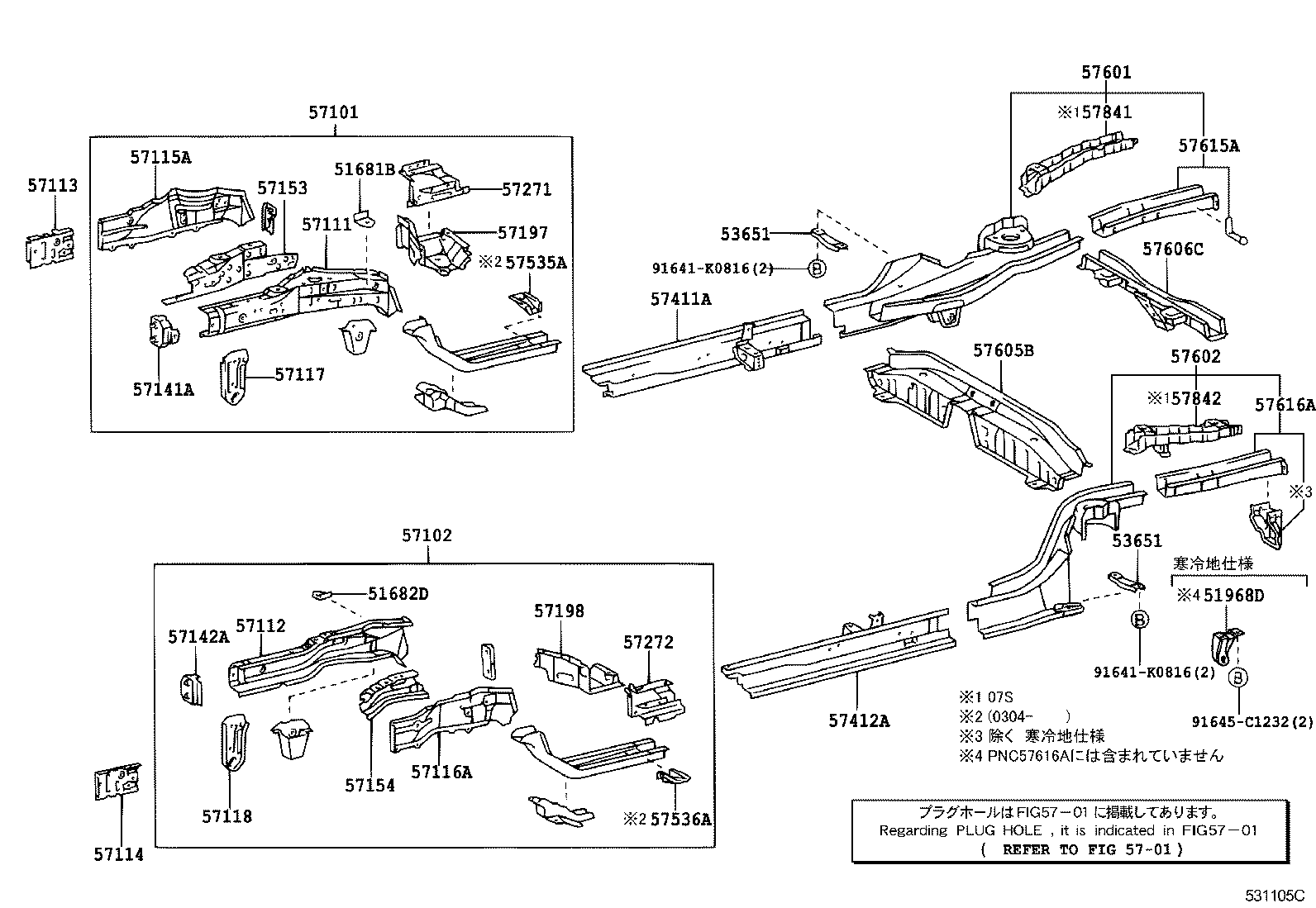

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-32050 |
NZE121,ZZE12# |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-32040 |
NZE121,ZZE12# |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
NZE121,ZZE122 |
2 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
NZE121,ZZE122 |
2 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-13050 |
NZE121,ZZE12# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-13070 |
NZE121,ZZE12# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-13010 |
NZE121,ZZE12# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-13030 |
NZE121,ZZE12# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-13020 |
NZE121,ZZE12# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-13020 |
NZE121,ZZE12# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12080 |
NZE121,ZZE12# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12080 |
NZE121,ZZE12# |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-12130 |
NZE121,ZZE12# |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-12130 |
NZE121,ZZE12# |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-12050 |
NZE121,ZZE12# |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-12060 |
NZE121,ZZE12# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-13020 |
NZE121,ZZE12# |
1 | ||
| 57016-12080 |
NZE121,ZZE12# |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12060 |
NZE121,ZZE12# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12030 |
NZE121,ZZE12# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-12030 |
NZE121,ZZE12# |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-13020 |
NZE121,ZZE12# |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-13020 |
NZE121,ZZE12# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-13070 |
NZE121,ZZE12# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-13050 |
NZE121,ZZE12# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-13540 |
NZE121,ZZE122..07S |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-13490 |
NZE121,ZZE122..07S |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-13090 |
NZE121,ZZE122 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-13130 |
NZE121,ZZE122 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-13904 |
NZE121,ZZE122..07S |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-13905 |
NZE121,ZZE122..07S |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57803-13020 |
NZE121,ZZE122..07S |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57804-13030 |
NZE121,ZZE122..07S |
1 | ||
| Common parts | ||||
| 91641-K0816 | ||||
| 91645-C1232 | ||||
| Linked diagrams | ||||
| 5701 | ||||
