AE115N-FWPEK (1997)
Toyota Corolla Spacio
Production
Jul 1997
-
May 2001
Engine
7AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )AE115

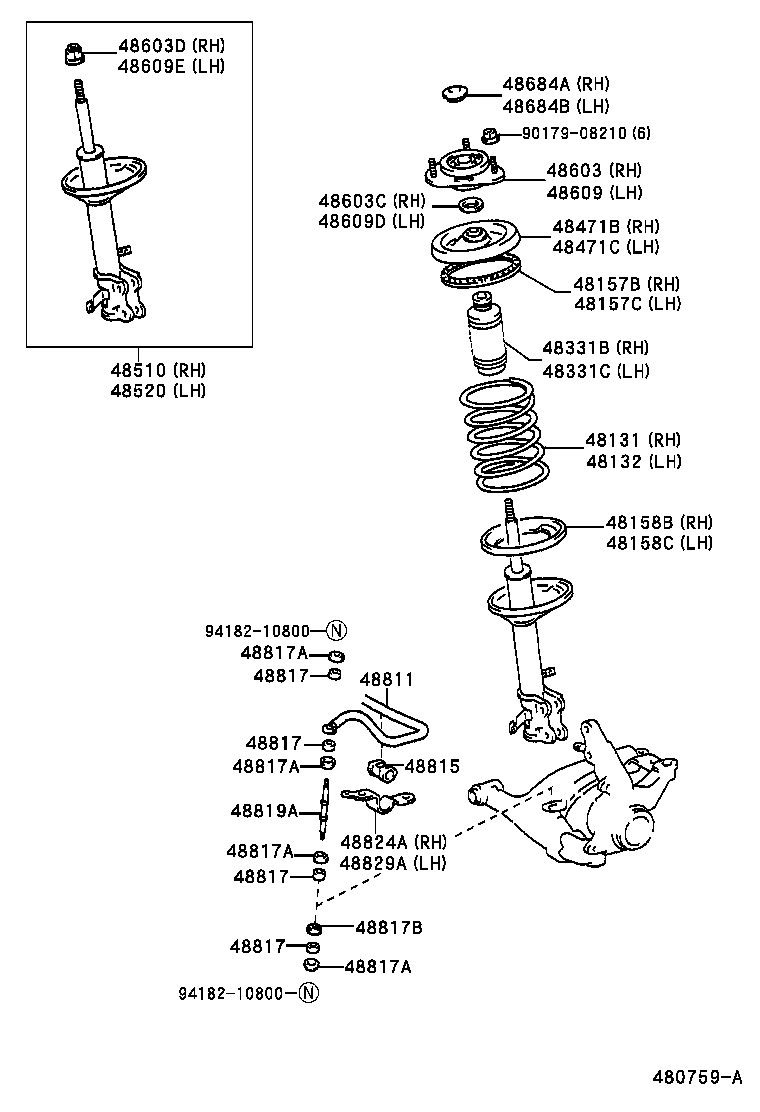

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-13110 |
AE115 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-13110 |
AE115 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12070 |
AE11# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12070 |
AE11# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-12030 |
AE11# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-12030 |
AE11# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48304-44010 |
AE11# |
1 | ||
| 48304-44010 |
AE115 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48304-44010 |
AE11# |
1 | ||
| 48304-44010 |
AE115 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-12090 |
AE11# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-12090 |
AE11# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-87692 |
AE115 |
1 | ||
| 48510-87703 |
AE115 |
1 | ||
| 48510-19785 |
AE115 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-19465 |
AE115 |
1 | ||
| 48520-49276 |
AE115 |
1 | ||
| 48520-49275 |
AE115 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12330 |
AE11# |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AE11# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AE11# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12330 |
AE11# |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AE11# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AE11# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-12070 |
AE11# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-12070 |
AE11# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-1A120 |
AE115 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12230 |
AE115 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE115 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE115 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE115 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE115 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE115 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE115 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE115 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE115 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
AE115 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-20030 |
AE115 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-12130 |
AE11# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-12060 |
AE11# |
1 | ||
| Common parts | ||||
| 90179-08210 | ||||
| 94182-10800 | ||||
