AE115N-FWPEK (1997)

Toyota Corolla Spacio

Production Jul 1997 - May 2001
Engine 7AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

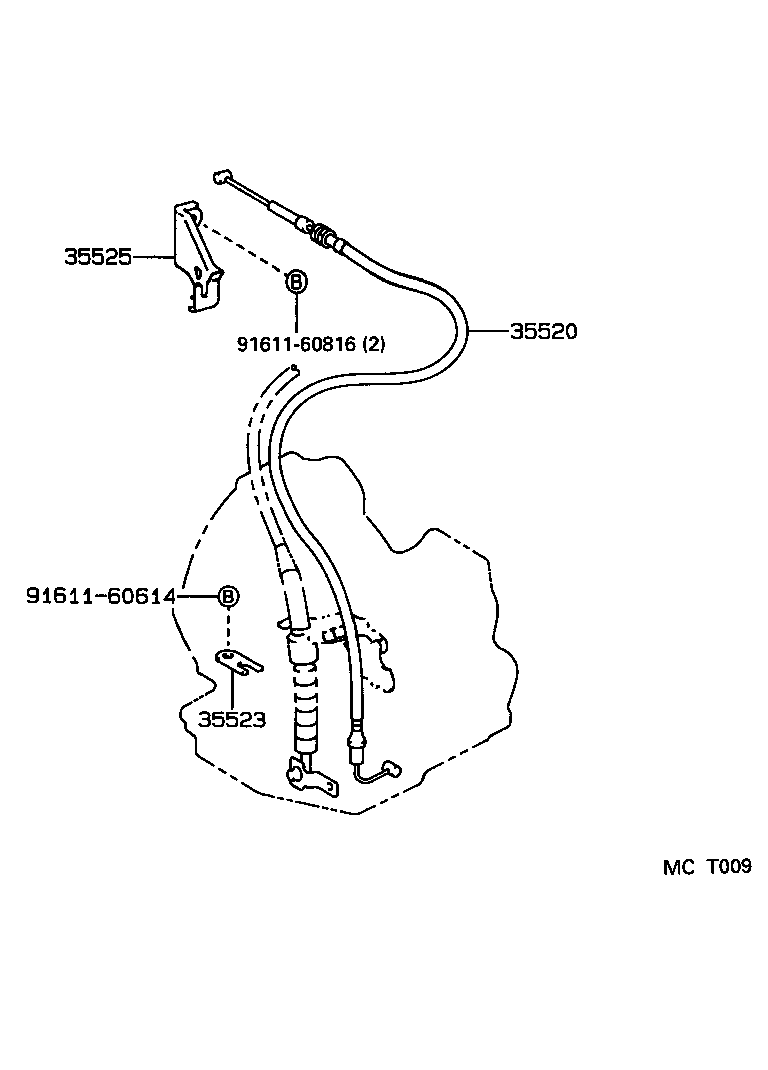

ILLUST NO. 2 OF 2(9707- )AE115

Click highlighted areas on diagram

A241H

diagram 35520 35523 35525 9161160614 9161160816
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12430

AE115

 1
35523 - CLAMP, THROTTLE CABLE
35523-12080

AE115

 1
35525 - BRACKET, THROTTLE CABLE
35525-12100

AE11#

 1
Common parts
91611-60614
91611-60816
