AE115N-FNPEK (1997)
Toyota Corolla Spacio
Production
Jul 1997
-
May 2001
Engine
7AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

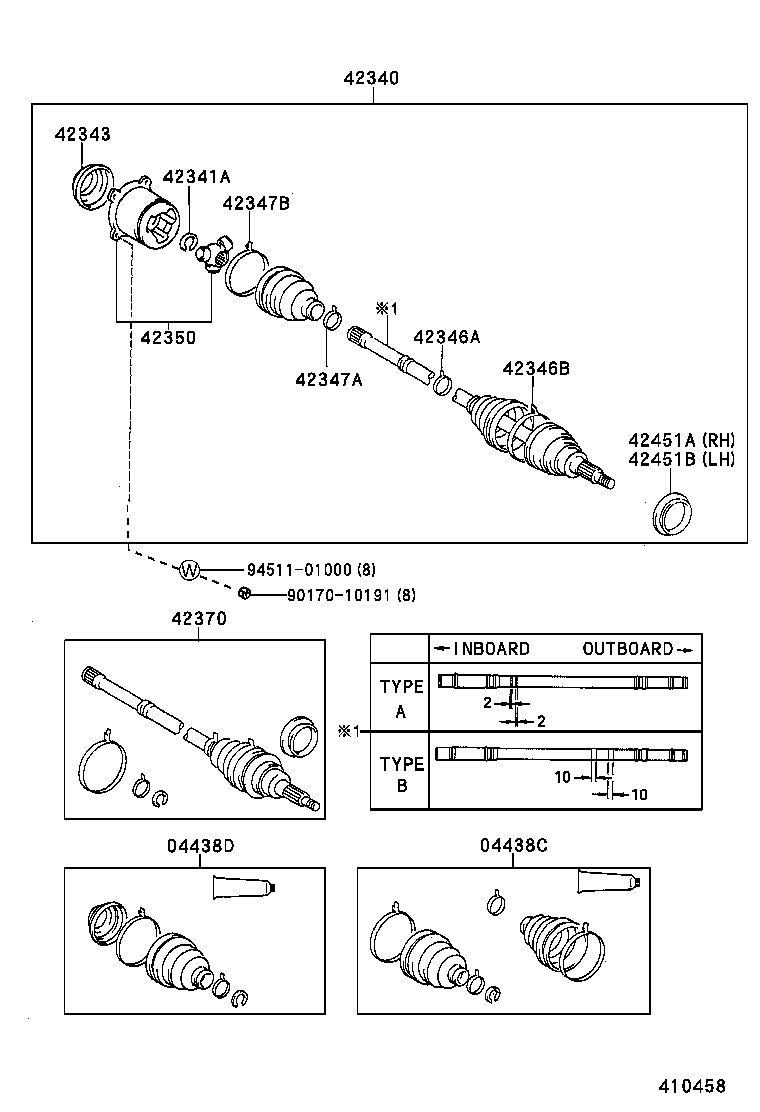

ILLUST NO. 1 OF 2(9707- )AE115
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04438-42020 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 04438-20290 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-20240 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 04438-42010 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-12061 |
AE115 |
2 | ||
| 42340-12060 |
AE115 |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-23024 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90520-22005 |
AE115 |
2 | ||
| 90520-22005 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-14010 |
AE115 |
4 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01078 |
AE115 内径=32.7 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-16020 |
AE115 |
2 | ||
| 90949-01080 |
AE115 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-16030 |
AE115 内径=35.75 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-14020 |
AE115 |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-14010 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42350-42010 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-19137 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42370-19116 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42370-19115 |
AE115 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42370-19136 |
AE115 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-12010 |
AE115 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
AE115 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
ILLUST NO. 2 OF 2(9707- )AE115
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-12230 |
AE115 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-38018 |
AE115 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-22020 |
AE115 |
1 | ||
| 90178-22001 |
AE115 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-69004 |
AE115 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56007 |
AE115 内側 |
1 | ||
| 90311-52010 |
AE115 外側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56007 |
AE115 内側 |
1 | ||
| 90311-52010 |
AE115 外側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-12230 |
AE115 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-38018 |
AE115 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90178-22001 |
AE115 |
1 | ||
| 90179-22020 |
AE115 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52010 |
AE115 外側 |
1 | ||
| 90311-56007 |
AE115 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52010 |
AE115 外側 |
1 | ||
| 90311-56007 |
AE115 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-69004 |
AE115 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-12140 |
AE115 |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20040 |
AE115 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20040 |
AE115 |
1 | ||
| Common parts | ||||
| 90252-03014 | ||||
