AE111N-FWPEK (1997)

Toyota Corolla Spacio

Production Jul 1997 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

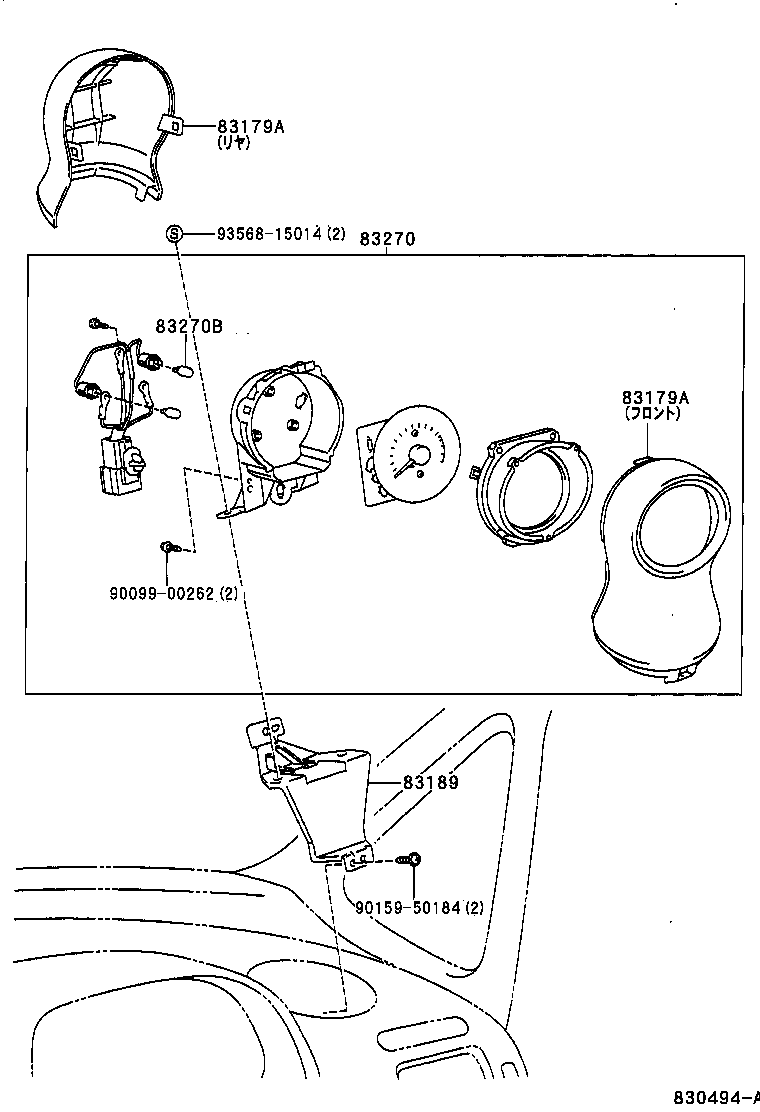

ILLUST NO. 3 OF 3(9904- )

Click highlighted areas on diagram

ﾀｺﾒ-ﾀ

diagram 83179A 83179A 83189 83270 83270B 9009900262 9015950184 9356815014
Part # Description Qty Price
83179A - COVER, METER
83179-13020

AE11#

ﾌﾛﾝﾄ

 1
83179-13021

AE11#

ﾌﾛﾝﾄ

 1
83179-13010

AE11#

ﾘﾔ

 1
83179-13011

AE11#

ﾘﾔ

 1
83179A - COVER, METER
83179-13020

AE11#

ﾌﾛﾝﾄ

 1
83179-13021

AE11#

ﾌﾛﾝﾄ

 1
83179-13010

AE11#

ﾘﾔ

 1
83179-13011

AE11#

ﾘﾔ

 1
83189 - BRACKET, METER
83189-13010

AE11#

 1
83270 - TACHOMETER ASSY, ENGINE
83270-13020

AE111

 1
83270-13021

AE111

 1
83270B - BULB, ENGINE TACHOMETER
90981-11018

AE11#

12V 1.2W ｿｹｯﾄ無し

 2
Common parts
90099-00262
90159-50184
93568-15014
