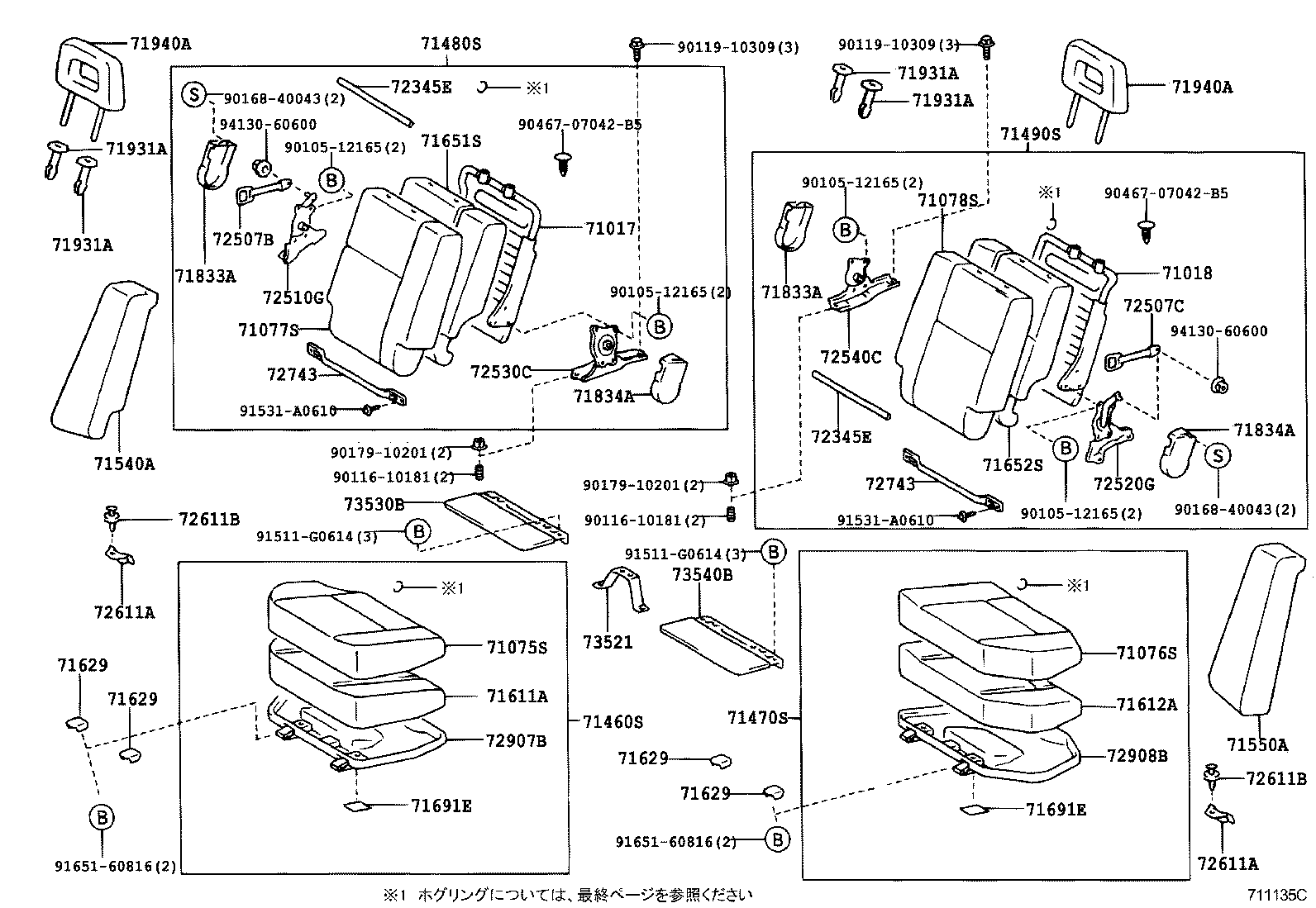

AE111N-FWPEK (1997)
Toyota Corolla Spacio
(9707- )05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13230 |
AE11#..05S |
1 | ||
| 71017-13231 |
AE11#..05S |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13090 |
AE11#..05S |
1 | ||
| 71018-13091 |
AE11#..05S |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-13790B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71075-13800B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71075-13840B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71065-13160J0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71075-13880D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71075-13791B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71065-13250A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71065-13040B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71065-13030C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71065-13050B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-13400J0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71076-13171B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71076-13210B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71076-13180B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71076-13170B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71076-13300C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71076-13250D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71076-13490A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71076-13320B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71076-13310B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1F140D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71077-1F050B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71077-1F040B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71077-1F051B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077-1F200B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71077-1F290J0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71077-1F090B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71077-1F440A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71077-1F190C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71077-1F041B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71077-1F210B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13480B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71078-13450B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71078-13540D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71078-13670J0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71078-13600B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71078-13460B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71078-13790A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71078-13610B0 |
AE11#..05S..STD ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078-13461B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078-13590C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71078-13451B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-13230B0 |
AE11#..05S ***,ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71560-13350B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71560-13160B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71560-13240C0 |
AE11#..05S ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71560-13240C1 |
AE11#..05S..STD ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71560-13170B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71560-13370J0 |
AE11#..05S..STD ***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71560-13340B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71560-13161B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71560-13440A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71560-13050D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-13300C0 |
AE11#..05S ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71470-13380B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71470-13210B0 |
AE11#..05S ***,ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71470-13300C1 |
AE11#..05S..STD ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71470-13171B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK. CHARCOAL,TRIM1# |
1 | ||
| 71470-13180B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71470-13370B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,DARK CHARCOAL,TRIM1# |
1 | ||
| 71470-13400J0 |
AE11#..05S..STD ***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71470-13170B2 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71470-13520A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71470-13250D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1F471B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71480-1F481B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480-1F470B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480-1F480B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480-1F550D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71480-1F510B0 |
AE11#..05S ***,ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71480-1F600C1 |
AE11#..05S..STD ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71480-1F880A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71480-1F700J0 |
AE11#..05S..STD ***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71480-1F472B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,XXXX,TRIM1# |
1 | ||
| 71480-1F482B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,XXXX,TRIM1# |
1 | ||
| 71480-1F650B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71480-1F600C0 |
AE11#..05S ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71480-1F640B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-13490B0 |
AE11#..05S ***,ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71490-13550D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71490-13470B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71490-13471B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71490-13590C0 |
AE11#..05S ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71490-13460B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71490-13472B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71490-13650B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71490-13461B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71490-13670J0 |
AE11#..05S..STD ***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00 |
1 | ||
| 71490-13640B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71490-13590C1 |
AE11#..05S..STD ***,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
1 | ||
| 71490-13810A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71490-13462B1 |
AE11#..05S ***,ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-13030B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71540-13040D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71540-13070B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71540-13050B1 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLUE GRAY,TRIM1# |
1 | ||
| 71540-13010B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71540-13020B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71540-13060B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71540-13090A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 71540-13150A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-13030B0 |
AE11#..05S ﾎﾜｲﾄﾊﾟ-ﾙｽﾊﾟｼｵ *(P), *(Q),DK. CHARCOAL,TRIM1# |
1 | ||
| 71550-13090A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 71550-13010B2 |
AE11#..05S ｼ-ﾄ = TYPE A-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71550-13060B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71550-13070B1 |
AE11#..05S..STD ***,ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71550-13050B1 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLUE GRAY,TRIM1# |
1 | ||
| 71550-13040D0 |
AE11#..05S ***,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71550-13150A0 |
AE11#..05S..STD ***,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71550-13020B2 |
AE11#..05S ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-13250 |
AE11#..05S |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-13120 |
AE11#..05S |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71629-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
4 | ||
| 71629-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71629-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71629-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
4 | ||
| 71629-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71629-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71629-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
4 | ||
| 71629-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71629-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71629-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
4 | ||
| 71629-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71629-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13260 |
AE11#..05S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13150 |
AE11#..05S |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-13020 |
AE11#..05S |
4 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-13020 |
AE11#..05S |
4 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-13040A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71833-13040A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71833-13040B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71833-13030B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71833-13010B0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),MD.CHARCOL,TRIM00 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-13040A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71833-13040A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71833-13040B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71833-13030B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71833-13010B0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),MD.CHARCOL,TRIM00 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-13030B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71834-13010B0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),MD.CHARCOL,TRIM00 |
1 | ||
| 71834-13040A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71834-13040B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71834-13040A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-13030B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71834-13010B0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),MD.CHARCOL,TRIM00 |
1 | ||
| 71834-13040A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 71834-13040B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71834-13040A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040P9 |
AE11# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11#..04S,05S ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE11#..04S,05S ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11# ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040A0 |
AE11#..05S..STD ﾛｯｸ無,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71931-12040A5 |
AE11#..05S ﾛｯｸ無,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
AE11#..05S..STD ﾛｯｸ無,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S ﾛｯｸ付,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040P9 |
AE11# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11#..04S,05S ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE11#..04S,05S ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11# ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040A0 |
AE11#..05S..STD ﾛｯｸ無,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71931-12040A5 |
AE11#..05S ﾛｯｸ無,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
AE11#..05S..STD ﾛｯｸ無,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S ﾛｯｸ付,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040P9 |
AE11# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11#..04S,05S ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE11#..04S,05S ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11# ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040A0 |
AE11#..05S..STD ﾛｯｸ無,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71931-12040A5 |
AE11#..05S ﾛｯｸ無,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
AE11#..05S..STD ﾛｯｸ無,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S ﾛｯｸ付,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040P9 |
AE11# ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11#..04S,05S ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE11#..04S,05S ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71930-13030B0 |
AE11# ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040A0 |
AE11#..05S..STD ﾛｯｸ無,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71931-12040A5 |
AE11#..05S ﾛｯｸ無,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
AE11#..05S..STD ﾛｯｸ無,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S ﾛｯｸ付,ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 71930-13030A0 |
AE11#..05S..STD ﾛｯｸ付,CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-13190D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71910-46010C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
2 | ||
| 71910-13100B0 |
AE11#..04S,05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-13190E1 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),OAK,TRIM00 |
2 | ||
| 71910-13100B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-13190E1 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),OAK,TRIM00 |
1 | ||
| 71910-46010B1 |
AE11#..04S,05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-13190D0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 71910-46010C0 |
AE11#..05S..STD ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,BLACK,TRIM1# |
2 | ||
| 71910-13100B0 |
AE11#..04S,05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-13190E1 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),OAK,TRIM00 |
2 | ||
| 71910-13100B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
2 | ||
| 71910-13190E1 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),OAK,TRIM00 |
1 | ||
| 71910-46010B1 |
AE11#..04S,05S MD.CHARCOAL,TRIM1# |
2 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-13040 |
AE11#..05S |
2 | ||
| 72345-13030 |
AE11#..04S,05S |
2 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-13040 |
AE11#..05S |
2 | ||
| 72345-13030 |
AE11#..04S,05S |
2 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-13010A1 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 72507-13010B4 |
AE11# GRAY,TRIM1# |
1 | ||
| 72507-13010A1 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72507-13010B0 |
AE11# MD.CHARCOAL,TRIM1# |
1 | ||
| 72507-13010A1 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-13010A1 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 72507-13010B0 |
AE11# MD.CHARCOAL,TRIM1# |
1 | ||
| 72507-13010A1 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 72507-13010A1 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72507-13010B4 |
AE11# GRAY,TRIM1# |
1 | ||
| 72510G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH | ||||
| 72510-13010 |
AE11#..05S |
1 | ||
| 72510-13011 |
AE11#..05S |
1 | ||
| 72520G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH | ||||
| 72520-13011 |
AE11#..05S |
1 | ||
| 72520-13010 |
AE11#..05S |
1 | ||
| 72530C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER RH | ||||
| 72530-13011 |
AE11#..05S |
1 | ||
| 72530-13010 |
AE11#..05S |
1 | ||
| 72540C - ADJUSTER ASSY, REAR RECLINING SEAT, INNER LH | ||||
| 72540-13011 |
AE11#..05S |
1 | ||
| 72540-13010 |
AE11#..05S |
1 | ||
| 72611A - BASE, REAR SEAT LOCK | ||||
| 72611-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 72611-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
2 | ||
| 72611-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72611-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 72611A - BASE, REAR SEAT LOCK | ||||
| 72611-13030A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 72611-13030B0 |
AE11#..05S DK.CHARCOAL,TRIM1# |
2 | ||
| 72611-13030A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72611-13030A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 72611B - CLIP(FOR REAR SEAT LOCK BASE) | ||||
| 90467-06133B3 |
AE11#..05S DK.CHARCOAL,TRIM1# |
2 | ||
| 90467-06133A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 90467-06133A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 90467-06133C0 |
AE11#..05S BLACK,TRIM1# |
2 | ||
| 90467-06133A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 72611B - CLIP(FOR REAR SEAT LOCK BASE) | ||||
| 90467-06133B3 |
AE11#..05S DK.CHARCOAL,TRIM1# |
2 | ||
| 90467-06133A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
2 | ||
| 90467-06133A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
2 | ||
| 90467-06133C0 |
AE11#..05S BLACK,TRIM1# |
2 | ||
| 90467-06133A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
2 | ||
| 72743 - ROD, RR SEAT RECLINING | ||||
| 72743-13010 |
AE11#..05S |
2 | ||
| 72743 - ROD, RR SEAT RECLINING | ||||
| 72743-13010 |
AE11#..05S |
2 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-13020A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 72907-13020A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72907-13020B1 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 72907-13020B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 72907-13020A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH | ||||
| 72908-13020A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 72908-13020A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 72908-13020A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 72908-13020B1 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 72908-13020B2 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 73521 - BRACKET, RR SEAT SUB FLOOR | ||||
| 73521-13010 |
AE11#..05S |
1 | ||
| 73530B - PANEL ASSY, REAR SEAT SUB FLOOR, RH | ||||
| 73530-13010A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| 73530-13010A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 73530-13010A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 73530-13010B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 73540B - PANEL ASSY, REAR SEAT SUB FLOOR, LH | ||||
| 73530-13010A0 |
AE11#..05S..STD ﾎﾜｲﾄﾊﾟ-ﾙﾘﾐﾃﾂﾄﾞ *(H),IVORY,TRIM00 |
1 | ||
| 73530-13010A0 |
AE11#..05S..STD CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00 |
1 | ||
| 73530-13010B0 |
AE11#..05S MD.CHARCOAL,TRIM1# |
1 | ||
| 73530-13010A0 |
AE11#..05S ﾘﾐﾂｸｽ *(R),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-12165 | ||||
| 90116-10181 | ||||
| 90119-10309 | ||||
| 90168-40043 | ||||
| 90179-10201 | ||||
| 90467-07042B5 | ||||
| 91511-G0614 | ||||
| 91531-A0610 | ||||
| 91651-60816 | ||||
| 94130-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
