AE111N-FNPEK (1997)

Toyota Corolla Spacio

Production Jan 1997 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9701-9904)

Click highlighted areas on diagram

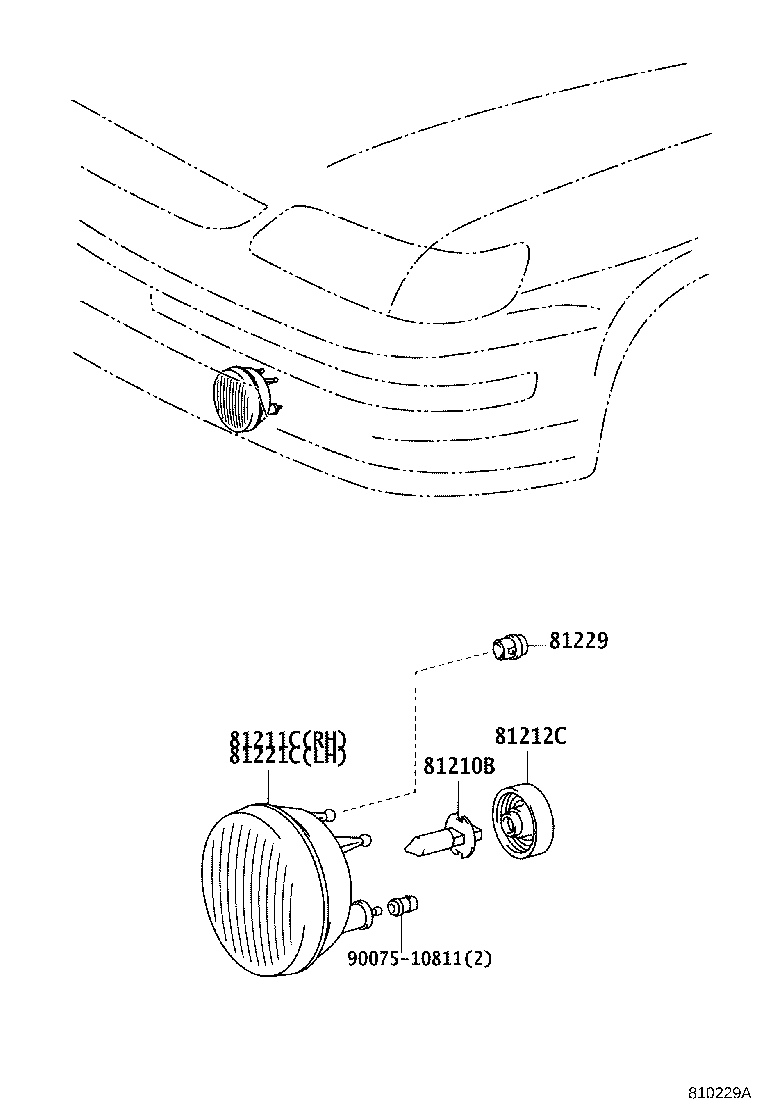

diagram 81210B 81211C 81212C 81221C 81229 9007510811
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13057

AE11#

12V 35W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-13040

AE11#

 1
81212C - COVER, FOG LAMP
90075-65003

AE11#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-13040

AE11#

 1
81229 - BRACKET, FOG LAMP
81481-10030

AE11#

 4
Common parts
90075-10811
