ZZE124-AHPEK (2002)

Toyota Corolla Runx/Allex

Production Sep 2002 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0101-0609)

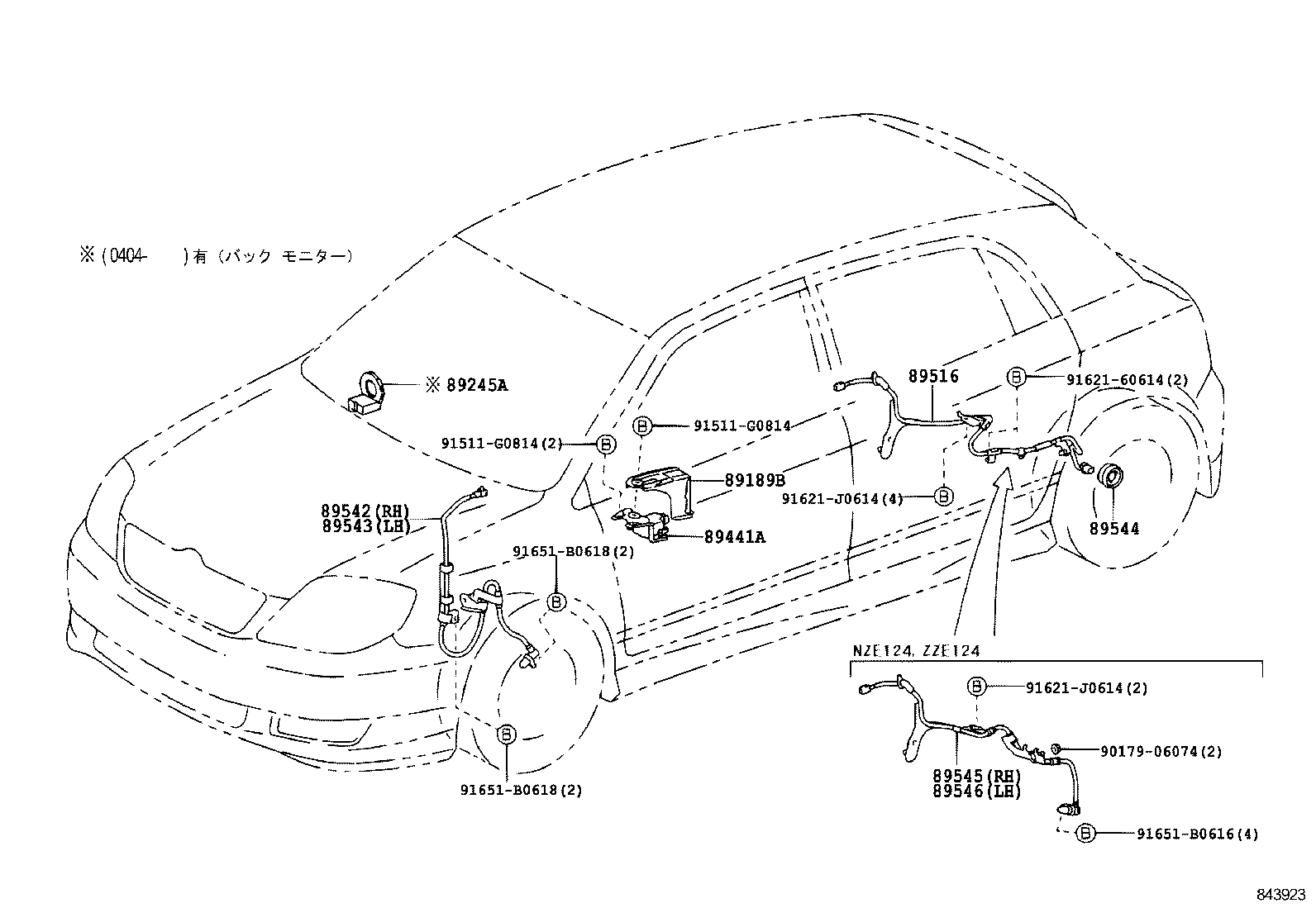

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89189B - BRACKET, YAWRATE SENSOR
89189-12020	NZE124,ZZE124	04/2004 - 09/2006	1
89189-12020	NZE124,ZZE124	09/2002 - 04/2004	1
89245A - SENSOR, STEERING
89245-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89441A - SENSOR, DECELERATION
89440-12080	NZE124,ZZE124	04/2004 - 09/2006	1
89440-12080	NZE124,ZZE124	09/2002 - 04/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
89542-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
89543-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
89545 - SENSOR, SPEED, REAR RH
89545-12070	NZE124,ZZE124	09/2002 - 04/2004	1
89545-12070	NZE124,ZZE124	04/2004 - 09/2006	1
89546 - SENSOR, SPEED, REAR LH
89546-12070	NZE124,ZZE124	09/2002 - 04/2004	1
89546-12080	NZE124,ZZE124	04/2004 - 09/2006	1
Common parts
90179-06074
91511-G0814
91621-60614
91621-J0614
91651-B0616
91651-B0618
