Toyota Corolla runx/allex ZZE123 WIRELESS DOOR LOCK

ZZE123-BHPQF (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 2ZZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

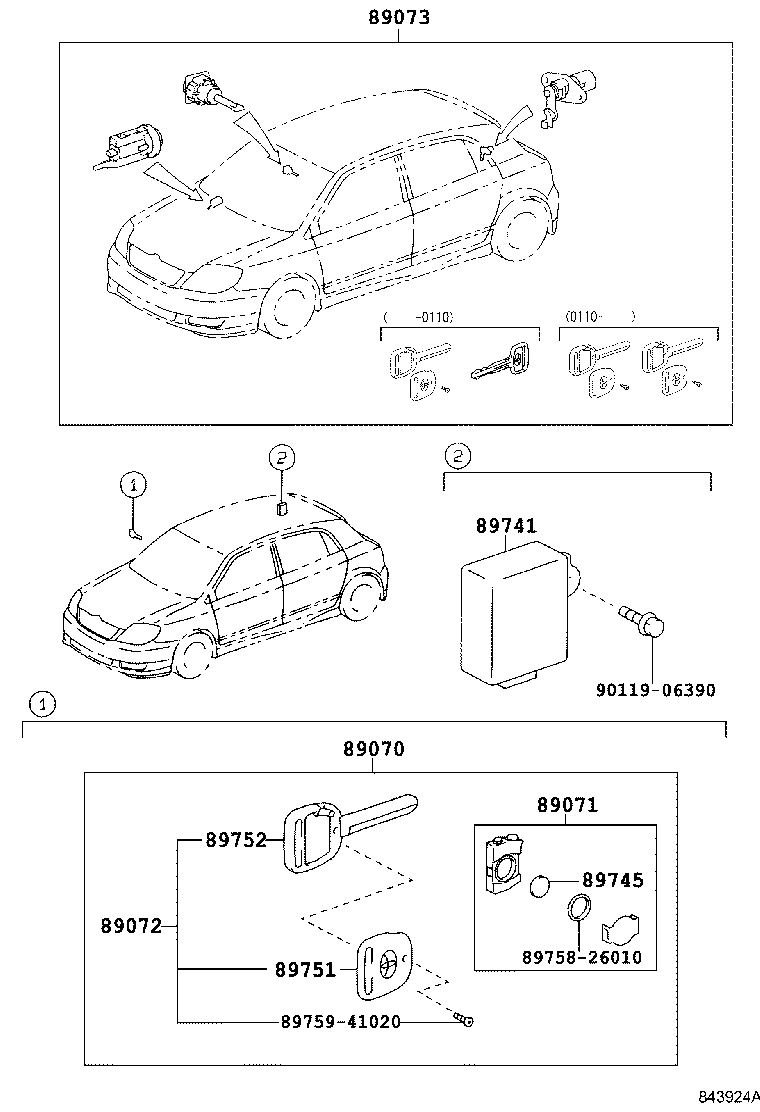

(0101-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-12280	NZE12#,ZZE12#	09/2002 - 04/2004	1
89070-13060	NZE12#,ZZE123	01/2001 - 09/2002	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-26010	NZE12#,ZZE123	01/2001 - 09/2002	1
89071-26010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	NZE12#,ZZE123	01/2001 - 09/2002	1
89072-47020	NZE12#,ZZE12#	09/2002 - 04/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-1E770	NZE12#,ZZE12#	09/2002 - 04/2004	1
89073-12240	NZE12#,ZZE123	01/2001 - 10/2001	1
89073-12241	NZE12#,ZZE123	10/2001 - 09/2002	1
69005-13890	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741 - RECEIVER, DOOR CONTROL
89740-13030	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
89741-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89745 - BATTERY, TRANSMITTER
89745-26010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89745-50020	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89745-26010	NZE12#,ZZE123	01/2001 - 09/2002	1
89751 - COVER, TRANSMITTER HOUSING
89751-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89751-44010	NZE12#,ZZE123	01/2001 - 09/2002	1
89751-44010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89752 - CASE, TRANSMITTER HOUSING
89752-46020	NZE12#,ZZE123	01/2001 - 09/2002	1
89752-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89752-46020	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
89758-26010
89759-41020
90119-06390

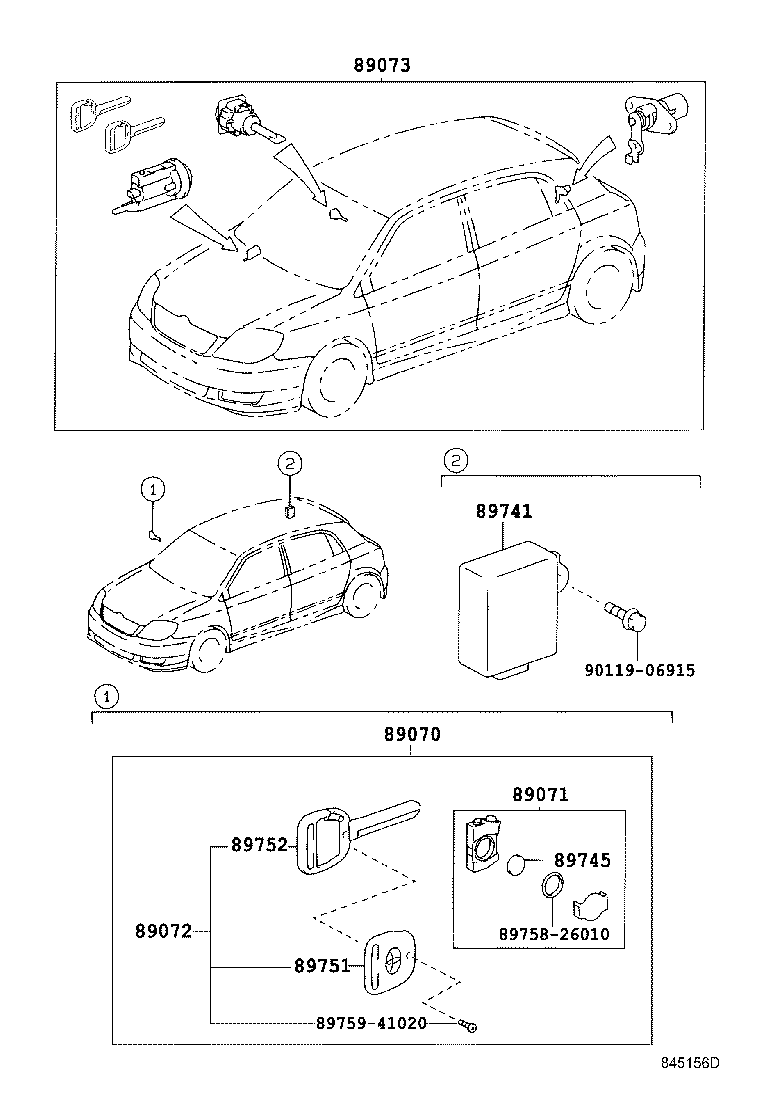

(0209-0404)

Click highlighted areas on diagram

ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-12280	NZE12#,ZZE12#	09/2002 - 04/2004	1
89070-13060	NZE12#,ZZE123	01/2001 - 09/2002	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-26010	NZE12#,ZZE123	01/2001 - 09/2002	1
89071-26010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020	NZE12#,ZZE123	01/2001 - 09/2002	1
89072-47020	NZE12#,ZZE12#	09/2002 - 04/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-1E770	NZE12#,ZZE12#	09/2002 - 04/2004	1
89073-12240	NZE12#,ZZE123	01/2001 - 10/2001	1
89073-12241	NZE12#,ZZE123	10/2001 - 09/2002	1
69005-13890	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741 - RECEIVER, DOOR CONTROL
89740-13030	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
89741-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89745 - BATTERY, TRANSMITTER
89745-26010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89745-50020	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89745-26010	NZE12#,ZZE123	01/2001 - 09/2002	1
89751 - COVER, TRANSMITTER HOUSING
89751-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89751-44010	NZE12#,ZZE123	01/2001 - 09/2002	1
89751-44010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89752 - CASE, TRANSMITTER HOUSING
89752-46020	NZE12#,ZZE123	01/2001 - 09/2002	1
89752-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89752-46020	NZE12#,ZZE12#	09/2002 - 04/2004	1
Common parts
89758-26010
89759-41020
90119-06915

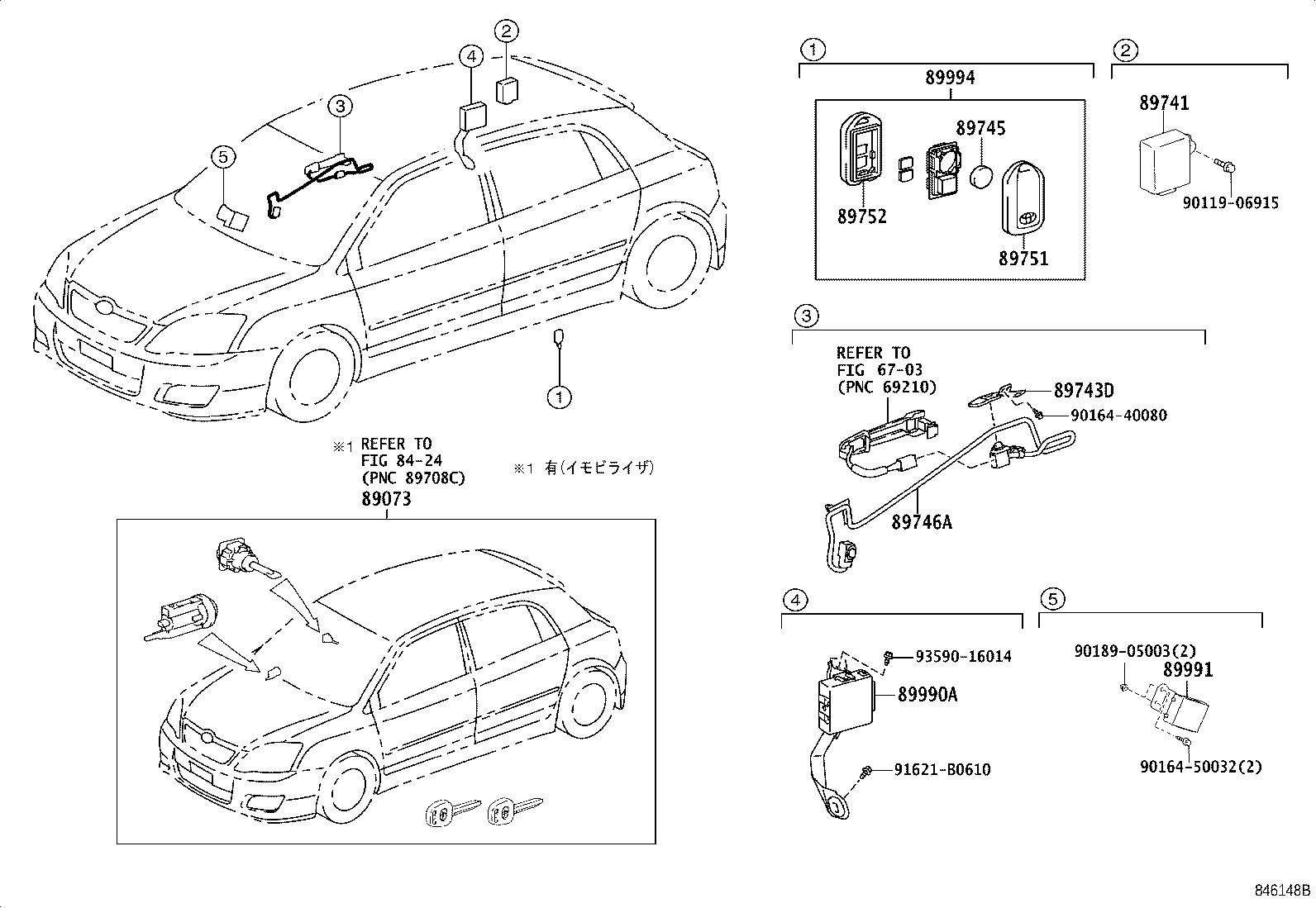

(0404- )

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

Part #	Description	Period	Qty
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-1E770	NZE12#,ZZE12#	09/2002 - 04/2004	1
89073-12240	NZE12#,ZZE123	01/2001 - 10/2001	1
89073-12241	NZE12#,ZZE123	10/2001 - 09/2002	1
69005-13890	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741 - RECEIVER, DOOR CONTROL
89740-13030	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89741-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
89741-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89743D - BRACKET, ELECTRICAL KEY WIRE HARNESS
89743-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89745-50020	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89745-26010	NZE12#,ZZE123	01/2001 - 09/2002	1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89751-44010	NZE12#,ZZE123	01/2001 - 09/2002	1
89751-44010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89752 - CASE, TRANSMITTER HOUSING
89752-46020	NZE12#,ZZE123	01/2001 - 09/2002	1
89752-68010	NZE12#,ZZE12# ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)	04/2004 - 09/2006	1
89752-46020	NZE12#,ZZE12#	09/2002 - 04/2004	1
89990A - COMPUTER ASSY, SMART KEY
89990-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
89994 - TRANSMITTER, ELECTRICAL KEY
89994-68030	NZE12#,ZZE12#	04/2004 - 09/2006	2
Common parts
90119-06915
90164-40080
90164-50032
90189-05003
91621-B0610
93590-16014
