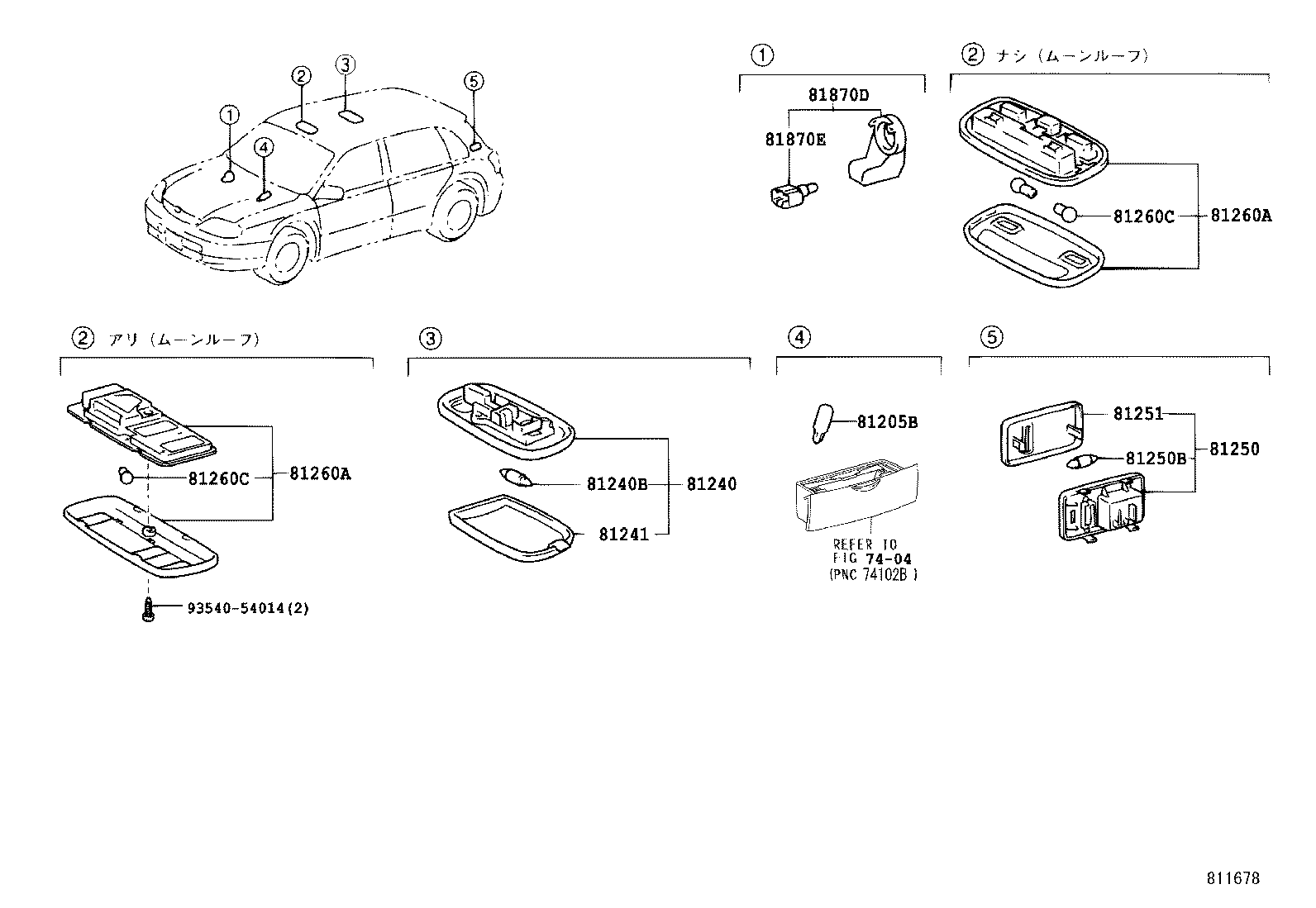

Toyota Corolla runx/allex ZZE123 INTERIOR LAMP

Part #	Description	Period	Qty
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018	NZE12#,ZZE12# 12V 1.2W ｿｹｯﾄ無し	09/2002 - 04/2004	1
90981-11018	NZE12#,ZZE12# 12V 1.2W ｿｹｯﾄ無し	04/2004 - 09/2006	1
90981-11018	NZE12#,ZZE123 12V 1.2W ｿｹｯﾄ無し	01/2001 - 09/2002	1
81240 - LAMP ASSY, ROOM, NO.1
81240-12070B0	ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
81240-12070B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
81240-12070B0	NZE12#,ZZE123 LT.GRAY,TRIM1#	01/2001 - 09/2002	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	NZE12#,ZZE12# 12V 8W	09/2002 - 04/2004	1
90981-14011	NZE12#,ZZE12# 12V 8W	04/2004 - 09/2006	1
90981-14011	NZE12#,ZZE123 12V 8W	01/2001 - 09/2002	1
81241 - LENS, ROOM LAMP, NO.1
81241-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
81241-12070	NZE12#,ZZE12#	05/2004 - 09/2006	1
81241-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
81241-12070B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	04/2004 - 05/2004	1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030B5	ZZE123 DK.GRAY,TRIM1#	01/2001 - 09/2002	1
81250-12030B5	ZZE123 DK.GRAY,TRIM1#	04/2004 - 09/2006	1
81250-12030B5	ZZE123 DK.GRAY,TRIM1#	09/2002 - 04/2004	1
81250B - BULB, ROOM LAMP, NO.2
99132-13050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	1
99132-13050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	1
99132-13050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	1
81251 - LENS, ROOM LAMP, NO.2
81251-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
81251-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
81251-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
81260A - LAMP ASSY, MAP
81260-12110B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
81260-12120B0	NZE12#,ZZE123 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	01/2001 - 09/2002	1
81260-12120B0	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	09/2002 - 04/2004	1
81260-12110B0	ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
81260-12110B0	NZE12#,ZZE123 LT.GRAY,TRIM1#	01/2001 - 09/2002	1
81260-12120B0	ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
81260A - LAMP ASSY, MAP
81260-12110B0	NZE12#,ZZE12# LT.GRAY,TRIM1#	09/2002 - 04/2004	1
81260-12120B0	NZE12#,ZZE123 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	01/2001 - 09/2002	1
81260-12120B0	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	09/2002 - 04/2004	1
81260-12110B0	ZZE12# LT.GRAY,TRIM1#	04/2004 - 09/2006	1
81260-12110B0	NZE12#,ZZE123 LT.GRAY,TRIM1#	01/2001 - 09/2002	1
81260-12120B0	ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#	04/2004 - 09/2006	1
81260C - BULB(FOR MAP LAMP)
90981-12014	NZE12#,ZZE123 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2001 - 09/2002	1
90981-12005	NZE12#,ZZE12# 12V 8W	09/2002 - 04/2004	2
90981-12014	NZE12#,ZZE12# 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2002 - 04/2004	1
90981-12014	NZE12#,ZZE12# 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	04/2004 - 09/2006	1
90981-12005	NZE12#,ZZE123 12V 8W	01/2001 - 09/2002	2
90981-12005	NZE12#,ZZE12# 12V 8W	04/2004 - 09/2006	2
81260C - BULB(FOR MAP LAMP)
90981-12014	NZE12#,ZZE123 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2001 - 09/2002	1
90981-12005	NZE12#,ZZE12# 12V 8W	09/2002 - 04/2004	2
90981-12014	NZE12#,ZZE12# 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2002 - 04/2004	1
90981-12014	NZE12#,ZZE12# 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	04/2004 - 09/2006	1
90981-12005	NZE12#,ZZE123 12V 8W	01/2001 - 09/2002	2
90981-12005	NZE12#,ZZE12# 12V 8W	04/2004 - 09/2006	2
81870D - LAMP ASSY, KEY CYLINDER
81870-12020	NZE12#,ZZE123	09/2002 - 04/2004	1
81870-12020	NZE12#,ZZE123	04/2004 - 09/2006	1
81870-12020	NZE12#,ZZE123	01/2001 - 09/2002	1
81870E - BULB, KEY CYLINDER LAMP
90010-01056	NZE12#,ZZE123 14V 1.4W	09/2002 - 04/2004	1
90010-01056	NZE12#,ZZE123 14V 1.4W	04/2004 - 09/2006	1
90010-01056	NZE12#,ZZE123 14V 1.4W	01/2001 - 09/2002	1
Common parts
93540-54014
Linked diagrams
7404

ZZE123-BHPQF (2001)

(0101-0609)
