Toyota Corolla runx/allex ZZE123 SIDE MEMBER

ZZE123-BHPQF (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 2ZZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

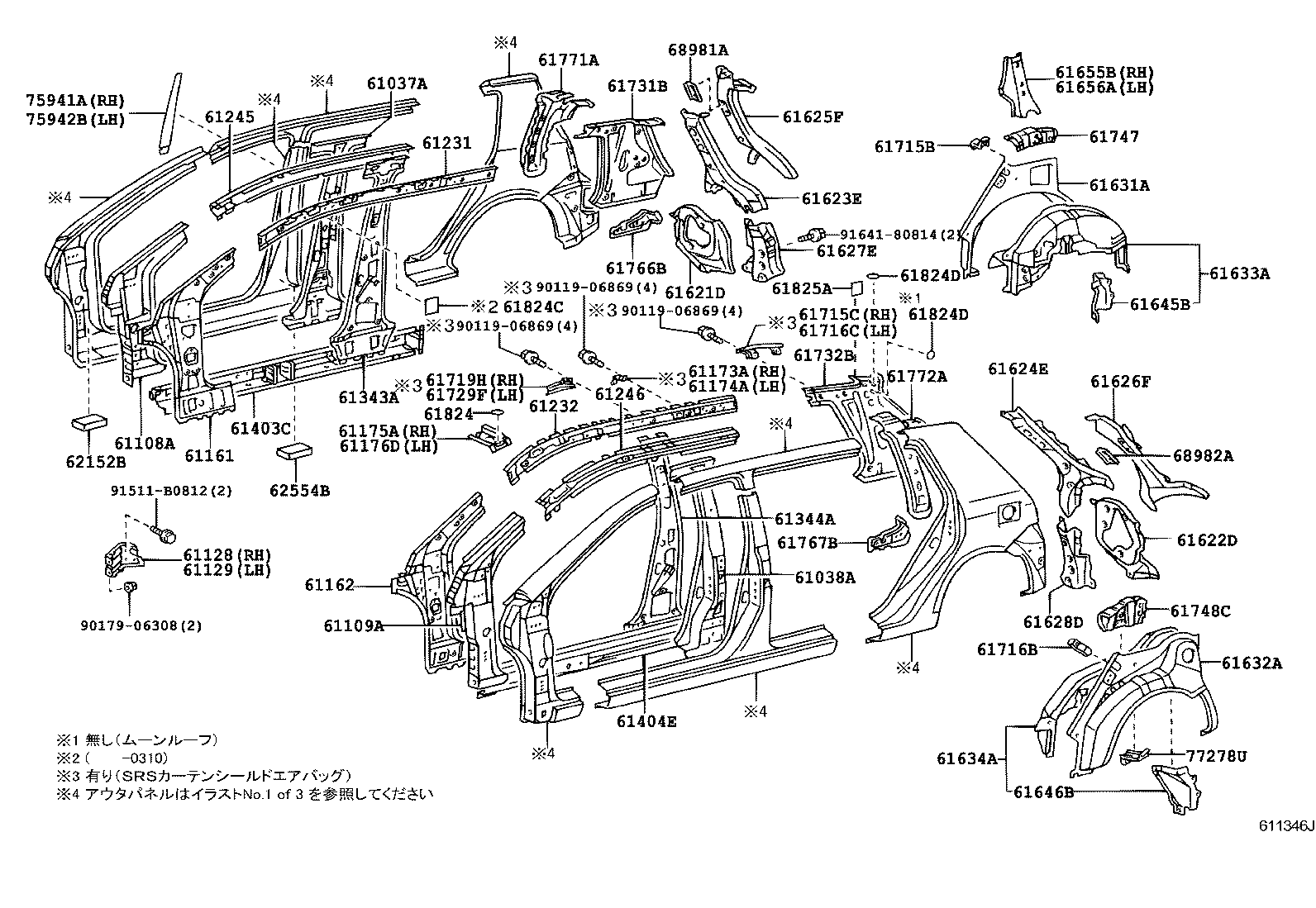

ILLUST NO. 2 OF 3(0101- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ

Part #	Description	Period	Qty
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-12903	NZE12#,ZZE123	01/2001 - 09/2002	1
61037-12903	NZE12#,ZZE12#	04/2004 - 09/2006	1
61037-12903	NZE12#,ZZE12#	09/2002 - 04/2004	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-12903	NZE12#,ZZE123	01/2001 - 10/2001	1
61038-12903	NZE12#,ZZE123	10/2001 - 09/2002	1
61038-12903	NZE12#,ZZE12#	09/2002 - 04/2004	1
61038-12903	NZE12#,ZZE12#	04/2004 - 09/2006	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-12230	NZE12#,ZZE123	10/2001 - 09/2002	1
61108-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61108-12230	NZE12#,ZZE12#	09/2002 - 04/2004	1
61108-12230	NZE12#,ZZE123	01/2001 - 10/2001	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-12220	NZE12#,ZZE123	01/2001 - 10/2001	1
61109-12220	NZE12#,ZZE12#	09/2002 - 04/2004	1
61109-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
61109-12220	NZE12#,ZZE123	10/2001 - 09/2002	1
61128 - REINFORCEMENT, COWL SIDE PANEL, RH
61103-12190	NZE12#,ZZE123	01/2001 - 09/2002	1
61103-12190	NZE12#,ZZE12#	09/2002 - 04/2004	1
61103-12200	NZE12#,ZZE12#	04/2004 - 09/2006	1
61129 - REINFORCEMENT, COWL SIDE PANEL, LH
61104-12220	NZE12#,ZZE123	01/2001 - 09/2002	1
61104-12230	NZE12#,ZZE12#	04/2004 - 09/2006	1
61104-12220	NZE12#,ZZE12#	09/2002 - 04/2004	1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61023-12350	NZE12#,ZZE12#	09/2002 - 04/2004	1
61023-12320	NZE12#,ZZE123	01/2001 - 09/2002	1
61023-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61024-12320	NZE12#,ZZE123	01/2001 - 09/2002	1
61024-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
61024-12350	NZE12#,ZZE12#	09/2002 - 04/2004	1
61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61173-12120	NZE12#,ZZE12#	04/2004 - 09/2006	1
61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61174-12120	NZE12#,ZZE12#	04/2004 - 09/2006	1
61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61175-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61175-12140	NZE12#,ZZE123	01/2001 - 09/2002	1
61175-12140	NZE12#,ZZE12#	09/2002 - 04/2004	1
61175-12200	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61176-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61176-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
61176-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
61176-12201	NZE12#,ZZE12# ｱﾘ(ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	04/2004 - 09/2006	1
61231 - RAIL, ROOF SIDE, INNER RH
61231-13221	NZE12#,ZZE12#	11/2002 - 04/2004	1
61231-13220	NZE12#,ZZE123	01/2001 - 09/2002	1
61231-13221	NZE12#,ZZE12#	04/2004 - 09/2006	1
61231-13220	NZE12#,ZZE12#	09/2002 - 11/2002	1
61232 - RAIL, ROOF SIDE, INNER LH
61232-13200	NZE12#,ZZE123	01/2001 - 09/2002	1
61232-13201	NZE12#,ZZE12#	11/2002 - 04/2004	1
61232-13200	NZE12#,ZZE12#	09/2002 - 11/2002	1
61232-13201	NZE12#,ZZE12#	04/2004 - 09/2006	1
61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61245-13050	NZE12#,ZZE123	10/2001 - 09/2002	1
61245-13050	NZE12#,ZZE123	01/2001 - 10/2001	1
61245-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61245-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61246-13050	NZE12#,ZZE123	01/2001 - 10/2001	1
61246-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61246-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61246-13050	NZE12#,ZZE123	10/2001 - 09/2002	1
61343A - PILLAR, CENTER BODY, INNER RH
61343-12240	NZE12#,ZZE123	01/2001 - 09/2002	1
61343-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61343-12240	NZE12#,ZZE12#	09/2002 - 04/2004	1
61344A - PILLAR, CENTER BODY, INNER LH
61344-12240	NZE12#,ZZE12#	04/2004 - 09/2006	1
61344-12240	NZE12#,ZZE12#	09/2002 - 04/2004	1
61344-12240	NZE12#,ZZE123	01/2001 - 09/2002	1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
61403-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
61403-12010	NZE12#,ZZE123	10/2001 - 09/2002	1
61403-12010	NZE12#,ZZE123	01/2001 - 10/2001	1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-12011	NZE12#,ZZE123	01/2001 - 08/2001	1
61404-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
61404-12011	NZE12#,ZZE123	08/2001 - 10/2001	1
61404-12011	NZE12#,ZZE12#	09/2002 - 04/2004	1
61404-12011	NZE12#,ZZE123	10/2001 - 09/2002	1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-13061	NZE12#,ZZE12#	04/2004 - 09/2006	1
61621-13060	NZE12#,ZZE12#	09/2002 - 07/2003	1
61621-13061	NZE12#,ZZE12#	07/2003 - 04/2004	1
61621-13060	NZE12#,ZZE123	01/2001 - 10/2001	1
61621-13060	NZE12#,ZZE123	10/2001 - 09/2002	1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-13060	NZE12#,ZZE123	01/2001 - 10/2001	1
61622-13061	NZE12#,ZZE12#	07/2003 - 04/2004	1
61622-13060	NZE12#,ZZE12#	09/2002 - 07/2003	1
61622-13060	NZE12#,ZZE123	10/2001 - 09/2002	1
61622-13061	NZE12#,ZZE12#	04/2004 - 09/2006	1
61623E - EXTENSION, QUARTER INNER PANEL, REAR RH
61623-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61623-13050	NZE12#,ZZE123	10/2001 - 09/2002	1
61623-13050	NZE12#,ZZE123	01/2001 - 10/2001	1
61623-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61624E - EXTENSION, QUARTER INNER PANEL, REAR LH
61624-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
61624-13040	NZE12#,ZZE123	10/2001 - 09/2002	1
61624-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
61624-13040	NZE12#,ZZE123	01/2001 - 10/2001	1
61625F - EXTENSION, QUARTER PANEL, UPPER RH
61625-13900	NZE12#,ZZE123	01/2001 - 10/2001	1
61625-13900	NZE12#,ZZE12#	04/2004 - 09/2006	1
61625-13900	NZE12#,ZZE12#	09/2002 - 04/2004	1
61625-13900	NZE12#,ZZE123	10/2001 - 09/2002	1
61626F - EXTENSION, QUARTER PANEL, UPPER LH
61626-13900	NZE12#,ZZE12#	04/2004 - 09/2006	1
61626-13900	NZE12#,ZZE123	01/2001 - 10/2001	1
61626-13900	NZE12#,ZZE123	10/2001 - 09/2002	1
61626-13900	NZE12#,ZZE12#	09/2002 - 04/2004	1
61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH
61627-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
61627-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
61627-13010	NZE12#,ZZE123	10/2001 - 09/2002	1
61627-13010	NZE12#,ZZE123	01/2001 - 10/2001	1
61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH
61628-13010	NZE12#,ZZE123	01/2001 - 10/2001	1
61628-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
61628-13010	NZE12#,ZZE123	10/2001 - 09/2002	1
61628-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12410	NZE12#,ZZE12#	09/2002 - 04/2004	1
61631-12410	NZE12#,ZZE12#	04/2004 - 09/2006	1
61631-12410	NZE12#,ZZE123	01/2001 - 09/2002	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12430	NZE12#,ZZE12#	04/2004 - 09/2006	1
61632-12430	NZE12#,ZZE123	01/2001 - 09/2002	1
61632-12430	NZE12#,ZZE12#	09/2002 - 04/2004	1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12928	NZE121,ZZE123	01/2001 - 09/2002	1
61607-12928	NZE121,ZZE122,123	04/2004 - 09/2006	1
61607-12928	NZE121,ZZE122,123	09/2002 - 04/2004	1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12926	NZE121,ZZE123	01/2001 - 09/2002	1
61608-12921	NZE121,ZZE122,123 ｱﾘ(ｵﾘﾀﾀﾐﾘﾔｼ-ﾄ)	09/2002 - 04/2004	1
61608-12926	NZE121,ZZE122,123 ｱﾘ(ﾘﾔｺﾃｲｼｷｼ-ﾄ)	09/2002 - 04/2004	1
61608-12926	NZE121,ZZE122,123	04/2004 - 09/2006	1
61608-12922	NZE121,ZZE122,123 ｱﾘ(ｵﾘﾀﾀﾐﾘﾔｼ-ﾄ & ABS)	09/2002 - 04/2004	1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
61645-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
61645-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-12140	NZE12#,ZZE123	01/2001 - 09/2002	1
61646-12140	NZE12#,ZZE12#	09/2002 - 04/2004	1
61646-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH
61655-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
61655-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
61655-13030	NZE12#,ZZE12#	04/2004 - 09/2006	1
61656A - GUSSET, QUARTER WHEEL HOUSE, INNER LH
61656-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
61656-13031	NZE12#,ZZE12#	04/2004 - 09/2006	1
61656-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
61715B - EXTENSION, ROOF SIDE, INNER FRONT RH
61715-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61715-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61715-13050	NZE12#,ZZE123	01/2001 - 09/2002	1
61715C - BRACKET, ROOF SIDE, RH
61715-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
61716B - EXTENSION, ROOF SIDE, INNER FRONT LH
61715-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61715-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61715-13050	NZE12#,ZZE123	01/2001 - 09/2002	1
61716C - BRACKET, ROOF SIDE, LH
61716-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61707-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61708-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
61731B - PANEL, ROOF SIDE, INNER RH
61731-13391	NZE12#,ZZE12#	09/2002 - 04/2004	1
61731-13391	NZE12#,ZZE12#	04/2004 - 09/2006	1
61731-13391	NZE121,ZZE123	01/2001 - 09/2002	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-13400	NZE121,ZZE123	10/2001 - 09/2002	1
61732-13400	NZE12#,ZZE12#	09/2002 - 04/2004	1
61732-13400	NZE121,ZZE123	01/2001 - 10/2001	1
61732-13400	NZE12#,ZZE12#	04/2004 - 09/2006	1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-13060	NZE12#,ZZE123	01/2001 - 09/2002	1
61747-13060	NZE12#,ZZE12#	09/2002 - 04/2004	1
61747-13060	NZE12#,ZZE12#	04/2004 - 09/2006	1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-13090	NZE12#,ZZE123	01/2001 - 09/2002	1
61748-13090	NZE12#,ZZE12#	04/2004 - 09/2006	1
61748-13090	NZE12#,ZZE12#	09/2002 - 04/2004	1
61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61766-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
61766-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
61766-13080	NZE121,ZZE123	10/2001 - 09/2002	1
61766-13080	NZE121,ZZE123	01/2001 - 10/2001	1
61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61767-13070	NZE12#,ZZE12#	04/2004 - 09/2006	1
61767-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
61767-13070	NZE121,ZZE123	01/2001 - 10/2001	1
61767-13070	NZE121,ZZE123	10/2001 - 09/2002	1
61771A - GUSSET, BACK WINDOW OPENING, RH
61771-13070	NZE12#,ZZE123	01/2001 - 09/2002	1
61771-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
61771-13070	NZE12#,ZZE12#	04/2004 - 09/2006	1
61772A - GUSSET, BACK WINDOW OPENING, LH
61772-13070	NZE12#,ZZE123	01/2001 - 09/2002	1
61772-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
61772-13070	NZE12#,ZZE12#	04/2004 - 09/2006	1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12060	NZE12#,ZZE12#	04/2004 - 09/2006	2
61824-12040	NZE12#,ZZE12#	09/2002 - 01/2004	2
61824-12060	NZE12#,ZZE12#	01/2004 - 04/2004	2
61824-12040	NZE12#,ZZE123	01/2001 - 09/2002	2
61824C - PAD, NOISE SHUTTER, NO.1
61824-50020	NZE12#,ZZE12#	09/2002 - 10/2003	2
61824-50020	NZE12#,ZZE123	01/2001 - 09/2002	2
61824D - PLATE, NOISE CONTROL, NO.1
61824-12040	NZE12#,ZZE123 ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2001 - 09/2002	4
61824-12040	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2002 - 01/2004	4
61824-12040	NZE12#,ZZE123	01/2001 - 09/2002	2
61824-12040	NZE12#,ZZE12#	09/2002 - 01/2004	2
61824-12060	NZE12#,ZZE12#	01/2004 - 04/2004	2
61824-12060	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	04/2004 - 09/2006	4
61824-12060	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2004 - 04/2004	4
61824-12060	NZE12#,ZZE12#	04/2004 - 09/2006	2
61824D - PLATE, NOISE CONTROL, NO.1
61824-12040	NZE12#,ZZE123 ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2001 - 09/2002	4
61824-12040	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2002 - 01/2004	4
61824-12040	NZE12#,ZZE123	01/2001 - 09/2002	2
61824-12040	NZE12#,ZZE12#	09/2002 - 01/2004	2
61824-12060	NZE12#,ZZE12#	01/2004 - 04/2004	2
61824-12060	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	04/2004 - 09/2006	4
61824-12060	NZE12#,ZZE12# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/2004 - 04/2004	4
61824-12060	NZE12#,ZZE12#	04/2004 - 09/2006	2
61825A - PLATE, NOISE CONTROL, NO.2
61815-28010	NZE12#,ZZE12#	01/2004 - 04/2004	2
61815-28010	NZE12#,ZZE12#	04/2004 - 09/2006	2
61815-32020	NZE12#,ZZE123	01/2001 - 09/2002	2
61815-32020	NZE12#,ZZE12#	09/2002 - 01/2004	2
62152B - PAD, COWL SIDE SILENCER, NO.2
62152-12050	NZE12#,ZZE12#	09/2002 - 04/2004	2
62152-12050	NZE12#,ZZE123	01/2001 - 09/2002	2
62152-12050	NZE12#,ZZE12#	04/2004 - 09/2006	2
62554B - PAD, PILLAR, NO.4
62554-12180	NZE12#,ZZE12#	09/2002 - 04/2004	2
62554-12180	NZE12#,ZZE123	01/2001 - 09/2002	2
62554-12180	NZE12#,ZZE12#	04/2004 - 09/2006	2
68981A - RETAINER, BACK DOOR STAY, RH
68981-13040	NZE12#,ZZE123	10/2001 - 09/2002	1
68981-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
68981-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
68981-13040	NZE12#,ZZE123	01/2001 - 10/2001	1
68982A - RETAINER, BACK DOOR STAY, LH
68981-13040	NZE12#,ZZE123	01/2001 - 10/2001	1
68981-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
68981-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
68981-13040	NZE12#,ZZE123	10/2001 - 09/2002	1
75941A - STRIPE, CENTER PILLAR, RH
75941-12010	NZE12#,ZZE12#	09/2002 - 05/2003	1
75941-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
75941-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
75941-12011	NZE12#,ZZE12#	05/2003 - 04/2004	1
75942B - STRIPE, CENTER PILLAR, LH
75942-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
75942-12011	NZE12#,ZZE12#	05/2003 - 04/2004	1
75942-12010	NZE12#,ZZE12#	09/2002 - 05/2003	1
75942-12011	NZE12#,ZZE12#	04/2004 - 09/2006	1
77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR
77278-32050	NZE12#,ZZE12#	09/2002 - 04/2004	1
77278-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77278-32050	NZE12#,ZZE123	01/2001 - 09/2002	1
Common parts
90119-06869
90179-06308
91511-B0812
91641-80814

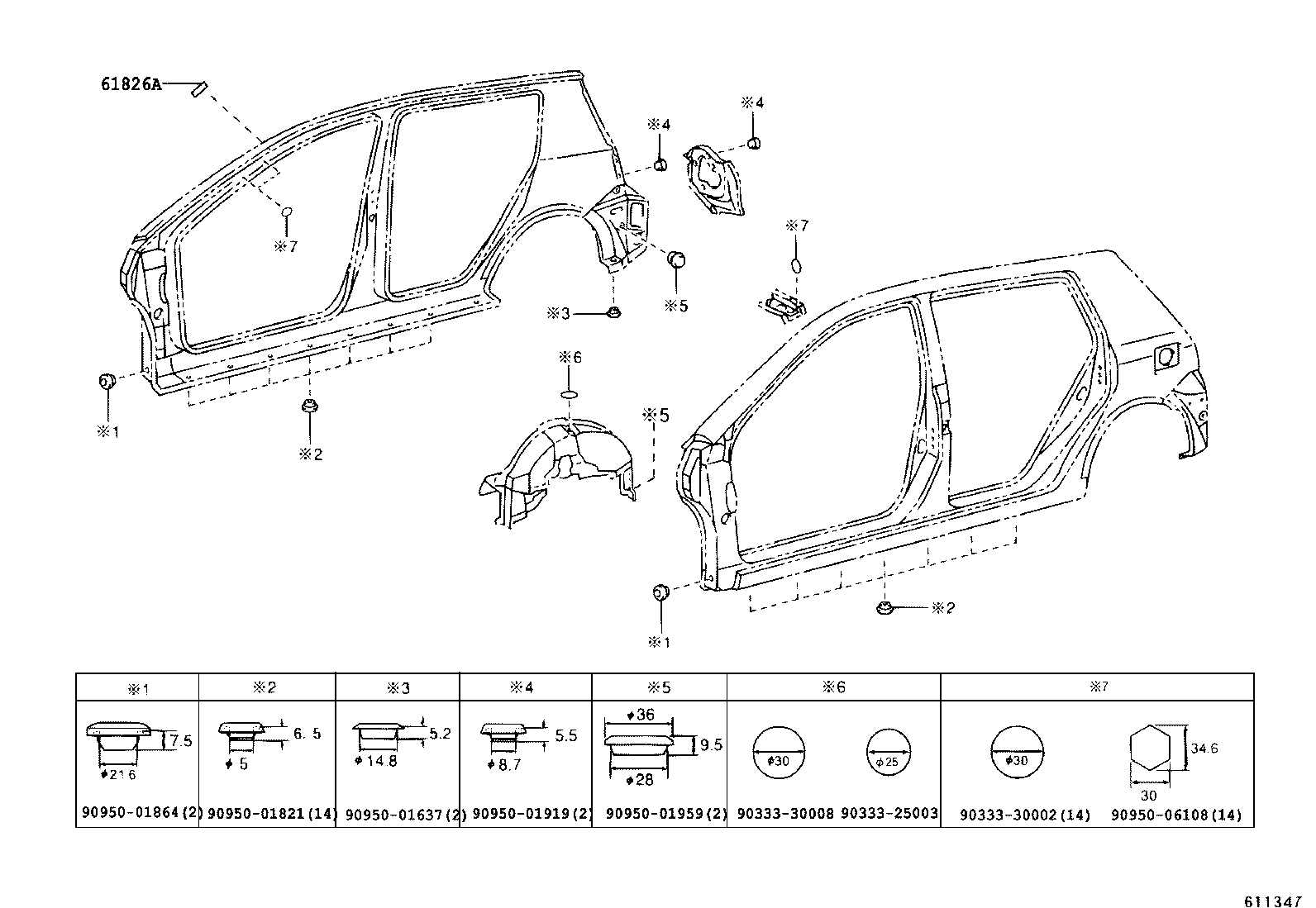

ILLUST NO. 3 OF 3(0101- )

Click highlighted areas on diagram

ﾌﾟﾗｸﾞﾎ-ﾙ

Part #	Description	Period	Qty
61826A - PLATE, NOISE CONTROL, NO.3
61826-52020	NZE12#,ZZE12#	01/2004 - 04/2004	2
61826-52020	NZE12#,ZZE12#	04/2004 - 09/2006	2
61826-12020	NZE12#,ZZE12#	09/2002 - 01/2004	2
Common parts
90333-25003
90333-30002
90333-30008
90950-01637
90950-01821
90950-01864
90950-01919
90950-01959
90950-06108

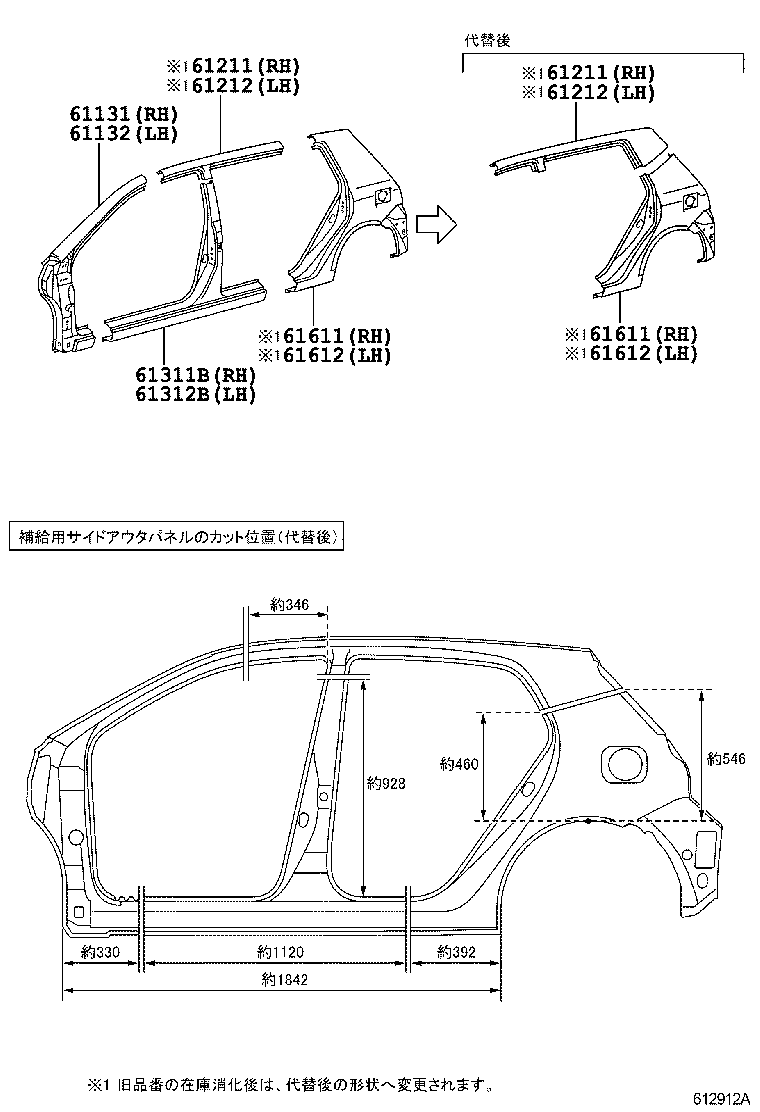

ILLUST NO. 1 OF 3(0101- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

Part #	Description	Period	Qty
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61131-13060	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61131-13060	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61131-13050	NZE12#,ZZE123	01/2001 - 09/2002	1
61131-13060	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61131-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-13060	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61132-13050	NZE12#,ZZE12#	09/2002 - 04/2004	1
61132-13060	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61132-13050	NZE12#,ZZE123	01/2001 - 09/2002	1
61132-13060	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61132-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
61211-13080	NZE12#,ZZE123	01/2001 - 09/2002	1
61211-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
61211-13080	NZE12#,ZZE123	01/2001 - 09/2002	1
61211-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-13080	NZE12#,ZZE123	01/2001 - 09/2002	1
61212-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
61212-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-13080	NZE12#,ZZE123	01/2001 - 09/2002	1
61212-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
61212-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-13040	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61311-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
61311-13040	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61311-13030	NZE12#,ZZE12#	04/2004 - 09/2006	1
61311-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
61311-13040	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-13040	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61312-13030	NZE12#,ZZE12#	04/2004 - 09/2006	1
61312-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
61312-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
61312-13040	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61312-13040	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61611 - PANEL, QUARTER, RH
61601-13550	NZE12#,ZZE12#	09/2002 - 04/2004	1
61601-13560	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61601-13550	NZE12#,ZZE123	01/2001 - 09/2002	1
61601-13560	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61601-13550	NZE12#,ZZE12#	04/2004 - 09/2006	1
61601-13560	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61611 - PANEL, QUARTER, RH
61601-13550	NZE12#,ZZE12#	09/2002 - 04/2004	1
61601-13560	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61601-13550	NZE12#,ZZE123	01/2001 - 09/2002	1
61601-13560	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61601-13550	NZE12#,ZZE12#	04/2004 - 09/2006	1
61601-13560	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61612 - PANEL, QUARTER, LH
61602-13610	NZE12#,ZZE12#	09/2002 - 04/2004	1
61602-13620	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61602-13610	NZE12#,ZZE123	01/2001 - 09/2002	1
61602-13610	NZE12#,ZZE12#	04/2004 - 09/2006	1
61602-13620	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61602-13620	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1
61612 - PANEL, QUARTER, LH
61602-13610	NZE12#,ZZE12#	09/2002 - 04/2004	1
61602-13620	NZE12#,ZZE123 ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	01/2001 - 09/2002	1
61602-13610	NZE12#,ZZE123	01/2001 - 09/2002	1
61602-13610	NZE12#,ZZE12#	04/2004 - 09/2006	1
61602-13620	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	09/2002 - 04/2004	1
61602-13620	NZE12#,ZZE12# ｱﾘ(ｻｲﾄﾞﾏﾂﾄﾞｶﾞ-ﾄﾞ)	04/2004 - 09/2006	1

ZZE123-BHPQF (2001)

ILLUST NO. 2 OF 3(0101- )

ILLUST NO. 3 OF 3(0101- )

ILLUST NO. 1 OF 3(0101- )

Part Price Details
