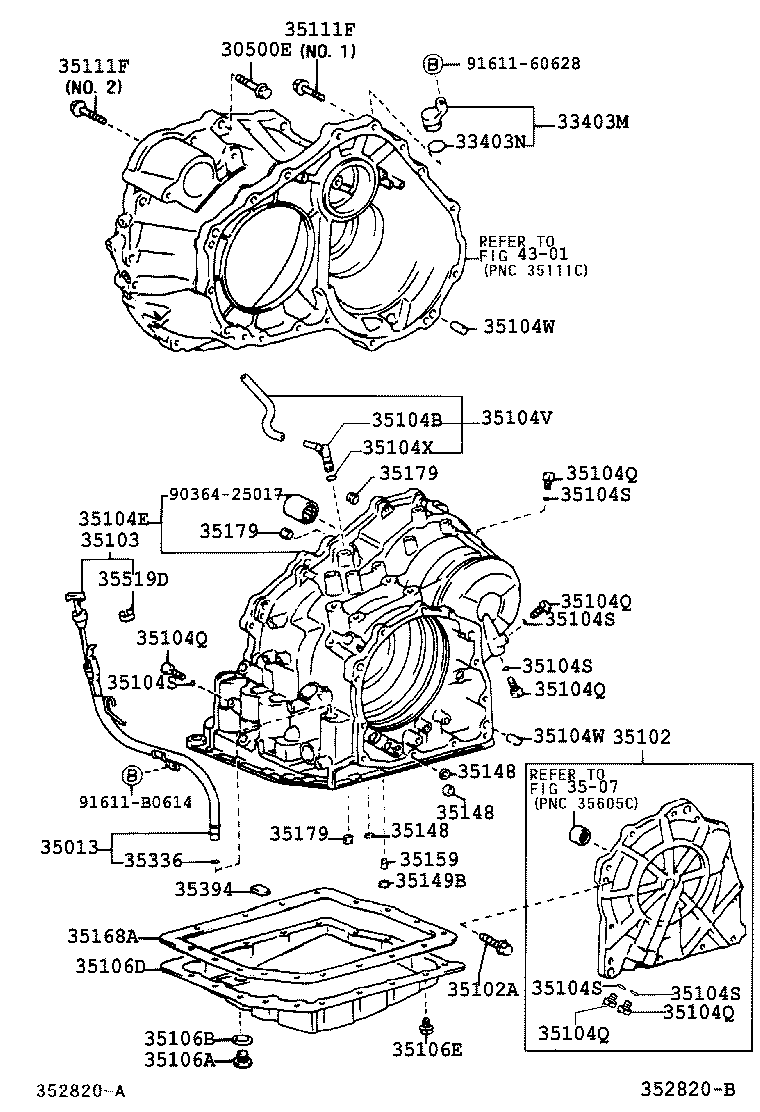

Toyota Corolla runx/allex ZZE123 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168	ZZE123..4FC *12−1.25PX55−30	01/2001 - 09/2002	2
90119-12168	ZZE12#..4FC *12−1.25PX55−30	09/2002 - 04/2004	2
91642-81055	ZZE12#..4FC *10−1.25PX55−30	04/2004 - 09/2006	2
91642-81055	ZZE12#..4FC *10−1.25PX55−30	09/2002 - 04/2004	2
90119-12168	ZZE12#..4FC *12−1.25PX55−30	04/2004 - 09/2006	2
91642-81055	ZZE123..4FC *10−1.25PX55−30	01/2001 - 09/2002	2
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-20230	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
33403-20230	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
33403-20230	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24018	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
96711-24018	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
96711-24018	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12470	ZZE123..4FC	01/2001 - 09/2002	1
35013-12470	ZZE123..4FC	04/2004 - 09/2006	1
35013-12470	ZZE123..4FC	09/2002 - 04/2004	1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-32010	ZZE123..4FC	04/2004 - 09/2006	1
35102-32010	ZZE123..4FC	09/2002 - 04/2004	1
35102-32010	ZZE123..4FC	01/2001 - 09/2002	1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08071	ZZE123..4FC *8−1.25PX30−25	04/2004 - 09/2006	11
90105-08071	ZZE123..4FC *8−1.25PX30−25	01/2001 - 09/2002	11
90105-08071	ZZE123..4FC *8−1.25PX30−25	09/2002 - 04/2004	11
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20440	ZZE123..4FC	01/2001 - 09/2002	1
35103-20440	ZZE123..4FC	09/2002 - 04/2004	1
35103-20440	ZZE123..4FC	04/2004 - 09/2006	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03164	ZZE123..4FC	04/2004 - 09/2006	1
90930-03164	ZZE123..4FC	09/2002 - 04/2004	1
90930-03164	ZZE123..4FC	01/2001 - 09/2002	1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-32080	ZZE123..4FC	01/2001 - 09/2002	1
35104-32080	ZZE123..4FC	09/2002 - 04/2004	1
35104-32080	ZZE123..4FC	04/2004 - 09/2006	1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE123..4FC	01/2001 - 09/2002	2
90341-08001	ZZE123..4FC	04/2004 - 09/2006	8
90341-08001	ZZE123..4FC	09/2002 - 04/2004	8
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE123..4FC	01/2001 - 09/2002	2
90341-08001	ZZE123..4FC	04/2004 - 09/2006	8
90341-08001	ZZE123..4FC	09/2002 - 04/2004	8
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE123..4FC	01/2001 - 09/2002	2
90341-08001	ZZE123..4FC	04/2004 - 09/2006	8
90341-08001	ZZE123..4FC	09/2002 - 04/2004	8
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE123..4FC	01/2001 - 09/2002	2
90341-08001	ZZE123..4FC	04/2004 - 09/2006	8
90341-08001	ZZE123..4FC	09/2002 - 04/2004	8
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001	ZZE123..4FC	01/2001 - 09/2002	2
90341-08001	ZZE123..4FC	04/2004 - 09/2006	8
90341-08001	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196	ZZE123..4FC	04/2004 - 09/2006	8
90301-06196	ZZE123..4FC	01/2001 - 09/2002	2
90301-06196	ZZE123..4FC	09/2002 - 04/2004	8
35104V - HOSE (FOR BREATHER PLUG)
35012-13010	ZZE123..4FC	09/2002 - 04/2004	1
35012-13010	ZZE123..4FC	01/2001 - 09/2002	1
35012-13010	ZZE123..4FC	04/2004 - 09/2006	1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10036	ZZE123..4FC	01/2001 - 09/2002	4
90250-10036	ZZE123..4FC	09/2002 - 04/2004	4
90250-10036	ZZE123..4FC	04/2004 - 09/2006	4
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10036	ZZE123..4FC	01/2001 - 09/2002	4
90250-10036	ZZE123..4FC	09/2002 - 04/2004	4
90250-10036	ZZE123..4FC	04/2004 - 09/2006	4
35104X - RING, O (FOR BREATHER PLUG)
90301-06005	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
90301-06005	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
90301-06005	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
90341-18016	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
90341-18016	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
90430-18008	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
90430-18008	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-21020	ZZE123..4FC	01/2001 - 02/2001	1
35106-33030	ZZE123..4FC	09/2002 - 04/2004	1
35106-33030	ZZE123..4FC	02/2001 - 09/2002	1
35106-33030	ZZE123..4FC	04/2004 - 09/2006	1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173	ZZE123..4FC	04/2004 - 09/2006	18
90119-06173	ZZE123..4FC	09/2002 - 04/2004	18
90119-06173	ZZE123..4FC	01/2001 - 09/2002	18
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08233	ZZE123..4FC *8−1.25PX42−30,NO.1	01/2001 - 09/2002	7
90105-08353	ZZE123..4FC *8−1.25PX50−30	04/2004 - 09/2006	9
90105-08233	ZZE123..4FC *8−1.25PX42−30,NO.1	09/2002 - 04/2004	7
90105-08233	ZZE123..4FC *8−1.25PX42−30	04/2004 - 09/2006	7
90105-08353	ZZE123..4FC *8−1.25PX50−30,NO.2	01/2001 - 09/2002	9
90105-08353	ZZE123..4FC *8−1.25PX50−30,NO.2	09/2002 - 04/2004	9
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08233	ZZE123..4FC *8−1.25PX42−30,NO.1	01/2001 - 09/2002	7
90105-08353	ZZE123..4FC *8−1.25PX50−30	04/2004 - 09/2006	9
90105-08233	ZZE123..4FC *8−1.25PX42−30,NO.1	09/2002 - 04/2004	7
90105-08233	ZZE123..4FC *8−1.25PX42−30	04/2004 - 09/2006	7
90105-08353	ZZE123..4FC *8−1.25PX50−30,NO.2	01/2001 - 09/2002	9
90105-08353	ZZE123..4FC *8−1.25PX50−30,NO.2	09/2002 - 04/2004	9
35148 - GASKET, GOVERNOR APPLY, NO.1
35145-21010	ZZE123..4FC	01/2001 - 09/2002	3
35145-21010	ZZE123..4FC	04/2004 - 09/2006	3
35145-21010	ZZE123..4FC	09/2002 - 04/2004	3
35148 - GASKET, GOVERNOR APPLY, NO.1
35145-21010	ZZE123..4FC	01/2001 - 09/2002	3
35145-21010	ZZE123..4FC	04/2004 - 09/2006	3
35145-21010	ZZE123..4FC	09/2002 - 04/2004	3
35148 - GASKET, GOVERNOR APPLY, NO.1
35145-21010	ZZE123..4FC	01/2001 - 09/2002	3
35145-21010	ZZE123..4FC	04/2004 - 09/2006	3
35145-21010	ZZE123..4FC	09/2002 - 04/2004	3
35149B - GASKET, TRANSAXLE CASE 2ND BRAKE
35149-21010	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
35149-21010	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
35149-21010	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
35159 - GASKET, BRAKE DRUM
35159-21010	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
35159-21010	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
35159-21010	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-21010	ZZE123..4FC	01/2001 - 05/2002	1
35168-21020	ZZE123..4FC	08/2003 - 04/2004	1
35168-21011	ZZE123..4FC	05/2002 - 09/2002	1
35168-21011	ZZE123..4FC	09/2002 - 08/2003	1
35168-21020	ZZE123..4FC	04/2004 - 09/2006	1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
35179-32010	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
35179-32010	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
35179 - GASKET, OVERDRIVE BRAKE
35179-32010	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
35179-32010	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
35179-32010	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
35179 - GASKET, OVERDRIVE BRAKE
35179-32010	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
35179-32010	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
35179-32010	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
90301-09173	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
90301-09173	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
35394-30011	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
35394-30011	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	NZE121,ZZE122,123..4FC	04/2004 - 09/2006	1
35519-20030	NZE121,ZZE123..4FC	01/2001 - 09/2002	1
35519-20030	NZE121,ZZE122,123..4FC	09/2002 - 04/2004	1
Common parts
90364-25017
91611-60628
91611-B0614
Linked diagrams
3507
4301

ZZE123-BHPQF (2001)

(0101- )ZZE123..4FC
