Toyota Corolla runx/allex ZZE123 CAUTION PLATE (EXTERIOR & INTERIOR)

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
ZZE123-BHFQF (2001)
7403 - CAUTION PLATE (EXTERIOR & INTERIOR)

ZZE123-BHFQF (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 2ZZGE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

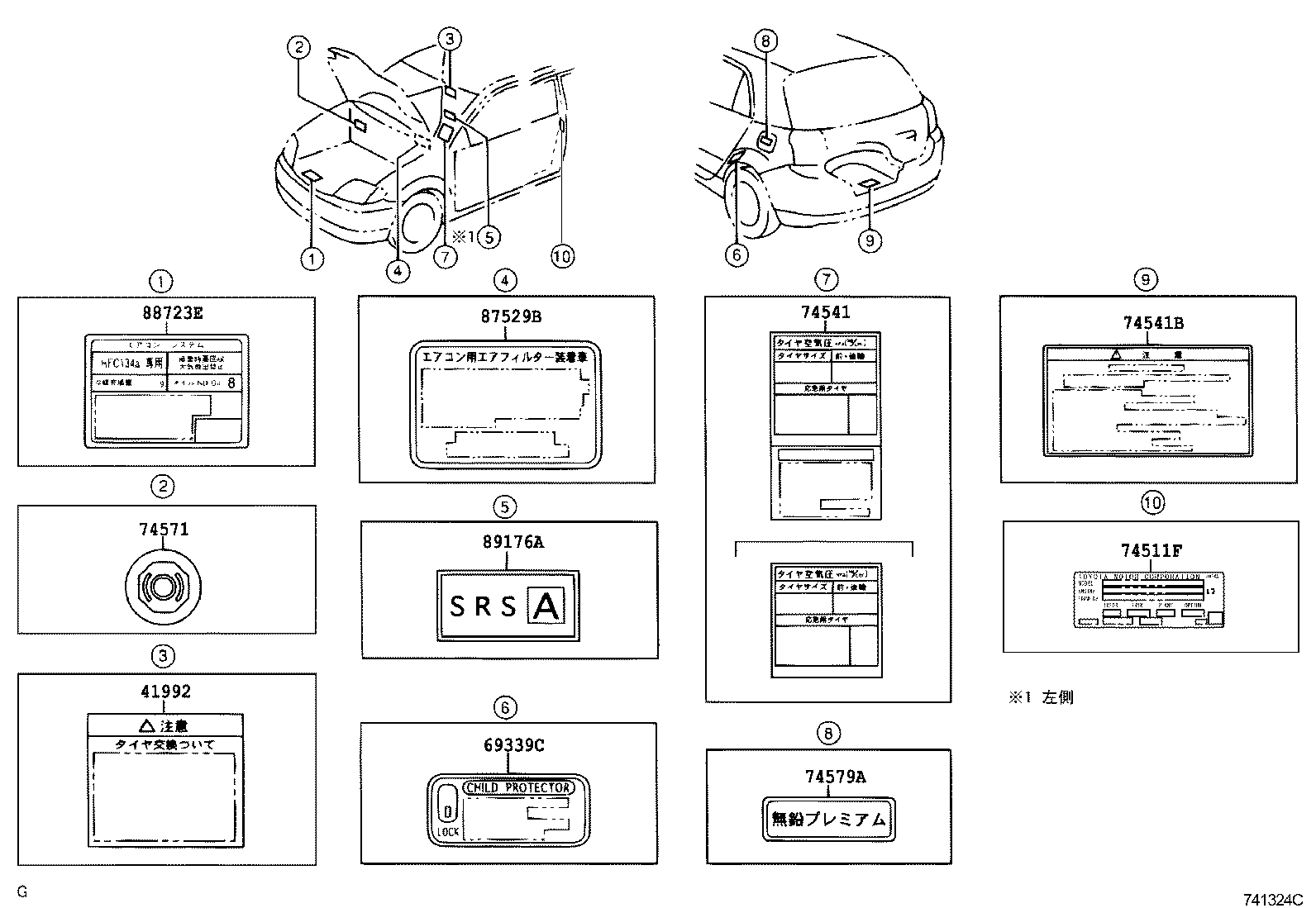

ILLUST NO. 2 OF 2(0101-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010	NZE12#,ZZE12#	09/2002 - 04/2004	2
69339-12010	NZE12#,ZZE12#	04/2004 - 09/2006	2
69339-12010	NZE12#,ZZE123	01/2001 - 09/2002	2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300	NZE12#,ZZE12# *111	04/2004 - 09/2006	1
74511-2B300	NZE12#,ZZE12# *111	03/2004 - 04/2004	1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1E140	ZZE123	01/2001 - 09/2002	1
42661-1E340	ZZE123	09/2002 - 04/2004	1
42661-1E340	ZZE123	04/2004 - 09/2006	1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060	NZE12#,ZZE123	01/2001 - 09/2002	1
42668-28060	NZE12#,ZZE12#	09/2002 - 04/2004	1
42668-28060	NZE12#,ZZE12#	04/2004 - 09/2006	1
74562B - LABEL, EMISSION INFORMATION
74562-40040	NZE12#,ZZE123	01/2001 - 09/2002	1
74562-40040	ZZE123	04/2004 - 09/2006	1
74562-40040	ZZE123	09/2002 - 04/2004	1
74571 - PLATE, BRAKE FLUID CAUTION
47287-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
47287-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
47287-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010	ZZE123	01/2001 - 09/2002	1
74579-24010	ZZE123	09/2002 - 04/2004	1
74579-24010	ZZE123	04/2004 - 09/2006	1
75341C - PLATE, HOOD NAME
75341-20060	NZE12#,ZZE123	01/2001 - 09/2002	1
75341-20060	NZE12#,ZZE12#	09/2002 - 04/2004	1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020	NZE12#,ZZE123	01/2001 - 09/2002	1
87529-50020	NZE12#,ZZE12#	09/2002 - 04/2004	1
87529-50020	NZE12#,ZZE12#	04/2004 - 09/2006	1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060	NZE12#,ZZE123	01/2001 - 08/2001	1
88723-42050	NZE12#,ZZE123	08/2001 - 02/2002	1
88733-12010	NZE12#,ZZE123	02/2002 - 09/2002	1
88733-17010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88733-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89176-32010	NZE12#,ZZE123	01/2001 - 09/2002	1
89176-32010	NZE12#,ZZE12#	04/2004 - 09/2006	1

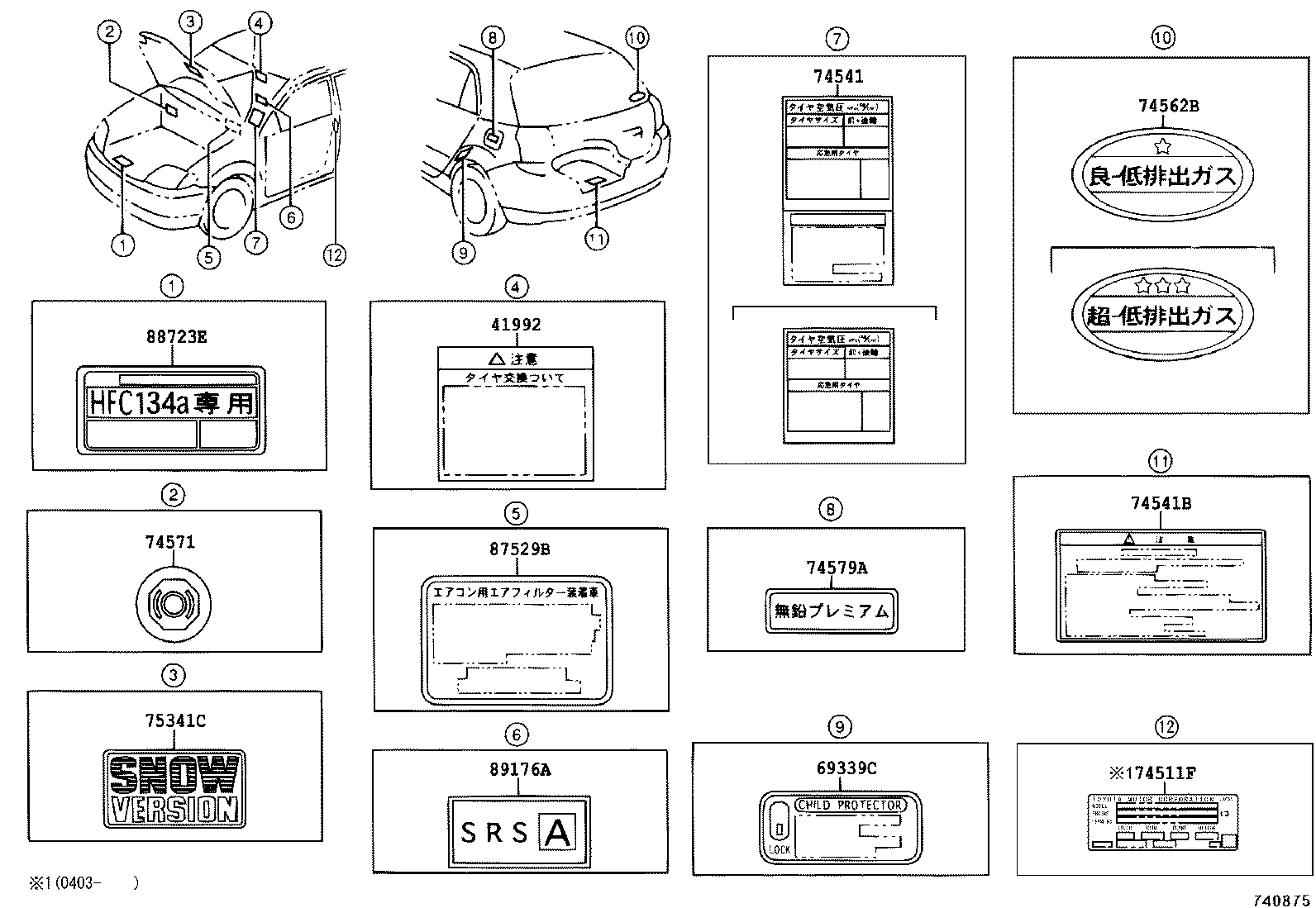

ILLUST NO. 2 OF 2(0404-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010	NZE12#,ZZE12#	09/2002 - 04/2004	2
69339-12010	NZE12#,ZZE12#	04/2004 - 09/2006	2
69339-12010	NZE12#,ZZE123	01/2001 - 09/2002	2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1E140	ZZE123	01/2001 - 09/2002	1
42661-1E340	ZZE123	09/2002 - 04/2004	1
42661-1E340	ZZE123	04/2004 - 09/2006	1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060	NZE12#,ZZE123	01/2001 - 09/2002	1
42668-28060	NZE12#,ZZE12#	09/2002 - 04/2004	1
42668-28060	NZE12#,ZZE12#	04/2004 - 09/2006	1
74571 - PLATE, BRAKE FLUID CAUTION
47287-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
47287-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
47287-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010	ZZE123	01/2001 - 09/2002	1
74579-24010	ZZE123	09/2002 - 04/2004	1
74579-24010	ZZE123	04/2004 - 09/2006	1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020	NZE12#,ZZE123	01/2001 - 09/2002	1
87529-50020	NZE12#,ZZE12#	09/2002 - 04/2004	1
87529-50020	NZE12#,ZZE12#	04/2004 - 09/2006	1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060	NZE12#,ZZE123	01/2001 - 08/2001	1
88723-42050	NZE12#,ZZE123	08/2001 - 02/2002	1
88733-12010	NZE12#,ZZE123	02/2002 - 09/2002	1
88733-17010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88733-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89176-32010	NZE12#,ZZE123	01/2001 - 09/2002	1
89176-32010	NZE12#,ZZE12#	04/2004 - 09/2006	1

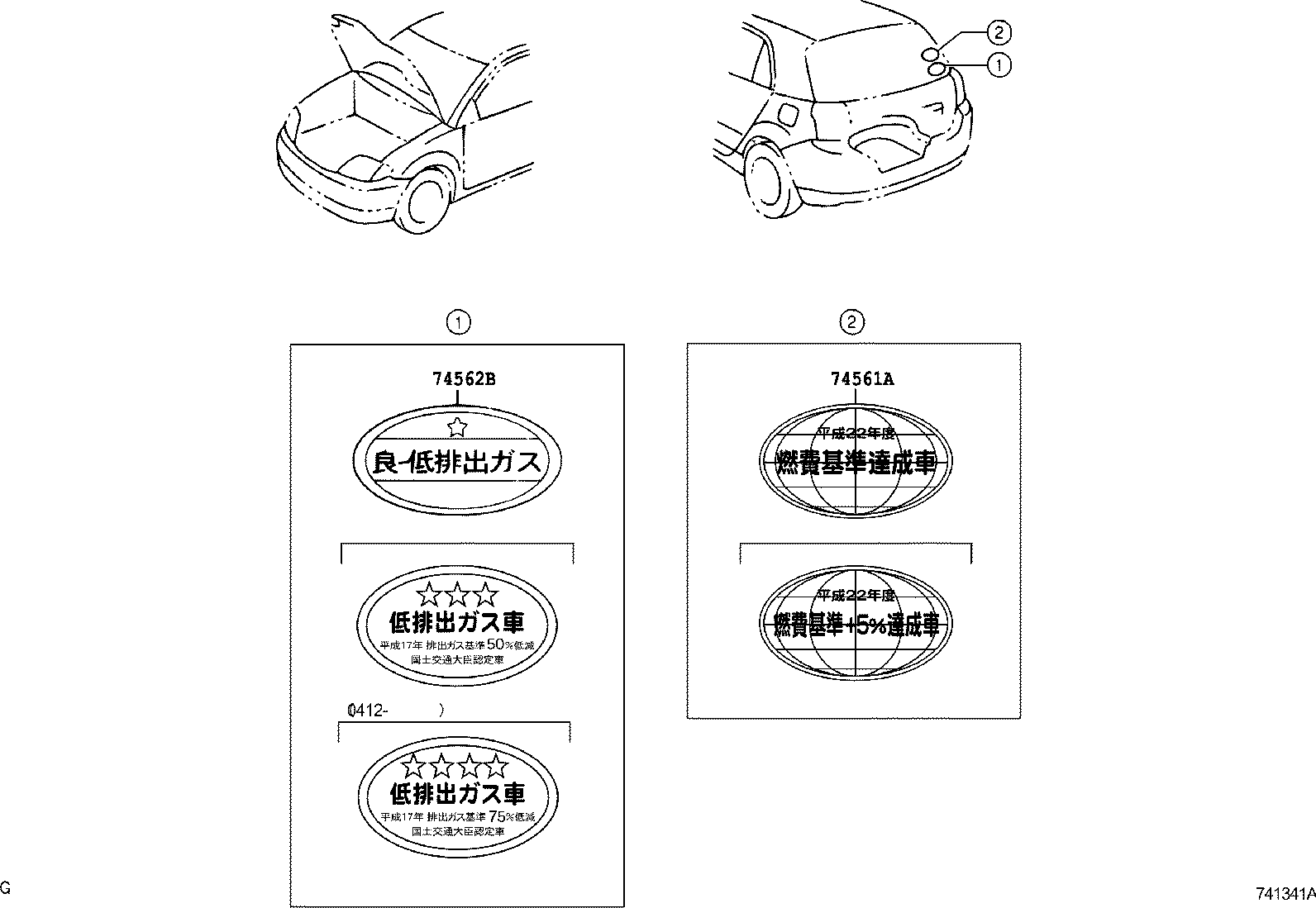

ILLUST NO. 2 OF 2(0404-0609)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74562B - LABEL, EMISSION INFORMATION
74562-40040	NZE12#,ZZE123	01/2001 - 09/2002	1
74562-40040	ZZE123	04/2004 - 09/2006	1
74562-40040	ZZE123	09/2002 - 04/2004	1

ILLUST NO. 1 OF 2(0101- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-22021	2ZZGE..ZZE123	05/2002 - 09/2002	1
11296-22020	2ZZGE..ZZE123	01/2001 - 05/2002	1
11296-22021	2ZZGE..ZZE123	09/2002 - 04/2004	1
11296-22021	2ZZGE..ZZE123	04/2004 - 09/2006	1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-22021	2ZZGE..ZZE123	05/2002 - 09/2002	1
11296-22020	2ZZGE..ZZE123	01/2001 - 05/2002	1
11296-22021	2ZZGE..ZZE123	09/2002 - 04/2004	1
11296-22021	2ZZGE..ZZE123	04/2004 - 09/2006	1
16793E - LABEL, COOLING FAN CAUTION
16793-46010	1NZFE,2ZZGE..NZE12#,ZZE123	01/2001 - 09/2002	1
16793-46010	1NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	09/2002 - 04/2004	1
16793-46010	1NZFE,1ZZFE,2ZZGE..NZE12#,ZZE12#	04/2004 - 09/2006	1
