Toyota Corolla runx/allex ZZE123 ANTENNA

Part #	Description	Period	Qty

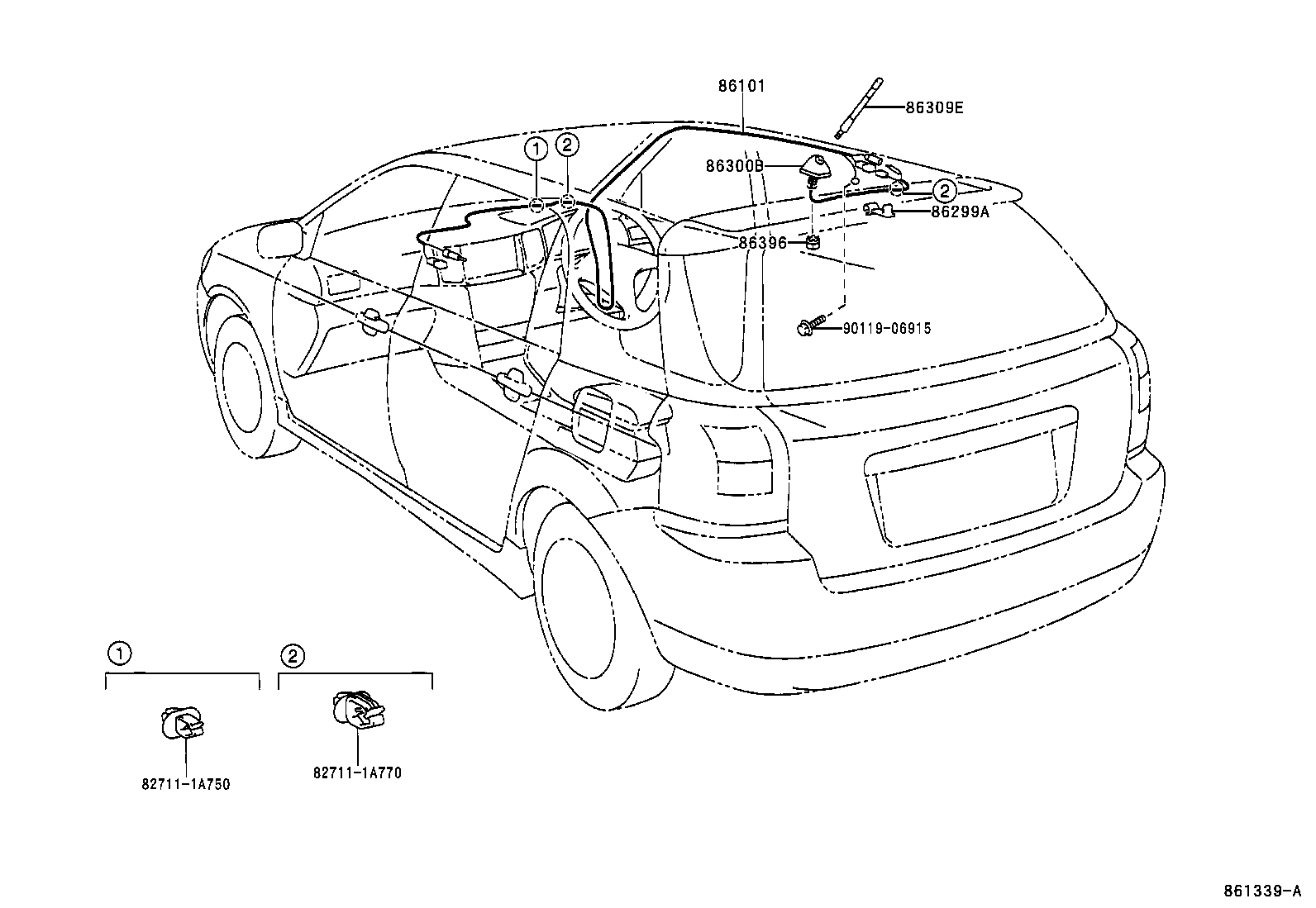

86101 - CORD SUB-ASSY, ANTENNA
86101-12301	NZE12#,ZZE123	01/2001 - 09/2002	1
86101-12300	NZE12#,ZZE12#	09/2002 - 10/2002	1
86101-12301	NZE12#,ZZE12#	04/2004 - 09/2006	1
86101-12301	NZE12#,ZZE12#	10/2002 - 04/2004	1
86299A - CLIP, RADIO TO ANTENNA WIRE
86299-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
86299-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
86299-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12770	NZE12#,ZZE12#	09/2002 - 04/2004	1
86300-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
86300-12770	NZE12#,ZZE123	01/2001 - 09/2002	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
86309-20310	NZE12#,ZZE12#	04/2004 - 09/2006	1
86309-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
86396 - NUT, ANTENNA
86396-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
86396-20040	NZE12#,ZZE12#	04/2004 - 09/2006	1
86396-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
Common parts
82711-1A750
82711-1A770
90119-06915

Part #	Description	Period	Qty

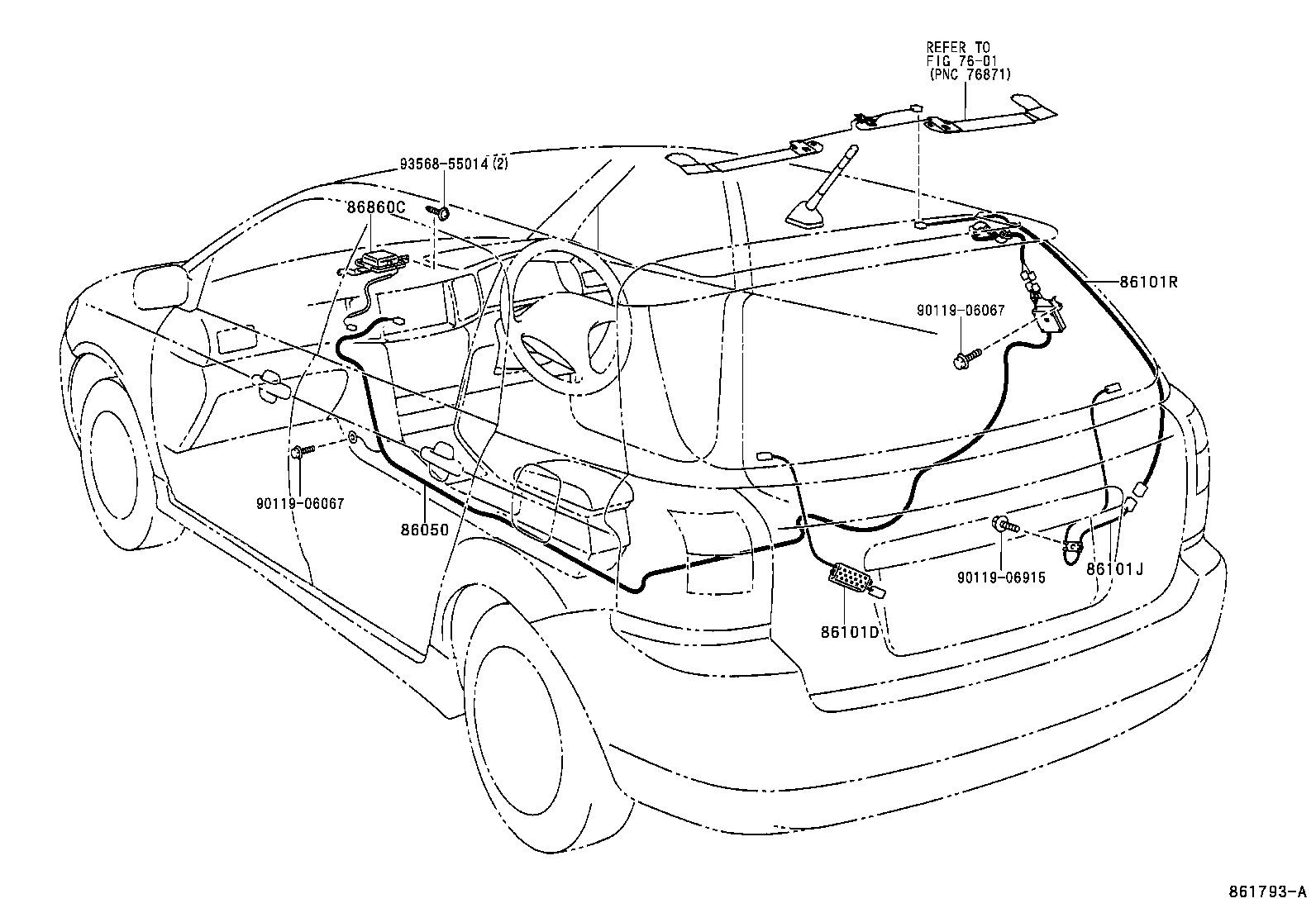

86050 - ANTENNA ASSY, TELEVISION
86050-12020	NZE12#,ZZE12#	09/2002 - 04/2004	1
86050-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-12360	NZE12#,ZZE12#	09/2002 - 04/2004	1
86101-12360	NZE12#,ZZE12#	04/2004 - 09/2006	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-12370	NZE12#,ZZE12#	09/2002 - 04/2004	1
86101-12370	NZE12#,ZZE12#	04/2004 - 09/2006	1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-12350	NZE12#,ZZE12#	09/2002 - 04/2004	1
86101-12350	NZE12#,ZZE12#	04/2004 - 09/2006	1
86860C - ANTENNA ASSY, NAVIGATION
86860-12050	NZE12#,ZZE12# ｱﾘ(DVD ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	09/2003 - 04/2004	1
86860-13030	NZE12#,ZZE12# ｱﾘ(DVD ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	09/2002 - 09/2003	1
86860-12050	NZE12#,ZZE12# ｱﾘ(DVD ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	04/2004 - 09/2006	1
Common parts
90119-06067
90119-06915
93568-55014
Linked diagrams
7601

ZZE123-AHPQF (2001)
