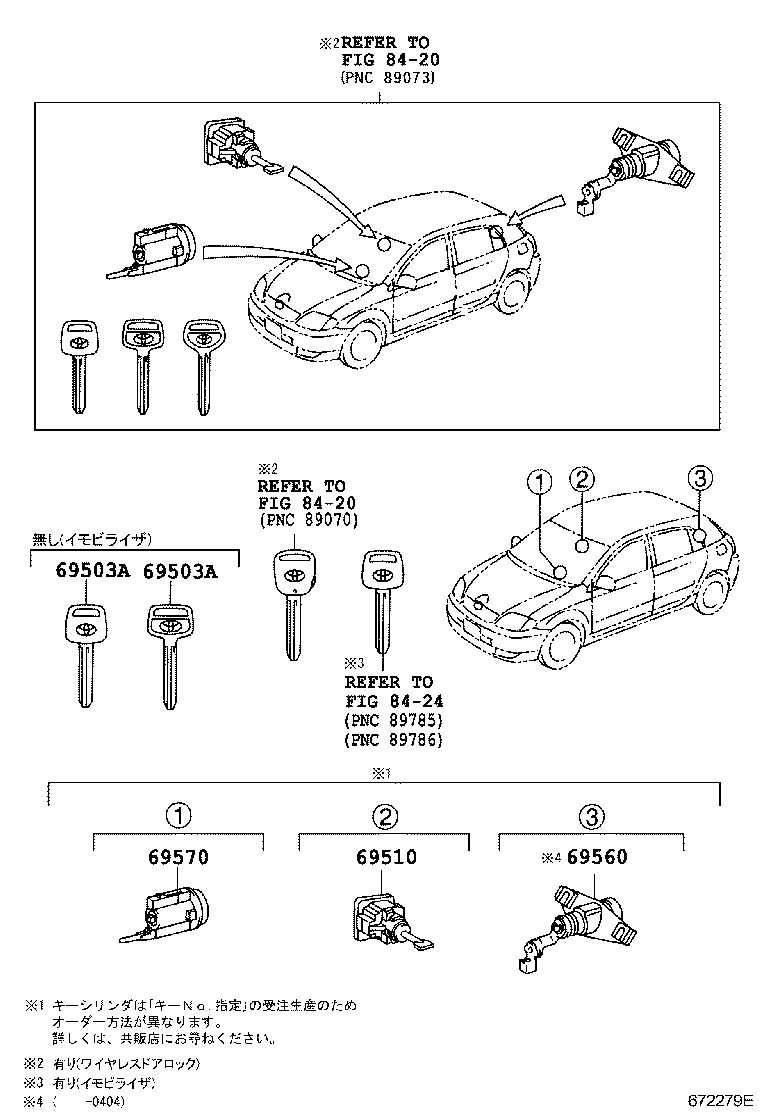

Toyota Corolla runx/allex ZZE123 LOCK CYLINDER SET

Part #	Description	Period	Qty
69503A - KEY, BLANK
90999-00186	NZE12#,ZZE123 ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	01/2001 - 12/2001	1
90999-00199	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2004 - 09/2006	1
90999-00186	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	09/2002 - 04/2004	1
90999-00186	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2004 - 09/2006	1
90999-00199	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	09/2002 - 04/2004	1
90999-00199	NZE12#,ZZE123 ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	01/2001 - 09/2002	1
69503A - KEY, BLANK
90999-00186	NZE12#,ZZE123 ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	01/2001 - 12/2001	1
90999-00199	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2004 - 09/2006	1
90999-00186	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	09/2002 - 04/2004	1
90999-00186	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2004 - 09/2006	1
90999-00199	NZE12#,ZZE12# ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	09/2002 - 04/2004	1
90999-00199	NZE12#,ZZE123 ﾏｽﾀｰｷｰ,*68付き,ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)	01/2001 - 09/2002	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-12310	NZE12#,ZZE12#	09/2002 - 04/2004	1
69510-12310	NZE12#,ZZE123	01/2001 - 09/2002	1
69510-12310	NZE12#,ZZE12#	04/2004 - 09/2006	1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-13130	NZE12#,ZZE123	01/2001 - 09/2002	1
69560-13130	NZE12#,ZZE12#	09/2002 - 04/2004	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12190	NZE12#,ZZE12#	09/2002 - 04/2004	1
69570-12190	NZE12#,ZZE12#	04/2004 - 09/2006	1
69570-12190	NZE12#,ZZE123	01/2001 - 09/2002	1
Linked diagrams
8420
8424

ZZE123-AHPQF (2001)

(0101-0609)
