Toyota Corolla runx/allex ZZE123 FUEL TANK & TUBE

ZZE123-AHFQF (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 2ZZGE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

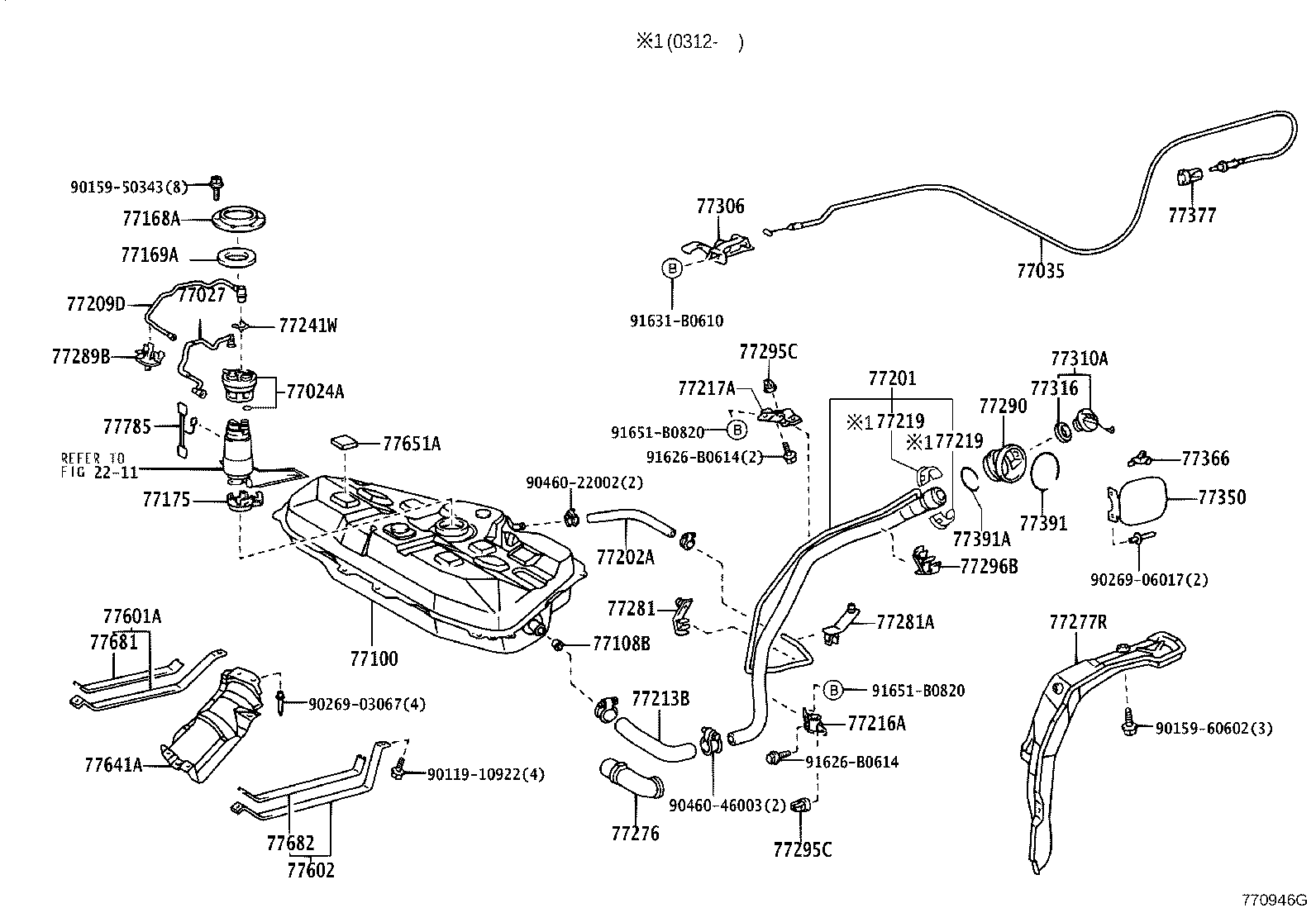

ILLUST NO. 1 OF 2(0101- )NZE121,ZZE122,123

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-12010	NZE121,ZZE123	01/2001 - 09/2002	1
77024-12010	NZE121,ZZE122,123	09/2002 - 04/2004	1
77024-12010	NZE121,ZZE122,123	04/2004 - 11/2005	1
77024-12010	NZE121,ZZE122,123	11/2005 - 09/2006	1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-12020	NZE121,ZZE123	01/2001 - 09/2002	1
77027-12020	NZE121,ZZE122,123	11/2005 - 09/2006	1
77027-12020	NZE121,ZZE122,123	04/2004 - 11/2005	1
77027-12020	NZE121,ZZE122,123	09/2002 - 04/2004	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12400	NZE12#,ZZE12#	04/2004 - 09/2006	1
77035-12400	NZE12#,ZZE123	01/2001 - 09/2002	1
77035-12400	NZE12#,ZZE12#	09/2002 - 04/2004	1
77100 - TANK ASSY, FUEL
77001-12820	NZE121,ZZE122,123	09/2002 - 02/2003	1
77001-12830	NZE121,ZZE122,123	02/2003 - 04/2004	1
77001-12820	NZE121,ZZE123	01/2001 - 09/2002	1
77001-12830	NZE121,ZZE122,123	04/2004 - 10/2005	1
77001-12C40	ZZE122,123	11/2005 - 09/2006	1
77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK
77108-12040	NZE121,ZZE122,123	09/2002 - 04/2004	1
77108-12040	NZE121,ZZE123	01/2001 - 09/2002	1
77108-12040	NZE121,ZZE122,123	04/2004 - 09/2006	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52010	NZE121,ZZE122,123	04/2004 - 11/2005	1
77168-52010	NZE121,ZZE123	01/2001 - 09/2002	1
77168-52010	NZE121,ZZE122,123	09/2002 - 04/2004	1
77168-52010	NZE121,ZZE122,123	11/2005 - 09/2006	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020	NZE121,ZZE123	01/2001 - 09/2002	1
77169-33020	NZE12#,ZZE123	09/2002 - 04/2004	1
77169-33020	NZE121,ZZE122,123	11/2005 - 09/2006	1
77169-33020	NZE121,ZZE122,123	04/2004 - 11/2005	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-47010	NZE121,ZZE123	01/2001 - 09/2002	1
77175-47010	NZE121,ZZE122,123	09/2002 - 04/2004	1
77175-47010	NZE121,ZZE122,123	11/2005 - 09/2006	1
77175-47010	NZE121,ZZE122,123	04/2004 - 11/2005	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12580	NZE12#,ZZE123	01/2001 - 09/2002	1
77201-12591	NZE12#,ZZE12#	04/2004 - 09/2006	1
77201-12580	NZE12#,ZZE12#	09/2002 - 04/2004	1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13034	NZE121,ZZE123 長さ=340	01/2001 - 09/2002	1
95313-13034	NZE121,ZZE122,123 長さ=340	04/2004 - 09/2006	1
95313-13034	NZE121,ZZE122,123 長さ=340	09/2002 - 04/2004	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-12160	NZE121,ZZE123	01/2001 - 09/2002	1
77209-12160	NZE121,ZZE122,123	11/2005 - 09/2006	1
77209-12160	NZE121,ZZE122,123	04/2004 - 11/2005	1
77209-12160	NZE121,ZZE122,123	09/2002 - 04/2004	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-32090	NZE121,ZZE122,123	09/2002 - 04/2004	1
77213-32090	NZE121,ZZE123	01/2001 - 09/2002	1
77213-32090	NZE121,ZZE122,123	04/2004 - 09/2006	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-32060	NZE12#,ZZE123	01/2001 - 09/2002	1
77216-32060	NZE12#,ZZE12#	09/2002 - 04/2004	1
77216-32060	NZE12#,ZZE12#	04/2004 - 09/2006	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77217-32050	NZE12#,ZZE123	01/2001 - 09/2002	1
77217-32050	NZE12#,ZZE12#	09/2002 - 04/2004	1
77219 - COVER, FUEL TANK FILLER PIPE
77219-52050	NZE12#,ZZE12#	12/2003 - 04/2004	2
77219-52050	NZE12#,ZZE12#	04/2004 - 09/2006	2
77219 - COVER, FUEL TANK FILLER PIPE
77219-52050	NZE12#,ZZE12#	12/2003 - 04/2004	2
77219-52050	NZE12#,ZZE12#	04/2004 - 09/2006	2
77241W - CLIP, TUBE JOINT
77241-33011	NZE121,ZZE123	01/2001 - 09/2002	1
77241-33011	NZE12#,ZZE12#	09/2002 - 04/2004	1
77241-33011	NZE121,ZZE122,123	04/2004 - 11/2005	1
77241-33011	NZE121,ZZE122,123	11/2005 - 09/2006	1
77276 - PROTECTOR, FUEL HOSE
77276-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
77276-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77276-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
77277-12170	NZE12#,ZZE12#	09/2002 - 04/2004	1
77277-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-32040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281-32040	NZE12#,ZZE12#	09/2002 - 04/2004	1
77281-32040	NZE12#,ZZE123	01/2001 - 09/2002	1
77281A - CLAMP, FUEL FILLER PIPE
77281-12070	NZE12#,ZZE12#	04/2004 - 09/2006	1
77281-12070	NZE12#,ZZE12#	09/2002 - 04/2004	1
77281-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-12030	NZE121,ZZE122,123	04/2004 - 11/2005	1
77289-12030	NZE121,ZZE123	01/2001 - 09/2002	1
77289-12030	NZE121,ZZE122,123	09/2002 - 04/2004	1
77289-12030	NZE121,ZZE122,123	11/2005 - 09/2006	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
77291-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
77291-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
77295C - GROMMET, FUEL TUBE
77295-12070	NZE12#,ZZE123	01/2001 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77295-12070	NZE12#,ZZE12#	09/2002 - 04/2004	2
77295C - GROMMET, FUEL TUBE
77295-12070	NZE12#,ZZE123	01/2001 - 09/2002	2
77295-12070	NZE12#,ZZE12#	04/2004 - 09/2006	2
77295-12070	NZE12#,ZZE12#	09/2002 - 04/2004	2
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-12030	NZE12#,ZZE12#	04/2004 - 09/2006	1
77296-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
77296-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-13020	NZE12#,ZZE123	01/2001 - 09/2002	1
77306-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
77306-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
77310A - CAP ASSY, FUEL TANK
77310-48010	NZE12#,ZZE123	01/2001 - 09/2002	1
77310-48010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77310-48010	NZE12#,ZZE12#	09/2002 - 04/2004	1
77316 - GASKET, FUEL TANK CAP
77316-16010	NZE12#,ZZE123	01/2001 - 09/2002	1
77316-16010	NZE12#,ZZE12#	09/2002 - 04/2004	1
77316-16010	NZE12#,ZZE12#	04/2004 - 09/2006	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-13080	NZE12#,ZZE12#	09/2002 - 04/2004	1
77350-13080	NZE12#,ZZE123	01/2001 - 09/2002	1
77350-13080	NZE12#,ZZE12#	04/2004 - 09/2006	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30080	NZE12#,ZZE12#	04/2004 - 09/2006	1
77360-30080	NZE12#,ZZE12#	09/2002 - 04/2004	1
77360-30080	NZE12#,ZZE123	01/2001 - 09/2002	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
77377-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
77377-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
77391 - RING, FUEL INLET BOX
77391-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
77391-12040	NZE12#,ZZE12#	09/2002 - 04/2004	1
77391-12040	NZE12#,ZZE123	01/2001 - 09/2002	1
77391A - RING, FUEL INLET BOX
77391-12020	NZE12#,ZZE12#	09/2002 - 04/2004	1
77391-12020	NZE12#,ZZE123	01/2001 - 09/2002	1
77391-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-12230	NZE121,ZZE123	01/2001 - 09/2002	1
77601-12230	NZE121,ZZE122,123	09/2002 - 04/2004	1
77601-12230	NZE121,ZZE122,123	04/2004 - 09/2006	1
77602 - CASE SUB-ASSY, FUEL TANK, UPPER
77602-12180	NZE121,ZZE122,123	09/2002 - 04/2004	1
77602-12180	NZE121,ZZE123	01/2001 - 09/2002	1
77602-12180	NZE121,ZZE122,123	04/2004 - 09/2006	1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-12160	NZE121,ZZE123	01/2001 - 09/2002	1
77641-12160	NZE121,ZZE122,123	09/2002 - 04/2004	1
77641-12160	NZE121,ZZE122,123	04/2004 - 09/2006	1
77651A - CUSHION, FUEL TANK, NO.1
77651-20090	NZE121,ZZE122,123	04/2004 - 09/2006	7
77651-20090	NZE121,ZZE123	01/2001 - 09/2002	7
77651-20090	NZE121,ZZE122,123	09/2002 - 04/2004	7
77681 - SEAT, FUEL TANK BAND, RH
77681-34030	NZE121,ZZE123	01/2001 - 09/2002	1
77681-34030	NZE121,ZZE122,123	04/2004 - 09/2006	1
77681-34030	NZE121,ZZE122,123	09/2002 - 04/2004	1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060	NZE121,ZZE123	01/2001 - 09/2002	1
77681-32060	NZE121,ZZE122,123	09/2002 - 04/2004	1
77681-32060	NZE121,ZZE122,123	04/2004 - 09/2006	1
77785 - HARNESS, FUEL PUMP
77785-52020	NZE12#,ZZE12#	09/2002 - 04/2004	1
77785-52020	NZE121,ZZE122,123	04/2004 - 11/2005	1
77785-52020	NZE121,ZZE122,123	11/2005 - 09/2006	1
77785-52020	NZE121,ZZE123	01/2001 - 09/2002	1
Common parts
90119-10922
90159-50343
90159-60602
90269-03067
90269-06017
90460-22002
90460-46003
91626-B0614
91631-B0610
91651-B0820
Linked diagrams
2211

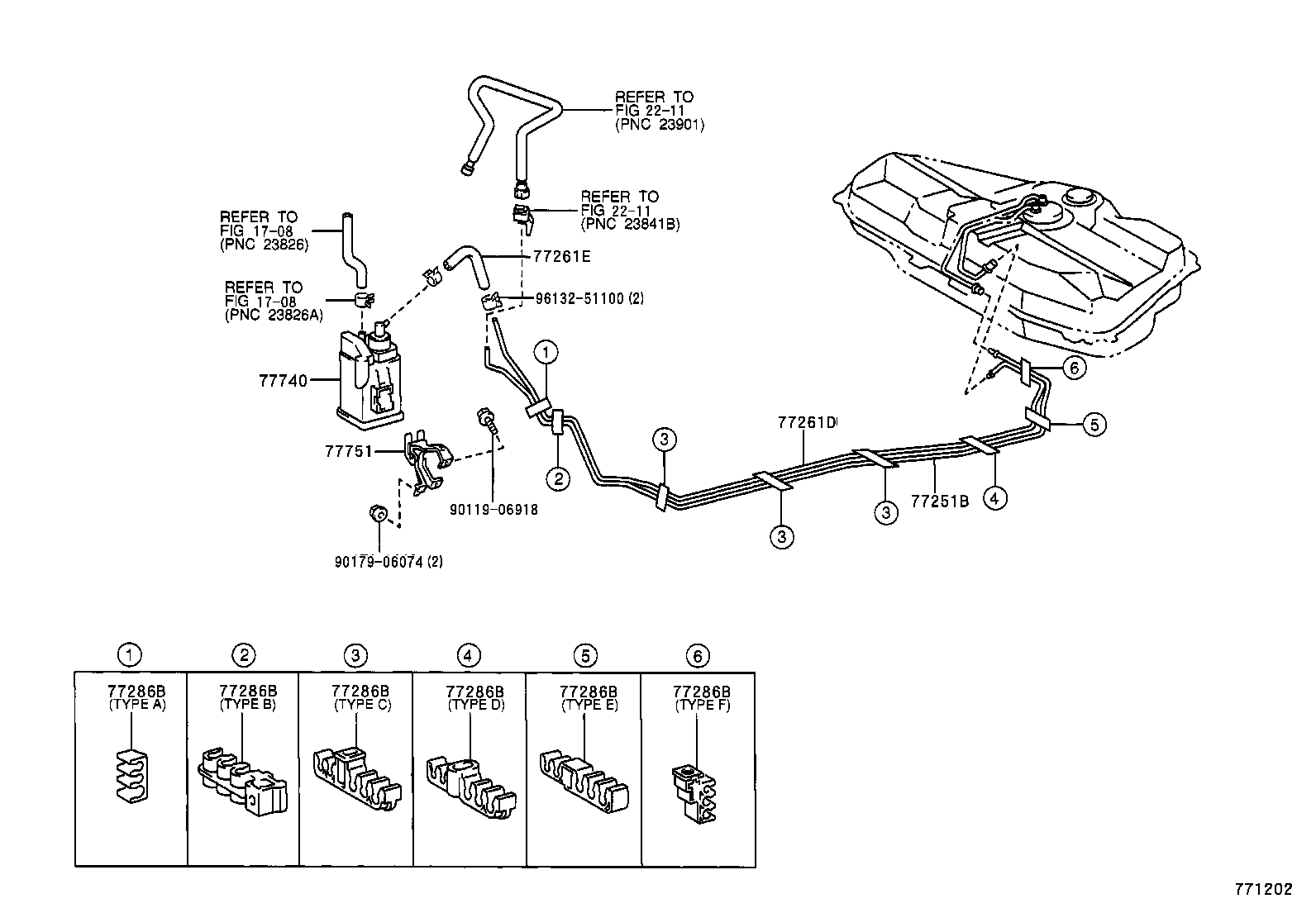

ILLUST NO. 2 OF 2(0101- )NZE121,ZZE122,123

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12640	NZE121,ZZE123	01/2001 - 09/2002	1
77251-12660	NZE121,ZZE122,123	04/2004 - 09/2006	1
77251-12640	NZE121,ZZE122,123	09/2002 - 04/2004	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12440	NZE121,ZZE122,123	09/2002 - 04/2004	1
77261-12440	NZE121,ZZE123	01/2001 - 09/2002	1
77261-12460	NZE121,ZZE122,123	04/2004 - 09/2006	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95337-06013	NZE12#,ZZE12# 長さ=130	09/2002 - 04/2004	1
95337-06013	NZE12#,ZZE12# 長さ=130	04/2004 - 09/2006	1
95337-06013	NZE12#,ZZE123 長さ=130	01/2001 - 09/2002	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-47020	NZE12#,ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77286-12060	NZE121,ZZE123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77289-20060	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE12#,ZZE123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12100	NZE12#,ZZE123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
77298-12060	NZE121,ZZE122,123 TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77286-47020	NZE121,ZZE122,123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77289-20060	NZE121,ZZE122,123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE121,ZZE122,123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	3
77298-12100	NZE121,ZZE122,123 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
77298-20080	NZE12#,ZZE123 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	3
77286-12060	NZE121,ZZE122,123 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77289-20060	NZE12#,ZZE12# TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12100	NZE12#,ZZE12# TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-12060	NZE12#,ZZE12# TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77298-20080	NZE12#,ZZE12# TYPE C:ｲﾗｽﾄ参照	04/2004 - 09/2006	3
77286-47020	NZE12#,ZZE12# TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
77740 - CANISTER ASSY, CHARCOAL
77740-12690	NZE12#,ZZE12#	04/2004 - 09/2004	1
77740-12710	NZE12#,ZZE12#	10/2004 - 09/2006	1
77740-12690	NZE12#,ZZE12#	09/2002 - 04/2004	1
77740-12690	NZE12#,ZZE123	01/2001 - 09/2002	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12170	ZZE123..6F	01/2001 - 09/2002	1
77750-12170	ZZE123..6F	09/2002 - 04/2004	1
77750-12170	ZZE123..6F	04/2004 - 09/2006	1
Common parts
90119-06918
90179-06074
96132-51100
Linked diagrams
1708
2211

ZZE123-AHFQF (2001)

ILLUST NO. 1 OF 2(0101- )NZE121,ZZE122,123

ILLUST NO. 2 OF 2(0101- )NZE121,ZZE122,123

Part Price Details
