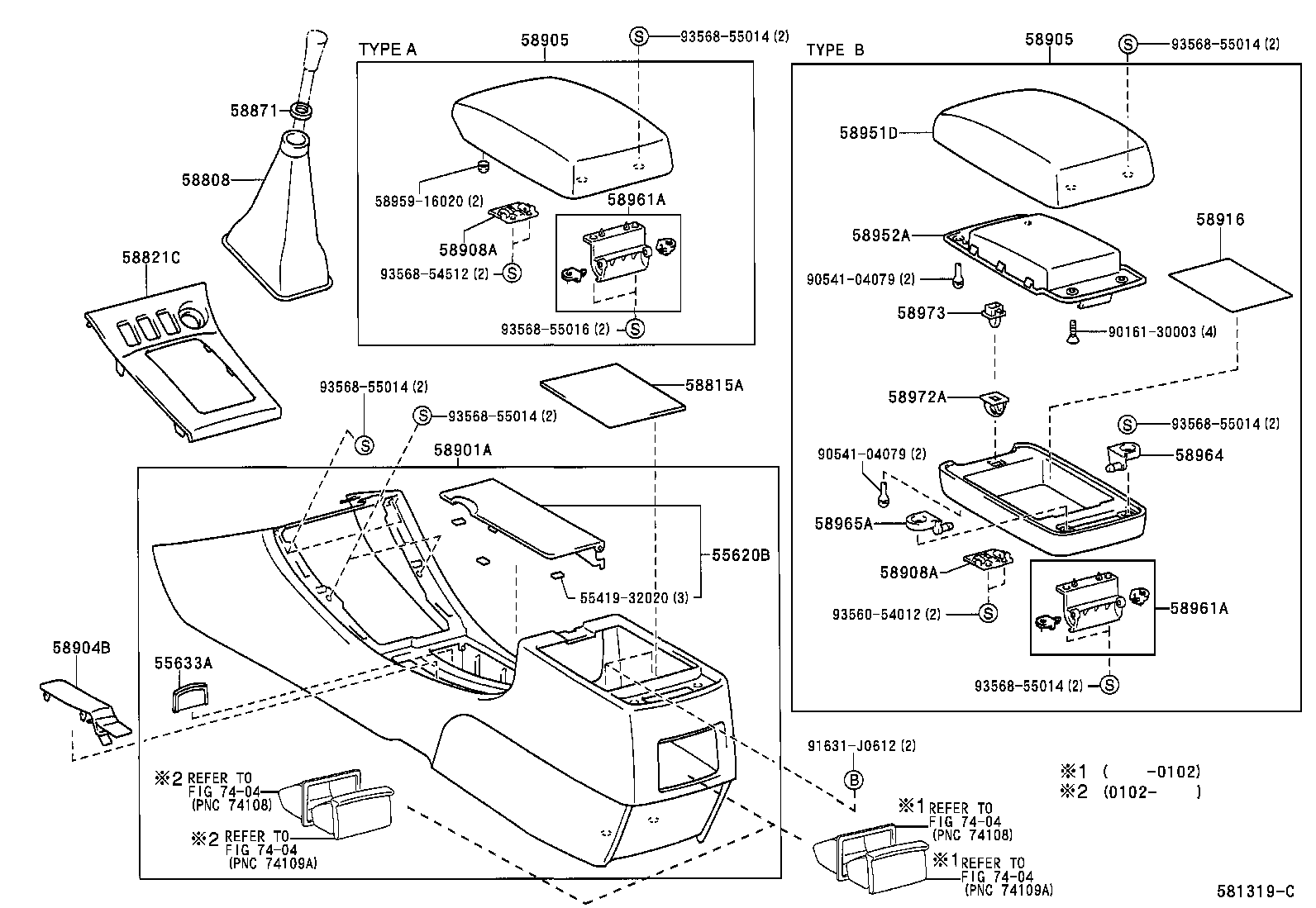

Toyota Corolla runx/allex ZZE123 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-12090B1	NZE12#,ZZE123 DK.GRAY,TRIM1#	01/2001 - 09/2002	1
55620-12090B1	ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
55620-12090B1	NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12090B1	NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	3
55633-12090B1	ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	3
55633-12090B1	NZE12#,ZZE123 DK.GRAY,TRIM1#	01/2001 - 09/2002	3
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12250B0	ZZE123..6F DK.GRAY,TRIM1#	07/2002 - 09/2002	1
58808-12250B0	ZZE123..6F DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58808-12250B0	ZZE123..6F DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58808-12190B0	ZZE123..6F DK.GRAY,TRIM1#	01/2001 - 07/2002	1
58815A - CARPET, CONSOLE BOX
58815-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
58815-12060	NZE12#,ZZE123	01/2001 - 09/2002	1
58815-12060	NZE12#,ZZE12#	09/2002 - 04/2004	1
58821C - PANEL, CONSOLE, UPPER
58821-12100E0	ZZE123 SILVER,TRIM18	01/2001 - 09/2002	1
58821-12100B0	ZZE123 DARK GRAY,TRIM18	01/2001 - 09/2002	1
58821-12110B2	ZZE12# GRAY,TRIM1#	04/2004 - 09/2006	1
58821-12110B0	ZZE12# ﾓｸﾒ,GRAY,TRIM1#	09/2002 - 04/2004	1
58871 - CUSHION, CONSOLE BOX
58871-20060	ZZE123..6F	04/2004 - 09/2006	1
58871-20060	ZZE123..6F	01/2001 - 07/2002	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12441B1	NZE12#,ZZE123 DK.GRAY,TRIM1#	02/2001 - 09/2002	1
58901-12490B0	NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58901-12421B1	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ,DK.GRAY,TRIM1#	02/2001 - 09/2002	1
58901-12420B1	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ,DK.GRAY,TRIM1#	01/2001 - 02/2001	1
58901-12440B1	NZE12#,ZZE123 DK.GRAY,TRIM1#	01/2001 - 02/2001	1
58901-12490B0	ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58901-12500B0	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58901-12500B0	ZZE12# ｶﾝﾚｲﾁｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-12050B1	NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58904-12050B1	NZE12#,ZZE123 DK.GRAY,TRIM1#	01/2001 - 09/2002	1
58904-12050B1	ZZE12# DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	01/2001 - 09/2002	1
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	01/2001 - 09/2002	1
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58905-12390B2	ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	NZE12#,ZZE12#	09/2002 - 04/2004	1
58908-33030	NZE12#,ZZE123	01/2001 - 09/2002	1
58908-33030	NZE12#,ZZE12#	04/2004 - 09/2006	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	NZE12#,ZZE12#	09/2002 - 04/2004	1
58908-33030	NZE12#,ZZE123	01/2001 - 09/2002	1
58908-33030	NZE12#,ZZE12#	04/2004 - 09/2006	1
58916 - MAT, BOX BOTTOM
58916-12080	NZE12#,ZZE12#	09/2002 - 04/2004	1
58916-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
58916-12080	NZE12#,ZZE123	01/2001 - 09/2002	1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-12240B2	ZZE123 DARK GRAY,TRIM1#	01/2001 - 09/2002	1
58951-12240B2	ZZE123 DARK GRAY,TRIM1#	09/2002 - 04/2004	1
58951-12240B2	ZZE123 DARK GRAY,TRIM1#	04/2004 - 09/2006	1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-12060B6	NZE12#,ZZE123 DK.GRAY,TRIM1#	01/2001 - 09/2002	1
58952-12060B6	NZE12#,ZZE12# DK.GRAY,TRIM1#	09/2002 - 04/2004	1
58952-12060B6	NZE12#,ZZE123;ZZE122,124..RUNX DK.GRAY,TRIM1#	04/2004 - 09/2006	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
58907-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
58907-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
58907-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
58907-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20040	NZE12#,ZZE12#	04/2004 - 09/2006	1
58964-20040	NZE12#,ZZE12#	09/2002 - 04/2004	1
58964-20040	NZE12#,ZZE123	01/2001 - 09/2002	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20050	NZE12#,ZZE12#	09/2002 - 04/2004	1
58965-20050	NZE12#,ZZE123	01/2001 - 09/2002	1
58965-20050	NZE12#,ZZE12#	04/2004 - 09/2006	1
58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK
58972-34010	NZE12#,ZZE123	01/2001 - 09/2002	1
58972-34010	NZE12#,ZZE12#	09/2002 - 04/2004	1
58972-34010	NZE12#,ZZE12#	04/2004 - 09/2006	1
58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK
58973-34010	NZE12#,ZZE123	01/2001 - 09/2002	1
58973-34010	NZE12#,ZZE12#	09/2002 - 04/2004	1
58973-34010	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
55419-32020
58959-16020
90161-30003
90541-04079
91631-J0612
93560-54012
93568-54512
93568-55014
93568-55016
Linked diagrams
7404

ZZE123-AHFQF (2001)

(0101-0609)
