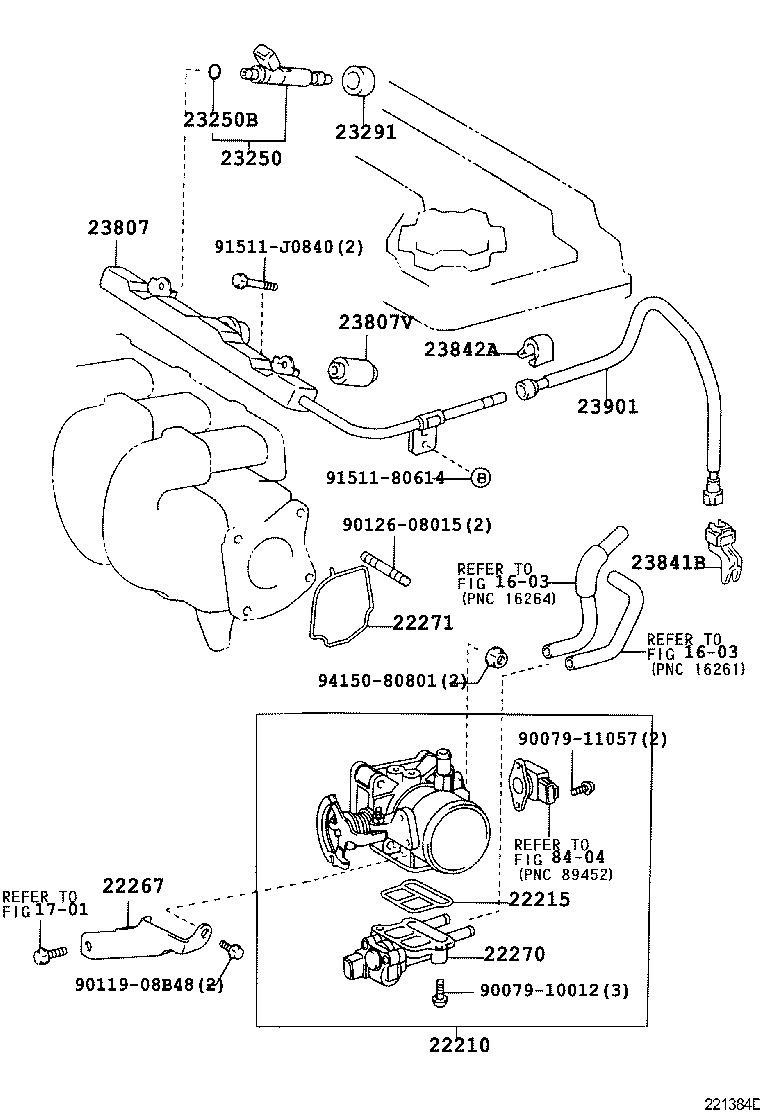

Toyota Corolla runx/allex ZZE122 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22130	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
22210-22130	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
22215-7A680	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
22267 - BRACKET, THROTTLE BODY
22267-22030	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
22267-22030	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-0D040	1ZZFE..ZZE122,124 (L)	11/2002 - 04/2004	1
22270-22061	1ZZFE..ZZE122,124 (J)	03/2003 - 04/2004	1
22270-22060	1ZZFE..ZZE122,124 (J)	09/2002 - 03/2003	1
22270-22061	1ZZFE..ZZE122,124 (J)	04/2004 - 11/2005	1
22270-22061	1ZZFE..ZZE122,124	11/2005 - 09/2006	1
22270-0D040	1ZZFE..ZZE122,124 (L)	04/2004 - 11/2005	1
22271 - GASKET, THROTTLE BODY
22271-22040	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
22271-22040	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
23250 - INJECTOR ASSY, FUEL
23209-22040	1ZZFE..ZZE122,124	09/2002 - 04/2004	4
23209-22040	1ZZFE..ZZE122,124	04/2004 - 09/2006	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037	1ZZFE,2ZZGE..ZZE12#	07/2006 - 09/2006	4
90301-07024	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	4
90301-07024	1ZZFE,2ZZGE..ZZE12#	04/2004 - 07/2006	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020	1ZZFE..ZZE122,124	09/2002 - 04/2004	4
23291-22020	1ZZFE..ZZE122,124	04/2004 - 09/2006	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
23807-22030	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055	1ZZFE..ZZE122,124	04/2004 - 09/2006	2
90561-08055	1ZZFE..ZZE122,124	09/2002 - 04/2004	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE,2ZZGE..ZZE12#	04/2004 - 09/2006	1
23841-28010	1ZZFE,2ZZGE..ZZE12#	09/2002 - 04/2004	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
23842-22020	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
23901 - TUBE SUB-ASSY, FUEL
23901-22140	1ZZFE..ZZE122,124	09/2002 - 04/2004	1
23901-22140	1ZZFE..ZZE122,124	04/2004 - 09/2006	1
Common parts
90079-10012
90079-11057
90119-08B48
90126-08015
91511-80614
91511-J0840
94150-80801
Linked diagrams
1603
1701
8404

ZZE122-BHPEK (2002)

ILLUST NO. 1 OF 2(0209- )1ZZFE
