Toyota Corolla runx/allex ZZE122 SHIFT LEVER & RETAINER

ZZE122-AHPEK (2002)

Toyota Corolla Runx/Allex

Production Sep 2002 - Sep 2006

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

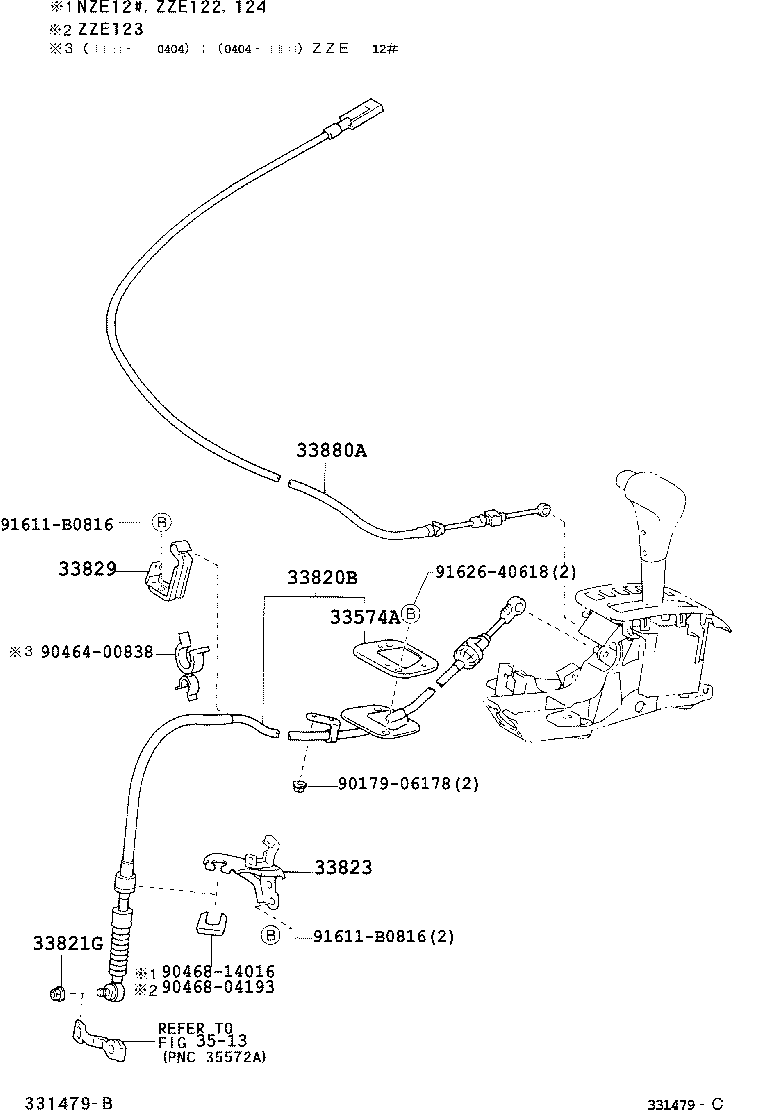

Click highlighted areas on diagram

Part #	Description	Period	Qty
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-12100	ZZE123..6F;NZE12#,ZZE122,124	09/2002 - 04/2004	1
33574-12100	ZZE123..6F;NZE12#,ZZE122,124	04/2004 - 09/2006	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12880	ZZE122,124	09/2002 - 04/2004	1
33820-12A20	NZE12#,ZZE122,124	04/2004 - 09/2006	1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	1
90179-08061	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12270	ZZE122	04/2004 - 09/2006	1
33823-12270	ZZE122	09/2002 - 04/2004	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-12070	NZE12#,ZZE122,124	09/2002 - 04/2004	1
33829-12110	NZE12#,ZZE122,124	04/2004 - 09/2006	1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-12050	ZZE122,124	09/2002 - 04/2004	1
33880-12050	ZZE122,124	04/2004 - 09/2006	1
Common parts
90179-06178
90464-00838
90468-04193
90468-14016
91611-B0816
91626-40618
Linked diagrams
3513

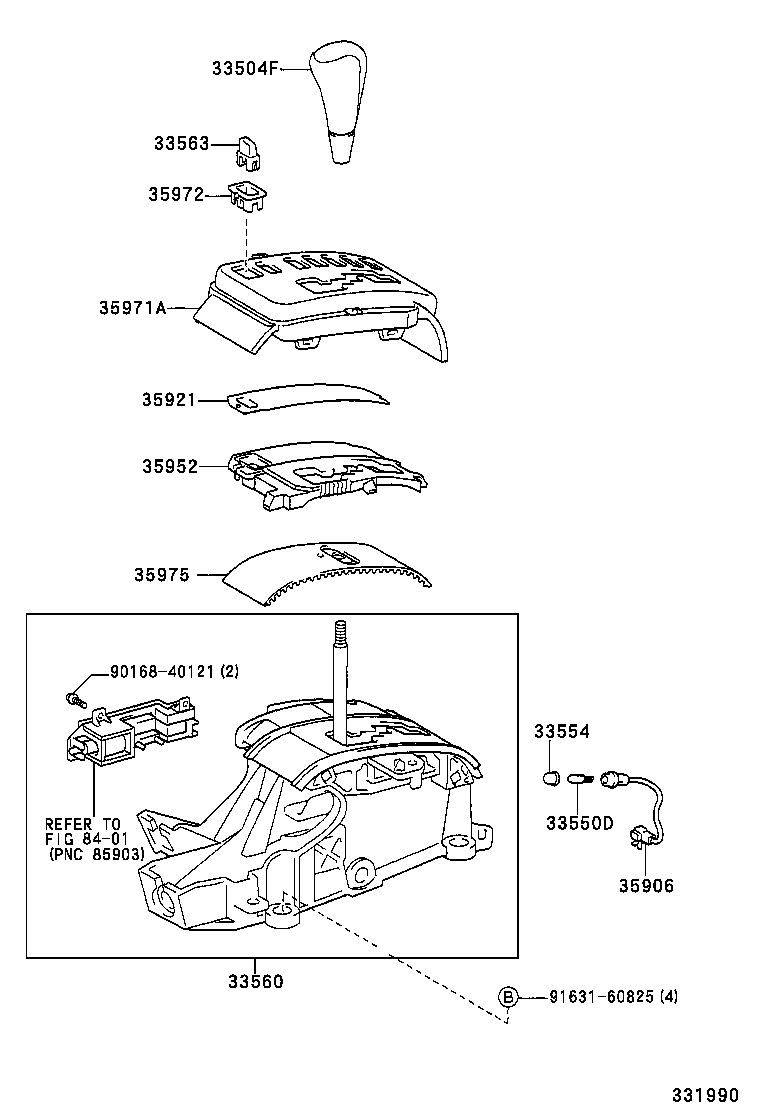

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-30281B1	ZZE122,124 DK.GRAY,TRIM0#,1#	09/2002 - 04/2004	1
33504-30281B1	ZZE122,124 DK.GRAY,TRIM0#,1#	04/2004 - 09/2006	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014	ZZE122,124 14V 1.4W	09/2002 - 04/2004	1
90981-11014	ZZE122,124 14V 1.4W	04/2004 - 09/2006	1
33554 - CAP, SHIFT LEVER
33554-12100	ZZE122,124	04/2004 - 09/2006	1
33554-12100	ZZE122,124	09/2002 - 04/2004	1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12140	ZZE122,124	09/2002 - 04/2004	1
33560-12140	ZZE122,124	04/2004 - 09/2006	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-12180	ZZE122,124	09/2002 - 04/2004	1
33563-12180	ZZE122,124	04/2004 - 09/2006	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12190	ZZE122,124	09/2002 - 04/2004	1
35906-12190	ZZE122,124	04/2004 - 09/2006	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12520	ZZE122,124	04/2004 - 09/2006	1
35921-12520	ZZE122,124	09/2002 - 04/2004	1
35952 - LENS, POSITION INDICATOR
35952-12020	ZZE122,124	09/2002 - 04/2004	1
35952-12020	ZZE122,124	04/2004 - 09/2006	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12470	ZZE122,124	04/2004 - 09/2006	1
35971-12470	ZZE122,124	09/2002 - 04/2004	1
35972 - COVER, POSITION INDICATOR HOUSING
35972-12010	ZZE122,124	04/2004 - 09/2006	1
35972-12010	ZZE122,124	09/2002 - 04/2004	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-30270	ZZE122,124	04/2004 - 09/2006	1
35975-30270	ZZE122,124	09/2002 - 04/2004	1
Common parts
90168-40121
91631-60825
Linked diagrams
8401
