Toyota Corolla runx/allex NZE124 HEATING & AIR CONDITIONING - COOLER PIPING

NZE124-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

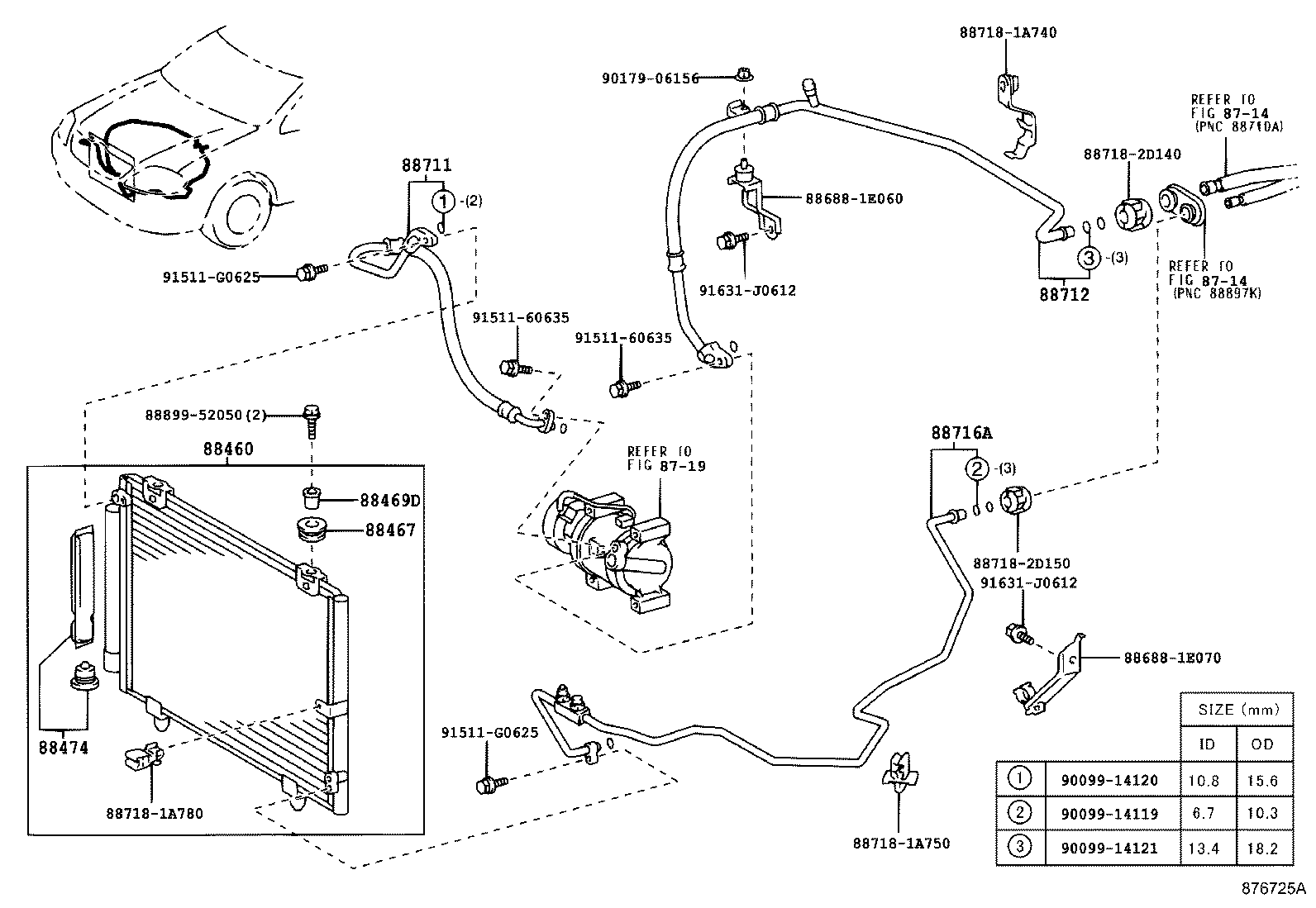

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-12241	NZE12#,ZZE12#	09/2002 - 04/2004	1
88450-12240	NZE12#	01/2001 - 09/2002	1
88450-12231	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	NZE12#,ZZE12#	04/2004 - 09/2006	2
88467-12180	NZE12#,ZZE12#	07/2002 - 04/2004	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	NZE12#,ZZE12#	07/2002 - 04/2004	2
88469-52010	NZE12#,ZZE12#	04/2004 - 09/2006	2
88474 - DRYER, COOLER
88474-47010	NZE12#,ZZE123	01/2001 - 09/2002	1
88474-17010	NZE12#,ZZE12#	09/2002 - 04/2004	1
88474-17010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12530	NZE12#	01/2001 - 09/2002	1
88703-12760	NZE124	04/2004 - 08/2006	1
88703-12620	NZE12#	09/2002 - 04/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12810	NZE12#	01/2001 - 09/2002	1
88704-1A130	NZE124	04/2004 - 08/2006	1
88704-12810	NZE12#	09/2002 - 04/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12510	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12740	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
88688-1E060
88688-1E070
88718-1A740
88718-1A750
88718-1A780
88718-2D140
88718-2D150
88899-52050
90099-14119
90099-14120
90099-14121
90179-06156
91511-60635
91511-G0625
91631-J0612
Linked diagrams
8714
8719

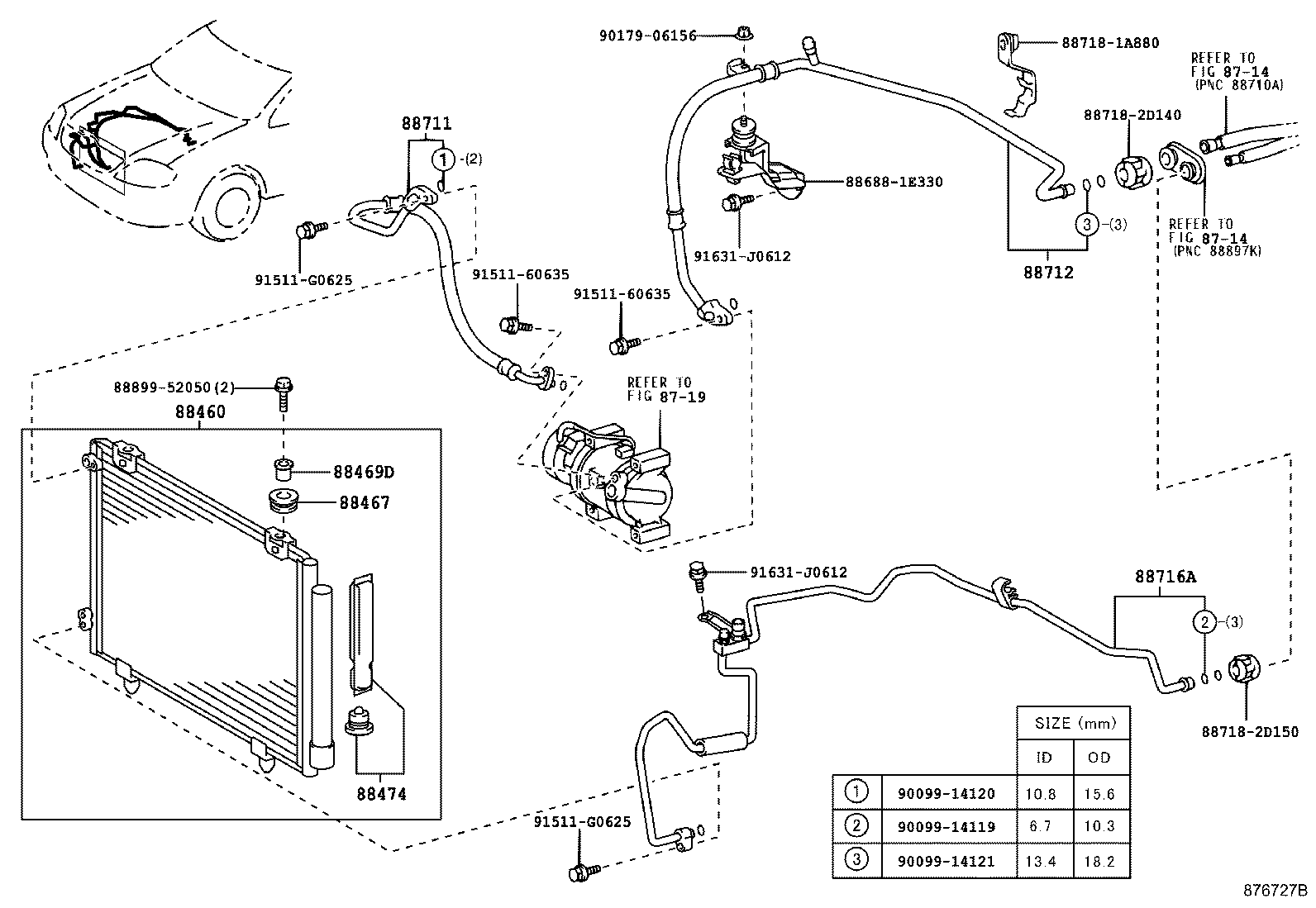

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-12241	NZE12#,ZZE12#	09/2002 - 04/2004	1
88450-12240	NZE12#	01/2001 - 09/2002	1
88450-12231	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	NZE12#,ZZE12#	04/2004 - 09/2006	2
88467-12180	NZE12#,ZZE12#	07/2002 - 04/2004	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	NZE12#,ZZE12#	07/2002 - 04/2004	2
88469-52010	NZE12#,ZZE12#	04/2004 - 09/2006	2
88474 - DRYER, COOLER
88474-47010	NZE12#,ZZE123	01/2001 - 09/2002	1
88474-17010	NZE12#,ZZE12#	09/2002 - 04/2004	1
88474-17010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12530	NZE12#	01/2001 - 09/2002	1
88703-12760	NZE124	04/2004 - 08/2006	1
88703-12620	NZE12#	09/2002 - 04/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12810	NZE12#	01/2001 - 09/2002	1
88704-1A130	NZE124	04/2004 - 08/2006	1
88704-12810	NZE12#	09/2002 - 04/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12510	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12740	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
88688-1E330
88718-1A880
88718-2D140
88718-2D150
88899-52050
90099-14119
90099-14120
90099-14121
90179-06156
91511-60635
91511-G0625
91631-J0612
Linked diagrams
8714
8719
