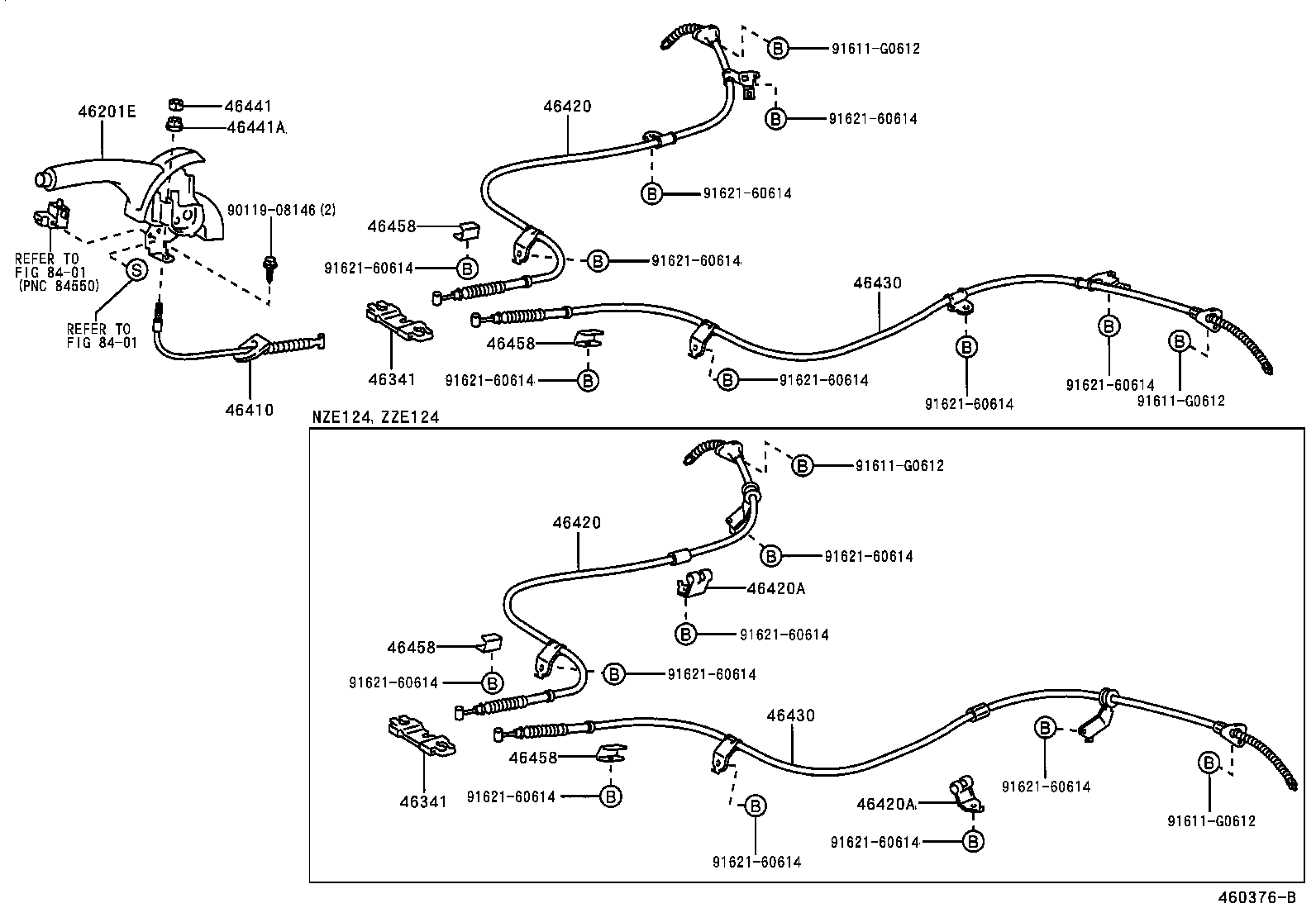

Toyota Corolla runx/allex NZE124 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12230B0	NZE12# DK.GRAY,TRIM0#,1#	09/2002 - 04/2004	1
46201-12340B0	ZZE122,124 DK.GRAY,TRIM0#,1#	09/2002 - 04/2004	1
46201-12340B0	NZE12# ｸﾛﾑﾒﾂｷﾉﾌﾞ,DK.GRAY,TRIM0#,1#	09/2002 - 04/2004	1
46201-12230B0	NZE12# DK.GRAY,TRIM0#,14,16	04/2004 - 09/2006	1
46201-12340B0	NZE12# ｸﾛﾑﾒﾂｷﾉﾌﾞ,DK.GRAY,TRIM0#,1#	10/2001 - 09/2002	1
46201-12230B0	NZE12# DK.GRAY,TRIM0#,1#	01/2001 - 09/2002	1
46201-12340B0	ZZE122,124 DK.GRAY,TRIM0#,1#	04/2004 - 09/2006	1
46201-12340B0	NZE12# ｸﾛﾑﾒﾂｷﾉﾌﾞ,DK.GRAY,TRIM0#,1#	04/2004 - 09/2006	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	NZE12#,ZZE12#	09/2002 - 04/2004	1
46341-20070	NZE12#,ZZE123	01/2001 - 09/2002	1
46341-20070	NZE12#,ZZE12#	04/2004 - 09/2006	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	NZE12#,ZZE12#	09/2002 - 04/2004	1
46341-20070	NZE12#,ZZE123	01/2001 - 09/2002	1
46341-20070	NZE12#,ZZE12#	04/2004 - 09/2006	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12270	NZE12#,ZZE12#	04/2004 - 09/2006	1
46410-12270	NZE12#,ZZE12#	09/2002 - 04/2004	1
46410-12270	NZE12#,ZZE123	01/2001 - 09/2002	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12521	NZE124,ZZE124	09/2002 - 04/2004	1
46420-12521	NZE124	01/2001 - 09/2002	1
46420-12521	NZE124,ZZE124	04/2004 - 09/2006	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12521	NZE124,ZZE124	09/2002 - 04/2004	1
46420-12521	NZE124	01/2001 - 09/2002	1
46420-12521	NZE124,ZZE124	04/2004 - 09/2006	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01C31	NZE124,ZZE124	09/2002 - 04/2004	2
90949-01C31	NZE124	01/2001 - 09/2002	2
90949-01C31	NZE124,ZZE124	04/2004 - 09/2006	2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01C31	NZE124,ZZE124	09/2002 - 04/2004	2
90949-01C31	NZE124	01/2001 - 09/2002	2
90949-01C31	NZE124,ZZE124	04/2004 - 09/2006	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12421	NZE124,ZZE124	04/2004 - 09/2006	1
46430-12421	NZE124	01/2001 - 09/2002	1
46430-12421	NZE124,ZZE124	09/2002 - 04/2004	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12421	NZE124,ZZE124	04/2004 - 09/2006	1
46430-12421	NZE124	01/2001 - 09/2002	1
46430-12421	NZE124,ZZE124	09/2002 - 04/2004	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	NZE12#,ZZE123	01/2001 - 09/2002	1
90179-06299	NZE12#,ZZE12#	04/2004 - 09/2006	1
90179-06299	NZE12#,ZZE12#	09/2002 - 04/2004	1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06171	NZE12#,ZZE123	01/2001 - 07/2001	1
46441-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
46441-12010	NZE12#,ZZE123	07/2001 - 09/2002	1
46441-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
46458 - RETAINER, CABLE
46458-28010	NZE12#,ZZE123	01/2001 - 09/2002	2
46458-28010	NZE12#,ZZE12#	09/2002 - 04/2004	2
46458-28010	NZE12#,ZZE12#	04/2004 - 09/2006	2
46458 - RETAINER, CABLE
46458-28010	NZE12#,ZZE123	01/2001 - 09/2002	2
46458-28010	NZE12#,ZZE12#	09/2002 - 04/2004	2
46458-28010	NZE12#,ZZE12#	04/2004 - 09/2006	2
46458 - RETAINER, CABLE
46458-28010	NZE12#,ZZE123	01/2001 - 09/2002	2
46458-28010	NZE12#,ZZE12#	09/2002 - 04/2004	2
46458-28010	NZE12#,ZZE12#	04/2004 - 09/2006	2
46458 - RETAINER, CABLE
46458-28010	NZE12#,ZZE123	01/2001 - 09/2002	2
46458-28010	NZE12#,ZZE12#	09/2002 - 04/2004	2
46458-28010	NZE12#,ZZE12#	04/2004 - 09/2006	2
Common parts
90119-08146
91611-G0612
91621-60614
Linked diagrams
8401

NZE124-AHPNK (2001)

ILLUST NO. 1 OF 2(0101- )
