Toyota Corolla runx/allex NZE124 V-BELT

Part #	Description	Period	Qty
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02500	1NZFE..NZE12#	01/2001 - 09/2002	1
90916-02500	1NZFE..NZE12#	09/2002 - 05/2003	1
90916-02569	1NZFE..NZE12#	06/2003 - 04/2004	1
90916-02569	1NZFE..NZE124	04/2004 - 09/2006	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02500	1NZFE..NZE12#	01/2001 - 09/2002	1
90916-02500	1NZFE..NZE12#	09/2002 - 05/2003	1
90916-02569	1NZFE..NZE12#	06/2003 - 04/2004	1
90916-02569	1NZFE..NZE124	04/2004 - 09/2006	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02500	1NZFE..NZE12#	01/2001 - 09/2002	1
90916-02500	1NZFE..NZE12#	09/2002 - 05/2003	1
90916-02569	1NZFE..NZE12#	06/2003 - 04/2004	1
90916-02569	1NZFE..NZE124	04/2004 - 09/2006	1
44310A - BELT, V(FOR VANE PUMP)
90916-02575	NZE124 長さ=850	01/2001 - 09/2002	1
90916-02575	NZE124 長さ=850	09/2002 - 04/2004	1
90916-02575	NZE124 長さ=850,MITSUBOSHI	04/2004 - 09/2006	1

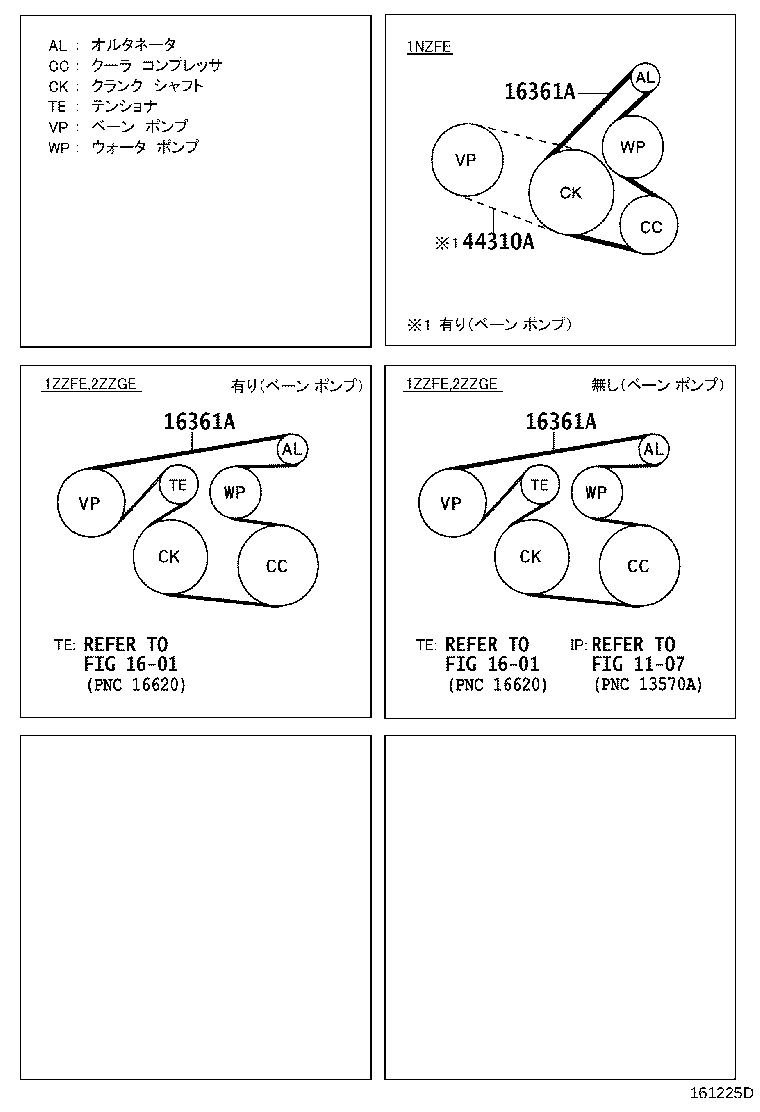

Linked diagrams
1107
1601

NZE124-AHPNK (2001)
