Toyota Corolla runx/allex NZE121 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
NZE121-BHPNK (2001)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

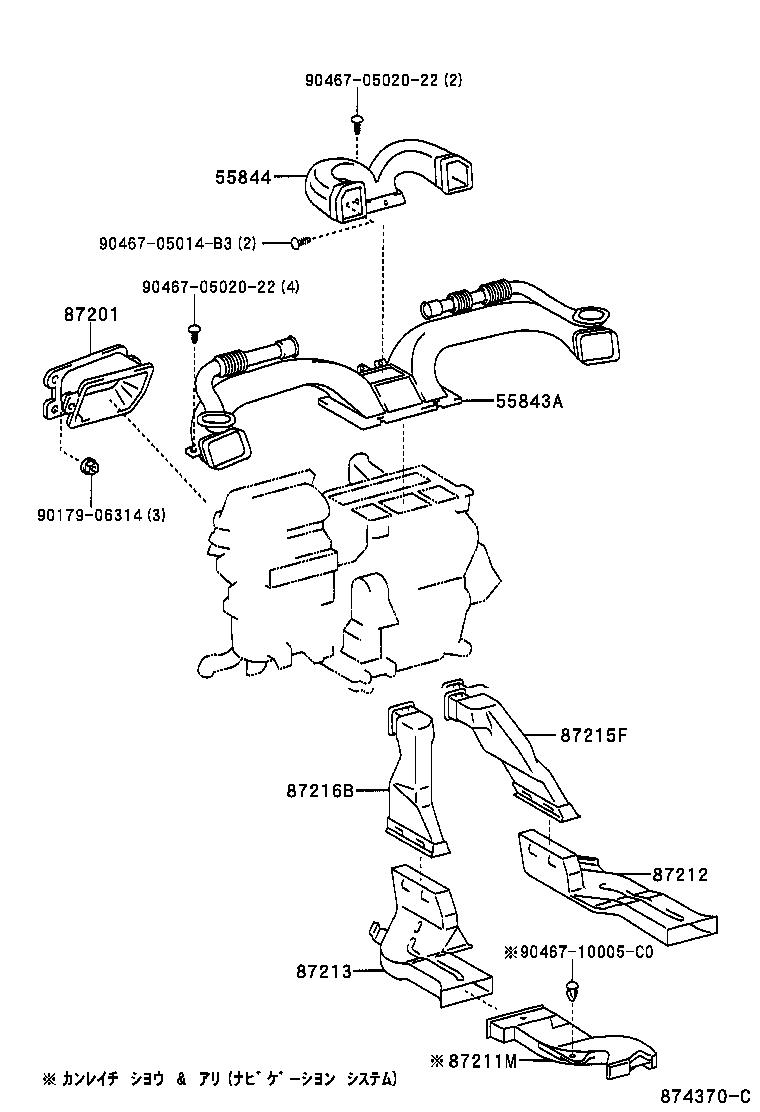

ILLUST NO. 3 OF 4(0101-0609)

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12280	NZE12#,ZZE12#	09/2002 - 04/2004	1
55843-12280	NZE12#,ZZE123	01/2001 - 09/2002	1
55843-12280	NZE12#,ZZE12#	04/2004 - 09/2006	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12460	NZE12#,ZZE123	01/2001 - 09/2002	1
55844-12460	NZE12#,ZZE12#	09/2002 - 04/2004	1
55844-12460	NZE12#,ZZE12#	04/2004 - 09/2006	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12590	NZE12#,ZZE12#	09/2002 - 04/2004	1
87201-12590	NZE12#,ZZE12#	04/2004 - 09/2006	1
87201-12590	NZE12#,ZZE123	01/2001 - 09/2002	1
87211M - DUCT, FOOT AIR, REAR
87211-12300	NZE12#,ZZE12#	09/2002 - 04/2004	1
87211-12300	NZE12#,ZZE12#	04/2004 - 09/2006	1
87212 - DUCT, AIR, REAR NO.1
87212-12120	NZE121,ZZE123	01/2001 - 09/2002	1
87212-12120	NZE121,ZZE122,123	09/2002 - 04/2004	1
87212-12120	NZE121,ZZE122,123	04/2004 - 09/2006	1
87213 - DUCT, AIR, REAR NO.2
87213-12080	NZE12#,ZZE12#	04/2004 - 09/2006	1
87213-12080	NZE12#,ZZE12#	09/2002 - 04/2004	1
87213-12080	NZE12#,ZZE123	01/2001 - 09/2002	1
87215F - DUCT, AIR, REAR NO.3
87215-12040	NZE12#,ZZE123	01/2001 - 09/2002	1
87215-12040	NZE12#,ZZE12#	09/2002 - 04/2004	1
87215-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
87216B - DUCT, AIR, REAR NO.4
87216-12020	NZE12#,ZZE123	01/2001 - 09/2002	1
87216-12020	NZE12#,ZZE12#	09/2002 - 04/2004	1
87216-12020	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90179-06314
90467-05014B3
90467-0502022
90467-10005C0

ILLUST NO. 4 OF 4(0101-0609)

Click highlighted areas on diagram

ｾﾝｻ

Part #	Description	Period	Qty
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031	NZE12#,ZZE12#	09/2002 - 04/2004	1
88625-47031	NZE12#,ZZE123	01/2001 - 09/2002	1
88625-47031	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131	NZE12#,ZZE12#	09/2002 - 04/2004	1
88790-22130	NZE12#,ZZE123	01/2001 - 08/2001	1
88790-22131	NZE12#,ZZE12#	04/2004 - 09/2006	1
88790-22131	NZE12#,ZZE123	08/2001 - 09/2002	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	NZE12#,ZZE123	01/2001 - 09/2002	1
88625-47021	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625-47021	NZE12#,ZZE12#	09/2002 - 04/2004	1
88648A - WIRING, COOLER
88648-12670	NZE12#,ZZE123	01/2001 - 09/2002	1

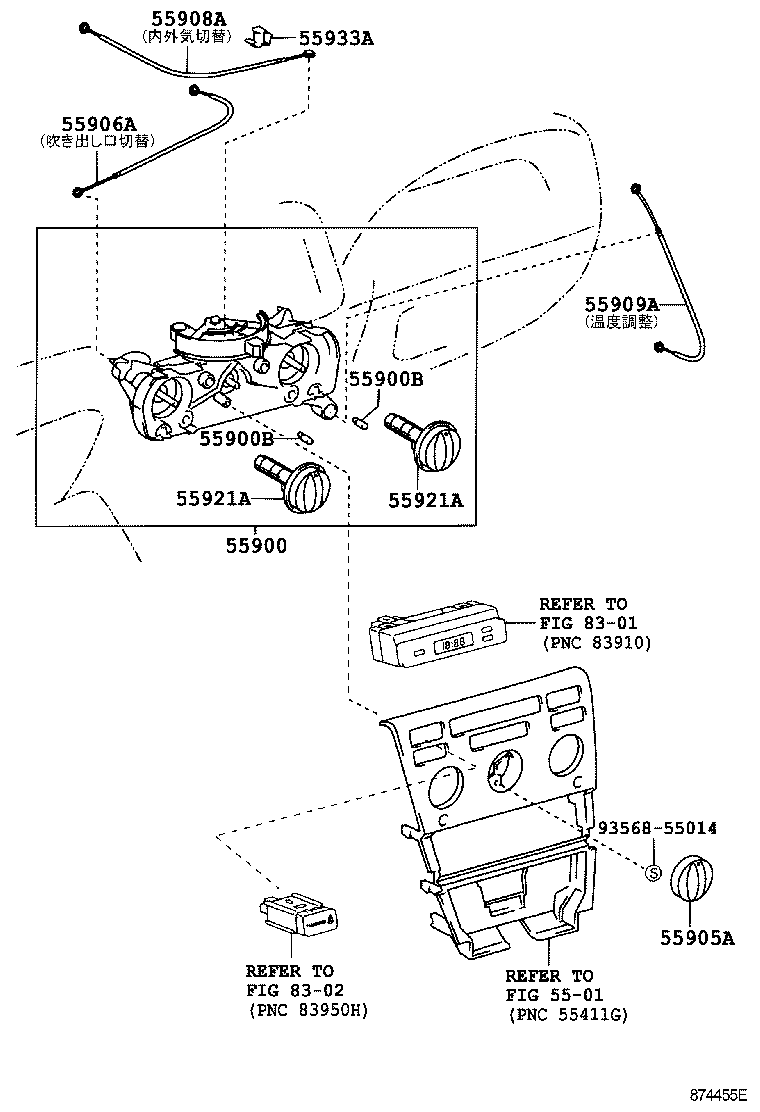

ILLUST NO. 1 OF 4(0101-0609)

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ--ﾏﾆﾕｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
55900 - CONTROL ASSY, AIR CONDITIONER
55900-1A030	NZE12#	02/2001 - 09/2002	1
55900-1A070	NZE12#	09/2002 - 04/2004	1
55900-12A00	NZE12#	04/2004 - 09/2006	1
55900-12820	NZE12#	01/2001 - 02/2001	1
55900B - BULB, AIR CONDITIONER CONTROL
90981-11040	NZE12# 12V 2W	09/2002 - 04/2004	2
90981-11040	NZE12# 12V 2W	01/2001 - 09/2002	2
90981-11040	NZE12# 12V 2W	04/2004 - 09/2006	2
55900B - BULB, AIR CONDITIONER CONTROL
90981-11040	NZE12# 12V 2W	09/2002 - 04/2004	2
90981-11040	NZE12# 12V 2W	01/2001 - 09/2002	2
90981-11040	NZE12# 12V 2W	04/2004 - 09/2006	2
55905A - KNOB, HEATER CONTROL
55905-12740	NZE12#	09/2002 - 04/2004	1
55905-12610	NZE12#	01/2001 - 02/2001	1
55905-12760	NZE12#	04/2004 - 09/2006	1
55905-12710	NZE12#	02/2001 - 09/2002	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12410	NZE12#	04/2004 - 09/2006	1
55906-12410	NZE12#	01/2001 - 09/2002	1
55906-12410	NZE12#	09/2002 - 04/2004	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12330	NZE12#	01/2001 - 09/2002	1
55908-12330	NZE12#	09/2002 - 04/2004	1
55908-12330	NZE12#	04/2004 - 09/2006	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12320	NZE12#	01/2001 - 09/2002	1
55909-12320	NZE12#	04/2004 - 09/2006	1
55909-12320	NZE12#	09/2002 - 04/2004	1
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#	01/2001 - 02/2001	2
55921-12150	NZE12#	02/2001 - 09/2002	2
55921-12170	NZE12#	04/2004 - 09/2006	2
55921-12160	NZE12#	09/2002 - 04/2004	2
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/2002 - 04/2004	1
55921-12140	NZE12#,ZZE123 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/2001 - 09/2002	1
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/2004 - 09/2006	1
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#	01/2001 - 02/2001	2
55921-12150	NZE12#	02/2001 - 09/2002	2
55921-12170	NZE12#	04/2004 - 09/2006	2
55921-12160	NZE12#	09/2002 - 04/2004	2
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/2002 - 04/2004	1
55921-12140	NZE12#,ZZE123 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/2001 - 09/2002	1
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/2004 - 09/2006	1
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	NZE12#	09/2002 - 04/2004	2
55933-52010	NZE12#	04/2004 - 09/2006	2
55933-52010	NZE12#	01/2001 - 09/2002	2
Common parts
93568-55014
Linked diagrams
5501
8301
8302

ILLUST NO. 1 OF 4(0101-0609)

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ--ｵ-ﾄｴｱｺﾝ

Part #	Description	Period	Qty
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
55904-12010	NZE12#,ZZE12#	04/2004 - 09/2006	1
55904-12010	NZE12#,ZZE12#	09/2002 - 04/2004	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-12670	NZE12#,ZZE123 ﾌﾞﾛﾜ	01/2001 - 09/2002	1
55905-12670	NZE12#,ZZE12# ﾌﾞﾛﾜ	09/2002 - 04/2004	1
55905-12680	NZE12#,ZZE12# TEMP	09/2002 - 04/2004	1
55905-12790	NZE12#,ZZE12# ﾌﾞﾛﾜ	04/2004 - 09/2006	1
55905-12680	NZE12#,ZZE123 TEMP	01/2001 - 09/2002	1
55905-12800	NZE12#,ZZE12# TEMP	04/2004 - 09/2006	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-12670	NZE12#,ZZE123 ﾌﾞﾛﾜ	01/2001 - 09/2002	1
55905-12670	NZE12#,ZZE12# ﾌﾞﾛﾜ	09/2002 - 04/2004	1
55905-12680	NZE12#,ZZE12# TEMP	09/2002 - 04/2004	1
55905-12790	NZE12#,ZZE12# ﾌﾞﾛﾜ	04/2004 - 09/2006	1
55905-12680	NZE12#,ZZE123 TEMP	01/2001 - 09/2002	1
55905-12800	NZE12#,ZZE12# TEMP	04/2004 - 09/2006	1
55905C - KNOB, HEATER CONTROL, NO.3
55905-12810	NZE12#,ZZE12#	04/2004 - 09/2006	1
55905-12690	NZE12#,ZZE123	01/2001 - 09/2002	1
55905-12690	NZE12#,ZZE12#	09/2002 - 04/2004	1
55905M - KNOB SUB-ASSY, CONTROL
55905-12660	NZE12#,ZZE123 ﾊｻﾞｰﾄﾞ	01/2001 - 09/2002	1
55905-12770	NZE12#,ZZE12# 助手席ｼｰﾄﾍﾞﾙﾄ	04/2004 - 09/2006	1
55905-12650	NZE12#,ZZE123 助手席ｼｰﾄﾍﾞﾙﾄ	01/2001 - 09/2002	1
55905-12660	NZE12#,ZZE12# ﾊｻﾞｰﾄﾞ	09/2002 - 04/2004	1
55905-12650	NZE12#,ZZE12# 助手席ｼｰﾄﾍﾞﾙﾄ	09/2002 - 04/2004	1
55905-12780	NZE12#,ZZE12# ﾊｻﾞｰﾄﾞ	04/2004 - 09/2006	1
55905M - KNOB SUB-ASSY, CONTROL
55905-12660	NZE12#,ZZE123 ﾊｻﾞｰﾄﾞ	01/2001 - 09/2002	1
55905-12770	NZE12#,ZZE12# 助手席ｼｰﾄﾍﾞﾙﾄ	04/2004 - 09/2006	1
55905-12650	NZE12#,ZZE123 助手席ｼｰﾄﾍﾞﾙﾄ	01/2001 - 09/2002	1
55905-12660	NZE12#,ZZE12# ﾊｻﾞｰﾄﾞ	09/2002 - 04/2004	1
55905-12650	NZE12#,ZZE12# 助手席ｼｰﾄﾍﾞﾙﾄ	09/2002 - 04/2004	1
55905-12780	NZE12#,ZZE12# ﾊｻﾞｰﾄﾞ	04/2004 - 09/2006	1
55912A - HOUSING, HEATER CONTROL
55912-12060	NZE12#,ZZE123	01/2001 - 09/2002	1
55912-12060	NZE12#,ZZE12#	04/2004 - 09/2006	1
55912-12060	NZE12#,ZZE12#	09/2002 - 04/2004	1
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#	01/2001 - 02/2001	2
55921-12150	NZE12#	02/2001 - 09/2002	2
55921-12170	NZE12#	04/2004 - 09/2006	2
55921-12160	NZE12#	09/2002 - 04/2004	2
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/2002 - 04/2004	1
55921-12140	NZE12#,ZZE123 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/2001 - 09/2002	1
55921-12140	NZE12#,ZZE12# ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/2004 - 09/2006	1
55935A - CIRCUIT, CENTER CLUSTER MODULE
55935-12040	NZE12#,ZZE12#	09/2002 - 04/2004	1
55935-12040	NZE12#,ZZE12#	04/2004 - 09/2006	1
55935-12040	NZE12#,ZZE123	01/2001 - 09/2002	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-12670	NZE12#,ZZE123	01/2001 - 09/2002	1
81942-12810	NZE12#	04/2004 - 09/2006	1
81942-12670	NZE12#	09/2002 - 04/2004	1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-12680	NZE12#	09/2002 - 04/2004	1
81942-12680	NZE12#,ZZE123	01/2001 - 09/2002	1
81942-12820	NZE12#	04/2004 - 09/2006	1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-1E471	NZE12#,ZZE12#	09/2002 - 04/2004	1
88650-12A40	NZE121	04/2004 - 09/2006	1
88650-1E471	NZE12#,ZZE123	12/2001 - 09/2002	1
88650-1E470	NZE12#,ZZE123	01/2001 - 12/2001	1
Common parts
90167-30010
Linked diagrams
5501

ILLUST NO. 2 OF 4(0101-0609)

Click highlighted areas on diagram

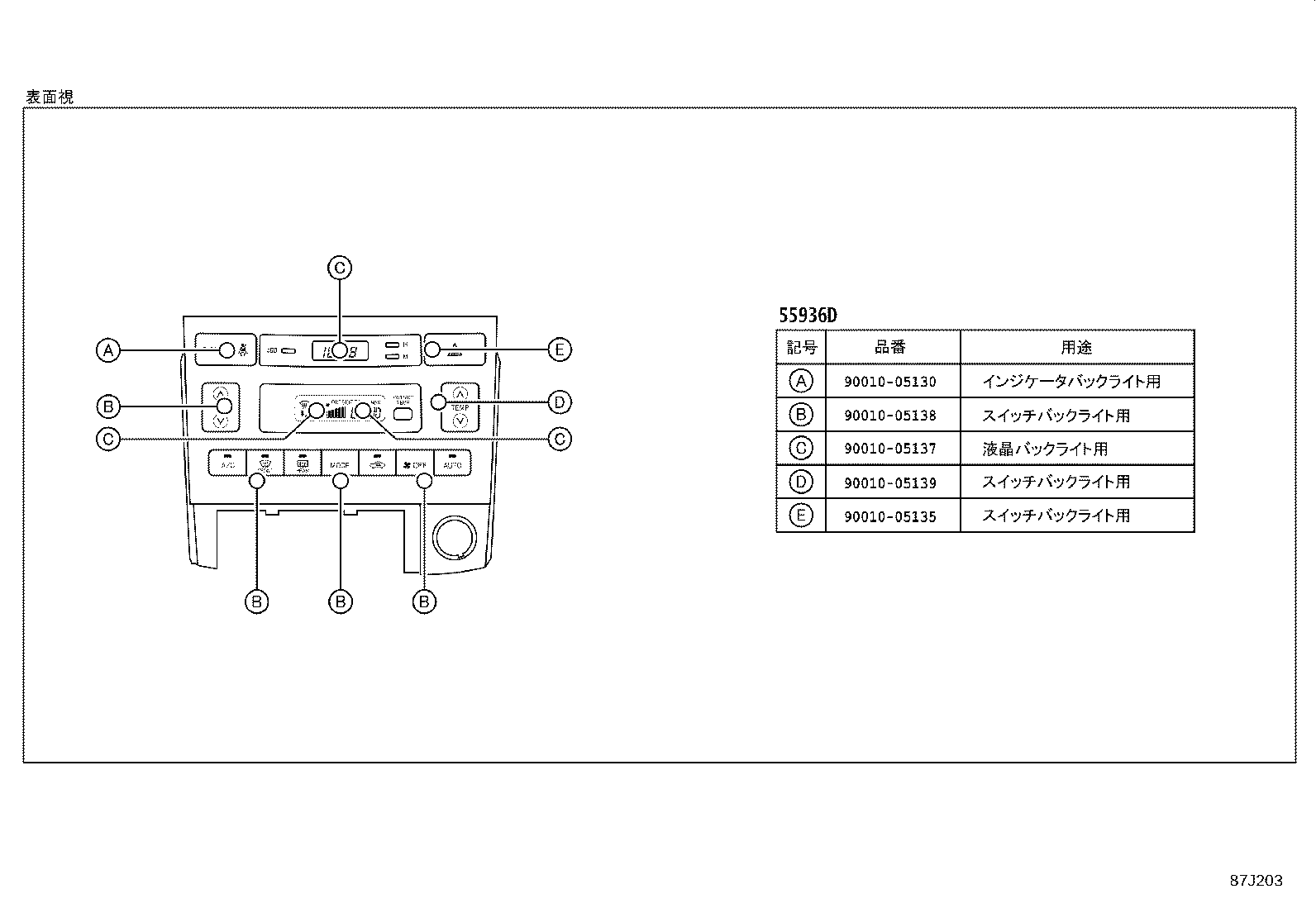

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ--ﾊﾞﾙﾌﾞ

Part #	Description	Period	Qty
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
90010-05130	NZE12#,ZZE123 14V 1.4W,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
90010-05101	NZE12#,ZZE123 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.2	01/2001 - 09/2002	4
90010-05122	NZE12#,ZZE12# 14V 1.4W,ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90010-05135	NZE12#,ZZE123 14V 0.91W,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
90010-05136	NZE12#,ZZE123 14V 1.12W,ｷｬｯﾌﾟ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.8	01/2001 - 09/2002	3
90010-05101	NZE12#,ZZE12# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.2	09/2002 - 04/2004	4
90010-05136	NZE12#,ZZE12# 14V 1.12W,ｷｬｯﾌﾟ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.8	09/2002 - 04/2004	3
90010-05122	NZE12#,ZZE12# 14V 1.4W,ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90010-05101	NZE12#,ZZE12# 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.2	04/2004 - 09/2006	4
90010-05122	NZE12#,ZZE123 14V 1.4W,ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
90010-05135	NZE12#,ZZE12# 14V 0.91W,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90010-05130	NZE12#,ZZE12# 14V 1.4W,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/2002 - 04/2004	1
90010-05136	NZE12#,ZZE12# 14V 1.12W,ｷｬｯﾌﾟ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ=4.8	04/2004 - 09/2006	3
90010-05130	NZE12#,ZZE12# 14V 1.4W,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
90010-05135	NZE12#,ZZE12# 14V 0.91W,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	04/2004 - 09/2006	1
