Toyota Corolla runx/allex NZE121 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
NZE121-BHPNK (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

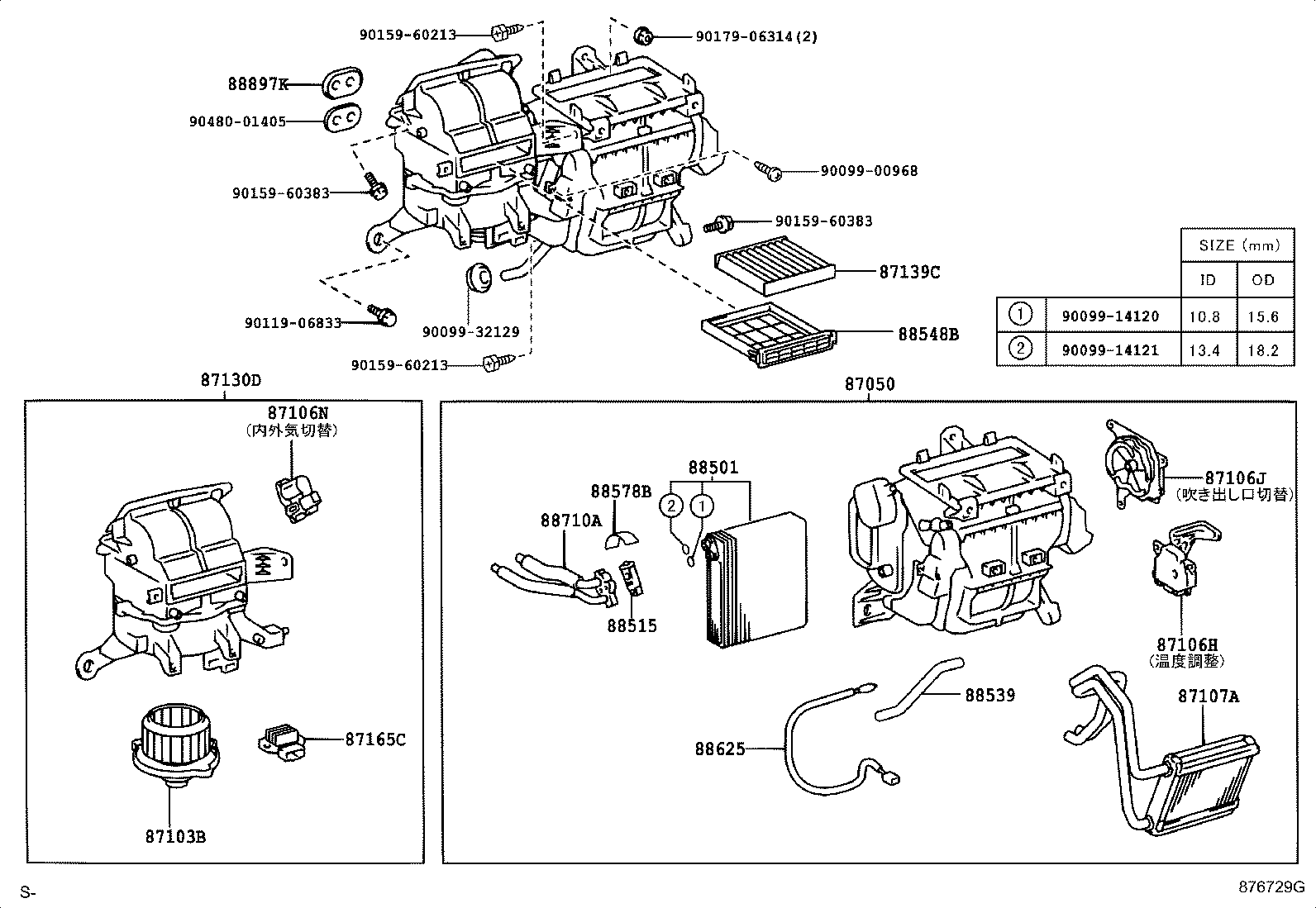

(0101-0404)

Click highlighted areas on diagram

ｵ-ﾄｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12190	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12190	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12030	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87050-12040	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
87103-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
87103-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12131	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12131	NZE12#,ZZE12#	09/2003 - 04/2004	1
87106-12130	NZE12#,ZZE12#	09/2002 - 08/2003	1
87106-12130	NZE12#,ZZE123	01/2001 - 09/2002	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-12140	NZE12#,ZZE123	01/2001 - 09/2002	1
87106-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12140	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12550	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107-12550	NZE12#,ZZE123	01/2001 - 09/2002	1
87107-12540	NZE12#,ZZE12#	04/2004 - 09/2006	1
87130D - BLOWER ASSY
87130-12490	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12450	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87139C - FILTER, CLEAN AIR
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87139-44010	NZE12#,ZZE123 脱臭 & 花粉ﾌｨﾙﾀ	01/2001 - 09/2002	1
88568-12020	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	09/2002 - 04/2004	1
88568-12030	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
88568-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87139-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	04/2004 - 09/2006	1
87165C - CONTROL, BLOWER MOTOR
87165-41010	NZE12#,ZZE123	01/2001 - 09/2001	1
87165-13010	NZE12#,ZZE123	10/2001 - 09/2002	1
87165-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
87165-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501-12440	NZE12#,ZZE12#	04/2004 - 09/2006	1
88501-12440	NZE12#,ZZE123	01/2001 - 09/2002	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-12040	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88508-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
88508-12040	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
88508-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	NZE12#,ZZE123	01/2001 - 09/2002	1
88515-48040	NZE12#,ZZE12#	09/2002 - 01/2003	1
88515-28160	NZE12#,ZZE12#	09/2003 - 04/2004	1
88515-60150	NZE12#,ZZE12#	04/2004 - 09/2006	1
88515-27020	NZE12#,ZZE12#	02/2003 - 08/2003	1
88548B - CASE, AIR FILTER
88548-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578-12520	NZE12#,ZZE12#	09/2002 - 04/2004	1
88578-12520	NZE12#,ZZE123	01/2001 - 09/2002	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE12#,ZZE12#	09/2002 - 04/2004	1
88625-21010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625-60140	NZE12#,ZZE123	01/2001 - 09/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12540	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12730	NZE12#,ZZE12#	04/2004 - 09/2006	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	NZE12#,ZZE123	01/2001 - 09/2002	1
90480-01434	NZE12#,ZZE12#	09/2002 - 04/2004	1
90480-01434	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90099-32129
90119-06833
90159-60383
90179-06314
90480-01405

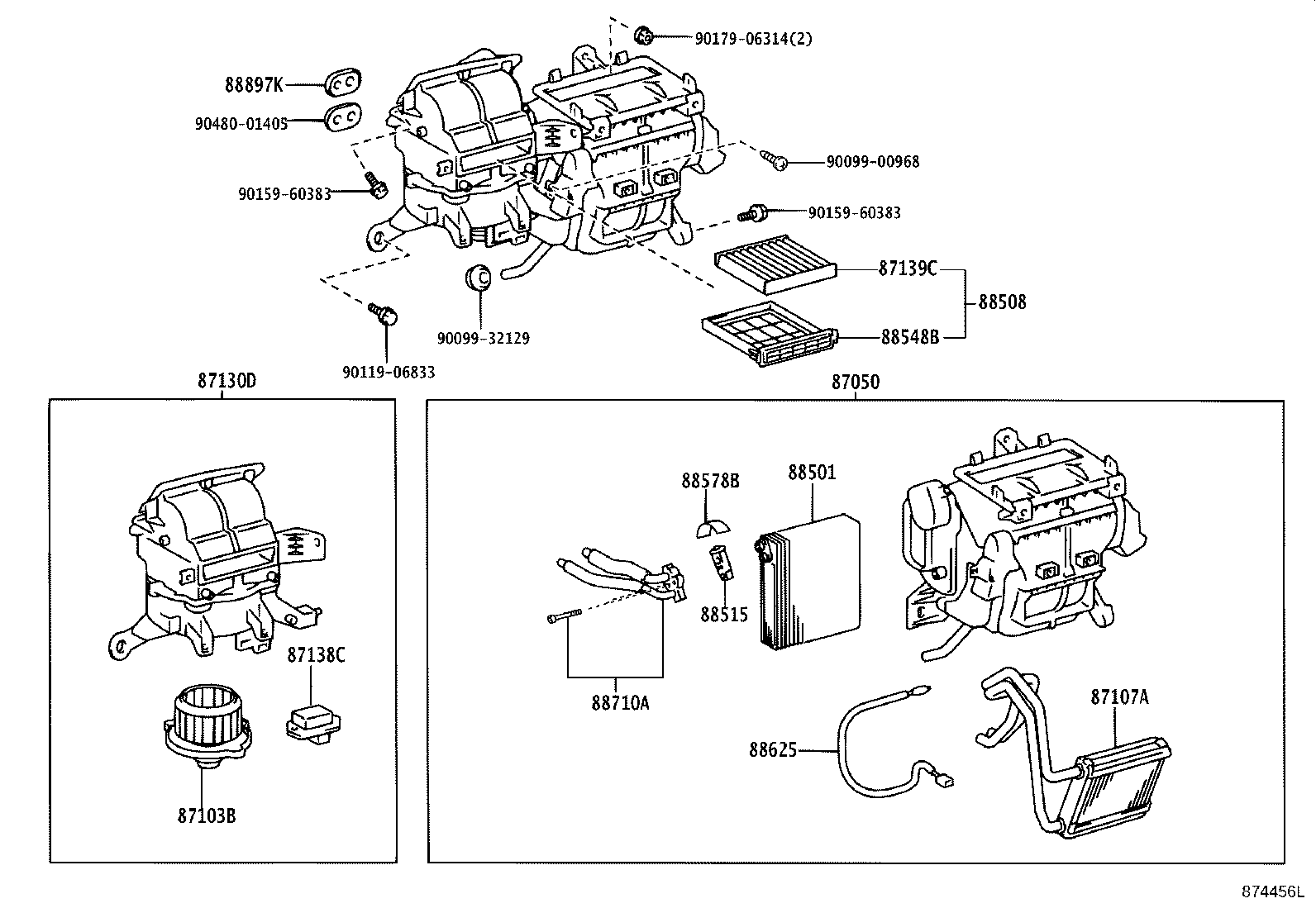

(0101-0404)

Click highlighted areas on diagram

ﾏﾆﾕｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12190	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12190	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12030	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87050-12040	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
87103-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
87103-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12550	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107-12550	NZE12#,ZZE123	01/2001 - 09/2002	1
87107-12540	NZE12#,ZZE12#	04/2004 - 09/2006	1
87130D - BLOWER ASSY
87130-12490	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12450	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87138C - RESISTOR, BLOWER
87138-20350	NZE12#	01/2001 - 09/2002	1
87138-20350	NZE12#	04/2004 - 09/2006	1
87138-20350	NZE12#	09/2002 - 04/2004	1
87139C - FILTER, CLEAN AIR
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87139-44010	NZE12#,ZZE123 脱臭 & 花粉ﾌｨﾙﾀ	01/2001 - 09/2002	1
88568-12020	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	09/2002 - 04/2004	1
88568-12030	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
88568-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87139-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	04/2004 - 09/2006	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501-12440	NZE12#,ZZE12#	04/2004 - 09/2006	1
88501-12440	NZE12#,ZZE123	01/2001 - 09/2002	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-12040	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88508-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
88508-12040	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
88508-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
88515 - VALVE, COOLER EXPANSION
88515-48040	NZE12#,ZZE123	01/2001 - 09/2002	1
88515-48040	NZE12#,ZZE12#	09/2002 - 01/2003	1
88515-28160	NZE12#,ZZE12#	09/2003 - 04/2004	1
88515-60150	NZE12#,ZZE12#	04/2004 - 09/2006	1
88515-27020	NZE12#,ZZE12#	02/2003 - 08/2003	1
88548B - CASE, AIR FILTER
88548-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578-12520	NZE12#,ZZE12#	09/2002 - 04/2004	1
88578-12520	NZE12#,ZZE123	01/2001 - 09/2002	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE12#,ZZE12#	09/2002 - 04/2004	1
88625-21010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625-60140	NZE12#,ZZE123	01/2001 - 09/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12540	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12730	NZE12#,ZZE12#	04/2004 - 09/2006	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	NZE12#,ZZE123	01/2001 - 09/2002	1
90480-01434	NZE12#,ZZE12#	09/2002 - 04/2004	1
90480-01434	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90099-00968
90099-32129
90119-06833
90159-60383
90179-06314
90480-01405

(0404-0609)

Click highlighted areas on diagram

ﾏﾆﾕｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12190	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12190	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12030	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87050-12040	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
87103-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
87103-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12550	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107-12550	NZE12#,ZZE123	01/2001 - 09/2002	1
87107-12540	NZE12#,ZZE12#	04/2004 - 09/2006	1
87130D - BLOWER ASSY
87130-12490	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12450	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87138C - RESISTOR, BLOWER
87138-20350	NZE12#	01/2001 - 09/2002	1
87138-20350	NZE12#	04/2004 - 09/2006	1
87138-20350	NZE12#	09/2002 - 04/2004	1
87139C - FILTER, CLEAN AIR
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87139-44010	NZE12#,ZZE123 脱臭 & 花粉ﾌｨﾙﾀ	01/2001 - 09/2002	1
88568-12020	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	09/2002 - 04/2004	1
88568-12030	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
88568-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87139-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	04/2004 - 09/2006	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501-12440	NZE12#,ZZE12#	04/2004 - 09/2006	1
88501-12440	NZE12#,ZZE123	01/2001 - 09/2002	1
88515 - VALVE, COOLER EXPANSION
88515-48040	NZE12#,ZZE123	01/2001 - 09/2002	1
88515-48040	NZE12#,ZZE12#	09/2002 - 01/2003	1
88515-28160	NZE12#,ZZE12#	09/2003 - 04/2004	1
88515-60150	NZE12#,ZZE12#	04/2004 - 09/2006	1
88515-27020	NZE12#,ZZE12#	02/2003 - 08/2003	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
88548B - CASE, AIR FILTER
88548-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578-12520	NZE12#,ZZE12#	09/2002 - 04/2004	1
88578-12520	NZE12#,ZZE123	01/2001 - 09/2002	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE12#,ZZE12#	09/2002 - 04/2004	1
88625-21010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625-60140	NZE12#,ZZE123	01/2001 - 09/2002	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-12A20	NZE121	04/2004 - 09/2006	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12540	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12730	NZE12#,ZZE12#	04/2004 - 09/2006	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	NZE12#,ZZE123	01/2001 - 09/2002	1
90480-01434	NZE12#,ZZE12#	09/2002 - 04/2004	1
90480-01434	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90099-00968
90099-14120
90099-14121
90099-32129
90119-06833
90159-50138
90159-60213
90159-60383
90179-06314
90480-01405

(0404-0609)

Click highlighted areas on diagram

ｵ-ﾄｴｱｺﾝ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12170	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12190	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12150	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87050-12190	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87050-12030	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87050-12040	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12180	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87050-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87050-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12050	NZE12#,ZZE12#	04/2004 - 09/2006	1
87103-12050	NZE12#,ZZE123	01/2001 - 09/2002	1
87103-12050	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12131	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12131	NZE12#,ZZE12#	09/2003 - 04/2004	1
87106-12130	NZE12#,ZZE12#	09/2002 - 08/2003	1
87106-12130	NZE12#,ZZE123	01/2001 - 09/2002	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-12140	NZE12#,ZZE123	01/2001 - 09/2002	1
87106-12140	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12140	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-12150	NZE12#,ZZE12#	04/2004 - 09/2006	1
87106-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
87106-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12550	NZE12#,ZZE12#	09/2002 - 04/2004	1
87107-12550	NZE12#,ZZE123	01/2001 - 09/2002	1
87107-12540	NZE12#,ZZE12#	04/2004 - 09/2006	1
87130D - BLOWER ASSY
87130-12490	NZE12#,ZZE123 ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12450	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87130-12480	NZE12# ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12490	NZE12#,ZZE12# ｶﾝﾚｲﾁｼﾖｳ & ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87130-12440	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87130-12450	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
87139C - FILTER, CLEAN AIR
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	09/2002 - 04/2004	1
87139-44010	NZE12#,ZZE123 脱臭 & 花粉ﾌｨﾙﾀ	01/2001 - 09/2002	1
88568-12020	NZE12#,ZZE123 ｵ-ﾄｴｱｺﾝ	01/2001 - 09/2002	1
88568-52010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	01/2001 - 09/2002	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	09/2002 - 04/2004	1
88568-12030	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	04/2004 - 09/2006	1
88568-12020	NZE12#,ZZE12# ｵ-ﾄｴｱｺﾝ	09/2002 - 04/2004	1
87139-12010	NZE12# ﾏﾆﾕｱﾙｴｱｺﾝ	04/2004 - 09/2006	1
87139-44010	NZE12#,ZZE12# 脱臭 & 花粉ﾌｨﾙﾀ	04/2004 - 09/2006	1
87165C - CONTROL, BLOWER MOTOR
87165-41010	NZE12#,ZZE123	01/2001 - 09/2001	1
87165-13010	NZE12#,ZZE123	10/2001 - 09/2002	1
87165-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
87165-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12440	NZE12#,ZZE12#	09/2002 - 04/2004	1
88501-12440	NZE12#,ZZE12#	04/2004 - 09/2006	1
88501-12440	NZE12#,ZZE123	01/2001 - 09/2002	1
88515 - VALVE, COOLER EXPANSION
88515-48040	NZE12#,ZZE123	01/2001 - 09/2002	1
88515-48040	NZE12#,ZZE12#	09/2002 - 01/2003	1
88515-28160	NZE12#,ZZE12#	09/2003 - 04/2004	1
88515-60150	NZE12#,ZZE12#	04/2004 - 09/2006	1
88515-27020	NZE12#,ZZE12#	02/2003 - 08/2003	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
88548B - CASE, AIR FILTER
88548-52010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	NZE12#,ZZE12#	04/2004 - 09/2006	1
88578-12520	NZE12#,ZZE12#	09/2002 - 04/2004	1
88578-12520	NZE12#,ZZE123	01/2001 - 09/2002	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	NZE12#,ZZE12#	09/2002 - 04/2004	1
88625-21010	NZE12#,ZZE12#	04/2004 - 09/2006	1
88625-60140	NZE12#,ZZE123	01/2001 - 09/2002	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12540	NZE12#,ZZE12#	09/2002 - 04/2004	1
88710-12540	NZE12#,ZZE123	01/2001 - 09/2002	1
88710-12730	NZE12#,ZZE12#	04/2004 - 09/2006	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	NZE12#,ZZE123	01/2001 - 09/2002	1
90480-01434	NZE12#,ZZE12#	09/2002 - 04/2004	1
90480-01434	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90099-00968
90099-14120
90099-14121
90099-32129
90119-06833
90159-60213
90159-60383
90179-06314
90480-01405

NZE121-BHPNK (2001)

(0101-0404)

(0101-0404)

(0404-0609)

(0404-0609)

Part Price Details
