Toyota Corolla runx/allex NZE121 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
NZE121-BHPNK (2001)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0101-0404)NZE12#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019	NZE12# 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE121 品番ﾗﾍﾞﾙ=90987−02020	01/2001 - 09/2002	1
90987-02020	NZE12#,ZZE123 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90987-02012	NZE121 品番ﾗﾍﾞﾙ=90987−02012	09/2001 - 10/2001	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	NZE121 品番ﾗﾍﾞﾙ=90987−02012	09/2001 - 10/2001	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87019	NZE12# 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE12#,ZZE123 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE121 品番ﾗﾍﾞﾙ=90987−02020	01/2001 - 09/2002	1
85911E - RELAY, ALTERNATOR CUT
90080-87019	NZE12# 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02012	NZE121 品番ﾗﾍﾞﾙ=90987−02012	09/2001 - 10/2001	1
90987-02020	NZE121 品番ﾗﾍﾞﾙ=90987−02020	01/2001 - 09/2002	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12160	NZE121,ZZE123	04/2004 - 09/2006	1
89279-12160	NZE12#,ZZE123	01/2001 - 09/2002	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	NZE121	04/2004 - 09/2006	1
89422-35010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89422-35010	NZE12#,ZZE123	01/2001 - 09/2002	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130	NZE12#	01/2001 - 09/2002	1
89452-20130	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89661 - COMPUTER, ENGINE CONTROL
89661-12A30	NZE121 TOYOTA	04/2004 - 12/2004	1
89666-12170	NZE121 TOYOTA	01/2001 - 09/2002	1
89666-12390	NZE121 TOYOTA	09/2002 - 04/2004	1
89661-12A70	NZE121 TOYOTA	12/2004 - 09/2006	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12190	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89667-12200	NZE12#,ZZE123	01/2001 - 09/2002	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12100	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89668-12110	NZE12#,ZZE123	01/2001 - 09/2002	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89669-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
89669-12040	NZE121	04/2004 - 09/2006	1
Common parts
90159-50138
90430-12005
93319-15010
Linked diagrams
8401

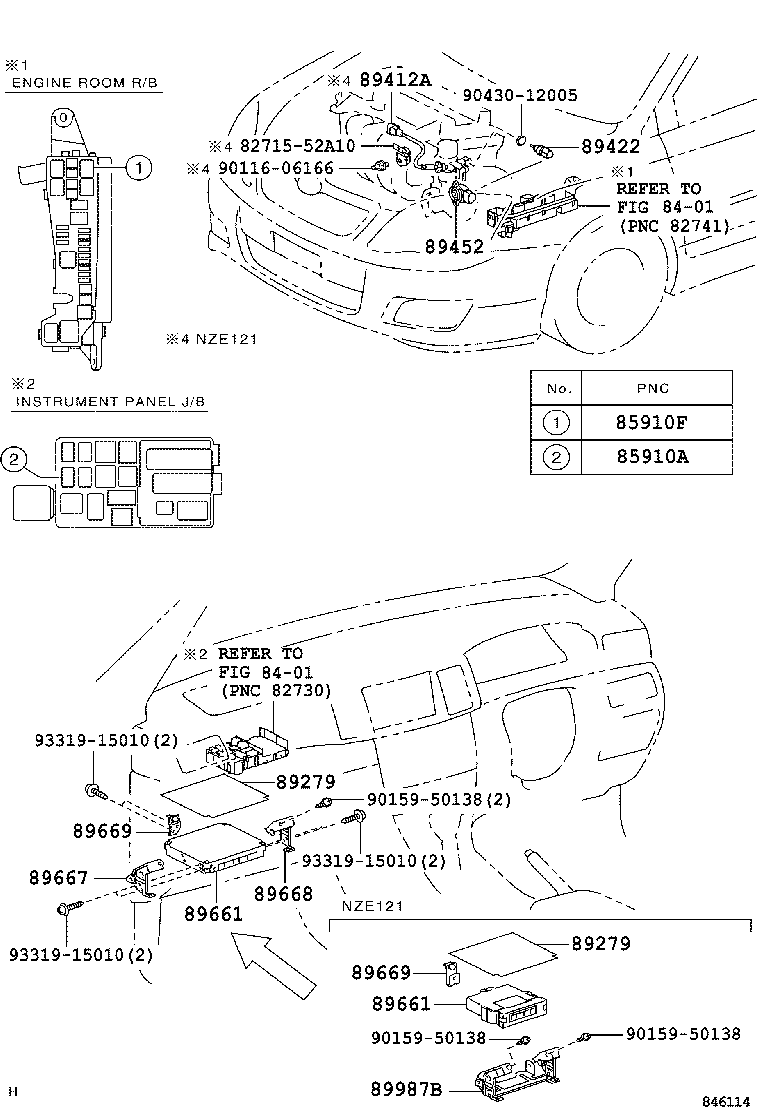

(0404-0609)NZE12#

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019	NZE12# 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE121 品番ﾗﾍﾞﾙ=90987−02020	01/2001 - 09/2002	1
90987-02020	NZE12#,ZZE123 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90987-02012	NZE121 品番ﾗﾍﾞﾙ=90987−02012	09/2001 - 10/2001	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	NZE121 品番ﾗﾍﾞﾙ=90987−02012	09/2001 - 10/2001	1
90987-02020	NZE12#,ZZE12#	04/2004 - 09/2006	1
90080-87019	NZE12# 品番ﾗﾍﾞﾙ=90080−87019	09/2001 - 10/2001	1
90987-02020	NZE12#,ZZE123 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02020	09/2002 - 04/2004	1
90987-02020	NZE121 品番ﾗﾍﾞﾙ=90987−02020	01/2001 - 09/2002	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12160	NZE121,ZZE123	04/2004 - 09/2006	1
89279-12160	NZE12#,ZZE123	01/2001 - 09/2002	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12160	NZE121,ZZE123	04/2004 - 09/2006	1
89279-12160	NZE12#,ZZE123	01/2001 - 09/2002	1
89279-12150	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-35020	NZE121	04/2004 - 09/2006	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	NZE121	04/2004 - 09/2006	1
89422-35010	NZE12#,ZZE12#	09/2002 - 04/2004	1
89422-35010	NZE12#,ZZE123	01/2001 - 09/2002	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130	NZE12#	01/2001 - 09/2002	1
89452-20130	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89661 - COMPUTER, ENGINE CONTROL
89661-12A30	NZE121 TOYOTA	04/2004 - 12/2004	1
89666-12170	NZE121 TOYOTA	01/2001 - 09/2002	1
89666-12390	NZE121 TOYOTA	09/2002 - 04/2004	1
89661-12A70	NZE121 TOYOTA	12/2004 - 09/2006	1
89661 - COMPUTER, ENGINE CONTROL
89661-12A30	NZE121 TOYOTA	04/2004 - 12/2004	1
89666-12170	NZE121 TOYOTA	01/2001 - 09/2002	1
89666-12390	NZE121 TOYOTA	09/2002 - 04/2004	1
89661-12A70	NZE121 TOYOTA	12/2004 - 09/2006	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12190	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89667-12200	NZE12#,ZZE123	01/2001 - 09/2002	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12100	NZE12#,ZZE122,124	09/2002 - 04/2004	1
89668-12110	NZE12#,ZZE123	01/2001 - 09/2002	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89669-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
89669-12040	NZE121	04/2004 - 09/2006	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#	09/2002 - 04/2004	1
89669-12030	NZE12#,ZZE123	01/2001 - 09/2002	1
89669-12040	NZE121	04/2004 - 09/2006	1
89987B - BRACKET, COMPUTER, NO.1
89987-12010	NZE121	04/2004 - 09/2006	1
Common parts
82715-52A10
90116-06166
90159-50138
90430-12005
93319-15010
Linked diagrams
8401
