NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

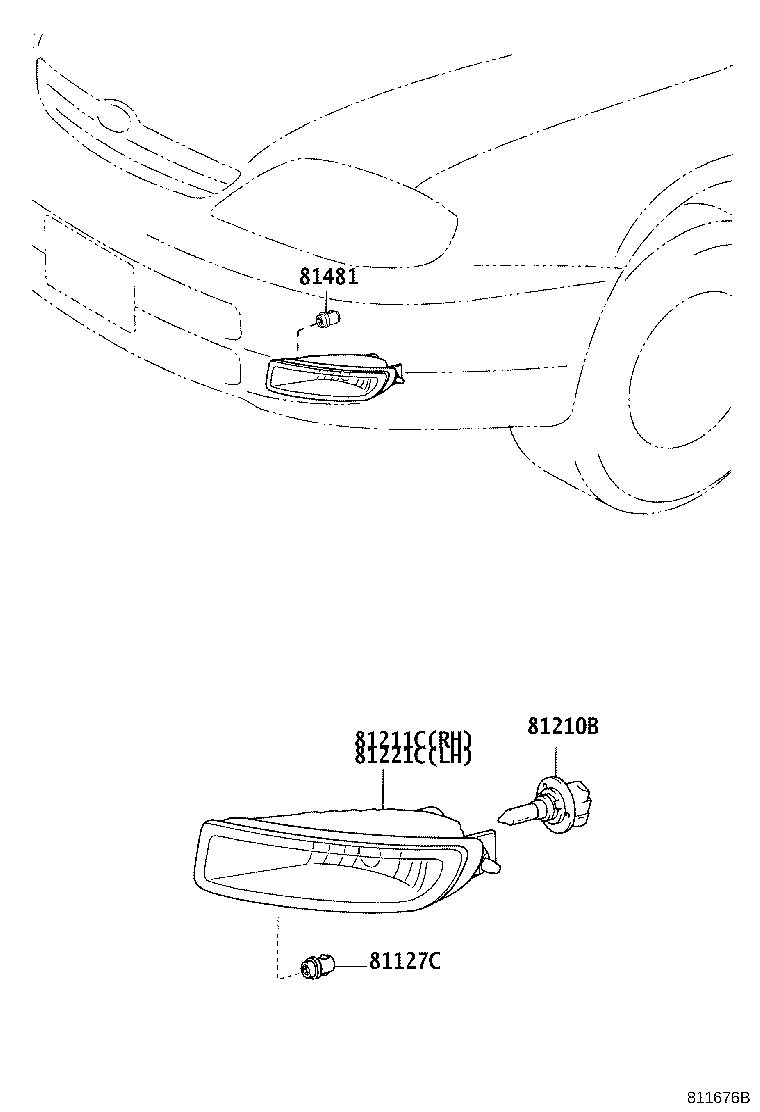

(0101-0209)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81127C - BEARING FOG LAMP
90075-10811	NZE12#,ZZE123	01/2001 - 09/2002	2
81210B - BULB, FOG LAMP
90981-13047	NZE12#,ZZE123 12V 55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
90981-13081	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	11/2005 - 09/2006	2
90981-WD012	NZE12#,ZZE12# 12V 55W,PHILIPS	04/2004 - 11/2005	2
90981-WD011	NZE12#,ZZE12# 12V 55W,OSRAM	04/2004 - 11/2005	2
90080-81100	NZE12#,ZZE12#	09/2002 - 04/2004	2
90981-13075	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	11/2005 - 09/2006	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150	NZE12#,ZZE123	01/2001 - 09/2002	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160	NZE12#,ZZE123	01/2001 - 09/2002	1
81481 - BRACKET, FOG LAMP
81481-10030	NZE12#,ZZE123	01/2001 - 09/2002	2

(0209-0404)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81210A - LAMP ASSY, FOG, RH
81210-02090	NZE12#,ZZE12#	04/2004 - 09/2006	1
81210-02051	NZE12#,ZZE12#	09/2002 - 04/2004	1
81210B - BULB, FOG LAMP
90981-13047	NZE12#,ZZE123 12V 55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
90981-13081	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	11/2005 - 09/2006	2
90981-WD012	NZE12#,ZZE12# 12V 55W,PHILIPS	04/2004 - 11/2005	2
90981-WD011	NZE12#,ZZE12# 12V 55W,OSRAM	04/2004 - 11/2005	2
90080-81100	NZE12#,ZZE12#	09/2002 - 04/2004	2
90981-13075	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	11/2005 - 09/2006	2
81220 - LAMP ASSY, FOG, LH
81220-02051	NZE12#,ZZE12#	09/2002 - 04/2004	1
81220-02090	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90119-06388
90179-06127
Linked diagrams
5201

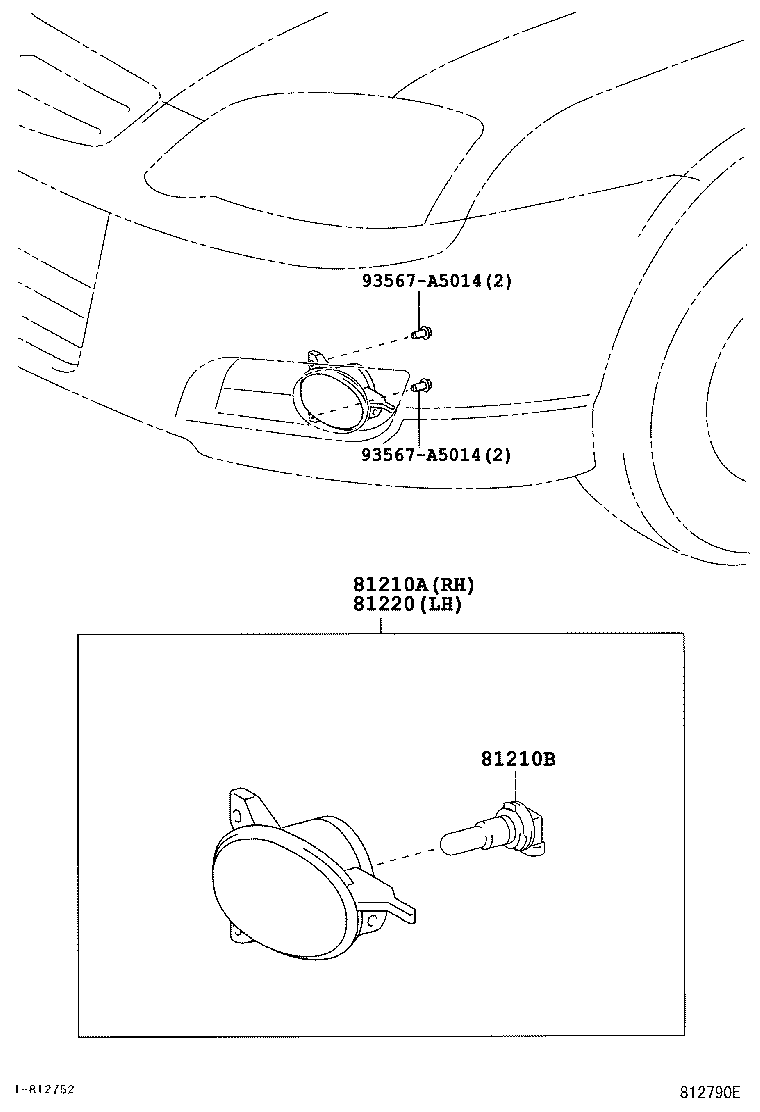

(0404-0609)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81210A - LAMP ASSY, FOG, RH
81210-02090	NZE12#,ZZE12#	04/2004 - 09/2006	1
81210-02051	NZE12#,ZZE12#	09/2002 - 04/2004	1
81210B - BULB, FOG LAMP
90981-13047	NZE12#,ZZE123 12V 55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
90981-13081	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	11/2005 - 09/2006	2
90981-WD012	NZE12#,ZZE12# 12V 55W,PHILIPS	04/2004 - 11/2005	2
90981-WD011	NZE12#,ZZE12# 12V 55W,OSRAM	04/2004 - 11/2005	2
90080-81100	NZE12#,ZZE12#	09/2002 - 04/2004	2
90981-13075	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	11/2005 - 09/2006	2
81220 - LAMP ASSY, FOG, LH
81220-02051	NZE12#,ZZE12#	09/2002 - 04/2004	1
81220-02090	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
93567-A5014
