Toyota Corolla runx/allex NZE121 HEADLAMP

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0101-0209)

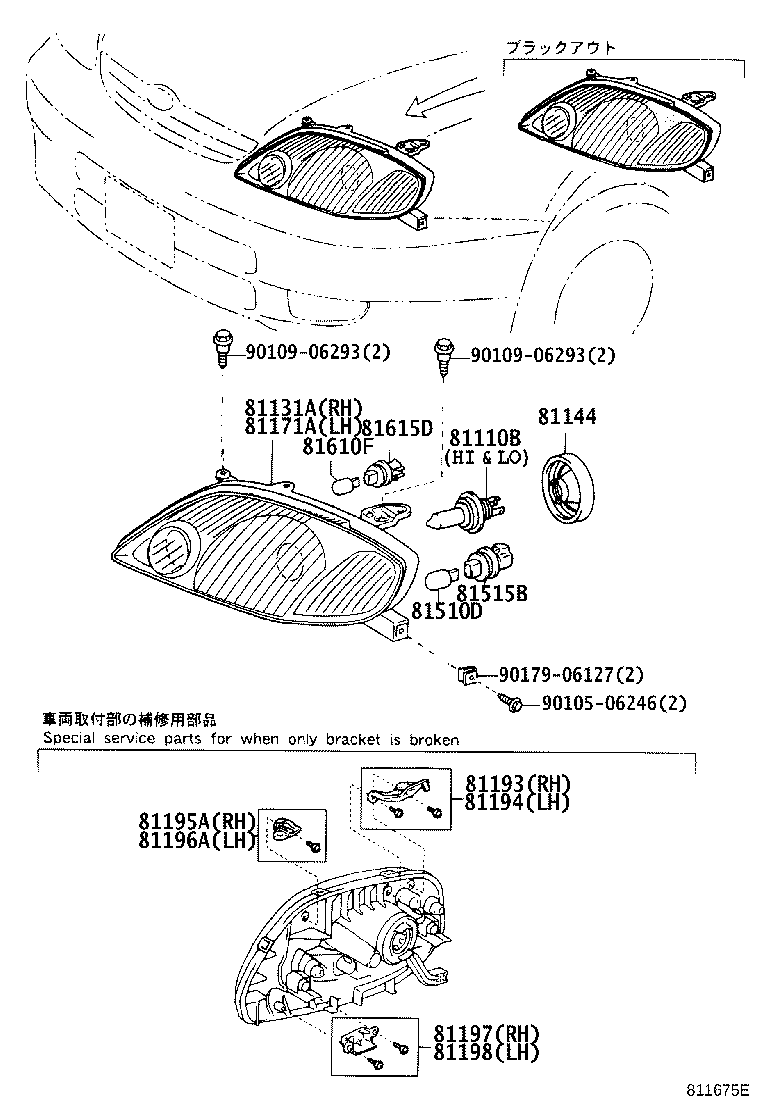

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-13055	NZE12#,ZZE123 12V 60/55W,ﾊﾛｹﾞﾝ,ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	2
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13058	NZE12# 12V 60/55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
81131A - UNIT, HEADLAMP, RH
81130-1E620	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81130-1E600	NZE12#	01/2001 - 09/2002	1
81130-13350	NZE12#	04/2004 - 09/2006	1
81130-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81145-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81145-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81171A - UNIT, HEADLAMP, LH
81185-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81170-1E480	NZE12#	01/2001 - 09/2002	1
81170-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81170-13350	NZE12#	04/2004 - 09/2006	1
81185-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81170-1E500	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81195-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81196-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81197-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	NZE12#,ZZE123 12V 21W,ｱﾝﾊﾞｰ	01/2001 - 09/2002	2
90981-15020	NZE12# 12V 21W,ｱﾝﾊﾞｰ	04/2004 - 09/2006	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
90981-15020	NZE12#,ZZE122,124 12V 21W,ｱﾝﾊﾞｰ	09/2002 - 04/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NZE12#,ZZE122,124	09/2002 - 04/2004	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90075-60028	NZE12#,ZZE123	01/2001 - 09/2002	2
90069-81027	NZE12#	04/2004 - 09/2006	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	2
99132-12050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	2
99132-12050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	2
81615D - SOCKET, CLEARANCE LAMP
90075-60001	NZE12#,ZZE123	01/2001 - 09/2002	2
Common parts
90105-06246
90109-06293
90179-06127

(0209-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-13055	NZE12#,ZZE123 12V 60/55W,ﾊﾛｹﾞﾝ,ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	2
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13058	NZE12# 12V 60/55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13079	NZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13079	NZE12#,ZZE122,124 12V 55W,ﾊﾛｹﾞﾝ	09/2002 - 04/2004	2
81131A - UNIT, HEADLAMP, RH
81130-1E620	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81130-1E600	NZE12#	01/2001 - 09/2002	1
81130-13350	NZE12#	04/2004 - 09/2006	1
81130-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81145-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81145-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81145 - COVER, HEADLAMP, NO.2
81135-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
81135-13280	NZE12# 右側	04/2004 - 09/2006	1
81175-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,左側	04/2004 - 09/2006	1
81175-13280	NZE12#,ZZE122,124 左側	09/2002 - 04/2004	1
81135-13280	NZE12#,ZZE122,124 右側	09/2002 - 04/2004	1
81175-13280	NZE12# 左側	04/2004 - 09/2006	1
81135-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,右側	04/2004 - 09/2006	1
81171A - UNIT, HEADLAMP, LH
81185-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81170-1E480	NZE12#	01/2001 - 09/2002	1
81170-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81170-13350	NZE12#	04/2004 - 09/2006	1
81185-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81170-1E500	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81195-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81196-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81197-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	NZE12#,ZZE123 12V 21W,ｱﾝﾊﾞｰ	01/2001 - 09/2002	2
90981-15020	NZE12# 12V 21W,ｱﾝﾊﾞｰ	04/2004 - 09/2006	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
90981-15020	NZE12#,ZZE122,124 12V 21W,ｱﾝﾊﾞｰ	09/2002 - 04/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NZE12#,ZZE122,124	09/2002 - 04/2004	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90075-60028	NZE12#,ZZE123	01/2001 - 09/2002	2
90069-81027	NZE12#	04/2004 - 09/2006	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	2
99132-12050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	2
99132-12050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

(0209-0404)

Click highlighted areas on diagram

ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81107-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81107-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-13055	NZE12#,ZZE123 12V 60/55W,ﾊﾛｹﾞﾝ,ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	2
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13058	NZE12# 12V 60/55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20009	NZE12#,ZZE12# 85V 35W	09/2002 - 04/2004	2
90981-20009	NZE12#,ZZE12# 85V 35W	04/2004 - 09/2006	2
81117 - PACKING, HEADLAMP HOUSING
81117-13290	NZE12#,ZZE12#	04/2004 - 09/2006	1
81117-13290	NZE12#,ZZE12#	09/2002 - 04/2004	1
81131A - UNIT, HEADLAMP, RH
81130-1E620	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81130-1E600	NZE12#	01/2001 - 09/2002	1
81130-13350	NZE12#	04/2004 - 09/2006	1
81130-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81145-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81145-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81134 - GASKET, HEADLAMP
81134-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81134-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81145 - COVER, HEADLAMP, NO.2
81135-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
81135-13280	NZE12# 右側	04/2004 - 09/2006	1
81175-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,左側	04/2004 - 09/2006	1
81175-13280	NZE12#,ZZE122,124 左側	09/2002 - 04/2004	1
81135-13280	NZE12#,ZZE122,124 右側	09/2002 - 04/2004	1
81175-13280	NZE12# 左側	04/2004 - 09/2006	1
81135-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,右側	04/2004 - 09/2006	1
81145 - COVER, HEADLAMP, NO.2
81135-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
81135-13280	NZE12# 右側	04/2004 - 09/2006	1
81175-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,左側	04/2004 - 09/2006	1
81175-13280	NZE12#,ZZE122,124 左側	09/2002 - 04/2004	1
81135-13280	NZE12#,ZZE122,124 右側	09/2002 - 04/2004	1
81175-13280	NZE12# 左側	04/2004 - 09/2006	1
81135-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,右側	04/2004 - 09/2006	1
81171A - UNIT, HEADLAMP, LH
81185-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81170-1E480	NZE12#	01/2001 - 09/2002	1
81170-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81170-13350	NZE12#	04/2004 - 09/2006	1
81185-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81170-1E500	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81189 - COVER, HEADLAMP
81139-13290	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
81189-13290	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
81139-13290	NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
81189-13290	NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81195-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81196-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81197-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	NZE12#,ZZE123 12V 21W,ｱﾝﾊﾞｰ	01/2001 - 09/2002	2
90981-15020	NZE12# 12V 21W,ｱﾝﾊﾞｰ	04/2004 - 09/2006	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
90981-15020	NZE12#,ZZE122,124 12V 21W,ｱﾝﾊﾞｰ	09/2002 - 04/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NZE12#,ZZE122,124	09/2002 - 04/2004	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90075-60028	NZE12#,ZZE123	01/2001 - 09/2002	2
90069-81027	NZE12#	04/2004 - 09/2006	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	2
99132-12050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	2
99132-12050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-13055	NZE12#,ZZE123 12V 60/55W,ﾊﾛｹﾞﾝ,ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	2
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13058	NZE12# 12V 60/55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13079	NZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13079	NZE12#,ZZE122,124 12V 55W,ﾊﾛｹﾞﾝ	09/2002 - 04/2004	2
81131A - UNIT, HEADLAMP, RH
81130-1E620	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81130-1E600	NZE12#	01/2001 - 09/2002	1
81130-13350	NZE12#	04/2004 - 09/2006	1
81130-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81145-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81145-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81145 - COVER, HEADLAMP, NO.2
81135-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
81135-13280	NZE12# 右側	04/2004 - 09/2006	1
81175-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,左側	04/2004 - 09/2006	1
81175-13280	NZE12#,ZZE122,124 左側	09/2002 - 04/2004	1
81135-13280	NZE12#,ZZE122,124 右側	09/2002 - 04/2004	1
81175-13280	NZE12# 左側	04/2004 - 09/2006	1
81135-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,右側	04/2004 - 09/2006	1
81171A - UNIT, HEADLAMP, LH
81185-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81170-1E480	NZE12#	01/2001 - 09/2002	1
81170-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81170-13350	NZE12#	04/2004 - 09/2006	1
81185-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81170-1E500	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81195-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81196-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81197-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	NZE12#,ZZE123 12V 21W,ｱﾝﾊﾞｰ	01/2001 - 09/2002	2
90981-15020	NZE12# 12V 21W,ｱﾝﾊﾞｰ	04/2004 - 09/2006	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
90981-15020	NZE12#,ZZE122,124 12V 21W,ｱﾝﾊﾞｰ	09/2002 - 04/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NZE12#,ZZE122,124	09/2002 - 04/2004	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90075-60028	NZE12#,ZZE123	01/2001 - 09/2002	2
90069-81027	NZE12#	04/2004 - 09/2006	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	2
99132-12050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	2
99132-12050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

(0404- )

Click highlighted areas on diagram

ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81107-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81107-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-13055	NZE12#,ZZE123 12V 60/55W,ﾊﾛｹﾞﾝ,ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	2
90981-13079	NZE12#,ZZE12# 12V 55W,ﾊﾛｹﾞﾝ	04/2004 - 09/2006	2
90981-13058	NZE12# 12V 60/55W,ﾊﾛｹﾞﾝ	01/2001 - 09/2002	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20009	NZE12#,ZZE12# 85V 35W	09/2002 - 04/2004	2
90981-20009	NZE12#,ZZE12# 85V 35W	04/2004 - 09/2006	2
81117 - PACKING, HEADLAMP HOUSING
81117-13290	NZE12#,ZZE12#	04/2004 - 09/2006	1
81117-13290	NZE12#,ZZE12#	09/2002 - 04/2004	1
81131A - UNIT, HEADLAMP, RH
81130-1E620	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81130-1E600	NZE12#	01/2001 - 09/2002	1
81130-13350	NZE12#	04/2004 - 09/2006	1
81130-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81145-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81145-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81134 - GASKET, HEADLAMP
81134-52280	NZE12#,ZZE12#	09/2002 - 04/2004	1
81134-52280	NZE12#,ZZE12#	04/2004 - 09/2006	1
81144 - COVER, HEADLAMP, NO.1
81135-13290	NZE12# 右側	04/2004 - 09/2006	1
81135-13290	NZE12#,ZZE12#	09/2002 - 04/2004	2
81139-13330	NZE12# 左側	04/2004 - 09/2006	1
90075-65002	NZE12#,ZZE123	01/2001 - 09/2002	2
81139-13330	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81145 - COVER, HEADLAMP, NO.2
81135-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
81135-13280	NZE12# 右側	04/2004 - 09/2006	1
81175-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,左側	04/2004 - 09/2006	1
81175-13280	NZE12#,ZZE122,124 左側	09/2002 - 04/2004	1
81135-13280	NZE12#,ZZE122,124 右側	09/2002 - 04/2004	1
81175-13280	NZE12# 左側	04/2004 - 09/2006	1
81135-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ,右側	04/2004 - 09/2006	1
81171A - UNIT, HEADLAMP, LH
81185-13360	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	1
81170-1E480	NZE12#	01/2001 - 09/2002	1
81170-13280	NZE12#,ZZE122,124	09/2002 - 04/2004	1
81170-13350	NZE12#	04/2004 - 09/2006	1
81185-13290	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	1
81170-1E500	NZE12#,ZZE123 ﾌﾞﾗﾂｸｱｳﾄ:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	1
81189 - COVER, HEADLAMP
81139-13290	NZE12#,ZZE12# 右側	04/2004 - 09/2006	1
81189-13290	NZE12#,ZZE12# 左側	04/2004 - 09/2006	1
81139-13290	NZE12#,ZZE12# 右側	09/2002 - 04/2004	1
81189-13290	NZE12#,ZZE12# 左側	09/2002 - 04/2004	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81193-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81193-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81195-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81195-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81196-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
81196-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81197-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE12#,ZZE123	01/2001 - 09/2002	1
81197-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
81197-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	NZE12#,ZZE123 12V 21W,ｱﾝﾊﾞｰ	01/2001 - 09/2002	2
90981-15020	NZE12# 12V 21W,ｱﾝﾊﾞｰ	04/2004 - 09/2006	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90981-15011	NZE12#,ZZE12# 12V 21W,ｱﾝﾊﾞｰ,ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
90981-15020	NZE12#,ZZE122,124 12V 21W,ｱﾝﾊﾞｰ	09/2002 - 04/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NZE12#,ZZE122,124	09/2002 - 04/2004	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	09/2002 - 04/2004	2
90075-60028	NZE12#,ZZE123	01/2001 - 09/2002	2
90069-81027	NZE12#	04/2004 - 09/2006	2
81515-42050	NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞﾍﾂﾄﾞﾗﾝﾌﾟ	04/2004 - 09/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NZE12#,ZZE12# 12V 5W	04/2004 - 09/2006	2
99132-12050	NZE12#,ZZE123 12V 5W	01/2001 - 09/2002	2
99132-12050	NZE12#,ZZE12# 12V 5W	09/2002 - 04/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

NZE121-BHPNK (2001)

(0101-0209)

(0209-0404)

(0209-0404)

(0404- )

(0404- )

Part Price Details
