Toyota Corolla runx/allex NZE121 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
NZE121-BHPNK (2001)
5202 - REAR BUMPER & BUMPER STAY

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

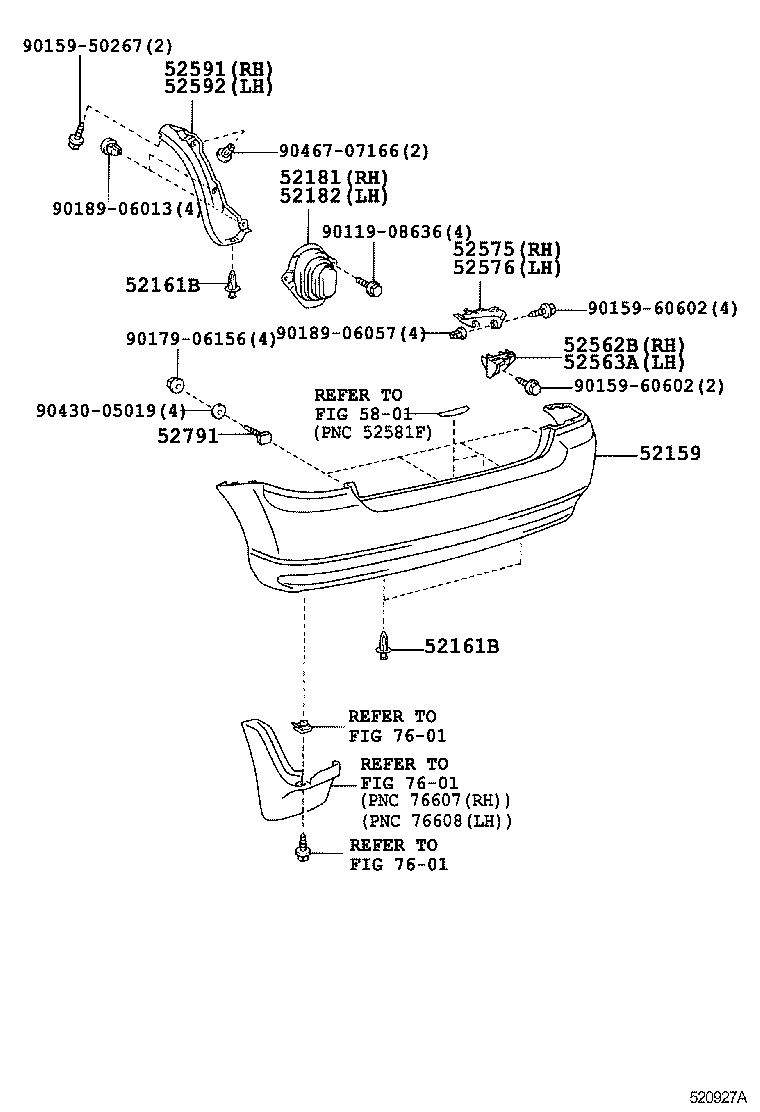

(0101-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13160A0	NZE12#,ZZE123 SUPER WHITE 2,040	01/2001 - 10/2001	1
52159-13160B0	NZE12#,ZZE123 SILVER ME.,199	01/2001 - 10/2001	1
52159-13160C0	NZE12#,ZZE123 BLACK ME,205	01/2001 - 10/2001	1
52159-13160E0	NZE12#,ZZE123 BEIGE ME.,4P7	01/2001 - 10/2001	1
52159-13160H0	NZE12#,ZZE123 TURQUOISE M.M.,767	10/2001 - 12/2001	1
52159-13160J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52159-13160D0	NZE12#,ZZE123 SUPER RED II,3E5	10/2001 - 09/2002	1
52159-13160J0	NZE12#,ZZE123 DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52159-13160H0	NZE12#,ZZE123 TURQUOISE M.M.,767	01/2001 - 10/2001	1
52159-13160C0	NZE12#,ZZE123 BLACK ME,205	10/2001 - 12/2001	1
52159-13160C1	NZE12#,ZZE123 BLACK MC.,209	12/2001 - 09/2002	1
52159-13160B1	NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
52159-13160D0	NZE12#,ZZE123 SUPER RED II,3E5	01/2001 - 10/2001	1
52159-13160A1	NZE12#,ZZE122,124..ALLEX WHITE PM.,057	09/2002 - 04/2004	1
52159-13160E0	NZE12#,ZZE123 BEIGE ME.,4P7	10/2001 - 09/2002	1
52159-13160A0	NZE12#,ZZE123 SUPER WHITE 2,040	10/2001 - 09/2002	1
52159-13160A0	NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
52159-13160J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52159-13160K0	NZE12#,ZZE12# DARK PURPLE MC.,946	09/2002 - 04/2004	1
52159-13160D0	NZE12#,ZZE12# SUPER RED II,3E5	09/2002 - 04/2004	1
52159-13240C0	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
52159-13240D0	NZE12#,ZZE12# SUPER RED II,3E5	04/2004 - 09/2006	1
52159-13160B0	NZE12#,ZZE123 SILVER ME.,199	10/2001 - 09/2002	1
52159-13240J2	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52159-13160C1	NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
52159-13240B0	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
52159-13160E0	NZE12#,ZZE12# BEIGE ME.,4P7	09/2002 - 04/2004	1
52159-13240A1	NZE12#,ZZE12#..ALLEX WHITE PEARL CS.,073	04/2004 - 09/2006	1
52159-13240A0	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
52159-13240D1	NZE12#,ZZE12# ROSE ME.,3Q0	04/2004 - 09/2006	1
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	4
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09093	NZE12#,ZZE123	01/2001 - 09/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	4
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09093	NZE12#,ZZE123	01/2001 - 09/2002	4
52181 - ARM, REAR BUMPER, RH
52181-13120	NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-13120	NZE12#,ZZE12#	04/2004 - 09/2006	1
52181-13120	NZE12#,ZZE123	01/2001 - 09/2002	1
52182 - ARM, REAR BUMPER, LH
52181-13120	NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-13120	NZE12#,ZZE12#	04/2004 - 09/2006	1
52181-13120	NZE12#,ZZE123	01/2001 - 09/2002	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52562-13030	NZE12#,ZZE12#	04/2004 - 09/2006	1
52562-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
52563-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
52563-13020	NZE12#,ZZE123	01/2001 - 09/2002	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
52575-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52575-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52576-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
52576-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-13040	NZE12#,ZZE123	01/2001 - 09/2002	1
52591-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52591-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-13040	NZE12#,ZZE123	01/2001 - 09/2002	1
52592-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52592-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	NZE12#,ZZE12#	09/2002 - 04/2004	4
52791-12040	NZE12#,ZZE123	01/2001 - 09/2002	4
52791-12040	NZE12#,ZZE12#	04/2004 - 09/2006	4
Common parts
90119-08636
90159-50267
90159-60602
90179-06156
90189-06013
90189-06057
90430-05019
90467-07166
Linked diagrams
5801
7601

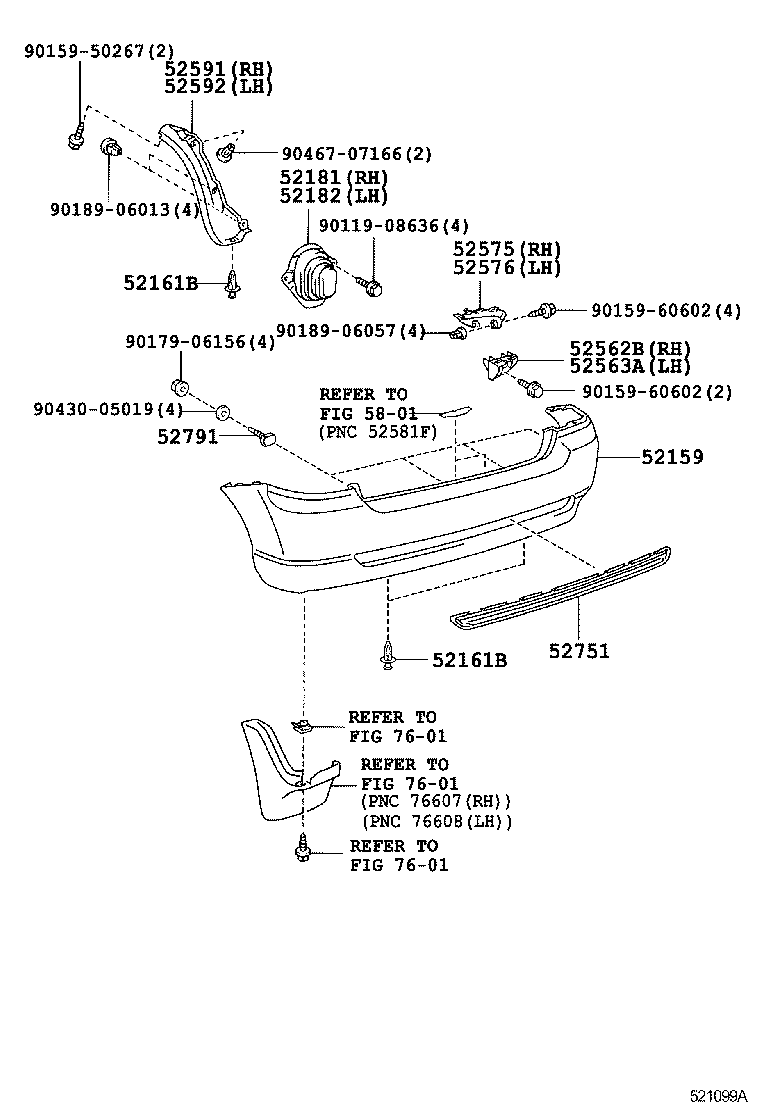

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13160A0	NZE12#,ZZE123 SUPER WHITE 2,040	01/2001 - 10/2001	1
52159-13160B0	NZE12#,ZZE123 SILVER ME.,199	01/2001 - 10/2001	1
52159-13160C0	NZE12#,ZZE123 BLACK ME,205	01/2001 - 10/2001	1
52159-13160E0	NZE12#,ZZE123 BEIGE ME.,4P7	01/2001 - 10/2001	1
52159-13160H0	NZE12#,ZZE123 TURQUOISE M.M.,767	10/2001 - 12/2001	1
52159-13160J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52159-13160D0	NZE12#,ZZE123 SUPER RED II,3E5	10/2001 - 09/2002	1
52159-13160J0	NZE12#,ZZE123 DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52159-13160H0	NZE12#,ZZE123 TURQUOISE M.M.,767	01/2001 - 10/2001	1
52159-13160C0	NZE12#,ZZE123 BLACK ME,205	10/2001 - 12/2001	1
52159-13160C1	NZE12#,ZZE123 BLACK MC.,209	12/2001 - 09/2002	1
52159-13160B1	NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
52159-13160D0	NZE12#,ZZE123 SUPER RED II,3E5	01/2001 - 10/2001	1
52159-13160A1	NZE12#,ZZE122,124..ALLEX WHITE PM.,057	09/2002 - 04/2004	1
52159-13160E0	NZE12#,ZZE123 BEIGE ME.,4P7	10/2001 - 09/2002	1
52159-13160A0	NZE12#,ZZE123 SUPER WHITE 2,040	10/2001 - 09/2002	1
52159-13160A0	NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
52159-13160J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52159-13160K0	NZE12#,ZZE12# DARK PURPLE MC.,946	09/2002 - 04/2004	1
52159-13160D0	NZE12#,ZZE12# SUPER RED II,3E5	09/2002 - 04/2004	1
52159-13240C0	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
52159-13240D0	NZE12#,ZZE12# SUPER RED II,3E5	04/2004 - 09/2006	1
52159-13160B0	NZE12#,ZZE123 SILVER ME.,199	10/2001 - 09/2002	1
52159-13240J2	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52159-13160C1	NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
52159-13240B0	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
52159-13160E0	NZE12#,ZZE12# BEIGE ME.,4P7	09/2002 - 04/2004	1
52159-13240A1	NZE12#,ZZE12#..ALLEX WHITE PEARL CS.,073	04/2004 - 09/2006	1
52159-13240A0	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
52159-13240D1	NZE12#,ZZE12# ROSE ME.,3Q0	04/2004 - 09/2006	1
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	4
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09093	NZE12#,ZZE123	01/2001 - 09/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	4
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	4
90467-09093	NZE12#,ZZE123	01/2001 - 09/2002	4
52181 - ARM, REAR BUMPER, RH
52181-13120	NZE12#,ZZE123	01/2001 - 09/2002	1
52181-13120	NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-13120	NZE12#,ZZE12#	04/2004 - 09/2006	1
52182 - ARM, REAR BUMPER, LH
52181-13120	NZE12#,ZZE12#	09/2002 - 04/2004	1
52181-13120	NZE12#,ZZE12#	04/2004 - 09/2006	1
52181-13120	NZE12#,ZZE123	01/2001 - 09/2002	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52562-13030	NZE12#,ZZE12#	04/2004 - 09/2006	1
52562-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
52563-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
52563-13020	NZE12#,ZZE123	01/2001 - 09/2002	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
52575-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52575-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	NZE12#,ZZE12#	09/2002 - 04/2004	1
52576-13050	NZE12#,ZZE12#	04/2004 - 09/2006	1
52576-13030	NZE12#,ZZE123	01/2001 - 09/2002	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-13040	NZE12#,ZZE123	01/2001 - 09/2002	1
52591-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52591-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-13040	NZE12#,ZZE123	01/2001 - 09/2002	1
52592-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52592-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52751 - MOULDING, REAR BUMPER
52751-13010	NZE12#,ZZE12#	04/2004 - 09/2006	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	NZE12#,ZZE12#	09/2002 - 04/2004	4
52791-12040	NZE12#,ZZE123	01/2001 - 09/2002	4
52791-12040	NZE12#,ZZE12#	04/2004 - 09/2006	4
Common parts
90119-08636
90159-50267
90159-60602
90179-06156
90189-06013
90189-06057
90430-05019
90467-07166
Linked diagrams
5801
7601

NZE121-BHPNK (2001)

(0101-0404)

(0404- )
