Toyota Corolla runx/allex NZE121 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
COROLLA RUNX/ALLEX
NZE121-BHPNK (2001)
5201 - FRONT BUMPER & BUMPER STAY

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

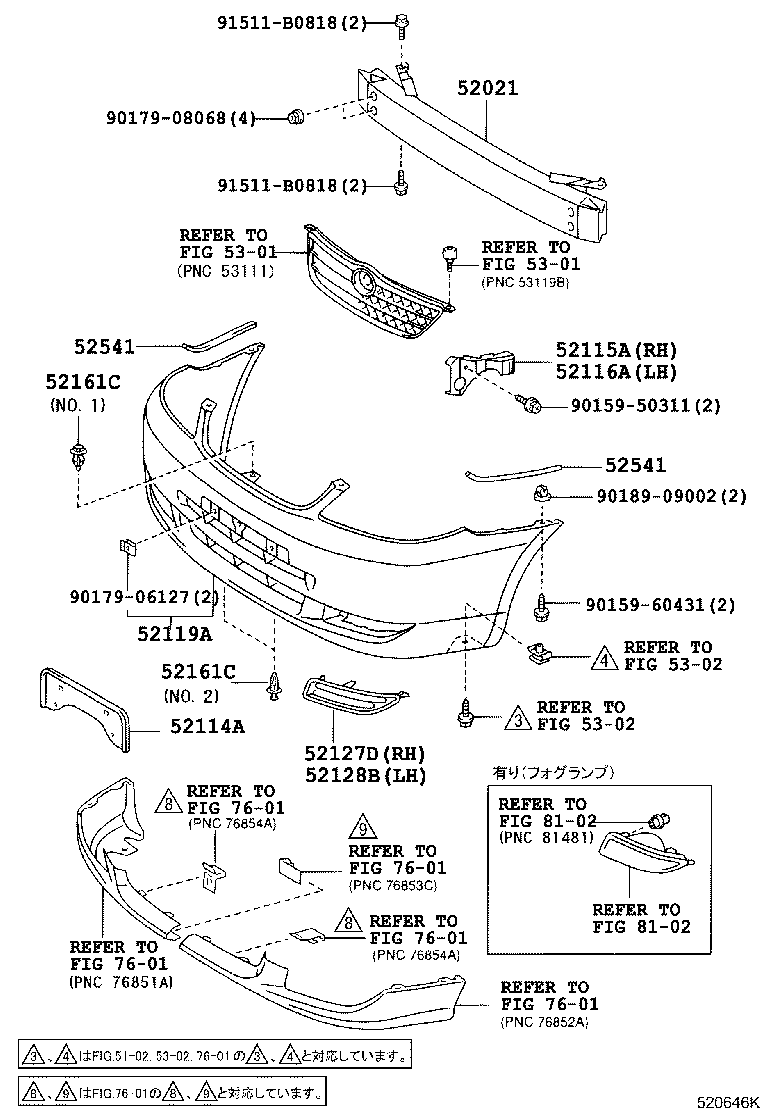

(0101-0209)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	NZE12#,ZZE123	01/2001 - 09/2002	1
52021-12220	NZE12#,ZZE12#	09/2002 - 04/2004	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
52114-12100	NZE12#,ZZE123	05/2001 - 09/2002	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12380	NZE12#,ZZE123	01/2001 - 09/2002	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12340	NZE12#,ZZE123	01/2001 - 09/2002	1
52119A - COVER, FRONT BUMPER
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	10/2001 - 12/2001	1
52119-1E750H1	NZE12#,ZZE123 TURQUOISE M.M.,767	01/2001 - 12/2001	1
52119-1E750C0	NZE12#,ZZE123 BLACK ME,205	01/2001 - 12/2001	1
52119-1E750E0	NZE12#,ZZE123 BEIGE ME.,4P7	01/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	01/2001 - 10/2001	1
52119-1E750A1	NZE12#,ZZE123 SUPER WHITE 2,040	01/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	10/2001 - 09/2002	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	10/2001 - 12/2001	1
52119-1E750D0	NZE12#,ZZE123 SUPER RED II,3E5	01/2001 - 09/2002	1
52119-1E750B1	NZE12#,ZZE123 SILVER ME.,199	01/2001 - 09/2002	1
52119-1E750C1	NZE12#,ZZE123 BLACK MC.,209	12/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	10/2001 - 09/2002	1
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	10/2001 - 09/2002	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	01/2001 - 10/2001	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	10/2001 - 09/2002	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-13340C0	NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
52119-1E750J0	NZE12#,ZZE123 DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340E1	NZE12#,ZZE12# BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13340D0	NZE12#,ZZE12# SUPER RED II,3E5	09/2002 - 04/2004	1
52119-1E760J0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340A0	NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13350A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13340A1	NZE12#,ZZE122,124..ALLEX WHITE PM.,057	09/2002 - 04/2004	1
52119-13350C1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	09/2002 - 04/2004	1
52119-13350D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	09/2002 - 04/2004	1
52119-13340K0	NZE12#,ZZE12# DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13440A0	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-13350K0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13350B1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-13340B0	NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E760C1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	12/2001 - 09/2002	1
52119-13350A1	NZE12#,ZZE122,124..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PM.,057	09/2002 - 04/2004	1
52119-13350E1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13450A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440A1	NZE12#,ZZE12#..ALLEX WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440C0	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
52119-13440J2	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13440D0	NZE12#,ZZE12# SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450B0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13440D1	NZE12#,ZZE12# ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13440B0	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13450D0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13450J2	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13460A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13450A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13470A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13470A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450C0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13460C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52127-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52127-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52127-02120	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52127-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
52128-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52128-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52128-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52128-02110	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52161C - PIECE, FRONT BUMPER
52161-16010	NZE12#,ZZE123 NO.2	01/2001 - 09/2002	2
90467-09093	NZE12#,ZZE123 NO.1	01/2001 - 09/2002	1
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	3
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	3
52161C - PIECE, FRONT BUMPER
52161-16010	NZE12#,ZZE123 NO.2	01/2001 - 09/2002	2
90467-09093	NZE12#,ZZE123 NO.1	01/2001 - 09/2002	1
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	3
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	3
52541 - PROTECTOR, FRONT BUMPER
52541-12020	NZE12#,ZZE123	01/2001 - 09/2002	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	NZE12#,ZZE123	01/2001 - 09/2002	2
Common parts
90159-50311
90159-60431
90179-06127
90179-08068
90189-09002
91511-B0818
Linked diagrams
5301
5302
7601
8102

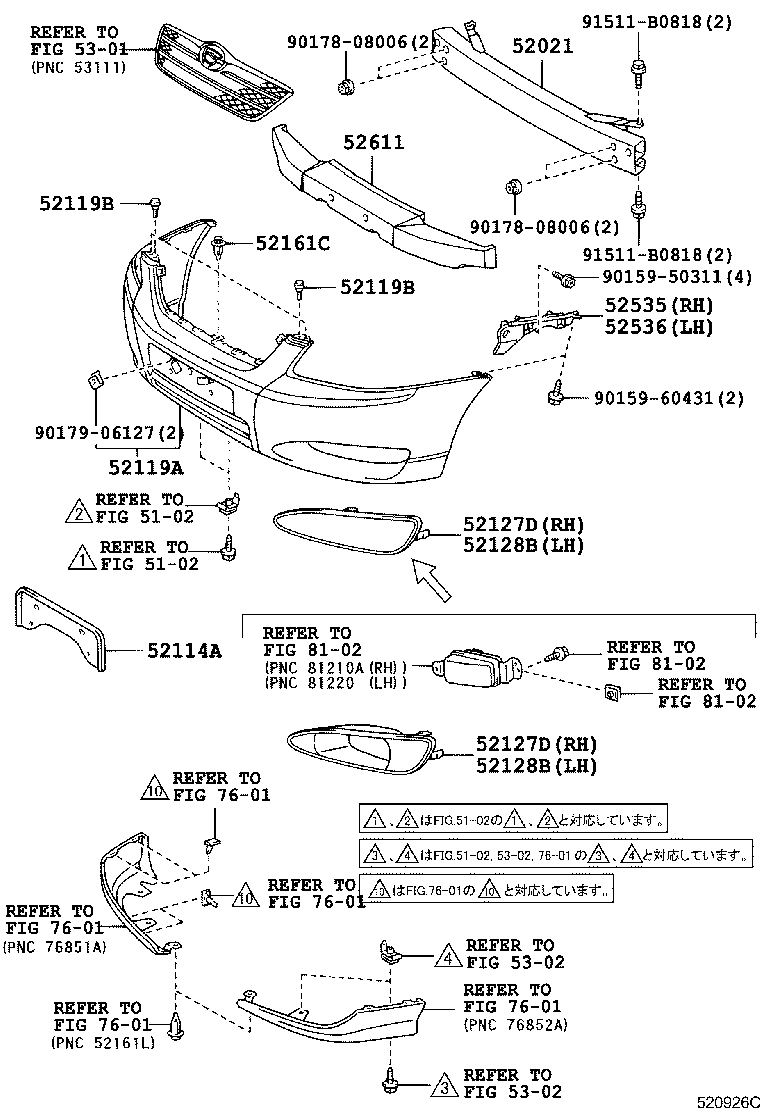

(0209-0404)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	NZE12#,ZZE123	01/2001 - 09/2002	1
52021-12220	NZE12#,ZZE12#	09/2002 - 04/2004	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-13010	NZE12#,ZZE12#	09/2002 - 04/2004	1
52114-12100	NZE12#,ZZE123	05/2001 - 09/2002	1
52119A - COVER, FRONT BUMPER
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	10/2001 - 12/2001	1
52119-1E750H1	NZE12#,ZZE123 TURQUOISE M.M.,767	01/2001 - 12/2001	1
52119-1E750C0	NZE12#,ZZE123 BLACK ME,205	01/2001 - 12/2001	1
52119-1E750E0	NZE12#,ZZE123 BEIGE ME.,4P7	01/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	01/2001 - 10/2001	1
52119-1E750A1	NZE12#,ZZE123 SUPER WHITE 2,040	01/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	10/2001 - 09/2002	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	10/2001 - 12/2001	1
52119-1E750D0	NZE12#,ZZE123 SUPER RED II,3E5	01/2001 - 09/2002	1
52119-1E750B1	NZE12#,ZZE123 SILVER ME.,199	01/2001 - 09/2002	1
52119-1E750C1	NZE12#,ZZE123 BLACK MC.,209	12/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	10/2001 - 09/2002	1
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	10/2001 - 09/2002	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	01/2001 - 10/2001	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	10/2001 - 09/2002	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-13340C0	NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
52119-1E750J0	NZE12#,ZZE123 DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340E1	NZE12#,ZZE12# BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13340D0	NZE12#,ZZE12# SUPER RED II,3E5	09/2002 - 04/2004	1
52119-1E760J0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340A0	NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13350A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13340A1	NZE12#,ZZE122,124..ALLEX WHITE PM.,057	09/2002 - 04/2004	1
52119-13350C1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	09/2002 - 04/2004	1
52119-13350D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	09/2002 - 04/2004	1
52119-13340K0	NZE12#,ZZE12# DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13440A0	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-13350K0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13350B1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-13340B0	NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E760C1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	12/2001 - 09/2002	1
52119-13350A1	NZE12#,ZZE122,124..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PM.,057	09/2002 - 04/2004	1
52119-13350E1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13450A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440A1	NZE12#,ZZE12#..ALLEX WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440C0	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
52119-13440J2	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13440D0	NZE12#,ZZE12# SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450B0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13440D1	NZE12#,ZZE12# ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13440B0	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13450D0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13450J2	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13460A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13450A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13470A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13470A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450C0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13460C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52119B - COVER, FRONT BUMPER SIDE(FOR GLLILE GUARD)
53119-12150	NZE12#,ZZE12#	09/2002 - 04/2004	2
52119B - COVER, FRONT BUMPER SIDE(FOR GLLILE GUARD)
53119-12150	NZE12#,ZZE12#	09/2002 - 04/2004	2
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52127-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52127-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52127-02120	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52127-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52127-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52127-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52127-02120	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52127-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
52128-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52128-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52128-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52128-02110	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
52128-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52128-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52128-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52128-02110	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52161C - PIECE, FRONT BUMPER
90467-09093	NZE12#,ZZE123 NO.1	01/2001 - 09/2002	1
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	3
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	3
52161-16010	NZE12#,ZZE123 NO.2	01/2001 - 09/2002	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52535-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
52536-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
52611-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90159-50311
90159-60431
90178-08006
90179-06127
91511-B0818
Linked diagrams
5102
5301
5302
7601
8102

(0404- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12200	NZE12#,ZZE123	01/2001 - 09/2002	1
52021-12220	NZE12#,ZZE12#	09/2002 - 04/2004	1
52021-12220	NZE12#,ZZE12#	04/2004 - 09/2006	1
52119A - COVER, FRONT BUMPER
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	01/2001 - 10/2001	1
52119-1E760C0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK ME,205	10/2001 - 12/2001	1
52119-1E750H1	NZE12#,ZZE123 TURQUOISE M.M.,767	01/2001 - 12/2001	1
52119-1E750C0	NZE12#,ZZE123 BLACK ME,205	01/2001 - 12/2001	1
52119-1E750E0	NZE12#,ZZE123 BEIGE ME.,4P7	01/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	01/2001 - 10/2001	1
52119-1E750A1	NZE12#,ZZE123 SUPER WHITE 2,040	01/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	10/2001 - 09/2002	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	10/2001 - 12/2001	1
52119-1E750D0	NZE12#,ZZE123 SUPER RED II,3E5	01/2001 - 09/2002	1
52119-1E750B1	NZE12#,ZZE123 SILVER ME.,199	01/2001 - 09/2002	1
52119-1E750C1	NZE12#,ZZE123 BLACK MC.,209	12/2001 - 09/2002	1
52119-1E760A0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	10/2001 - 09/2002	1
52119-1E760B1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER ME.,199	10/2001 - 09/2002	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-1E760D0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	01/2001 - 10/2001	1
52119-1E760H1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),TURQUOISE M.M.,767	01/2001 - 10/2001	1
52119-1E760E0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	10/2001 - 09/2002	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2001 - 09/2002	1
52119-13340C0	NZE12#,ZZE12# BLACK MC.,209	09/2002 - 04/2004	1
52119-1E750J0	NZE12#,ZZE123 DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340E1	NZE12#,ZZE12# BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13340D0	NZE12#,ZZE12# SUPER RED II,3E5	09/2002 - 04/2004	1
52119-1E760J0	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	12/2001 - 09/2002	1
52119-13340A0	NZE12#,ZZE12# SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13350A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	09/2002 - 04/2004	1
52119-13340A1	NZE12#,ZZE122,124..ALLEX WHITE PM.,057	09/2002 - 04/2004	1
52119-13350C1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	09/2002 - 04/2004	1
52119-13350D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	09/2002 - 04/2004	1
52119-13340K0	NZE12#,ZZE12# DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13440A0	NZE12#,ZZE12# SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-1E750J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-1E760J0	NZE12#..ALLEX ﾀﾞ-ｸﾌﾞﾙ-ﾏｲｶﾒﾀﾘﾂｸ (S),(G) & ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DK.BLUE M.M.,8P4	09/2002 - 04/2004	1
52119-13350K0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),DARK PURPLE MC.,946	09/2002 - 04/2004	1
52119-13350B1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-13340B0	NZE12#,ZZE12# SILVER M.M.,1E7	09/2002 - 04/2004	1
52119-1E760C1	NZE12#,ZZE123 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	12/2001 - 09/2002	1
52119-13350A1	NZE12#,ZZE122,124..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PM.,057	09/2002 - 04/2004	1
52119-13350E1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BEIGE ME.,4P7	09/2002 - 04/2004	1
52119-13450A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440A1	NZE12#,ZZE12#..ALLEX WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13440C0	NZE12#,ZZE12# BLACK MC.,209	04/2004 - 09/2006	1
52119-13440J2	NZE12#,ZZE12# LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13440D0	NZE12#,ZZE12# SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450B0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13440D1	NZE12#,ZZE12# ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13440B0	NZE12#,ZZE12# SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13450D0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450D1	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13450J2	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13460A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13450A0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470B0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SILVER M.M.,1E7	04/2004 - 09/2006	1
52119-13470A0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER WHITE 2,040	04/2004 - 09/2006	1
52119-13470D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13470A1	NZE12#,ZZE12#..ALLEX ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),WHITE PEARL CS.,073	04/2004 - 09/2006	1
52119-13460D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52119-13450C0	NZE12#,ZZE12# ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460J2	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),LT.BLUE ME.,8Q6	04/2004 - 09/2006	1
52119-13460D1	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),ROSE ME.,3Q0	04/2004 - 09/2006	1
52119-13460C0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ- & ﾌﾛﾝﾄｽﾎﾟｲﾗ-),BLACK MC.,209	04/2004 - 09/2006	1
52119-13470D0	NZE12#,ZZE12# ｱﾘ(ﾌﾞﾗｲﾝﾄﾞｺ-ﾅﾓﾆﾀ-),SUPER RED II,3E5	04/2004 - 09/2006	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52127-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52127-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52127-02120	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52127-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52127-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52127-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52127-02120	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52127-12170	NZE12#,ZZE123	01/2001 - 09/2002	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
52128-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52128-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52128-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52128-02110	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-12070	NZE12#,ZZE123	01/2001 - 09/2002	1
52128-13070	NZE12#,ZZE12#	09/2002 - 04/2004	1
52128-02130	NZE12#,ZZE12#	04/2004 - 09/2006	1
52128-13080	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	09/2002 - 04/2004	1
52128-02110	NZE12#,ZZE12# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	04/2004 - 09/2006	1
52161C - PIECE, FRONT BUMPER
90467-09093	NZE12#,ZZE123 NO.1	01/2001 - 09/2002	1
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	3
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	3
52161-16010	NZE12#,ZZE123 NO.2	01/2001 - 09/2002	2
52161C - PIECE, FRONT BUMPER
90467-09093	NZE12#,ZZE123 NO.1	01/2001 - 09/2002	1
52161-16010	NZE12#,ZZE12#	09/2002 - 04/2004	3
52161-16010	NZE12#,ZZE12#	04/2004 - 09/2006	3
52161-16010	NZE12#,ZZE123 NO.2	01/2001 - 09/2002	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13040	NZE12#,ZZE12#	04/2004 - 09/2006	1
52535-13040	NZE12#,ZZE12#	09/2002 - 04/2004	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-13020	NZE12#,ZZE12#	09/2002 - 04/2004	1
52536-13020	NZE12#,ZZE12#	04/2004 - 09/2006	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12150	NZE12#,ZZE12#	09/2002 - 04/2004	1
52611-12170	NZE12#,ZZE12#	04/2004 - 09/2006	1
Common parts
90159-50311
90159-60431
90178-08006
90179-06127
91511-B0818
Linked diagrams
5102
5301
5302
7501
7601
8102
8606

NZE121-BHPNK (2001)

(0101-0209)

(0209-0404)

(0404- )

Part Price Details
