Toyota Corolla runx/allex NZE121 DISC WHEEL & WHEEL CAP

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

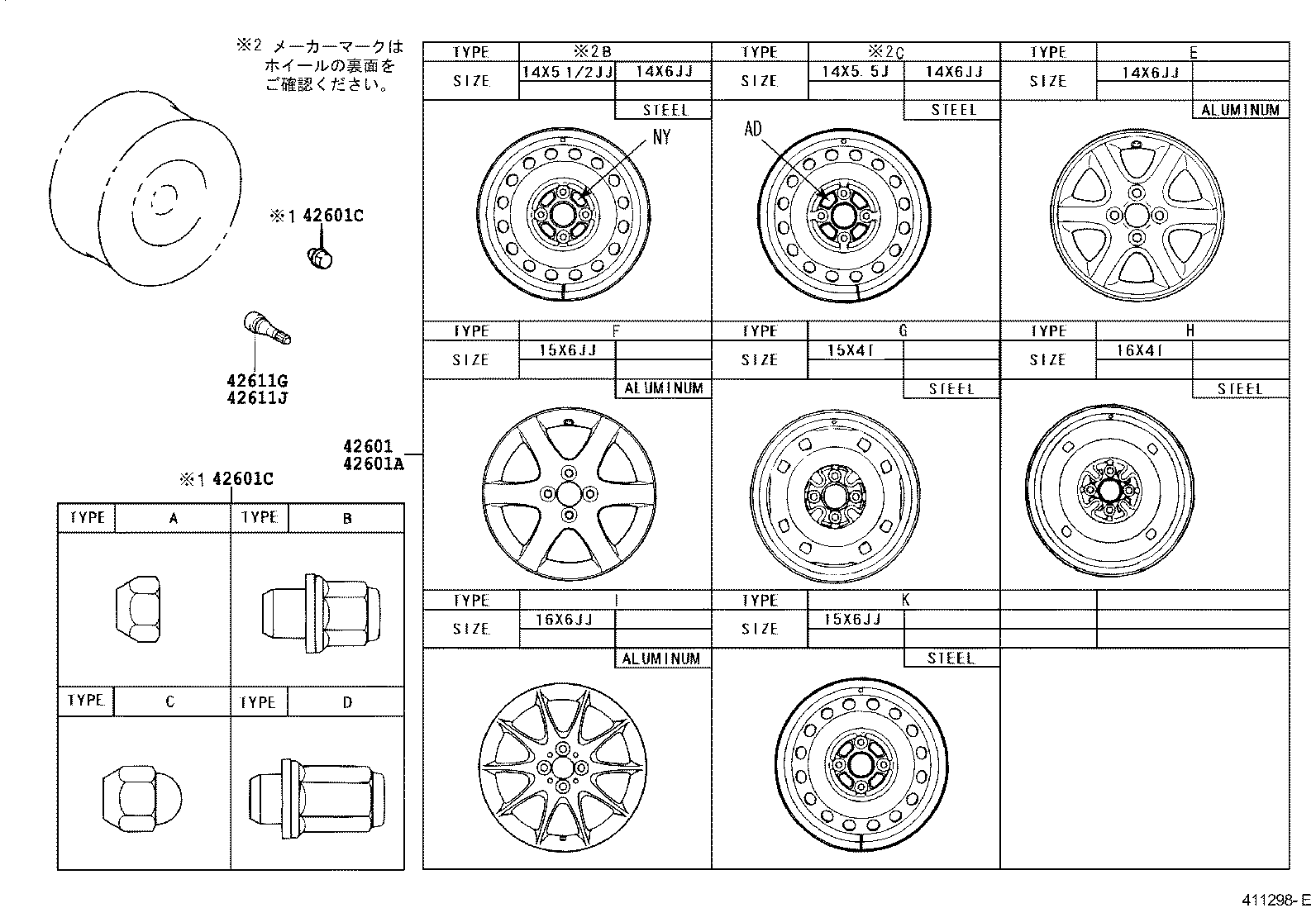

ILLUST NO. 1 OF 4(0101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A450	NZE121 14X5.5JJ,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	4
42611-1A450	NZE121 14X5.5JJ,#,TYPE B:ｲﾗｽﾄ参照	09/2002 - 04/2004	4
42611-1A500	NZE12# 14X6JJ,TYPE E:ｲﾗｽﾄ参照	01/2001 - 09/2002	4
42611-1A500	NZE12#,ZZE122,124 14X6JJ,TYPE E:ｲﾗｽﾄ参照	09/2002 - 04/2004	4
42611-1A450	NZE121 14X5.5JJ,#,TYPE B:ｲﾗｽﾄ参照	04/2004 - 09/2006	4
42611-1A460	NZE121 14X5.5JJ,TYPE C:ｲﾗｽﾄ参照	01/2001 - 09/2002	4
42611-1A500	NZE12# 14X6JJ,TYPE E:ｲﾗｽﾄ参照	04/2004 - 09/2006	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A010	NZE121 15X4T,TYPE G:ｲﾗｽﾄ参照	01/2001 - 09/2002	1
42611-1A010	NZE121 15X4T,TYPE G:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
42611-1A240	NZE12#,ZZE12# 16X4T,TYPE H:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
42611-1A240	NZE12#,ZZE123 16X4T,TYPE H:ｲﾗｽﾄ参照	01/2001 - 09/2002	1
42611-1A240	NZE12#,ZZE12# 16X4T,TYPE H:ｲﾗｽﾄ参照	09/2002 - 04/2004	1
42611-1A010	NZE121 15X4T,TYPE G:ｲﾗｽﾄ参照	04/2004 - 09/2006	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	NZE12#,ZZE122,124 TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	16
90942-01007	NZE12#,ZZE122,124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	16
90942-01058	NZE12#,ZZE122,124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	16
90942-01007	NZE12# TYPE A:ｲﾗｽﾄ参照	01/2001 - 09/2002	16
90942-01058	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	16
90942-01058	NZE12#,ZZE122,124 TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	16
42601C - NUT, HUB (FOR AXLE)
90942-01007	NZE12#,ZZE122,124 TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	16
90942-01007	NZE12#,ZZE122,124 TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	16
90942-01058	NZE12#,ZZE122,124 TYPE D:ｲﾗｽﾄ参照	09/2002 - 04/2004	16
90942-01007	NZE12# TYPE A:ｲﾗｽﾄ参照	01/2001 - 09/2002	16
90942-01058	NZE12#,ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	01/2001 - 09/2002	16
90942-01058	NZE12#,ZZE122,124 TYPE D:ｲﾗｽﾄ参照	04/2004 - 09/2006	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	NZE12#,ZZE123	01/2001 - 09/2002	4
90942-05009	NZE12#,ZZE12#	09/2002 - 04/2004	4
90942-05009	NZE12#,ZZE12#	04/2004 - 09/2006	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	NZE12#,ZZE123	01/2001 - 09/2002	1
90942-05009	NZE12#,ZZE12#	04/2004 - 09/2006	1
90942-05009	NZE12#,ZZE12#	09/2002 - 04/2004	1

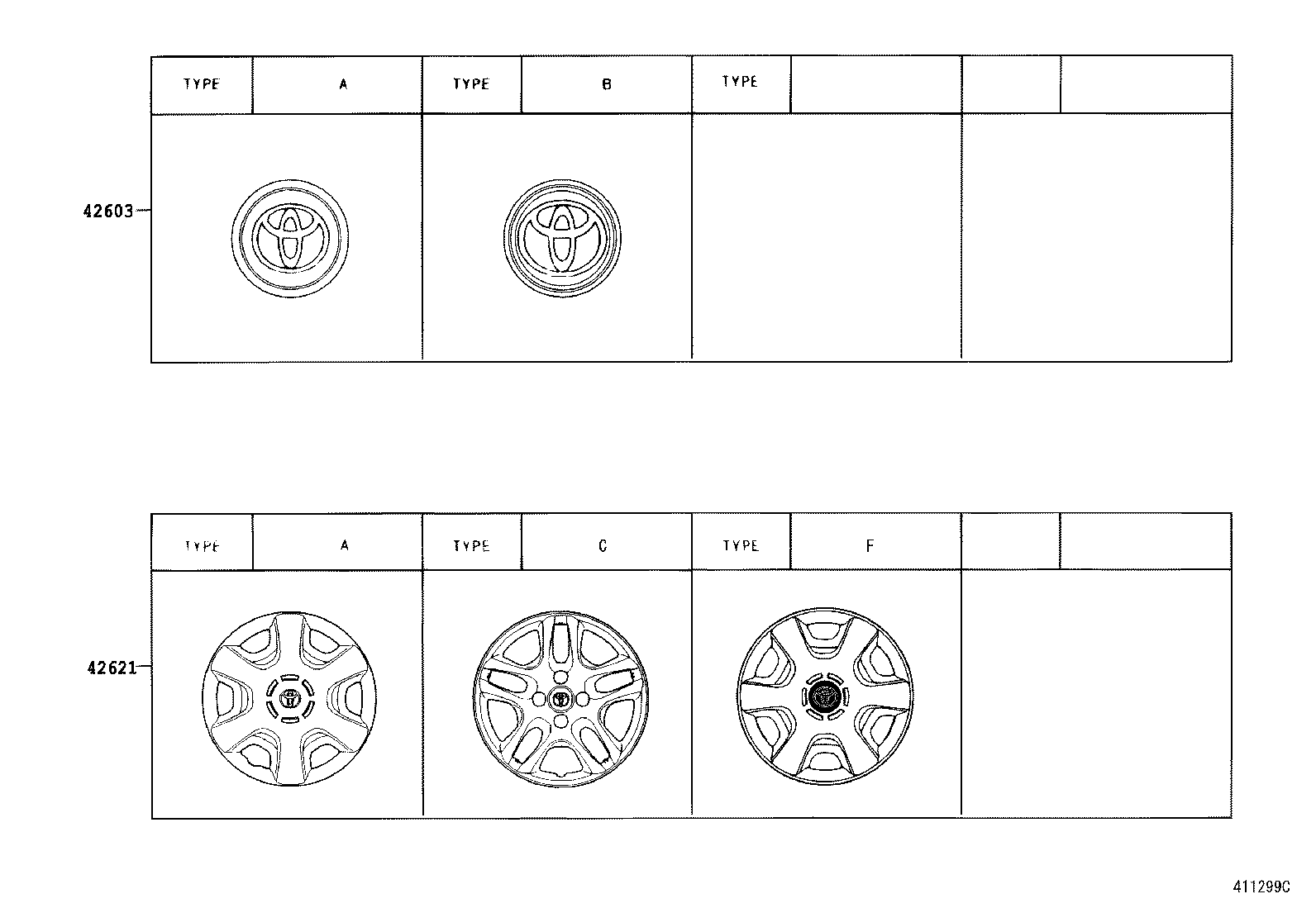

ILLUST NO. 2 OF 4(0101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12700	NZE12# *ALU,TYPE A:ｲﾗｽﾄ参照	04/2004 - 09/2006	4
42603-12700	NZE12#,ZZE122,124 *ALU,TYPE A:ｲﾗｽﾄ参照	09/2002 - 04/2004	4
42603-12700	NZE12# *ALU,TYPE A:ｲﾗｽﾄ参照	01/2001 - 09/2002	4
42621 - CAP, WHEEL
42602-12620	NZE12# TYPE A:ｲﾗｽﾄ参照	01/2001 - 09/2002	4
42602-12700	NZE12#,ZZE122,124 TYPE F:ｲﾗｽﾄ参照	09/2002 - 04/2004	4
42602-12700	NZE12#,ZZE122,124 TYPE F:ｲﾗｽﾄ参照	04/2004 - 09/2006	4

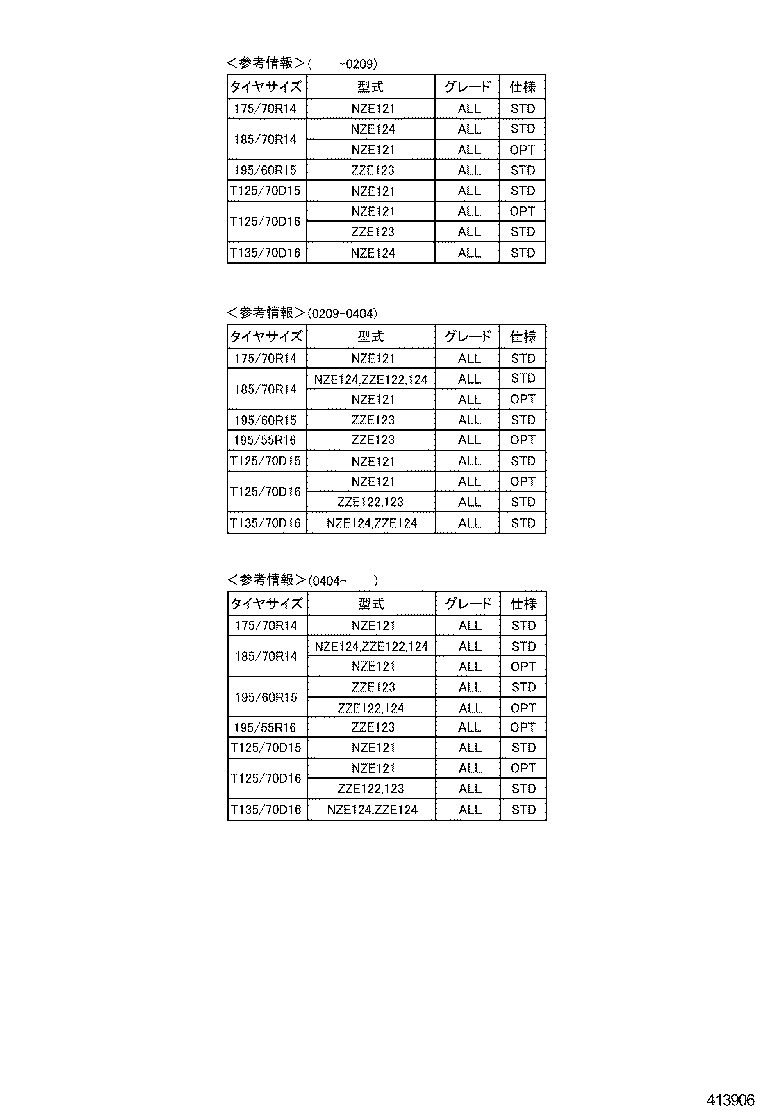

ILLUST NO. 3 OF 4(0101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

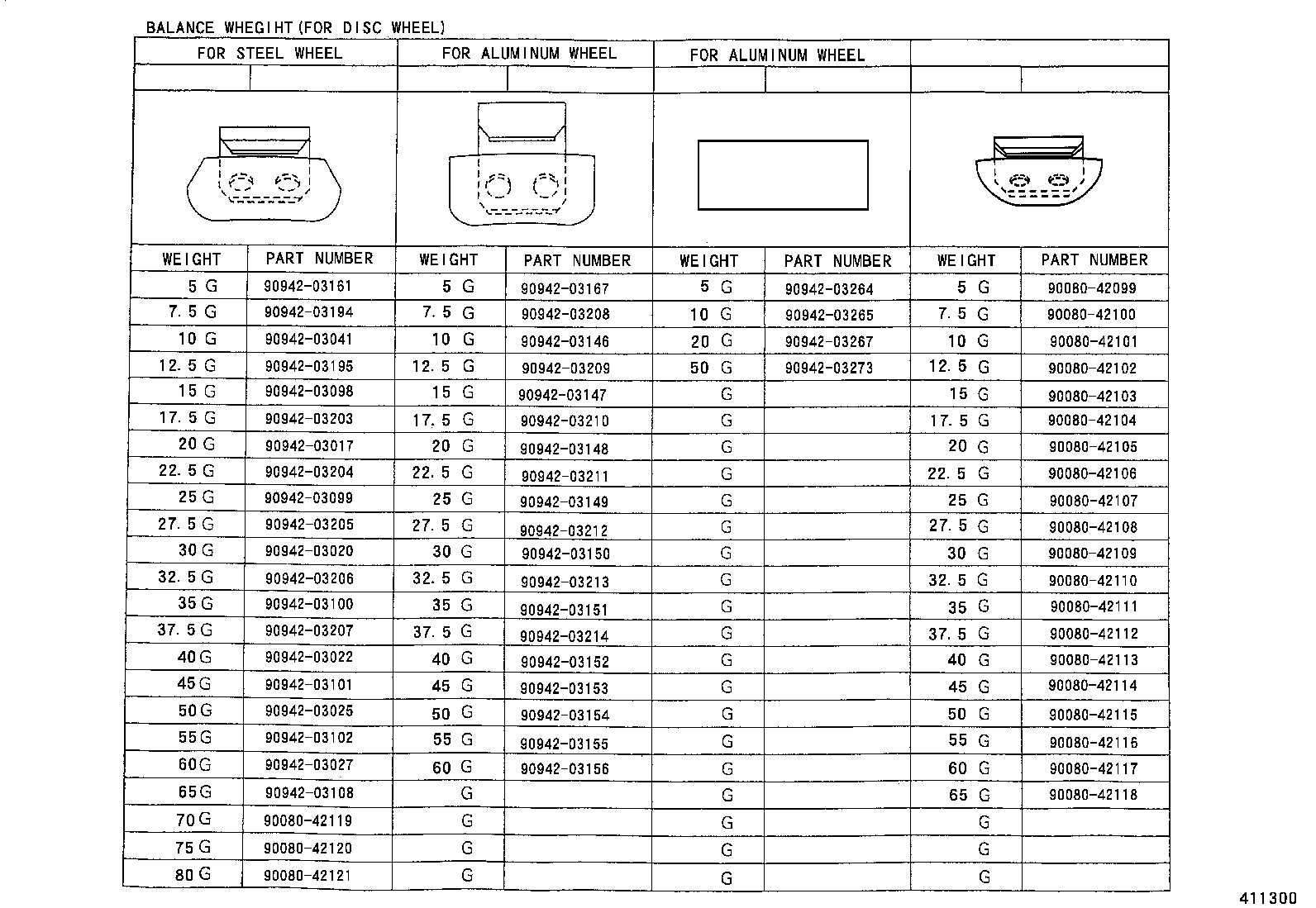

ILLUST NO. 4 OF 4(0101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
