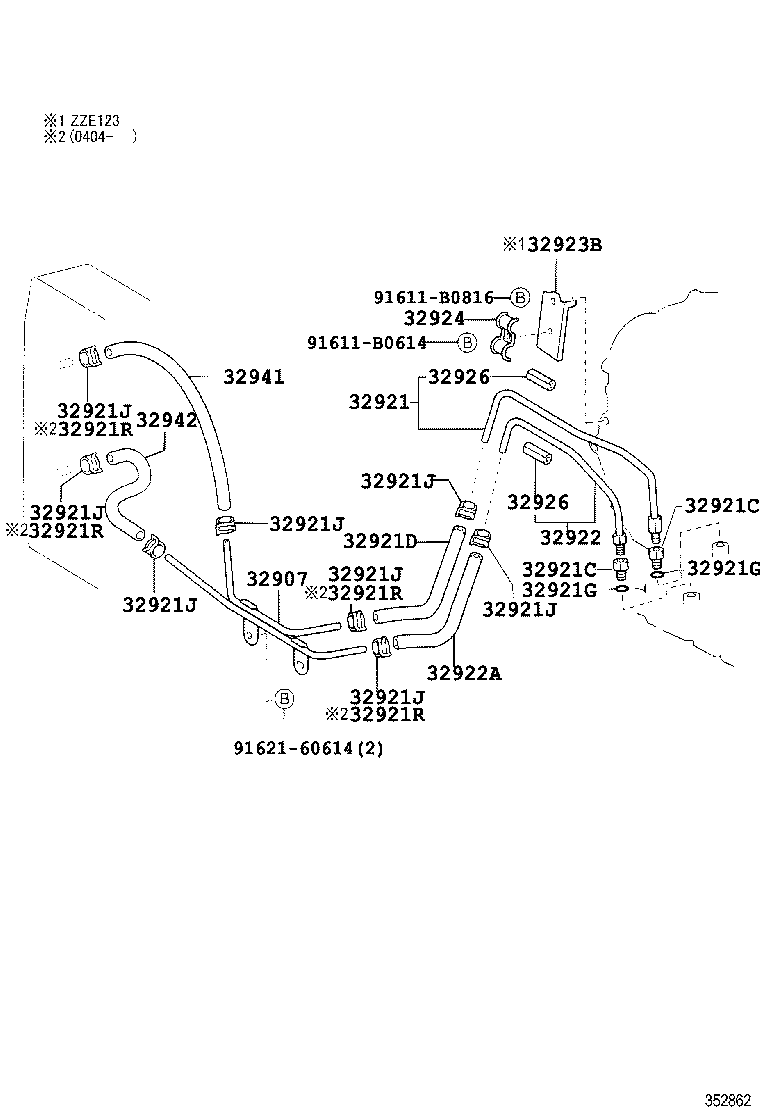

Toyota Corolla runx/allex NZE121 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-12020	NZE12#,ZZE123,124..4FC	04/2004 - 09/2006	1
32907-12020	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
32907-12020	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12440	NZE12#	09/2002 - 04/2004	1
32921-12440	NZE12#	01/2001 - 09/2002	1
32921-12440	NZE12#	04/2004 - 09/2006	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007	NZE12#,ZZE124 ｱｳﾄﾚｯﾄ	09/2002 - 04/2004	1
90404-14007	NZE12#,ZZE124 ｱｳﾄﾚｯﾄ	04/2004 - 09/2006	1
90407-14003	NZE12# ｲﾝﾚｯﾄ	01/2001 - 09/2002	1
90407-14003	NZE12#,ZZE124 ｲﾝﾚｯﾄ	04/2004 - 09/2006	1
90404-14007	NZE12# ｱｳﾄﾚｯﾄ	01/2001 - 09/2002	1
90407-14003	NZE12#,ZZE124 ｲﾝﾚｯﾄ	09/2002 - 04/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007	NZE12#,ZZE124 ｱｳﾄﾚｯﾄ	09/2002 - 04/2004	1
90404-14007	NZE12#,ZZE124 ｱｳﾄﾚｯﾄ	04/2004 - 09/2006	1
90407-14003	NZE12# ｲﾝﾚｯﾄ	01/2001 - 09/2002	1
90407-14003	NZE12#,ZZE124 ｲﾝﾚｯﾄ	04/2004 - 09/2006	1
90404-14007	NZE12# ｱｳﾄﾚｯﾄ	01/2001 - 09/2002	1
90407-14003	NZE12#,ZZE124 ｲﾝﾚｯﾄ	09/2002 - 04/2004	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15050	NZE12#	01/2001 - 07/2001	1
32943-12020	NZE12#	04/2004 - 09/2006	1
32943-12020	NZE12#	09/2002 - 04/2004	1
32943-12020	NZE12#	08/2001 - 09/2002	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
90301-10189	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
90301-10189	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	NZE12#,ZZE12#..4FC	09/2002 - 04/2004	2
90301-10189	NZE12#,ZZE123..4FC	01/2001 - 09/2002	2
90301-10189	NZE12#,ZZE12#..4FC	04/2004 - 09/2006	2
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921J - CLIP(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
96135-51300	NZE12#,ZZE123..4FC	01/2001 - 09/2002	8
96135-51300	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	8
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
96135-51300	NZE12#,ZZE124	04/2004 - 09/2006	4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12310	NZE12#	01/2001 - 09/2002	1
32922-12310	NZE12#	04/2004 - 09/2006	1
32922-12310	NZE12#	09/2002 - 04/2004	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15050	NZE12#	04/2004 - 09/2006	1
90445-15050	NZE12#	09/2002 - 04/2004	1
90445-15050	NZE12#	01/2001 - 09/2002	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10127	NZE12#	01/2001 - 09/2002	1
90462-10127	NZE12#,ZZE124	09/2002 - 04/2004	1
90462-10127	NZE12#,ZZE124	04/2004 - 09/2006	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	NZE12#,ZZE124 長さ=30,内径=8	04/2004 - 09/2006	2
32926-10010	NZE12# 長さ=30,内径=8	01/2001 - 09/2002	2
32926-10010	NZE12#,ZZE124 長さ=30,内径=8	09/2002 - 04/2004	2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010	NZE12#,ZZE124 長さ=30,内径=8	04/2004 - 09/2006	2
32926-10010	NZE12# 長さ=30,内径=8	01/2001 - 09/2002	2
32926-10010	NZE12#,ZZE124 長さ=30,内径=8	09/2002 - 04/2004	2
32941 - HOSE, OIL COOLER INLET, NO.1
90445-15039	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
90445-15039	NZE12#,ZZE123,124..4FC	04/2004 - 09/2006	1
90445-15039	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-15050	NZE12#,ZZE123..4FC	01/2001 - 09/2002	1
90445-15050	NZE12#,ZZE124	04/2004 - 09/2006	1
90445-15050	NZE12#,ZZE123,124..4FC	09/2002 - 04/2004	1
Common parts
91611-B0614
91611-B0816
91621-60614

NZE121-BHPNK (2001)

(0101-0209)4FC ; (0209- )NZE12#,ZZE123,124..4FC
