Toyota Corolla runx/allex NZE121 MANIFOLD

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

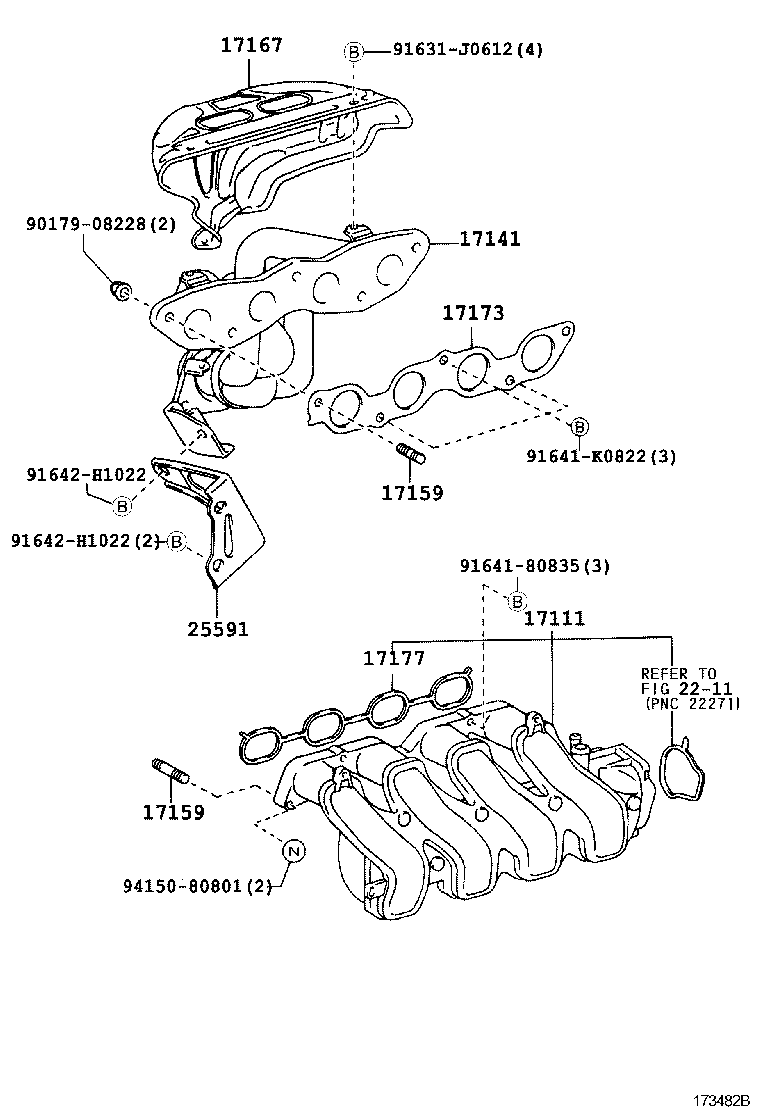

(0101-0404)1NZFE..NZE121

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-21070	1NZFE..NZE121	04/2004 - 09/2006	1
17101-21050	1NZFE..NZE12#	01/2001 - 09/2002	1
17101-21050	1NZFE..NZE12#	09/2002 - 04/2004	1
17141 - MANIFOLD, EXHAUST
17141-21050	1NZFE..NZE121	01/2001 - 09/2002	1
17141-21090	1NZFE..NZE121	09/2002 - 04/2004	1
17104-21020	1NZFE..NZE121	04/2004 - 09/2006	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	01/2001 - 09/2002	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	01/2001 - 09/2002	2
90126-08037	1NZFE..NZE121	04/2004 - 09/2006	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	01/2001 - 09/2002	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	01/2001 - 09/2002	2
90126-08037	1NZFE..NZE121	04/2004 - 09/2006	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21030	1NZFE..NZE121	01/2001 - 09/2002	1
17167-21060	1NZFE..NZE121	09/2002 - 04/2004	1
17167-21080	1NZFE..NZE121	04/2004 - 09/2006	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21030	1NZFE..NZE121	04/2004 - 09/2006	1
17173-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
17173-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
17177-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
17177-21030	1NZFE..NZE121	04/2004 - 09/2006	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21020	1NZFE..NZE121	09/2002 - 04/2004	1
25591-21020	1NZFE..NZE121	01/2001 - 09/2002	1
25591-21020	1NZFE..NZE121	04/2004 - 09/2006	1
Common parts
90179-08228
91631-J0612
91641-80835
91641-K0822
91642-H1022
94150-80801
Linked diagrams
2211

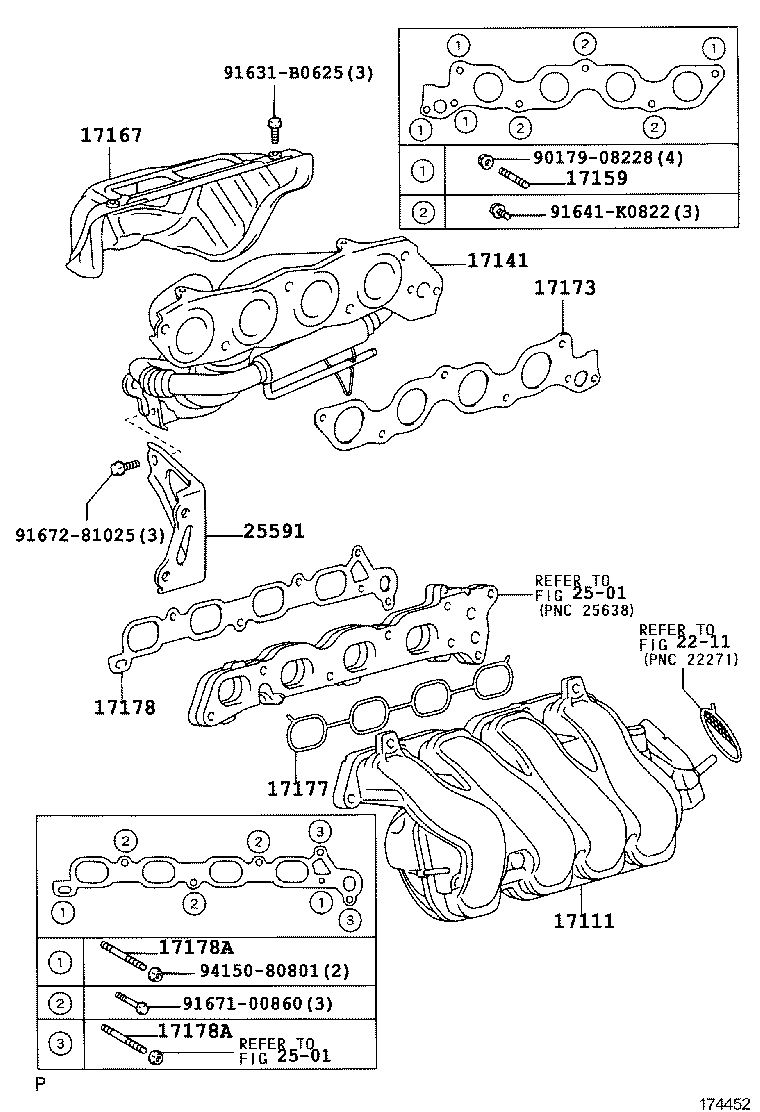

(0404- )1NZFE..NZE121

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-21070	1NZFE..NZE121	04/2004 - 09/2006	1
17101-21050	1NZFE..NZE12#	01/2001 - 09/2002	1
17101-21050	1NZFE..NZE12#	09/2002 - 04/2004	1
17141 - MANIFOLD, EXHAUST
17141-21050	1NZFE..NZE121	01/2001 - 09/2002	1
17141-21090	1NZFE..NZE121	09/2002 - 04/2004	1
17104-21020	1NZFE..NZE121	04/2004 - 09/2006	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	01/2001 - 09/2002	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	09/2002 - 04/2004	2
90126-08037	1NZFE..NZE12# ｴｷｿﾞｰｽﾄ側	09/2002 - 04/2004	2
90126-08026	1NZFE..NZE12# ｲﾝﾃｰｸ側	01/2001 - 09/2002	2
90126-08037	1NZFE..NZE121	04/2004 - 09/2006	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21030	1NZFE..NZE121	01/2001 - 09/2002	1
17167-21060	1NZFE..NZE121	09/2002 - 04/2004	1
17167-21080	1NZFE..NZE121	04/2004 - 09/2006	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21030	1NZFE..NZE121	04/2004 - 09/2006	1
17173-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
17173-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
17177-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
17177-21030	1NZFE..NZE121	04/2004 - 09/2006	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-21010	1NZFE..NZE121	04/2004 - 09/2006	1
17178A - STUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)
90126-08049	1NZFE..NZE121	04/2004 - 09/2006	4
17178A - STUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)
90126-08049	1NZFE..NZE121	04/2004 - 09/2006	4
25591 - BRACKET, MANIFOLD SUPPORT
25591-21020	1NZFE..NZE121	09/2002 - 04/2004	1
25591-21020	1NZFE..NZE121	01/2001 - 09/2002	1
25591-21020	1NZFE..NZE121	04/2004 - 09/2006	1
Common parts
90179-08228
91631-B0625
91641-K0822
91671-00860
91672-81025
94150-80801
Linked diagrams
2211
2501

NZE121-BHPNK (2001)

(0101-0404)1NZFE..NZE121

(0404- )1NZFE..NZE121
