Toyota Corolla runx/allex NZE121 RADIATOR & WATER OUTLET

NZE121-BHPNK (2001)

Toyota Corolla Runx/Allex

Production Jan 2001 - Sep 2006

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

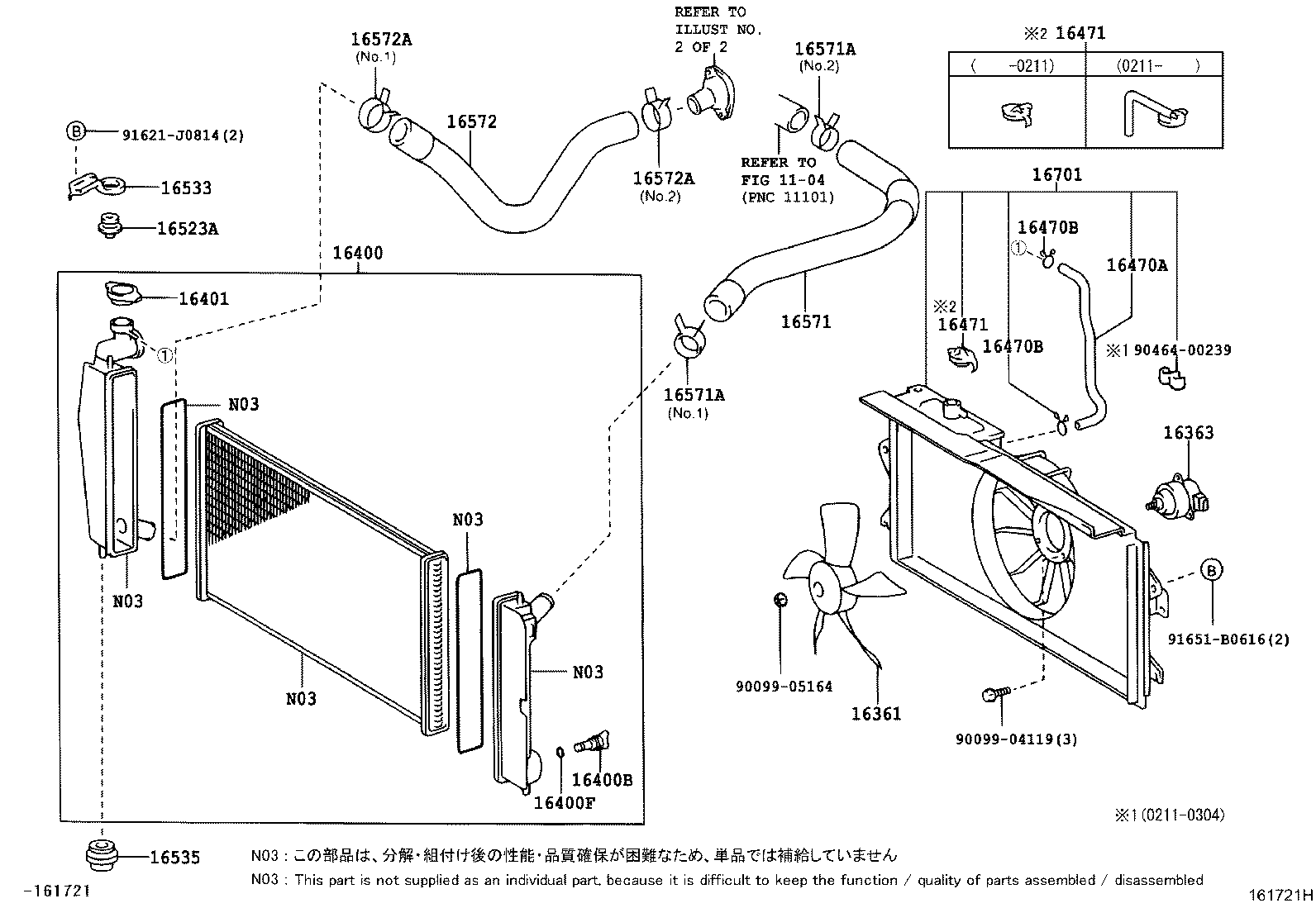

ILLUST NO. 1 OF 2(0209- )1NZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361 - FAN
16361-21060	1NZFE..NZE12#	04/2004 - 09/2006	1
16361-21060	1NZFE..NZE12#	09/2002 - 04/2004	1
16361-21060	1NZFE..NZE12#	01/2001 - 09/2002	1
16363 - MOTOR, COOLING FAN
16363-23020	1NZFE..NZE12#	01/2001 - 09/2002	1
16363-28150	1NZFE..NZE12#	05/2003 - 04/2004	1
16363-23020	1NZFE..NZE12#	09/2002 - 05/2003	1
16363-28150	1NZFE..NZE12#	04/2004 - 09/2006	1
16400 - RADIATOR ASSY
16400-21160	1NZFE..NZE121	01/2001 - 09/2002	1
16400-21160	1NZFE..NZE121	04/2004 - 09/2006	1
16400-21160	1NZFE..NZE121	09/2002 - 04/2004	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010	1NZFE..NZE12#	09/2002 - 04/2004	1
23322-54010	1NZFE..NZE12#	04/2004 - 09/2006	1
23322-54010	1NZFE..NZE12#	01/2001 - 09/2002	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1NZFE..NZE12#	01/2001 - 09/2002	1
16492-21050	1NZFE..NZE12#	09/2002 - 04/2004	1
16492-21050	1NZFE..NZE12#	04/2004 - 09/2006	1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090	1NZFE..NZE12#	01/2001 - 09/2002	1
16401-72090	1NZFE..NZE12#	09/2002 - 04/2004	1
16401-72090	1NZFE..NZE12#	04/2004 - 09/2006	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-21040	1NZFE..NZE12#	01/2001 - 09/2002	1
16377-21040	1NZFE..NZE12#	09/2002 - 04/2004	1
16377-21040	1NZFE..NZE12#	04/2004 - 09/2006	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	1NZFE..NZE12#	04/2004 - 09/2006	1
90467-11085	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-11085	1NZFE..NZE12#	09/2002 - 04/2003	2
90467-11085	1NZFE..NZE12#	04/2003 - 04/2004	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	1NZFE..NZE12#	04/2004 - 09/2006	1
90467-11085	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-11085	1NZFE..NZE12#	09/2002 - 04/2003	2
90467-11085	1NZFE..NZE12#	04/2003 - 04/2004	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030	1NZFE..NZE12#	04/2004 - 09/2006	1
16471-23010	1NZFE..NZE12#	09/2002 - 11/2002	1
16405-21030	1NZFE..NZE12#	11/2002 - 04/2004	1
16471-23010	1NZFE..NZE12#	01/2001 - 09/2002	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030	1NZFE..NZE12#	04/2004 - 09/2006	1
16471-23010	1NZFE..NZE12#	09/2002 - 11/2002	1
16405-21030	1NZFE..NZE12#	11/2002 - 04/2004	1
16471-23010	1NZFE..NZE12#	01/2001 - 09/2002	1
16523A - CUSHION, RADIATOR SUPPORT
16523-21020	1NZFE..NZE12#	09/2002 - 04/2004	2
16523-21020	1NZFE..NZE12#	04/2004 - 09/2006	2
16523-21020	1NZFE..NZE12#	01/2001 - 09/2002	2
16533 - SUPPORT, RADIATOR, UPPER
16533-21020	1NZFE..NZE12#	04/2004 - 09/2006	2
16533-21020	1NZFE..NZE12#	09/2002 - 04/2004	2
16533-21020	1NZFE..NZE12#	01/2001 - 09/2002	2
16535 - SUPPORT, RADIATOR, LOWER
16504-21010	1NZFE..NZE12#	01/2001 - 09/2001	2
16535-21040	1NZFE..NZE12#	09/2002 - 04/2004	2
16535-21040	1NZFE..NZE12#	04/2004 - 09/2006	2
16535-21040	1NZFE..NZE12#	09/2001 - 09/2002	2
16571 - HOSE, RADIATOR, INLET
16571-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16571-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
16571-21090	1NZFE..NZE121	04/2004 - 09/2006	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
90466-37002	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
90466-37002	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
16572 - HOSE, RADIATOR, OUTLET
16572-21030	1NZFE..NZE12#	04/2004 - 09/2006	1
16572-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
16572-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-35001	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90466-35001	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-35001	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90466-35001	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
16701 - SHROUD SUB-ASSY, FAN
16711-21080	1NZFE..NZE12#	09/2002 - 04/2004	1
16711-21080	1NZFE..NZE12#	04/2004 - 09/2006	1
16711-21080	1NZFE..NZE12#	01/2001 - 09/2002	1
Common parts
90099-04119
90099-05164
90464-00239
91621-J0814
91651-B0616
Linked diagrams
1104

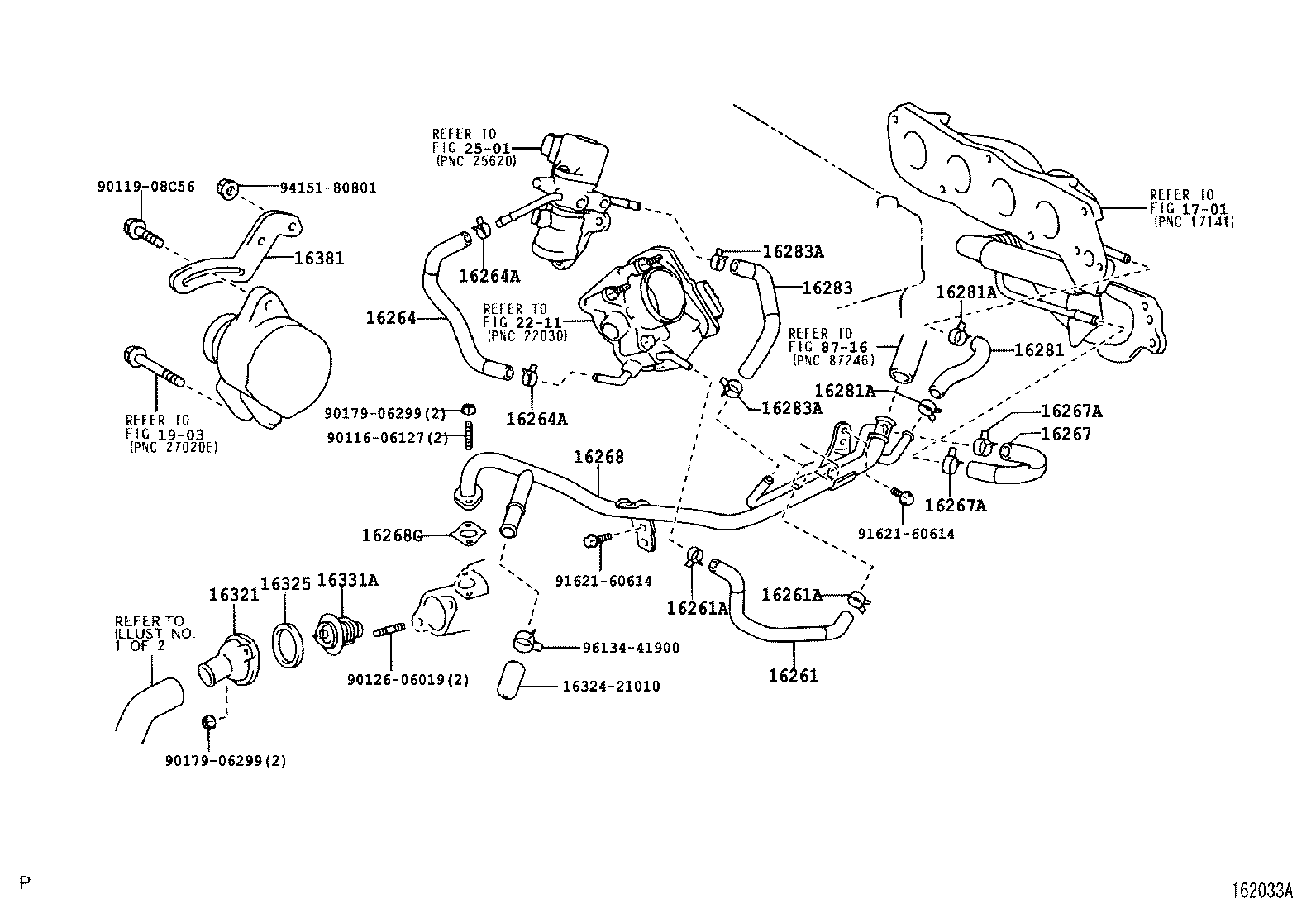

ILLUST NO. 2 OF 2(0101-0404)1NZFE ; (0404- )1NZFE..NZE124

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-21070	1NZFE..NZE121	04/2004 - 09/2006	1
16261-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16261-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16264-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16264-21060	1NZFE..NZE121	04/2004 - 09/2006	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-21020	1NZFE..NZE12#	09/2002 - 01/2003	1
16268-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16268-21021	1NZFE..NZE12#	01/2003 - 04/2004	1
16268-21050	1NZFE..NZE121	04/2004 - 09/2006	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-21020	1NZFE..NZE12#	04/2004 - 09/2006	1
16258-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16258-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16321 - INLET, WATER
16321-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16321-21020	1NZFE..NZE12#	04/2004 - 09/2006	1
16321-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010	1NZFE..NZE12#	01/2001 - 09/2002	1
16325-62010	1NZFE..NZE12#	09/2002 - 04/2004	1
16325-62010	1NZFE..NZE12#	04/2004 - 09/2006	1
16331A - THERMOSTAT
90916-03093	1NZFE..NZE12# *WAX 82−95	01/2001 - 09/2002	1
90916-03126	1NZFE..NZE121 *WAX 88−100	04/2004 - 09/2006	1
90916-03093	1NZFE..NZE12# *WAX 82−95	09/2002 - 04/2004	1
16381 - BAR, FAN BELT ADJUSTING
16381-21040	1NZFE..NZE121	04/2004 - 09/2006	1
16381-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16381-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
Common parts
90116-06127
90119-08C56
90126-06015
90126-06019
90179-06299
91621-60614
94151-80801
Linked diagrams
1903
2211
8716

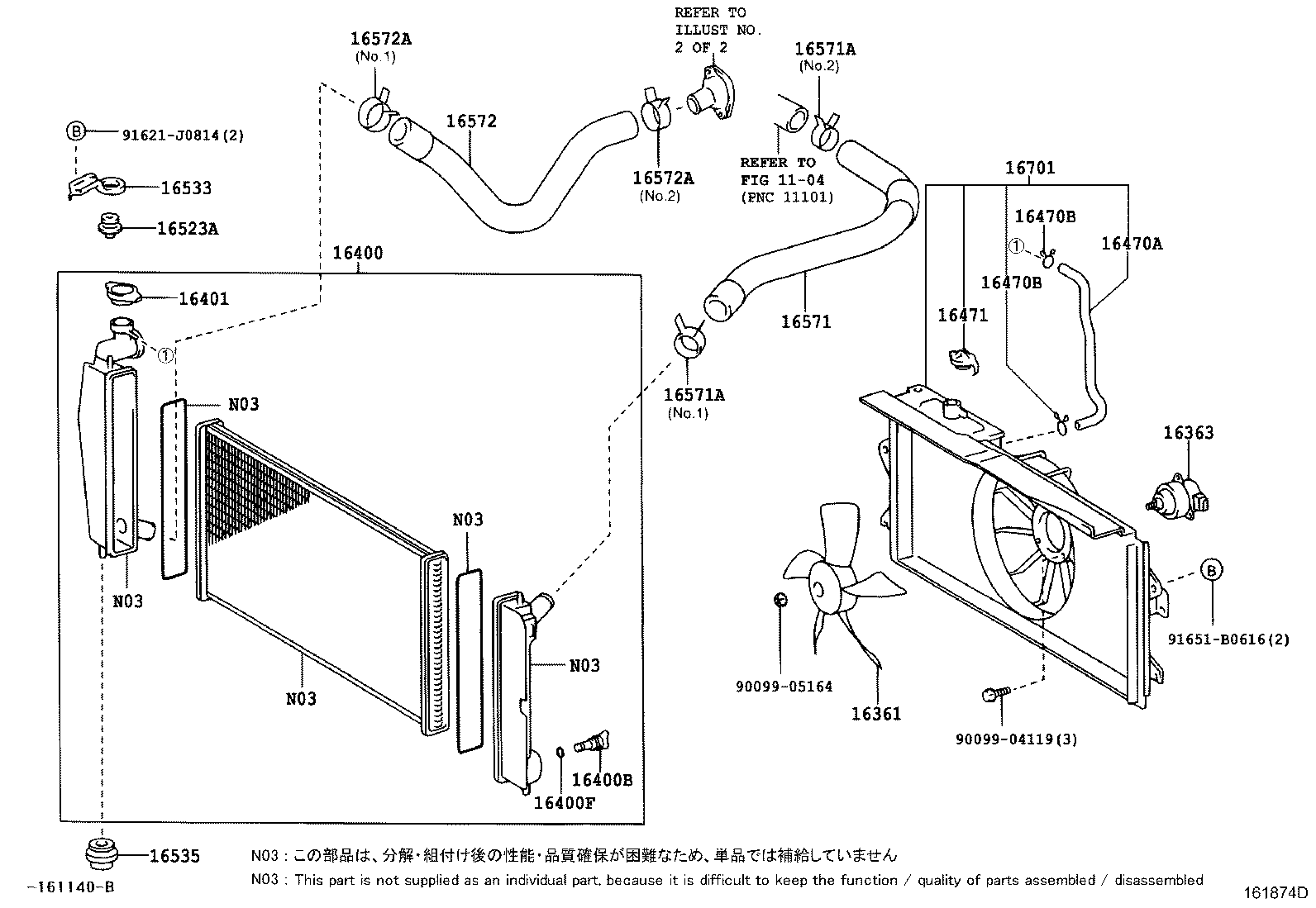

ILLUST NO. 1 OF 2(0101-0209)1NZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361 - FAN
16361-21060	1NZFE..NZE12#	04/2004 - 09/2006	1
16361-21060	1NZFE..NZE12#	09/2002 - 04/2004	1
16361-21060	1NZFE..NZE12#	01/2001 - 09/2002	1
16363 - MOTOR, COOLING FAN
16363-23020	1NZFE..NZE12#	01/2001 - 09/2002	1
16363-28150	1NZFE..NZE12#	05/2003 - 04/2004	1
16363-23020	1NZFE..NZE12#	09/2002 - 05/2003	1
16363-28150	1NZFE..NZE12#	04/2004 - 09/2006	1
16400 - RADIATOR ASSY
16400-21160	1NZFE..NZE121	01/2001 - 09/2002	1
16400-21160	1NZFE..NZE121	04/2004 - 09/2006	1
16400-21160	1NZFE..NZE121	09/2002 - 04/2004	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010	1NZFE..NZE12#	09/2002 - 04/2004	1
23322-54010	1NZFE..NZE12#	04/2004 - 09/2006	1
23322-54010	1NZFE..NZE12#	01/2001 - 09/2002	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1NZFE..NZE12#	01/2001 - 09/2002	1
16492-21050	1NZFE..NZE12#	09/2002 - 04/2004	1
16492-21050	1NZFE..NZE12#	04/2004 - 09/2006	1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090	1NZFE..NZE12#	01/2001 - 09/2002	1
16401-72090	1NZFE..NZE12#	09/2002 - 04/2004	1
16401-72090	1NZFE..NZE12#	04/2004 - 09/2006	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-21040	1NZFE..NZE12#	01/2001 - 09/2002	1
16377-21040	1NZFE..NZE12#	09/2002 - 04/2004	1
16377-21040	1NZFE..NZE12#	04/2004 - 09/2006	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	1NZFE..NZE12#	04/2004 - 09/2006	1
90467-11085	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-11085	1NZFE..NZE12#	09/2002 - 04/2003	2
90467-11085	1NZFE..NZE12#	04/2003 - 04/2004	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	1NZFE..NZE12#	04/2004 - 09/2006	1
90467-11085	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-11085	1NZFE..NZE12#	09/2002 - 04/2003	2
90467-11085	1NZFE..NZE12#	04/2003 - 04/2004	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-21030	1NZFE..NZE12#	04/2004 - 09/2006	1
16471-23010	1NZFE..NZE12#	09/2002 - 11/2002	1
16405-21030	1NZFE..NZE12#	11/2002 - 04/2004	1
16471-23010	1NZFE..NZE12#	01/2001 - 09/2002	1
16523A - CUSHION, RADIATOR SUPPORT
16523-21020	1NZFE..NZE12#	09/2002 - 04/2004	2
16523-21020	1NZFE..NZE12#	04/2004 - 09/2006	2
16523-21020	1NZFE..NZE12#	01/2001 - 09/2002	2
16533 - SUPPORT, RADIATOR, UPPER
16533-21020	1NZFE..NZE12#	04/2004 - 09/2006	2
16533-21020	1NZFE..NZE12#	09/2002 - 04/2004	2
16533-21020	1NZFE..NZE12#	01/2001 - 09/2002	2
16535 - SUPPORT, RADIATOR, LOWER
16504-21010	1NZFE..NZE12#	01/2001 - 09/2001	2
16535-21040	1NZFE..NZE12#	09/2002 - 04/2004	2
16535-21040	1NZFE..NZE12#	04/2004 - 09/2006	2
16535-21040	1NZFE..NZE12#	09/2001 - 09/2002	2
16571 - HOSE, RADIATOR, INLET
16571-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16571-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
16571-21090	1NZFE..NZE121	04/2004 - 09/2006	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
90466-37002	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
90466-37002	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90466-37002	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
16572 - HOSE, RADIATOR, OUTLET
16572-21030	1NZFE..NZE12#	04/2004 - 09/2006	1
16572-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
16572-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-35001	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90466-35001	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001	1NZFE..NZE12# NO.1	01/2001 - 09/2002	1
90467-34004	1NZFE..NZE12# NO.2	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	01/2001 - 09/2002	1
90466-35001	1NZFE..NZE12# NO.1	09/2002 - 04/2004	1
90467-34004	1NZFE..NZE12# NO.2	04/2004 - 05/2006	1
96136-44301	1NZFE..NZE12# NO.1	05/2006 - 09/2006	1
90466-35001	1NZFE..NZE12# NO.1	04/2004 - 04/2006	1
96136-43901	1NZFE..NZE12# NO.2	05/2006 - 09/2006	1
16701 - SHROUD SUB-ASSY, FAN
16711-21080	1NZFE..NZE12#	09/2002 - 04/2004	1
16711-21080	1NZFE..NZE12#	04/2004 - 09/2006	1
16711-21080	1NZFE..NZE12#	01/2001 - 09/2002	1
Common parts
90099-04119
90099-05164
91621-J0814
91651-B0616
Linked diagrams
1104

ILLUST NO. 2 OF 2(0404- )1NZFE..NZE121

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-21070	1NZFE..NZE121	04/2004 - 09/2006	1
16261-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16261-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16264-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16264-21060	1NZFE..NZE121	04/2004 - 09/2006	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NZFE..NZE12#	04/2004 - 09/2006	2
90467-13054	1NZFE..NZE12#	09/2002 - 04/2004	2
90467-13054	1NZFE..NZE12#	01/2001 - 09/2002	2
16267 - HOSE, WATER BY-PASS, NO.3
16267-21020	1NZFE..NZE121	04/2004 - 09/2006	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-21020	1NZFE..NZE12#	09/2002 - 01/2003	1
16268-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16268-21021	1NZFE..NZE12#	01/2003 - 04/2004	1
16268-21050	1NZFE..NZE121	04/2004 - 09/2006	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-21020	1NZFE..NZE12#	04/2004 - 09/2006	1
16258-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16258-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-21020	1NZFE..NZE121	04/2004 - 09/2006	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16283 - HOSE, WATER BY-PASS, NO.6
16283-21010	1NZFE..NZE121	04/2004 - 09/2006	1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90467-13054	1NZFE..NZE121	04/2004 - 09/2006	2
16321 - INLET, WATER
16321-21020	1NZFE..NZE12#	01/2001 - 09/2002	1
16321-21020	1NZFE..NZE12#	04/2004 - 09/2006	1
16321-21020	1NZFE..NZE12#	09/2002 - 04/2004	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010	1NZFE..NZE12#	01/2001 - 09/2002	1
16325-62010	1NZFE..NZE12#	09/2002 - 04/2004	1
16325-62010	1NZFE..NZE12#	04/2004 - 09/2006	1
16331A - THERMOSTAT
90916-03093	1NZFE..NZE12# *WAX 82−95	01/2001 - 09/2002	1
90916-03126	1NZFE..NZE121 *WAX 88−100	04/2004 - 09/2006	1
90916-03093	1NZFE..NZE12# *WAX 82−95	09/2002 - 04/2004	1
16381 - BAR, FAN BELT ADJUSTING
16381-21040	1NZFE..NZE121	04/2004 - 09/2006	1
16381-21030	1NZFE..NZE12#	01/2001 - 09/2002	1
16381-21030	1NZFE..NZE12#	09/2002 - 04/2004	1
Common parts
16324-21010
90116-06127
90119-08C56
90126-06019
90179-06299
91621-60614
94151-80801
96134-41900
Linked diagrams
1701
1903
2211
2501
8716

NZE121-BHPNK (2001)

ILLUST NO. 1 OF 2(0209- )1NZFE

ILLUST NO. 2 OF 2(0101-0404)1NZFE ; (0404- )1NZFE..NZE124

ILLUST NO. 1 OF 2(0101-0209)1NZFE

ILLUST NO. 2 OF 2(0404- )1NZFE..NZE121

Part Price Details
