ZRE154N-FHXSP (2009)
Toyota Corolla Rumion
(0912-1107)
ﾗｰｼﾞ ﾀｲﾌﾟ

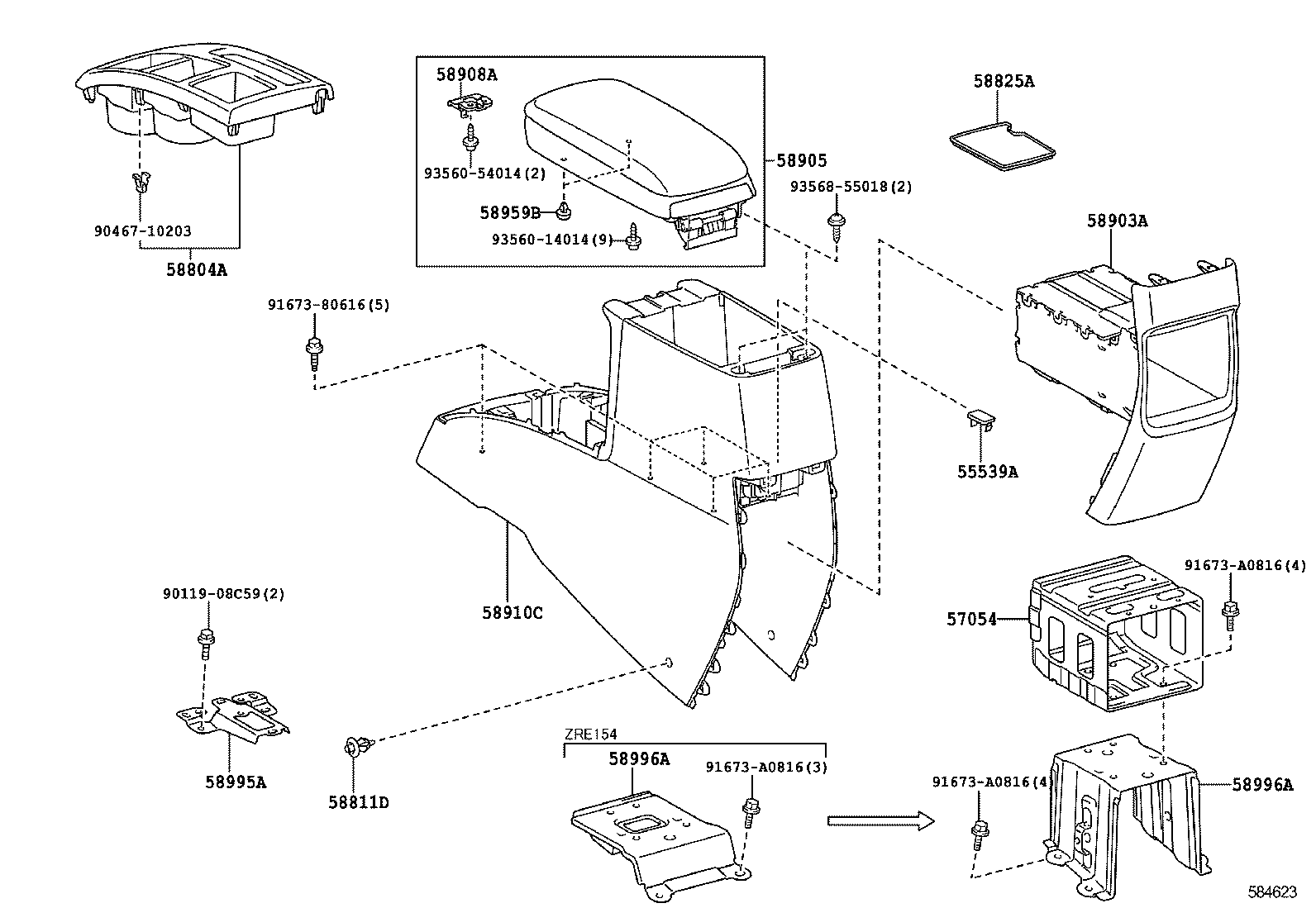

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NZE151,ZRE15#..(G,S)..CBU BLACK,TRIM1# |
1 | ||
| 55539-52060B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 57054 - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5 | ||||
| 57054-12040 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-12100B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58804-12090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE154..X..CBU DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-12030B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-12080B0 |
ZRE154..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12820B1 |
NZE151,ZRE15#..(G,S)..CBU DARK GRAY,TRIM1# |
1 | ||
| 58905-12840B0 |
ZRE15#..S..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58905-12821B1 |
NZE151,ZRE15#..(G,S)..CBU DARK GRAY,TRIM1# |
1 | ||
| 58905-12840B0 |
ZRE15#..S..CBU 1.5G/1.8S“ON B LIMITED”*(B)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58905-12841B0 |
ZRE15#..S..CBU 1.5G/1.8S“ON B LIMITED”*(B)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12080 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58908-12050 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58908-32021 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-12590B0 |
ZRE154 DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..X DK.GRAY,TRIM1# |
1 | ||
| 58910-12A30B0 |
ZRE154..S 1.5G“On B” *(F) OR 1.8S“On B” *(F)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 58910-12830B0 |
ZRE154..S DK.GRAY,TRIM1# |
1 | ||
| 58910-12690B0 |
ZRE154..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NZE151,ZRE15#..(G,S)..CBU |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12110 |
NZE151,ZRE15#..CBU |
1 | ||
| 58995-12110 |
NZE151,ZRE15# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12190 |
ZRE154..X |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 58996-12190 |
ZRE154 |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58996-12220 |
ZRE154..S..CBU |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12190 |
ZRE154..X |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 58996-12190 |
ZRE154 |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58996-12220 |
ZRE154..S..CBU |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93560-14014 | ||||
| 93560-54014 | ||||
| 93568-55018 | ||||
(1108- )
ﾗｰｼﾞ ﾀｲﾌﾟ

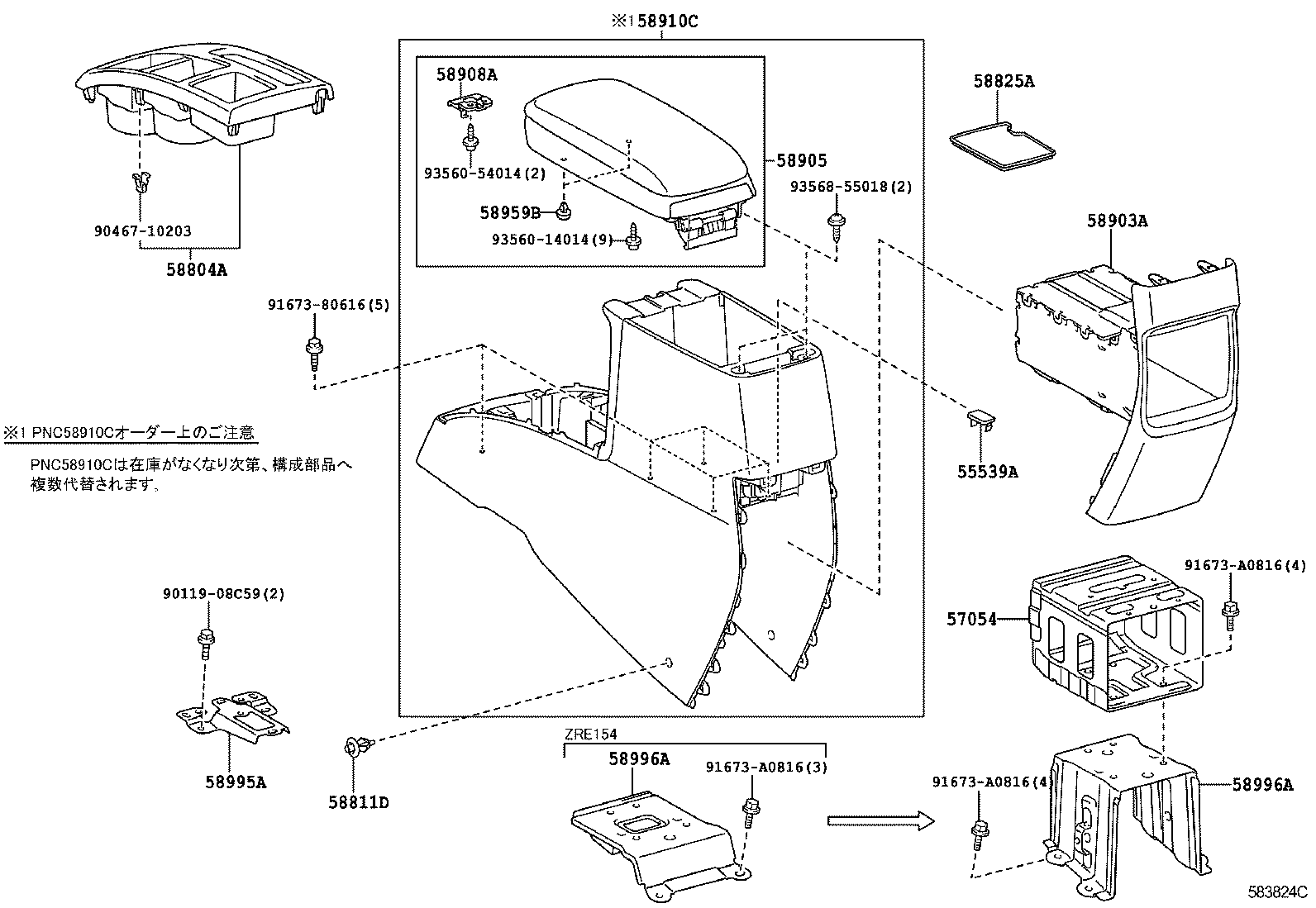

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NZE151,ZRE15#..(G,S)..CBU BLACK,TRIM1# |
1 | ||
| 55539-52060B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 57054 - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5 | ||||
| 57054-12040 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-12100B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58804-12090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE154..X..CBU DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 58804-12091B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-12030B0 |
NZE151,ZRE15#..(G,S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-12080B0 |
ZRE154..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12820B1 |
NZE151,ZRE15#..(G,S)..CBU DARK GRAY,TRIM1# |
1 | ||
| 58905-12840B0 |
ZRE15#..S..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58905-12821B1 |
NZE151,ZRE15#..(G,S)..CBU DARK GRAY,TRIM1# |
1 | ||
| 58905-12840B0 |
ZRE15#..S..CBU 1.5G/1.8S“ON B LIMITED”*(B)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58905-12841B0 |
ZRE15#..S..CBU 1.5G/1.8S“ON B LIMITED”*(B)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12080 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58908-12050 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58908-32021 |
NZE151,ZRE15#..(G,S)..CBU |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-12590B0 |
ZRE154 DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..X DK.GRAY,TRIM1# |
1 | ||
| 58910-12A30B0 |
ZRE154..S 1.5G“On B” *(F) OR 1.8S“On B” *(F)&ｵｰﾃﾞｨｵ(国内)−ﾗｼﾞｵﾚｽ 9ｽﾋﾟｰｶ,DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 58910-12800B0 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 58910-12830B0 |
ZRE154..S DK.GRAY,TRIM1# |
1 | ||
| 58910-12690B0 |
ZRE154..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NZE151,ZRE15#..(G,S)..CBU |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12110 |
NZE151,ZRE15#..CBU |
1 | ||
| 58995-12110 |
NZE151,ZRE15# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12190 |
ZRE154..X |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 58996-12190 |
ZRE154 |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58996-12220 |
ZRE154..S..CBU |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12190 |
ZRE154..X |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 58996-12190 |
ZRE154 |
1 | ||
| 58996-12190 |
ZRE154..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58996-12220 |
ZRE154..S..CBU |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93560-14014 | ||||
| 93560-54014 | ||||
| 93568-55018 | ||||
