ZRE154N-FHXSK (2007)
Toyota Corolla Rumion
ILLUST NO. 1 OF 7(0710-1301)ZRE15#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NZE151,ZRE15# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NZE151,ZRE15# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12810 |
ZRE154 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12810 |
ZRE154 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12110 |
ZRE154 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12110 |
ZRE154 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NZE151,ZRE15# |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-12D80 | ||||
| 82715-12F90 | ||||
| 82715-20C40 | ||||
| 82715-42710 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||

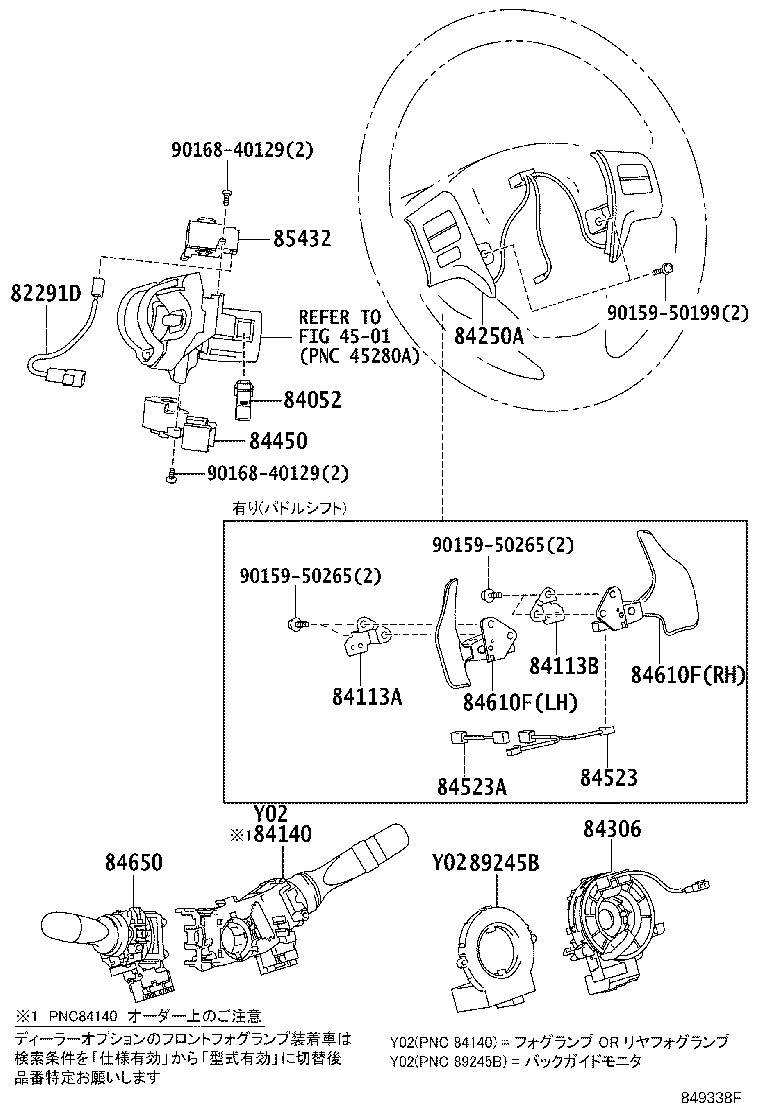

ILLUST NO. 6 OF 7(0710- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82291-42010 |
NZE151,ZRE15# |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 84052-71010 |
NZE151,ZRE15# |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-52010 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84113B - BRACKET, SWITCH, NO.2 | ||||
| 84113-52020 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12570 |
ZRE15# |
1 | ||
| 84140-42070 |
ZRE15# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP |
1 | ||
| 84140-42080 |
ZRE15# ｴｱﾛﾂｱﾗｰ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 84140-12580 |
ZRE15# ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 84140-42070 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84140-42080 |
ZRE15# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12010 |
NZE151,ZRE15#..G,S ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| 84250-12020 |
ZRE15# ｴｱﾛﾂｱﾗｰ&ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12100 |
NZE151,ZRE15# |
1 | ||
| 84306-52090 |
ZRE15# ｴｱﾛﾂｱﾗｰ&ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
ZRE15# ｴｱﾛﾂｱﾗｰ&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
ZRE15# VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ9ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84306-52090 |
ZRE15# ｴｱﾛﾂｱﾗｰ&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
1 | ||
| 84306-52090 |
NZE151,ZRE15#..G,S ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
NZE151,ZRE15# |
1 | ||
| 84450-12200 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-52020 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84523A - WIRE, SWITCH NO.2 | ||||
| 84523-12010 |
ZRE15# ｴｱﾛﾂｱﾗｰ |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12020 |
ZRE15# ｴｱﾛﾂｱﾗｰ,左側 |
1 | ||
| 84610-12030 |
ZRE15# ｴｱﾛﾂｱﾗｰ,右側 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12020 |
ZRE15# ｴｱﾛﾂｱﾗｰ,左側 |
1 | ||
| 84610-12030 |
ZRE15# ｴｱﾛﾂｱﾗｰ,右側 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48100 |
NZE151,ZRE15#..G,S |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
NZE151,ZRE15# |
1 | ||
| 85432-71010 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
ZRE15# VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
1 | ||
| 89245-12020 |
NZE151,ZRE15#..G,S ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 9ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

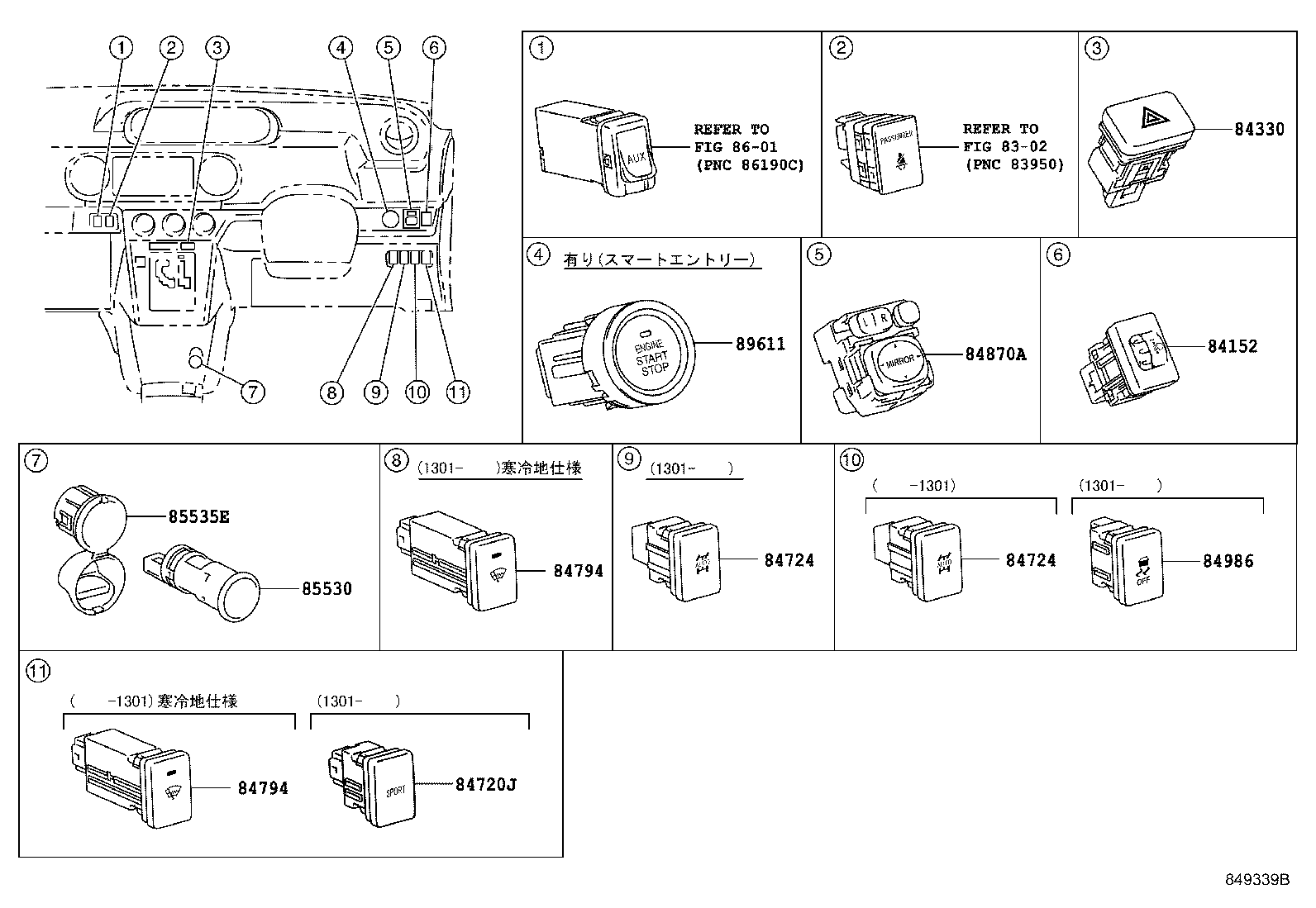

ILLUST NO. 5 OF 7(0710- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52120 |
NZE151,ZRE15# |
1 | ||
| 84152-52120 |
NZE151,ZRE15#..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12530 |
NZE151,ZRE15# |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-12090 |
ZRE154 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-12090 |
ZRE154 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
NZE151,ZRE15# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NZE151,ZRE15# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52050 |
NZE151,ZRE15# |
1 | ||
| 85535-52051 |
NZE151,ZRE15# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52020 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611-52021 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8601 | ||||

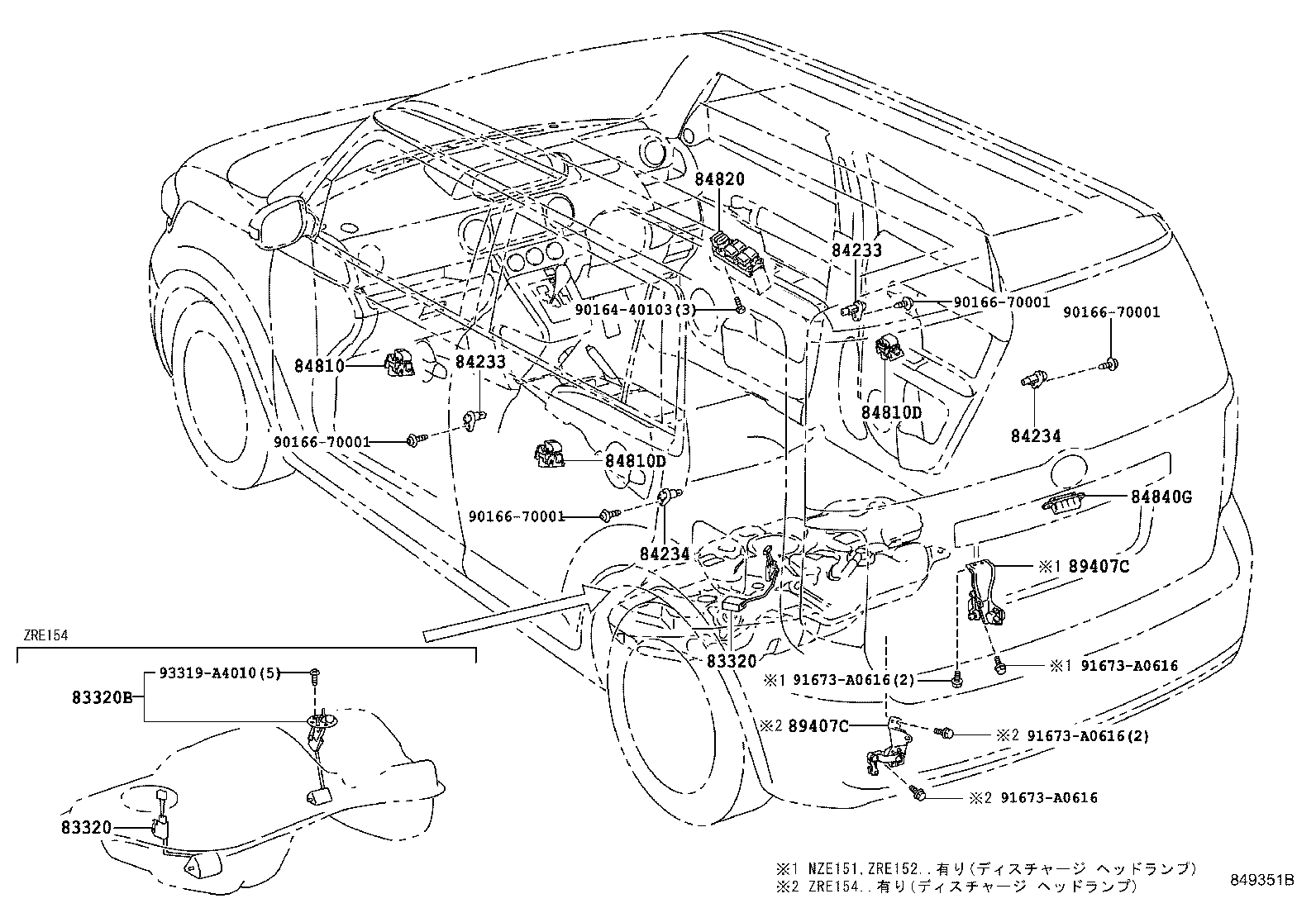

ILLUST NO. 7 OF 7(0710- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12740 |
ZRE154 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12740 |
ZRE154 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80437 |
ZRE154 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NZE151,ZRE15# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NZE151,ZRE15# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NZE151,ZRE15# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NZE151,ZRE15# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NZE151,ZRE15# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NZE151,ZRE15# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NZE151,ZRE15# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
NZE151,ZRE15# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NZE151,ZRE15# |
1 | ||
| 84840-28040 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-12050 |
ZRE154 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-12050 |
ZRE154 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91673-A0616 | ||||
| 93319-A4010 | ||||

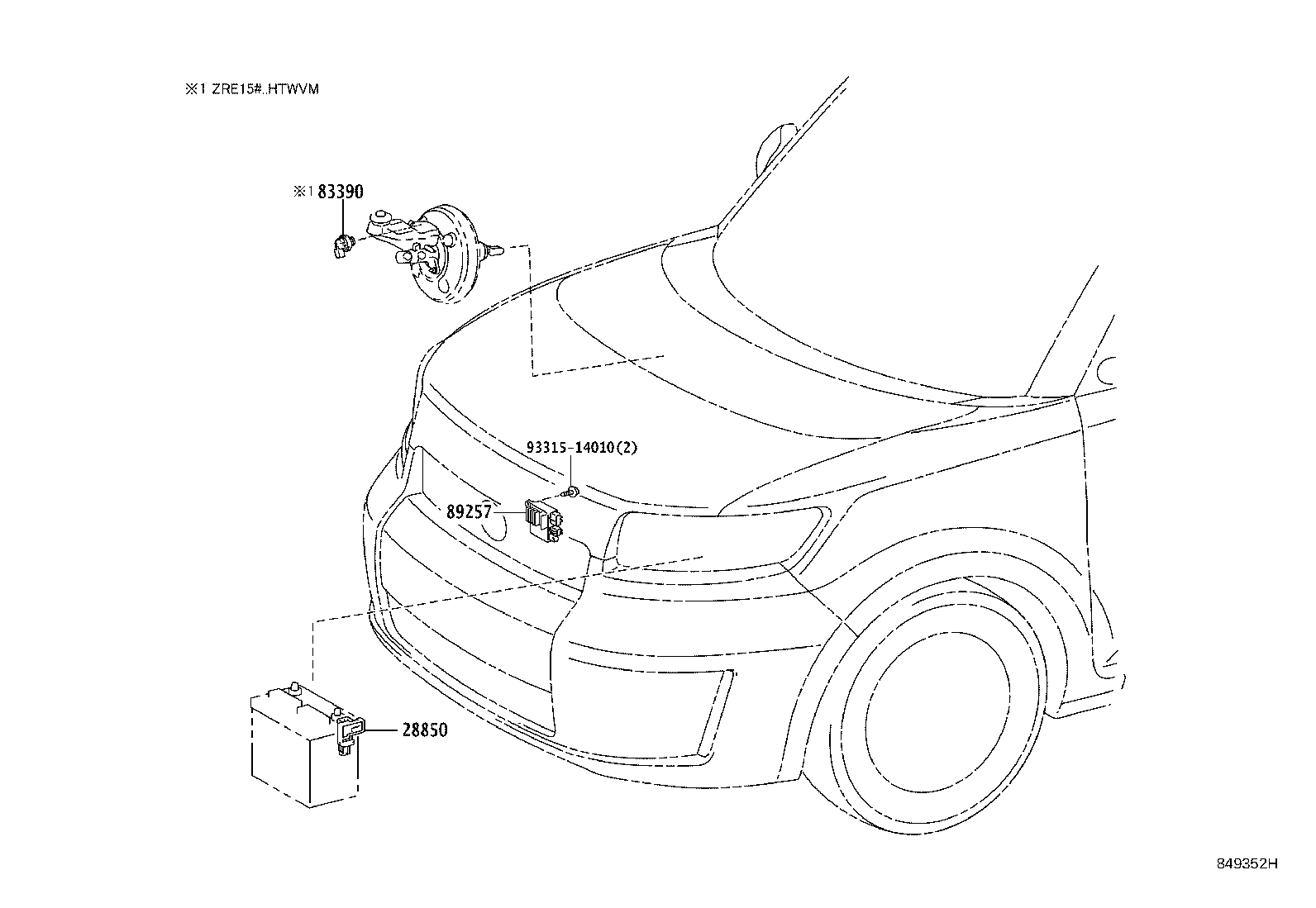

ILLUST NO. 2 OF 7(0710- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-21020 |
1NZFE,2ZRFE..NZE151,ZRE15# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
NZE151,ZRE15# |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||

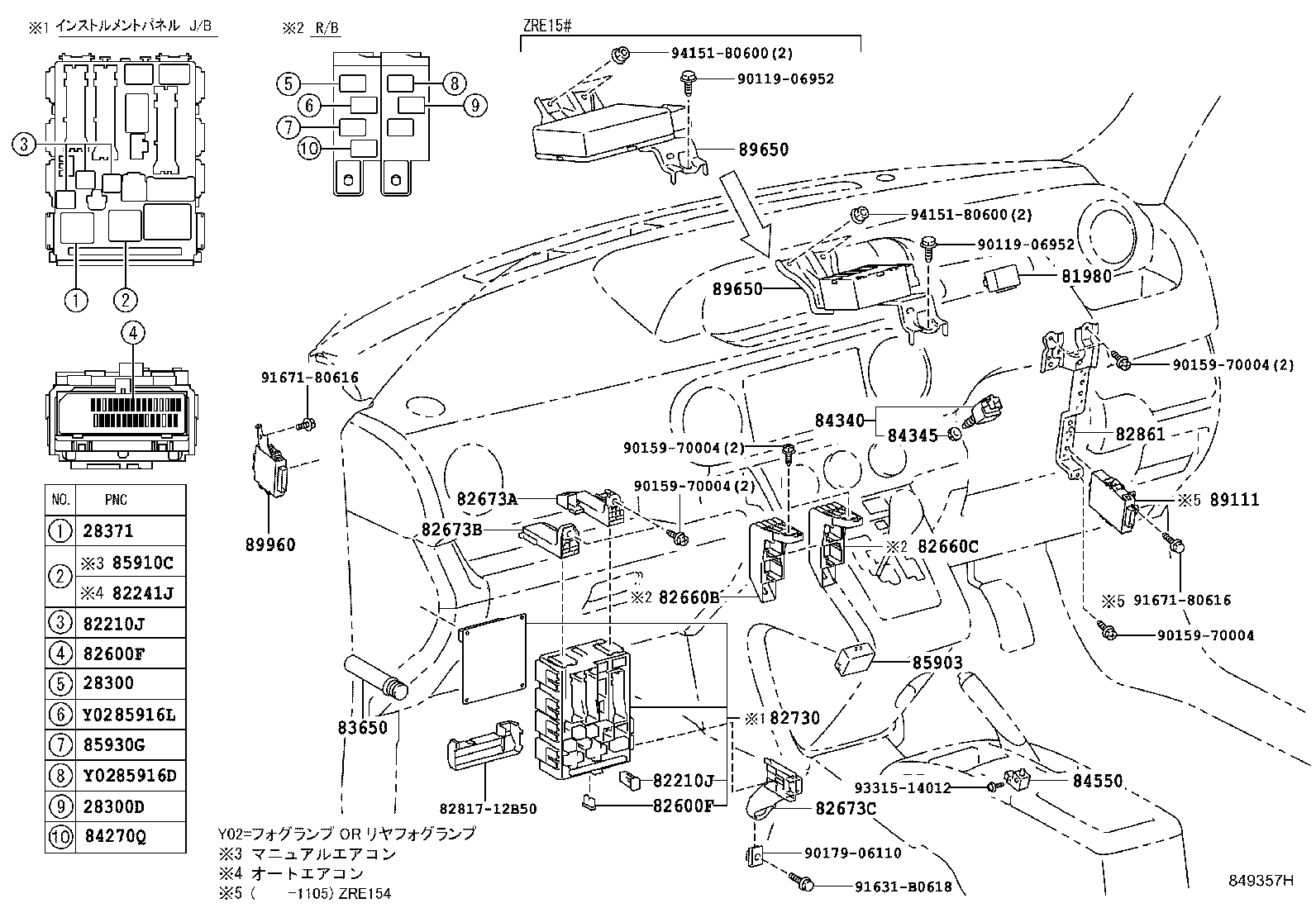

ILLUST NO. 4 OF 7(0710- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NZFE,2ZRFE..NZE151,ZRE15# |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1NZFE,2ZRFE..NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1NZFE,2ZRFE..NZE151,ZRE15# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NZE151,ZRE15# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NZE151,ZRE15# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
NZE151,ZRE15# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NZE151,ZRE15# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NZE151,ZRE15# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
NZE151,ZRE15# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NZE151,ZRE15# 50A,ﾒｽ端子,赤 |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
NZE151,ZRE15#..G,S |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NZE151,ZRE15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
NZE151,ZRE15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NZE151,ZRE15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
NZE151,ZRE15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NZE151,ZRE15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NZE151,ZRE15# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NZE151,ZRE15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
NZE151,ZRE15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NZE151,ZRE15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
NZE151,ZRE15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NZE151,ZRE15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NZE151,ZRE15# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
NZE151,ZRE15# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
NZE151,ZRE15# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
NZE151,ZRE15# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
NZE151,ZRE15# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12220 |
NZE151,ZRE15# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12E40 |
ZRE15# |
1 | ||
| 82730-12E60 |
ZRE15# ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-12010 |
ZRE154 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NZE151,ZRE15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
NZE151,ZRE15# |
1 | ||
| 84340-19025 |
NZE151,ZRE15# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NZE151,ZRE15# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NZE151,ZRE15# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
NZE151,ZRE15#..(G,S)..HTWC..CBU ｴｱﾛﾂｱﾗｰ&AEROTOURER SORA *(T)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 85903-52010 |
NZE151,ZRE15#..(G,S)..HTWC..CBU ｴｱﾛﾂｱﾗｰ&AEROTOURER SORA *(T)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り |
1 | ||
| 85903-52020 |
NZE151,ZRE15#..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 85903-52010 |
NZE151,ZRE15# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NZE151,ZRE15# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZRE15# ｴｱﾛﾂｱﾗｰ&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 90987-02027 |
ZRE15# ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP&ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 90987-02027 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 90987-02027 |
NZE151,ZRE15# ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ−有り(右側 ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NZE151,ZRE15# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12010 |
ZRE154 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12530 |
ZRE15# JTEKT/DENSO |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12530 |
ZRE15# JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-12430 |
ZRE154 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82817-12B50 | ||||
| 90119-06952 | ||||
| 90159-70004 | ||||
| 90179-06110 | ||||
| 91631-B0618 | ||||
| 91671-80616 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 7(0710- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NZE151,ZRE15# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
NZE151,ZRE15# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NZE151,ZRE15# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NZE151,ZRE15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
NZE151,ZRE15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NZE151,ZRE15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
NZE151,ZRE15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NZE151,ZRE15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NZE151,ZRE15# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
NZE151,ZRE15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
NZE151,ZRE15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NZE151,ZRE15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
NZE151,ZRE15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NZE151,ZRE15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NZE151,ZRE15# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
NZE151,ZRE15# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
NZE151,ZRE15# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12020 |
NZE151,ZRE15# |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12030 |
NZE151,ZRE15# |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-47020 |
NZE151,ZRE15# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NZE151,ZRE15# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NZE151,ZRE15# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
NZE151,ZRE15# |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NZE151,ZRE15# 寒冷地仕様 |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
3 | ||
| 82660-52010 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NZE151,ZRE15# 寒冷地仕様 |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
3 | ||
| 82660-52010 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NZE151,ZRE15# 寒冷地仕様 |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
3 | ||
| 82660-52010 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82660-52010 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
3 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12290 |
NZE151,ZRE15# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 82662-12280 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-12280 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
1 | ||
| 82662-12280 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
NZE151,ZRE15# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-12070 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-12070 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 82663-12070 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
NZE151,ZRE15# |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12080 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 82741-12080 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し) |
1 | ||
| 82741-12080 |
NZE151,ZRE15#..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741-12080 |
ZRE15# 寒冷地仕様&VSC−有り(ｶｯﾄｵﾌｽｲｯﾁ無し)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12A80 |
NZE151,ZRE15# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NZE151,ZRE15# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NZE151,ZRE15# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
NZE151,ZRE15# 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NZE151,ZRE15# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NZE151,ZRE15# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NZE151,ZRE15# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NZE151,ZRE15# 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 82715-12E80 | ||||
| 91671-80616 | ||||
| 93385-15010 | ||||
| 93385-16010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
