ZRE154N-FHXSK (2007)
Toyota Corolla Rumion

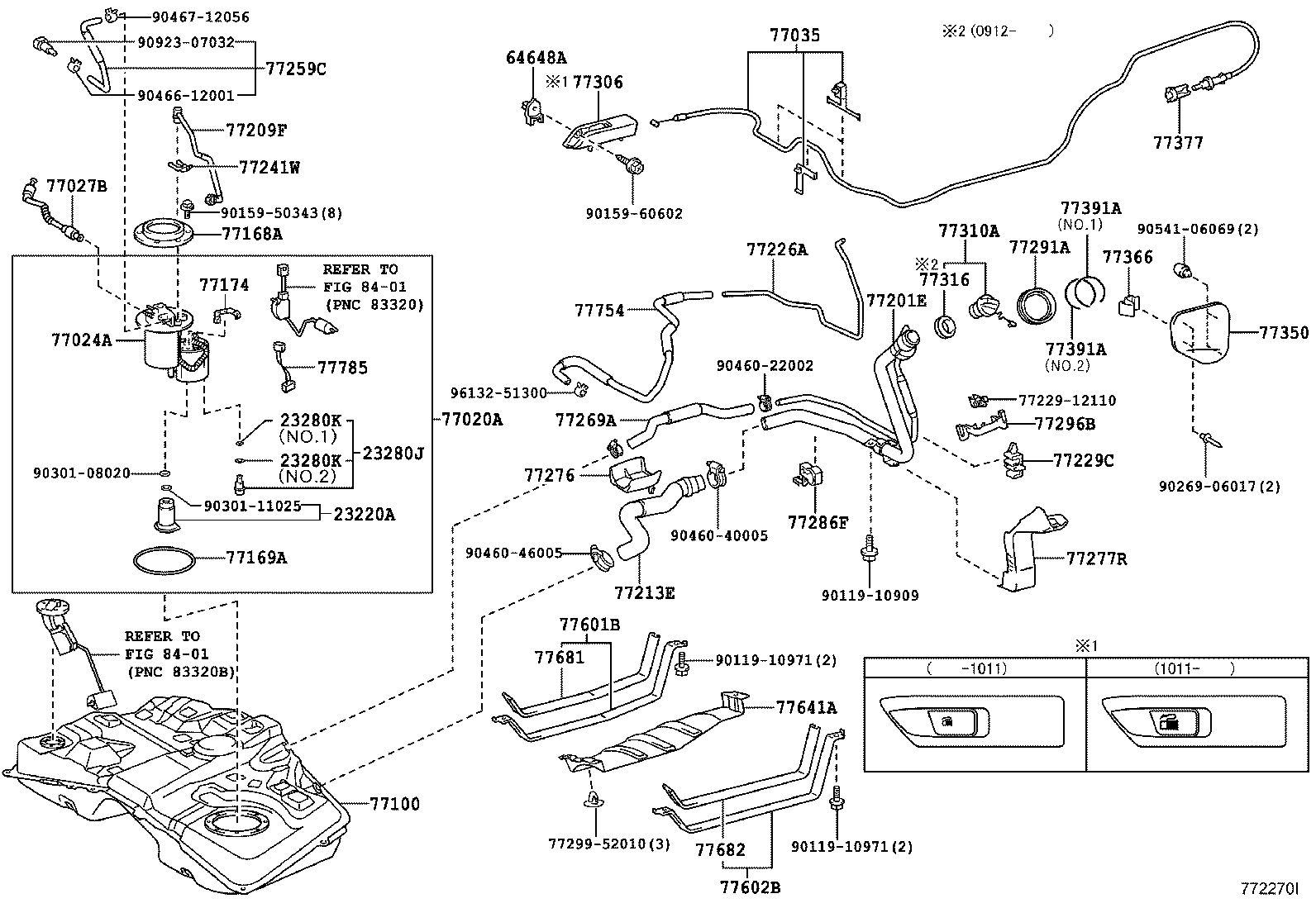

ILLUST NO. 1 OF 2(0710- )ZRE154
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-37070 |
2ZRFE..ZRE154 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE..ZRE15# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE,2ZRFE..NZE151,ZRE15# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
1NZFE,2ZRFE..NZE151,ZRE15# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFE,2ZRFE..NZE151,ZRE15# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90301-15024 |
1NZFE,2ZRFE..NZE151,ZRE15# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
NZE151,ZRE15# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-12600 |
ZRE154 |
1 | ||
| 77020-12600 |
ZRE154 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12061 |
ZRE154 |
1 | ||
| 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 | ||||
| 77027-12070 |
ZRE154 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12570 |
NZE151,ZRE15# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12A31 |
ZRE154 |
1 | ||
| 77001-12A30 |
ZRE154 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
ZRE154 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
ZRE154 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-12020 |
ZRE154 |
2 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12760 |
ZRE154 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12220 |
ZRE154 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12280 |
ZRE154 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-12070 |
ZRE154 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
NZE151,ZRE15# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
ZRE154 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-12310 |
ZRE154 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-12090 |
ZRE154 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12090 |
ZRE154 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12230 |
NZE151,ZRE15# |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52081 |
ZRE154 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-12220 |
NZE151,ZRE15# |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52020 |
ZRE154 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52030 |
NZE151,ZRE15# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NZE151,ZRE15# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12520 |
NZE151,ZRE15# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
NZE151,ZRE15# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
NZE151,ZRE15# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-46010 |
NZE151,ZRE15# NO.2 |
1 | ||
| 77391-12020 |
NZE151,ZRE15# NO.1 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-46010 |
NZE151,ZRE15# NO.2 |
1 | ||
| 77391-12020 |
NZE151,ZRE15# NO.1 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12320 |
ZRE154 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12250 |
ZRE154 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12200 |
ZRE154 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-D1010 |
ZRE154 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-52020 |
ZRE154 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12180 |
ZRE154 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
ZRE154 |
2 | ||
| Common parts | ||||
| 77229-12110 | ||||
| 77299-52010 | ||||
| 90119-10909 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-40005 | ||||
| 90460-46005 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90541-06069 | ||||
| 90923-07032 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

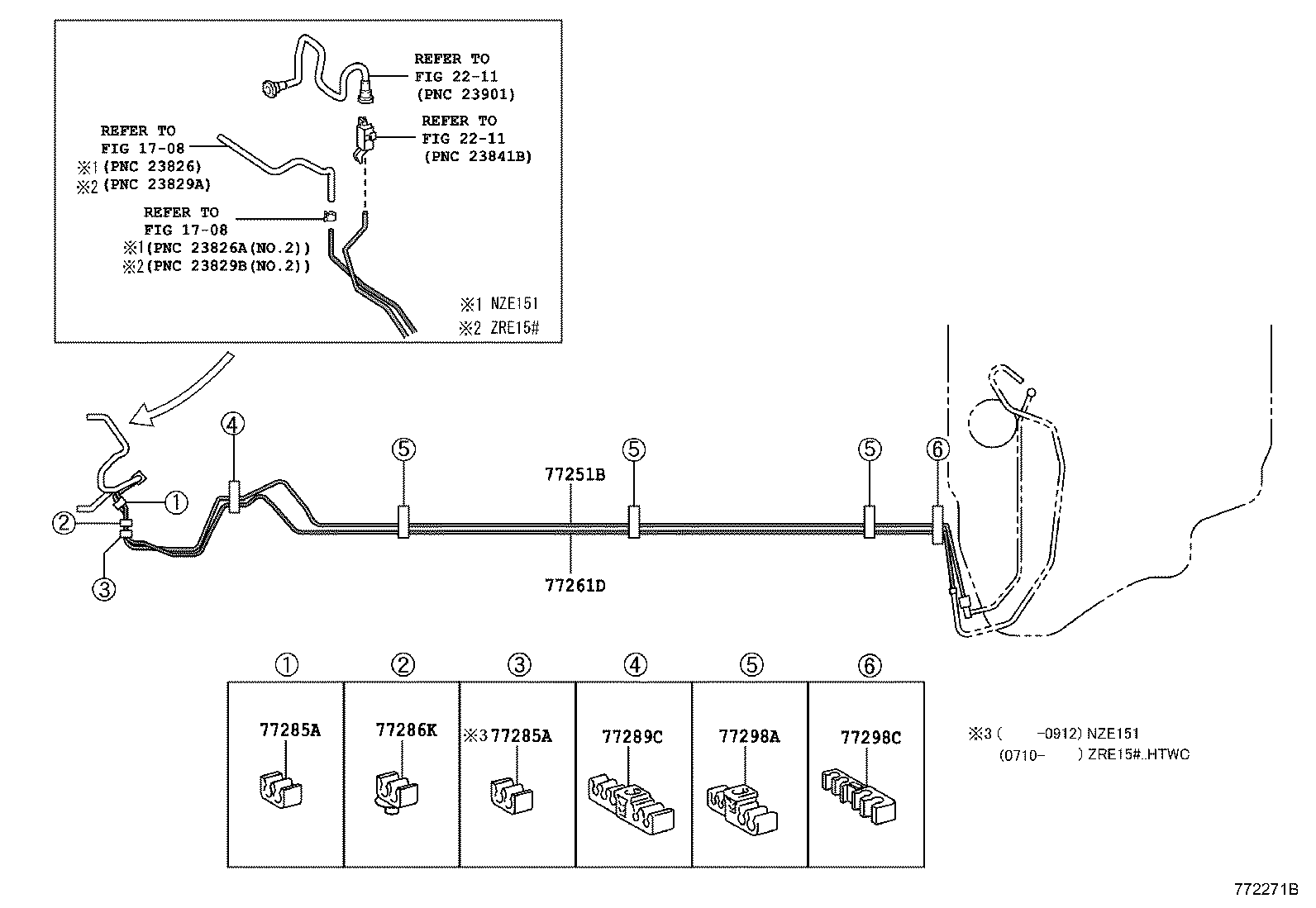

ILLUST NO. 2 OF 2(0710- )
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12720 |
NZE151,ZRE15# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12510 |
NZE151,ZRE15# |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
NZE151,ZRE15# |
2 | ||
| 77285-42110 |
NZE151,ZRE15# |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
NZE151,ZRE15# |
2 | ||
| 77285-42110 |
NZE151,ZRE15# |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12120 |
NZE151,ZRE15# |
1 | ||
| 77286-20190 |
NZE151,ZRE15# |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
NZE151,ZRE15# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
NZE151,ZRE15# |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
NZE151,ZRE15# |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
