ZRE154N-FHXSK (2007)
Toyota Corolla Rumion
Production
Oct 2007
-
Dec 2009
Engine
2ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0710- )ZRE154

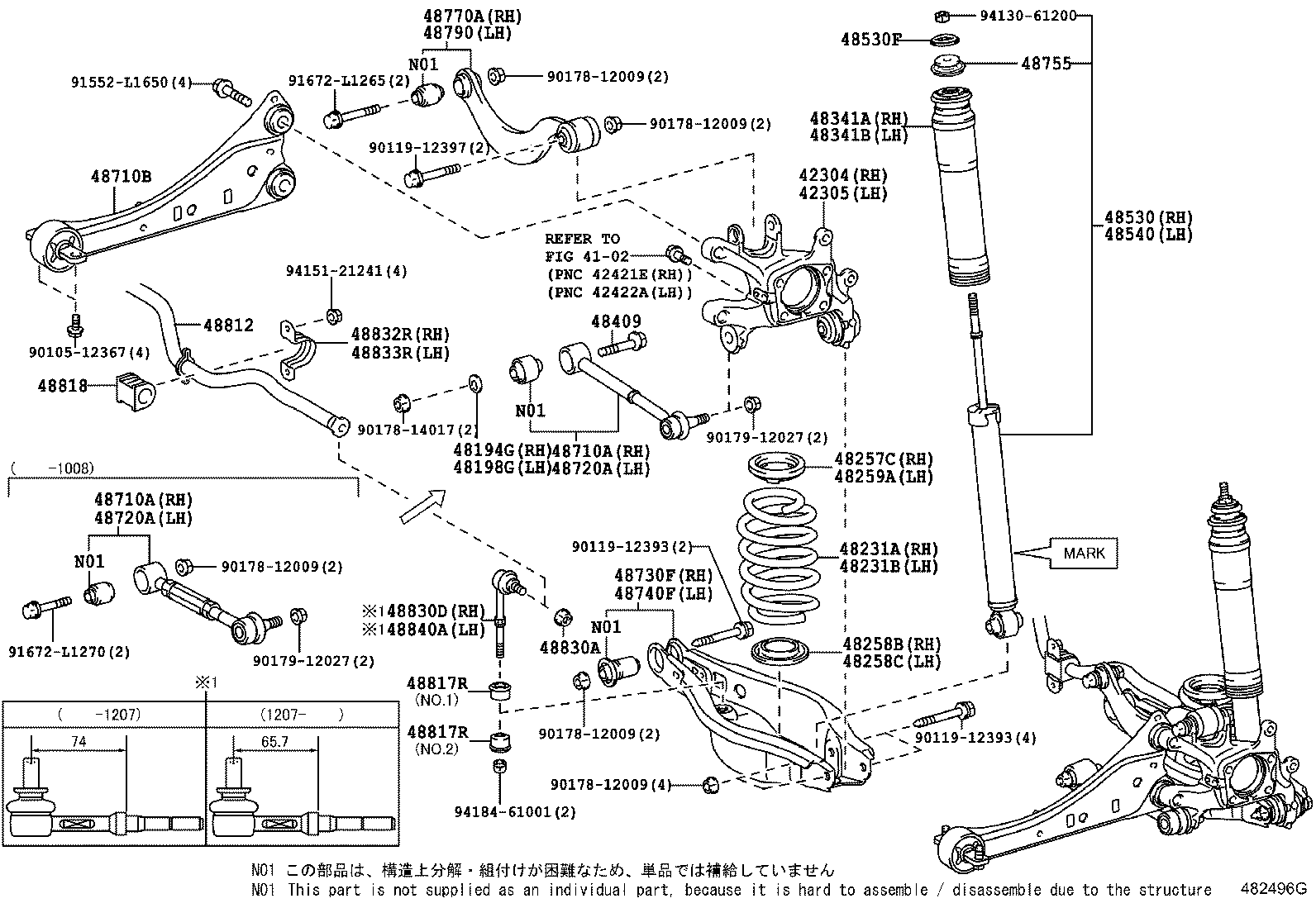

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12240 |
ZRE154 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12240 |
ZRE154 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-12C30 |
ZRE154 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-12C30 |
ZRE154 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-52010 |
NZE151,ZRE15# |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-12050 |
ZRE154 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-12050 |
ZRE154 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-52010 |
NZE151,ZRE15# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-12220 |
NZE151,ZRE15# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-12220 |
NZE151,ZRE15# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80422 |
ZRE154 ﾏｰｸ 48530−12E20 |
1 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90948-02159 |
NZE151,ZRE15# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80422 |
ZRE154 ﾏｰｸ 48530−12E20 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12270 |
ZRE154 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12270 |
ZRE154 |
1 | ||
| 48710B - ARM ASSY, TRAILING, REAR | ||||
| 48780-12140 |
ZRE154 左側 |
1 | ||
| 48760-12010 |
ZRE154 右側 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12270 |
ZRE154 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12270 |
ZRE154 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12240 |
ZRE154 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12240 |
ZRE154 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-12100 |
NZE151,ZRE15# |
2 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-12010 |
ZRE154 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-12010 |
ZRE154 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-12420 |
ZRE154 |
1 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12030 |
ZRE154 NO.2 |
2 | ||
| 48817-12020 |
ZRE154 NO.1 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12030 |
ZRE154 NO.2 |
2 | ||
| 48817-12020 |
ZRE154 NO.1 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-12290 |
ZRE154 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 94151-21241 |
ZRE154 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-12080 |
ZRE154 |
1 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-42010 |
ZRE154 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48832-42010 |
ZRE154 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-12080 |
ZRE154 |
1 | ||
| Common parts | ||||
| 90105-12367 | ||||
| 90119-12393 | ||||
| 90119-12397 | ||||
| 90178-12009 | ||||
| 90178-14017 | ||||
| 90179-12027 | ||||
| 91552-L1650 | ||||
| 91672-L1265 | ||||
| 91672-L1270 | ||||
| 94130-61200 | ||||
| 94151-21241 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 4102 | ||||
