ZRE154N-FHXSK (2007)

Toyota Corolla Rumion

Production Oct 2007 - Dec 2009
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0710-0912)2ZRFE..ZRE154

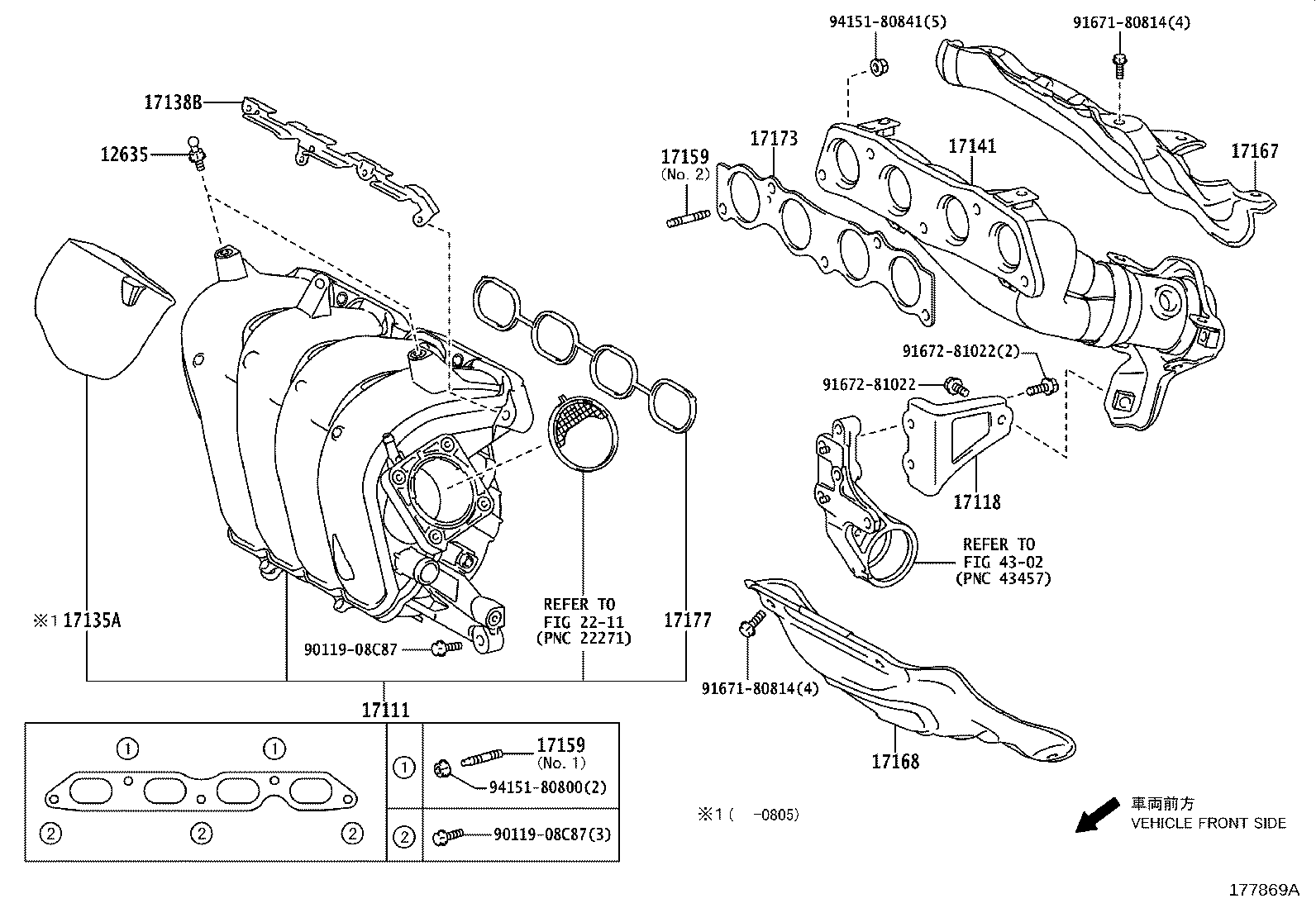

Click highlighted areas on diagram

diagram 12635 17111 17118 17135A 17138B 17141 17159 17159 17167 17168 17173 17177 2211 4302 9011908C87 9011908C87 9167180814 9167180814 9167281022 9167281022 9415180800 9415180841
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

2ZRFE..ZRE15#

 2
17111 - MANIFOLD, INTAKE
17120-37020

2ZRFE..ZRE15#

 1
17120-37021

2ZRFE..ZRE15#

 1
17120-37022

2ZRFE..ZRE15#

 1
17118 - STAY, MANIFOLD
17118-37020

2ZRFE..ZRE154

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-37010

2ZRFE..ZRE15#

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

2ZRFE..ZRE15#

 1
17141 - MANIFOLD, EXHAUST
17141-37060

2ZRFE..ZRE154

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

2ZRFE..ZRE15#

NO.1

 2
90126-08052

2ZRFE..ZRE15#

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

2ZRFE..ZRE15#

NO.1

 2
90126-08052

2ZRFE..ZRE15#

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37020

2ZRFE..ZRE154

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37040

2ZRFE..ZRE154

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

2ZRFE..ZRE15#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

2ZRFE..ZRE15#

 1
17177-37030

2ZRFE..ZRE15#

 1
Common parts
90119-08C87
91671-80814
91672-81022
94151-80800
94151-80841
Linked diagrams
2211
4302
