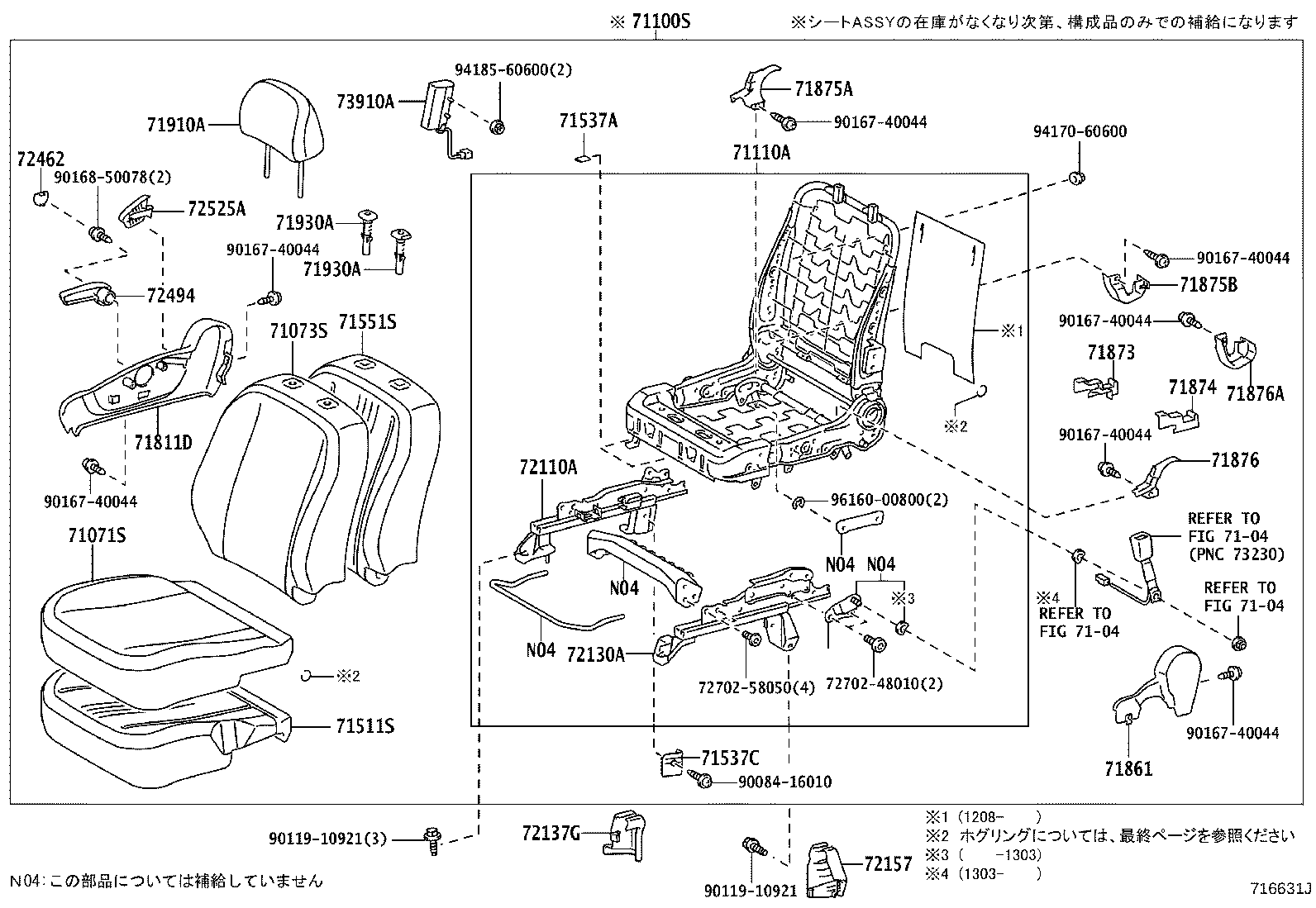

ZRE152N-FHXSP (2009)
Toyota Corolla Rumion
(0912- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12Y40B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71071-12U10B2 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71071-12Y40B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71071-12Y40C0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),BLACK,TRIM1# |
1 | ||
| 71071-12U10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71071-12U10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12Z40B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71073-12Z40B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71073-12V10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71073-12V10B2 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71073-12V10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71073-12Z40C0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),BLACK,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-12V70B9 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71100-1AL10B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB21B0 |
ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB20B4 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71100-1AL10B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB21B0 |
ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB20B4 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB21B0 |
ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71100-1AB20B4 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71100-1AL11B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-12410 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F) |
1 | ||
| 71110-12360 |
ZRE15# |
1 | ||
| 71110-12601 |
NZE151,ZRE15#..CBU |
1 | ||
| 71110-12600 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71110-12601 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71110-12410 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71110-12600 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71110-12601 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71110-12602 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71110-12600 |
NZE151,ZRE15#..CBU |
1 | ||
| 71110-12602 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71110-12412 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71110-12602 |
NZE151,ZRE15#..CBU |
1 | ||
| 71110-12411 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12A00 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71537-26010 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71537-26010 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-12040B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12B80 |
ZRE15# |
1 | ||
| 71551-12C70 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42090B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12370B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71861-12370B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
NZE151,ZRE15# |
2 | ||
| 71873-42030 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71873-42030 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15# |
2 | ||
| 71874-42020 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71875-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15# |
2 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,TRIM1# |
1 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,TRIM1# |
1 | ||
| 71876-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12E90B3 |
NZE151,ZRE15#..G,S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
2 | ||
| 71910-12D80B1 |
ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910-12G60B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..G,S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71910-12G60B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12250 |
NZE151,ZRE15# |
1 | ||
| 72110-12250 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12850 |
NZE151,ZRE15# |
1 | ||
| 72130-12850 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12200B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72137-12200B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-12180B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72157-12180B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12120 |
NZE151,ZRE15# |
1 | ||
| 73910-12120 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90084-16010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0912- )
ｼﾞｮｼｭｾｷ

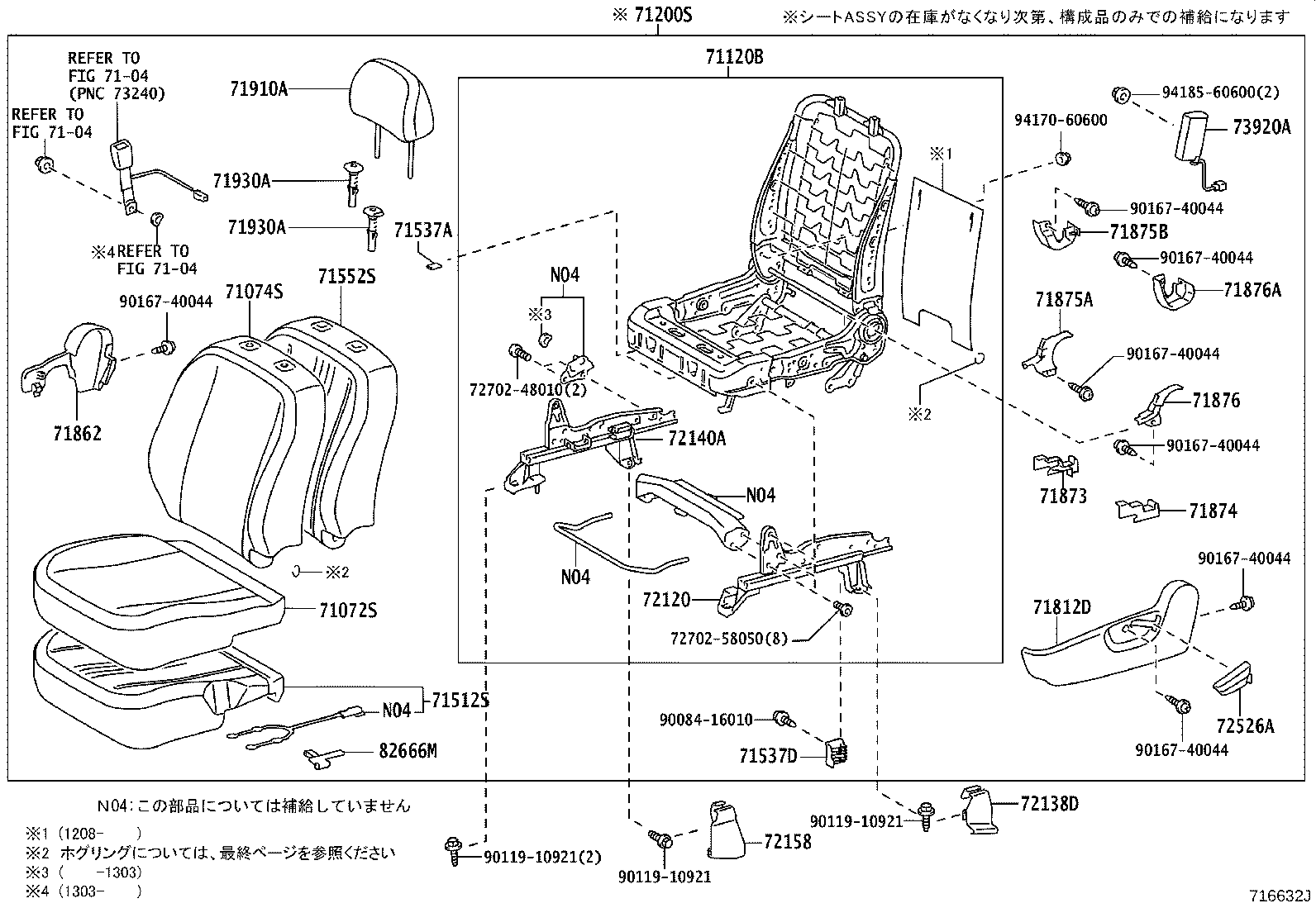

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-D1G20B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1G20B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-12V90B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71072-12V90B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71072-12S60B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1J80B1 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1J90B2 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1J80B1 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1J90B2 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-12V90C0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),BLACK,TRIM1# |
1 | ||
| 71072-12S60B2 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71072-12S60B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-D1F00B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1F00B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1G50B1 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1G60B2 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-12V10B2 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71074-12V10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Y70B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71074-12V10B2 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Y70B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71074-D1G60B2 |
ZRE15#..S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-12Y70C0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),BLACK,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-12350 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F) |
1 | ||
| 71120-12310 |
NZE151,ZRE15# |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-12480 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-12481 |
NZE151,ZRE15#..CBU |
1 | ||
| 71120-12480 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-12480 |
NZE151,ZRE15#..CBU |
1 | ||
| 71120-12481 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-12350 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71120-12351 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71120-D1071 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-D1071 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-12482 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-12352 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B) |
1 | ||
| 71120-12482 |
NZE151,ZRE15#..CBU |
1 | ||
| 71120-12481 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71120-12482 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-1AK80B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
1 | ||
| 71200-12V30B9 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB20B4 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB20B4 |
ZRE15#..S..CBU DK.GRAY,TRIM1# |
1 | ||
| 71200-1AK80B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB21B0 |
ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB21B0 |
ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71200-1AK81B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB21B0 |
ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71200-1AB20B4 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 78735-D1090 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 78735-D1090 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71502-12140 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71537-26010 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71537-26010 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71538-12010B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71538-12010B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71538-12010B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71552-12580 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71552-12500 |
NZE151,ZRE15# |
1 | ||
| 71551-D1010 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71551-D1010 |
ZRE15#..S..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
NZE151,ZRE15# |
2 | ||
| 71873-42030 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71873-42030 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15# |
2 | ||
| 71874-42020 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71875-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15# |
2 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,TRIM1# |
1 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
2 | ||
| 71876-58060 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,TRIM1# |
1 | ||
| 71876-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12E90B3 |
NZE151,ZRE15#..G,S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
2 | ||
| 71910-12D80B1 |
ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71910-12G60B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G/1.8S“ON B LIMITED”*(B),DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..G,S ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
2 | ||
| 71910-12G60B0 |
NZE151,ZRE15#..(G,S)..CBU 1.5G“On B” *(F) OR 1.8S“On B” *(F),DK.GRAY,TRIM1# |
2 | ||
| 71910-12E90B3 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71910-12E90B3 |
NZE151,ZRE15#..(G,S)..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15#..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..(G,S)..CBU ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15#..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12220 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 72120-12220 |
NZE151,ZRE15# |
1 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-12170B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72138-12170B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72138-12170B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72138-12170B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12720 |
NZE151,ZRE15# |
1 | ||
| 72140-12720 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12160B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72158-12160B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72158-12160B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72158-12160B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE151,ZRE15#..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
NZE151,ZRE15#..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
ZRE154..S..CBU;NZE151,ZRE152..CBU ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-12110 |
NZE151,ZRE15# |
1 | ||
| 73920-12110 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
ZRE154..S..CBU;NZE151,ZRE152..CBU |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90084-16010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
