ZRE152N-FHXSK (2007)

Toyota Corolla Rumion

Production Oct 2007 - Dec 2009
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0710-1301)ZRE15#

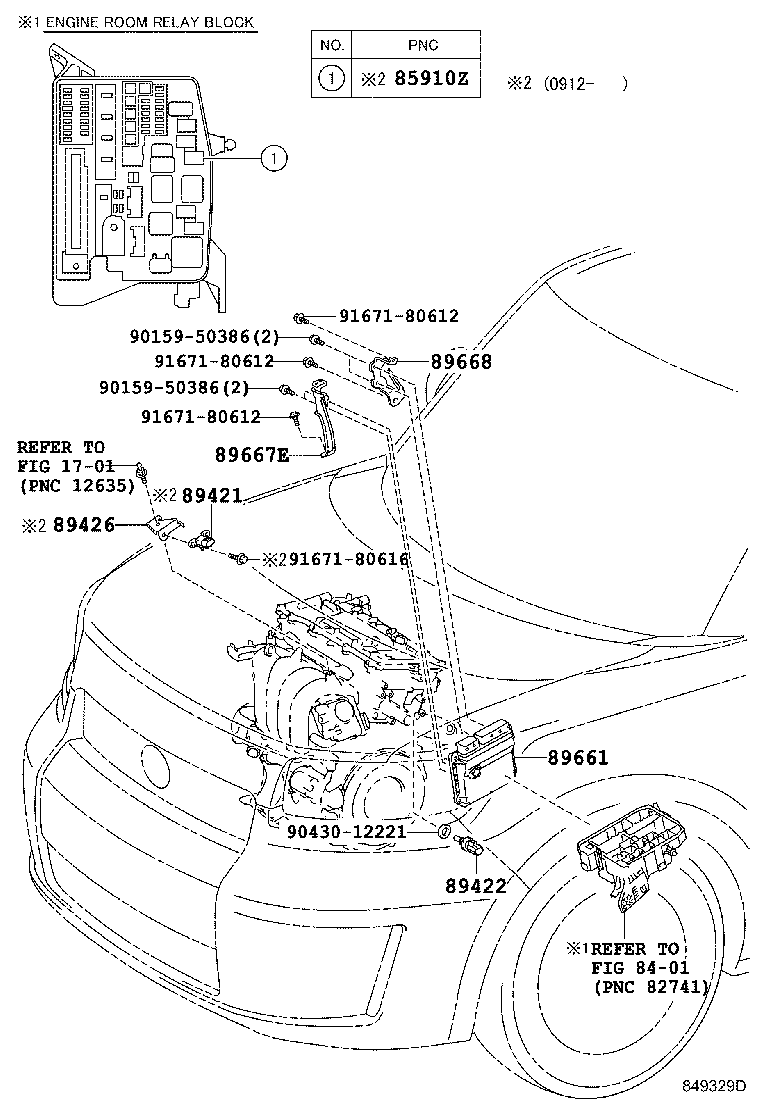

Click highlighted areas on diagram

diagram 1701 8401 85910Z 89421 89422 89426 89661 89667E 89668 9015950386 9015950386 9043012221 9167180612 9167180612 9167180612 9167180616
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NZE151,ZRE15#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12F40

ZRE152

FUJITSU TEN

 1
89661-12F41

ZRE152

FUJITSU TEN

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-12210

NZE151,ZRE15#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12120

NZE151,ZRE15#

 1
Common parts
90159-50386
90430-12221
91671-80612
91671-80616
Linked diagrams
1701
8401
