ZRE152N-FHXSK (2007)
Toyota Corolla Rumion

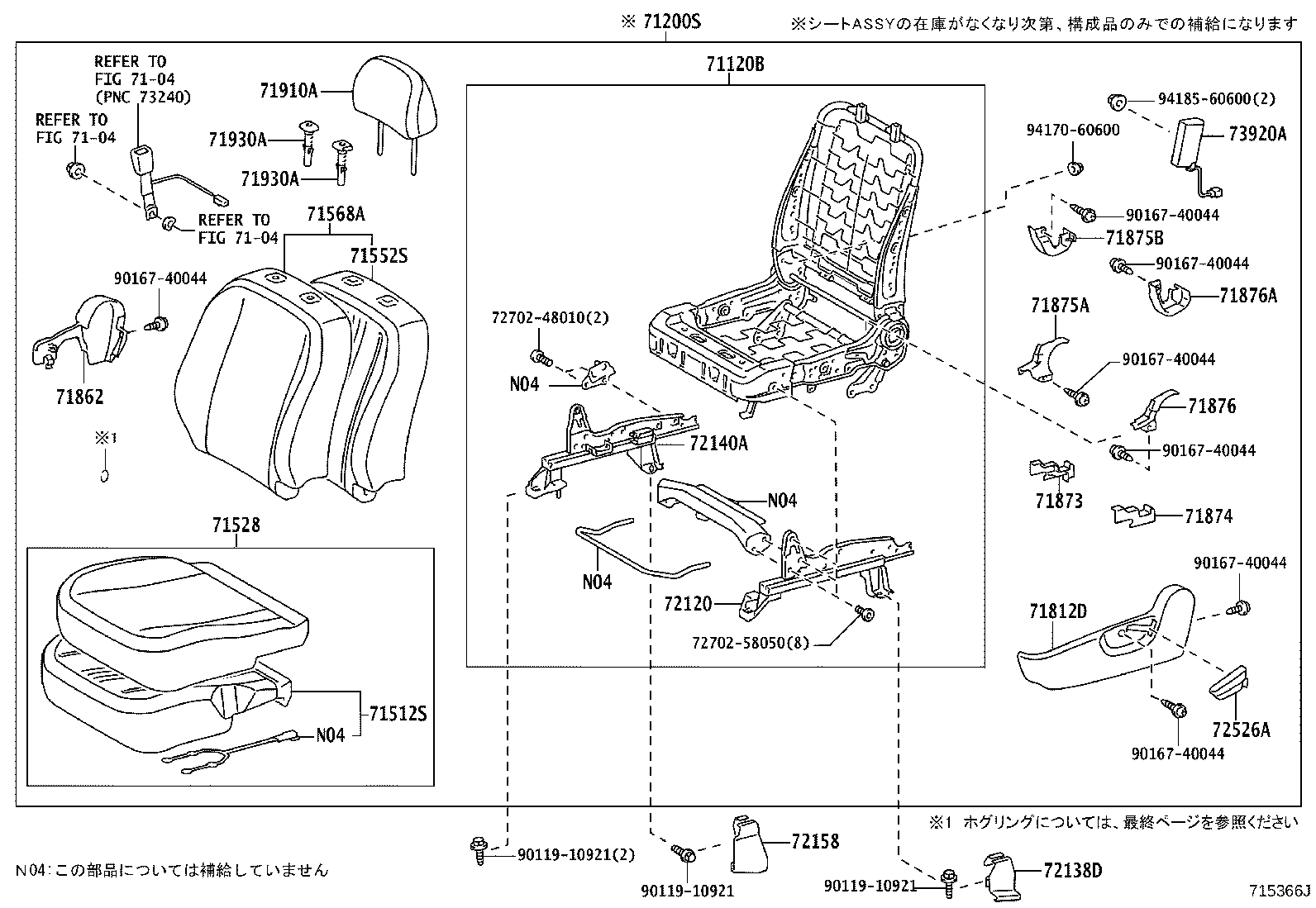

(0710-0912)
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-12310 |
NZE151,ZRE15# |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-12V30B9 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-12130B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71552-12500 |
NZE151,ZRE15# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-12070B1 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
NZE151,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE151,ZRE15# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12D80B1 |
ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12220 |
NZE151,ZRE15# |
1 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-12170B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12720 |
NZE151,ZRE15# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12160B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-12110 |
NZE151,ZRE15# |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

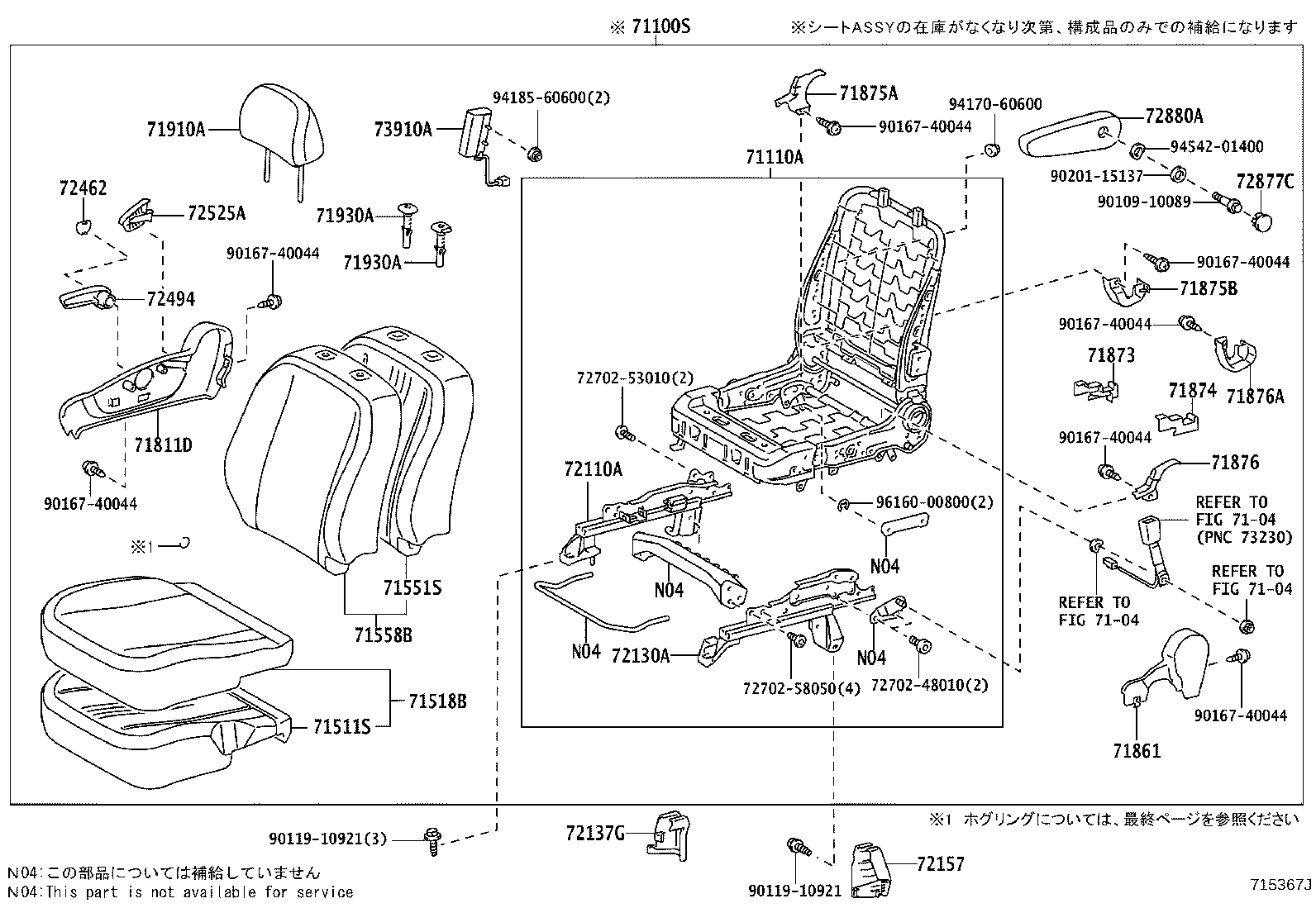

(0710-0912)
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-12V70B9 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-12360 |
ZRE15# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-12160B0 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12B80 |
ZRE15# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-12070B1 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12370B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71873-42030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71873-42030 |
NZE151,ZRE15# |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71874-42020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71874-42020 |
NZE151,ZRE15# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71875-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE151,ZRE15# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71876-42050B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12D80B1 |
ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
NZE151,ZRE15# ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
NZE151,ZRE15# ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12250 |
NZE151,ZRE15# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12850 |
NZE151,ZRE15# |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12200B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-12180B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72877C - COVER, SEAT ARMREST | ||||
| 71877-26020B9 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72880-12030B1 |
ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12120 |
NZE151,ZRE15# |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-53010 | ||||
| 72702-58050 | ||||
| 90109-10089 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90201-15137 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7104 | ||||

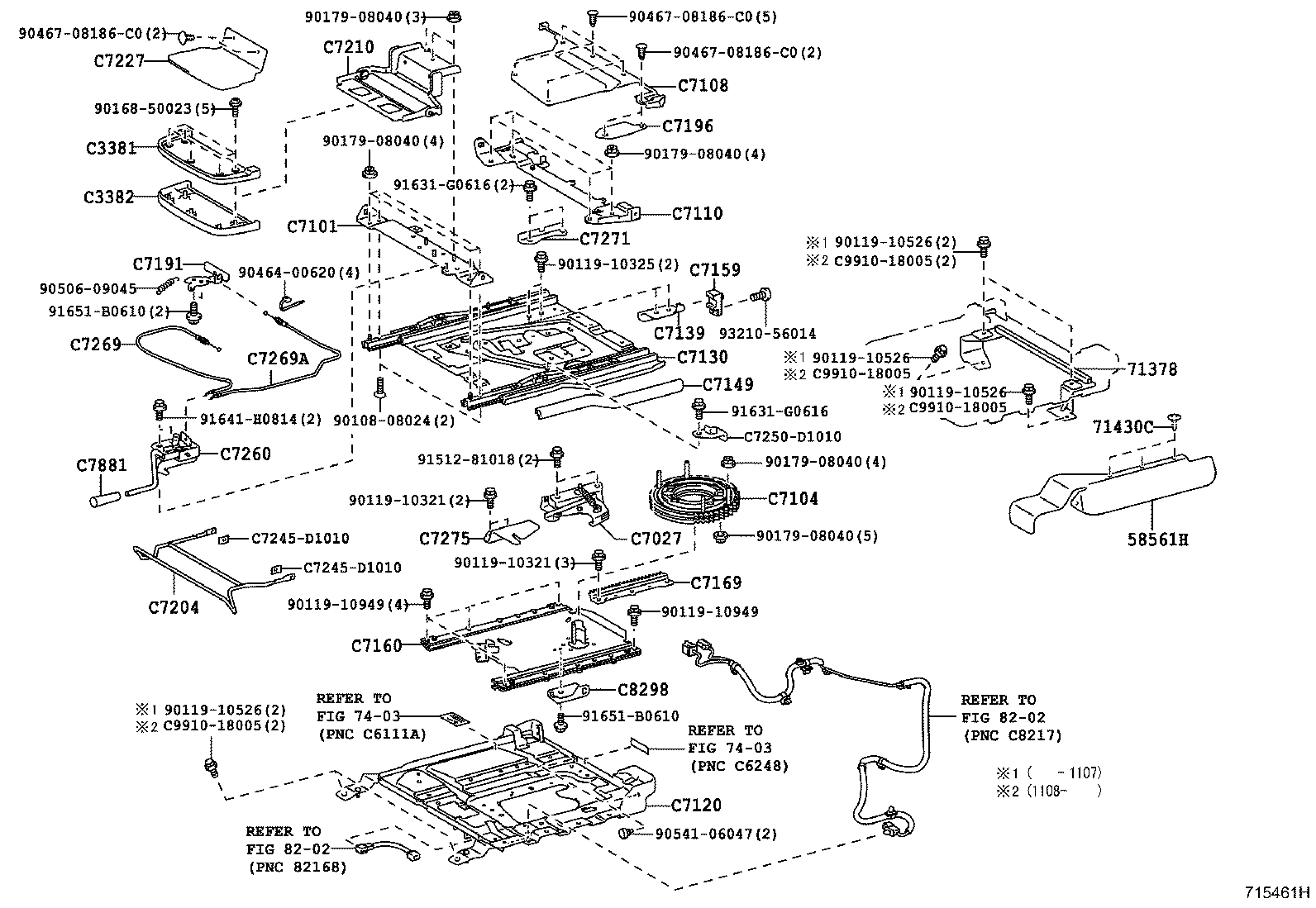

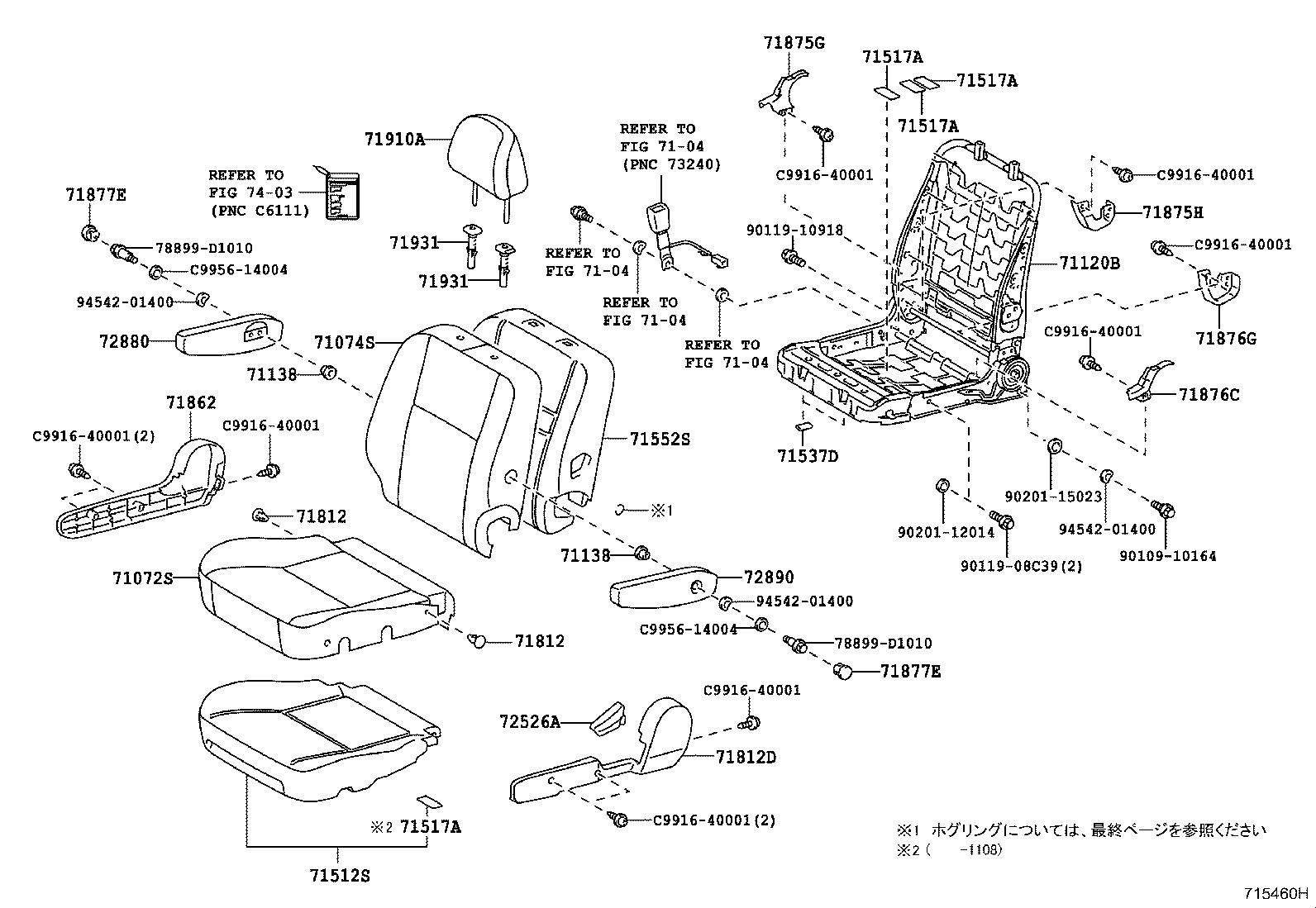

(0710- )
ｳｪﾙｷｬﾌﾞ(ｼﾞｮｼｭｾｷ ｶｲﾃﾝ ｼｰﾄ) 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-D1G20B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71072-D1G20B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-D1F00B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71074-D1F00B0 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-12310 |
NZE151,ZRE15# |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71120-D1071 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 35469-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 35469-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71512-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71517A - PAD, FRONT SEAT CUSHION COVER | ||||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
4 | ||
| 71517-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 71537-26010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71551-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71552-12500 |
NZE151,ZRE15# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71769-60010B6 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY |
2 | ||
| 71769-60010B6 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71769-60010B6 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY |
2 | ||
| 71769-60010B6 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71812-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71862-12340B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 71862-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71875-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71875-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71876-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 71876-58060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
2 | ||
| 71877-D1010B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
2 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
2 | ||
| 71877-D1010B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12D80B1 |
ZRE15# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
NZE151,ZRE15# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装u,DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
NZE151,ZRE15# DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-D1A80B2 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72880-D1A80B2 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-D1B10B2 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| 72890-D1B10B2 |
ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 78899-D1010 | ||||
| 90109-10164 | ||||
| 90119-08C39 | ||||
| 90119-10918 | ||||
| 90201-12014 | ||||
| 90201-15023 | ||||
| 94542-01400 | ||||
| C9916-40001 | ||||
| C9956-14004 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
(0710- )
ｳｪﾙｷｬﾌﾞ(ｼﾞｮｼｭｾｷ ｶｲﾃﾝ ｼｰﾄ) 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58561H - CARPET, FRONT FLOOR SIDE, LH | ||||
| 58561-12100B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,GRAY,TRIM1# |
1 | ||
| 58561-12100B0 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,GRAY,TRIM1# |
1 | ||
| 71378 - BRACKET, FRONT SEAT, LH | ||||
| 79329-12020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 79329-12020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| 71430C - CLIP | ||||
| 90467-05045B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
3 | ||
| 90467-05045B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
3 | ||
| C3381 - COVER, SLIDE STEP, NO.1 | ||||
| C3381-22080B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| C3381-22080B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| C3382 - COVER, SLIDE STEP, NO.2 | ||||
| C3382-22050B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| C3382-22050B4 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| C7027 - LOCK SUB-ASSY, WELCAB SEAT TURN | ||||
| C7027-D1100 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7027-D1100 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7101 - BRACKET SUB-ASSY, SEAT HOLDER, FRONT | ||||
| C7101-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7101-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7104 - PLATE SUB-ASSY, SEAT TURN | ||||
| C7104-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7104-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7108 - COVER ASSY, TURN TABLE | ||||
| C7108-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7108-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7110 - BRACKET SUB-ASSY, SEAT HOLDER, REAR | ||||
| C7110-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7110-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7120 - LEG, WELCAB SEAT, NO.1 | ||||
| C7120-D1A10 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7120-D1A10 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7130 - PANEL ASSY, TURN TABLE | ||||
| C7130-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7130-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7139 - BRACKET, HOOK | ||||
| C7139-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7139-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7149 - PROTECTOR, TURN TABLE PANEL EDGE, LH | ||||
| C7149-D1060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7149-D1060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1090 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7159-D1090 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7160 - PANEL ASSY, SLIDE TABLE | ||||
| C7160-D1060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7160-D1060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7169 - GEAR, SLIDE TABLE RACK | ||||
| C7169-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7169-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7191 - BRACKET, SEAT HOLDER LINK | ||||
| C7191-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7191-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7196 - COVER, TURN TABLE, NO.1 | ||||
| C7196-D1040 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7196-D1040 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7204 - HANDLE SUB-ASSY, WELCAB SEAT TRACK | ||||
| C7204-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7204-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7210 - FOOTREST ASSY, WELCAB SEAT | ||||
| C7210-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7210-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7227 - CARPET, WELCAB SEAT FOOTREST STEP | ||||
| C7227-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置,DK.GRAY,TRIM1# |
1 | ||
| C7227-D1020B1 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ,DK.GRAY,TRIM1# |
1 | ||
| C7260 - HANDLE ASSY, SEAT TURN LOCK | ||||
| C7260-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7260-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269 - CABLE, SEAT TURN LOCK RELEASE | ||||
| C7269-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7269-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269A - CABLE, SEAT TURN LOCK RELEASE, NO.1 | ||||
| C7269-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7269-D1020 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7271 - BRACKET, INTERLOCK, UPPER | ||||
| C7271-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7271-D1010 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7275 - PLATE, LOCK STRIKER, NO.1 | ||||
| C7275-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C7275-D1011 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7881 - GRIP, CONTROL LINK | ||||
| C7881-22040 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C7881-22040 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| C8298 - BRACKET, WELCAB SEAT HARNESS CLAMP | ||||
| C8298-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| C8298-D1030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ |
1 | ||
| Common parts | ||||
| 90108-08024 | ||||
| 90119-10321 | ||||
| 90119-10325 | ||||
| 90119-10526 | ||||
| 90119-10949 | ||||
| 90168-50023 | ||||
| 90179-08040 | ||||
| 90464-00620 | ||||
| 90467-08186C0 | ||||
| 90506-09045 | ||||
| 90541-06047 | ||||
| 91512-81018 | ||||
| 91631-G0616 | ||||
| 91641-H0814 | ||||
| 91651-B0610 | ||||
| 93210-56014 | ||||
| C7245-D1010 | ||||
| C7250-D1010 | ||||
| C9910-18005 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
(0710- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
