ZRE152N-FHXSK (2007)

Toyota Corolla Rumion

Production Oct 2007 - Dec 2009
Engine 2ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0710-1301)

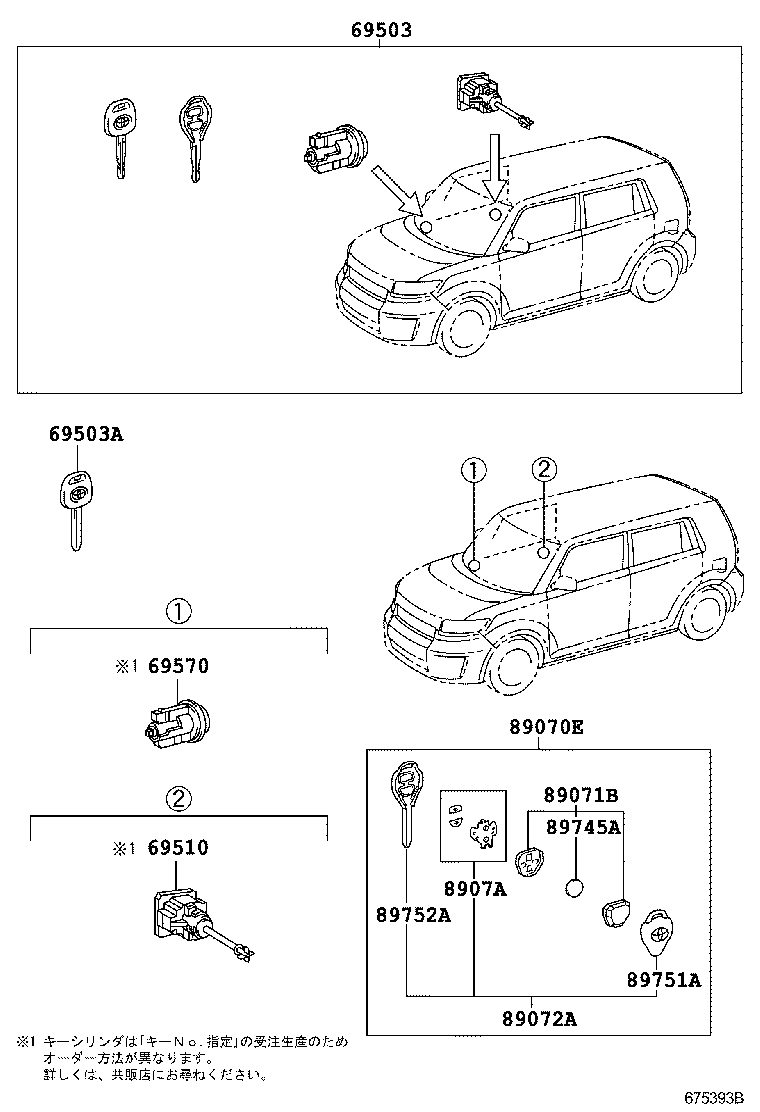

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503A 69510 69570 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-12E00

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69005-12D90

NZE151,ZRE15#

 1
69503A - KEY, BLANK
90999-00199

NZE151,ZRE15#

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-58010

NZE151,ZRE15#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-22130

NZE151,ZRE15#

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-12350

NZE151,ZRE15#

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28150

NZE151,ZRE15#

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-12100

NZE151,ZRE15#

 1
8907A - SWITCH SET, TRANSMITTER
8907A-28010

NZE151,ZRE15#

 1
89745A - BATTERY, TRANSMITTER
89745-48030

NZE151,ZRE15#

 1
89751A - COVER, TRANSMITTER HOUSING
89751-28070

NZE151,ZRE15#

 1
89752A - CASE, TRANSMITTER HOUSING
89752-12080

NZE151,ZRE15#

 1

(0710- )G,S

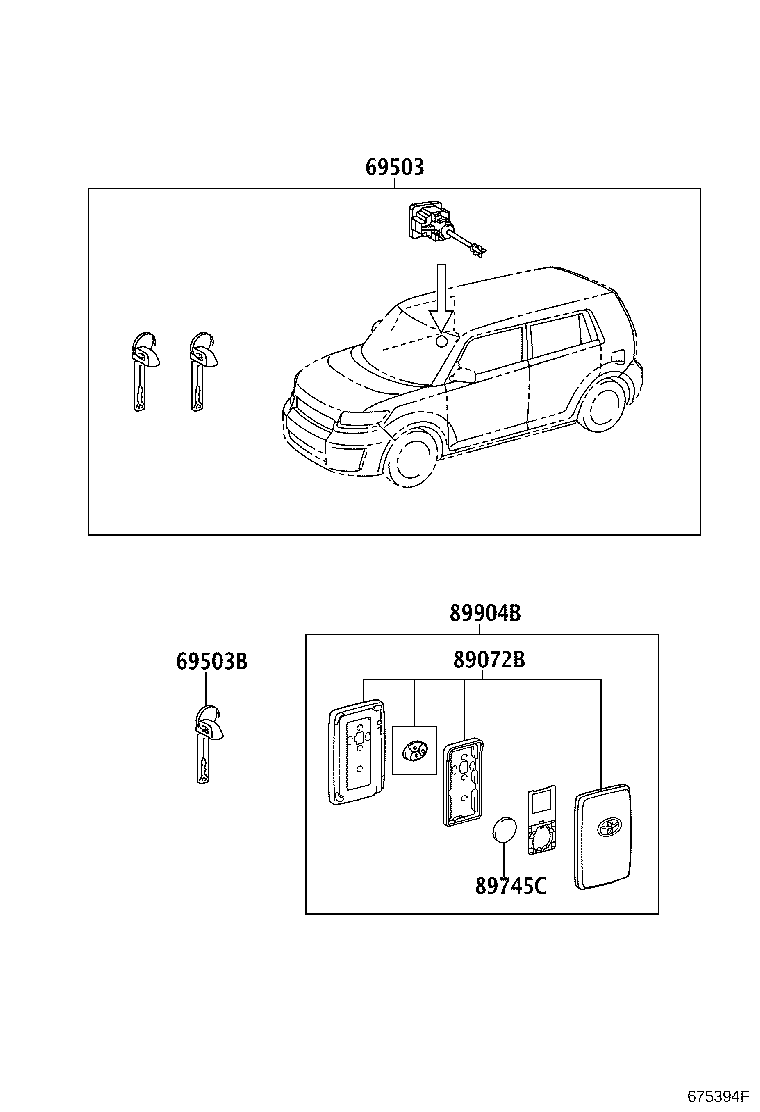

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-12E00

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
69005-12D90

NZE151,ZRE15#

 1
69503B - KEY, CUT
69515-52110

NZE151,ZRE15#..G,S

ﾏｽﾀｰｷｰ,W(*68),ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-12450

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89745C - BATTERY, TRANSMITTER
89745-52020

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-12080

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89904-12071

NZE151,ZRE15#..G,S

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
