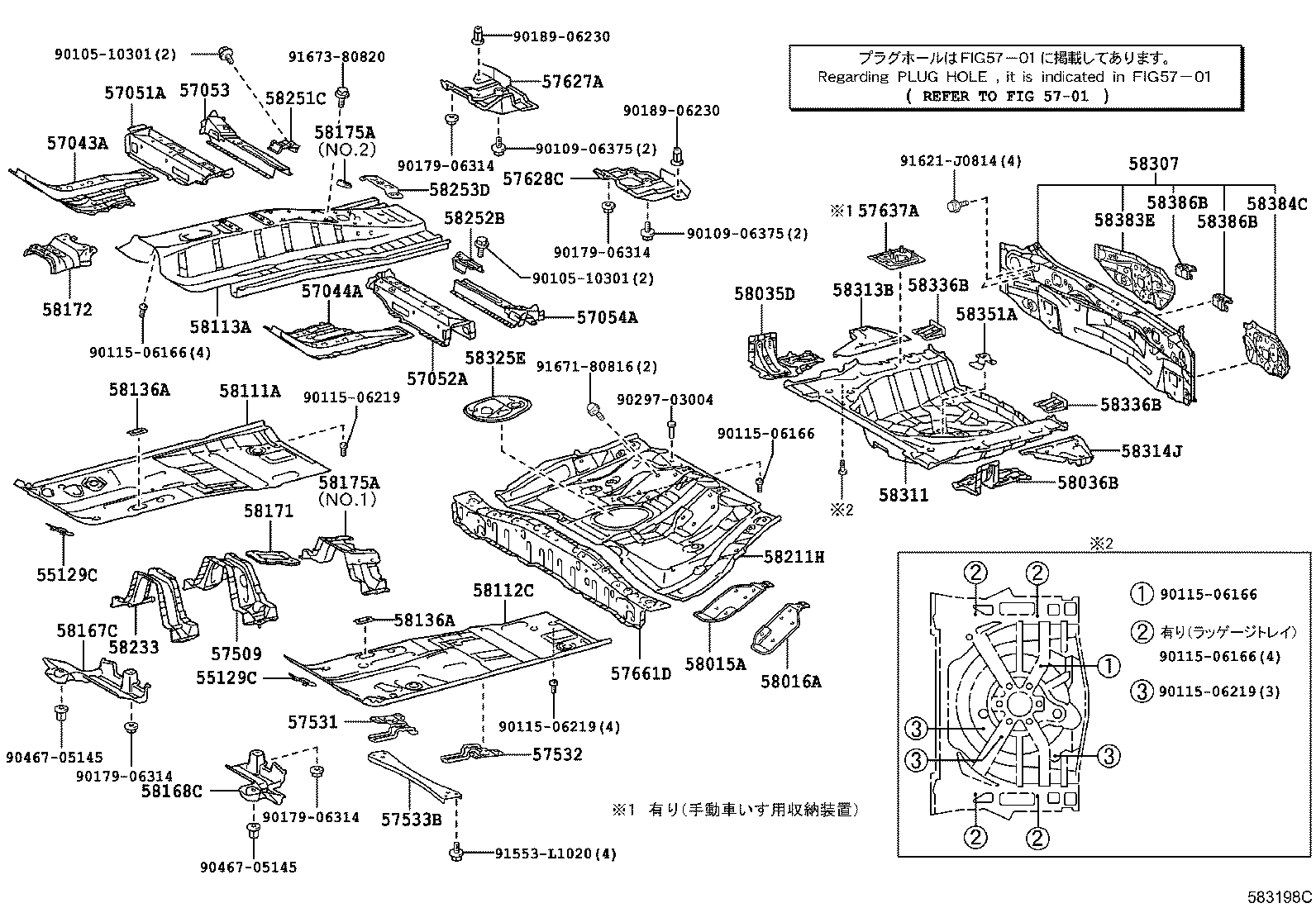

ZRE152N-FHXSK (2007)
Toyota Corolla Rumion
(0710- )NZE151,ZRE152
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-12040 |
NZE151,ZRE15# 右側 |
1 | ||
| 55139-12050 |
NZE151,ZRE15# 左側 |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-12040 |
NZE151,ZRE15# 右側 |
1 | ||
| 55139-12050 |
NZE151,ZRE15# 左側 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-12020 |
NZE151,ZRE15# |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-12020 |
NZE151,ZRE15# |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-12060 |
NZE151,ZRE15# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-12010 |
NZE151,ZRE15# |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12010 |
NZE151,ZRE15# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12010 |
NZE151,ZRE15# |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-12060 |
NZE151,ZRE152 |
1 | ||
| 57509-12061 |
NZE151,ZRE152 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-12010 |
NZE151,ZRE152 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-12010 |
NZE151,ZRE152 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-12010 |
NZE151,ZRE152 |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-12051 |
NZE151,ZRE152 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-12081 |
NZE151,ZRE152 |
1 | ||
| 57637A - REINFORCEMENT, REAR FLOOR SIDE, RH | ||||
| 57646-12080 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57407-12101 |
NZE151,ZRE152 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12091 |
NZE151,ZRE15# |
1 | ||
| 58015-47041 |
NZE151,ZRE15# |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-47031 |
NZE151,ZRE15# |
1 | ||
| 58016-12061 |
NZE151,ZRE15# |
1 | ||
| 58035D - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH | ||||
| 58305-12040 |
NZE151,ZRE15# |
1 | ||
| 58305-12040 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58036B - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH | ||||
| 58306-12030 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58306-12030 |
NZE151,ZRE15# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-12915 |
NZE151,ZRE15# |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-12901 |
NZE151,ZRE15# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-12901 |
NZE151,ZRE152 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
NZE151,ZRE15# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
NZE151,ZRE15# |
2 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-12010 |
NZE151,ZRE15# |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-12010 |
NZE151,ZRE15# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12120 |
NZE151,ZRE152 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58173-12020 |
NZE151,ZRE15# |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 57805-12150 |
NZE151,ZRE152 NO.1 |
1 | ||
| 58176-12020 |
NZE151,ZRE152 NO.2 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 57805-12150 |
NZE151,ZRE152 NO.1 |
1 | ||
| 58176-12020 |
NZE151,ZRE152 NO.2 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-12936 |
NZE151,ZRE152 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58203-12070 |
NZE151,ZRE152 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-12040 |
NZE151,ZRE152 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-12040 |
NZE151,ZRE15# |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-12060 |
NZE151,ZRE152 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-12B10 |
NZE151,ZRE15# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12280 |
NZE151,ZRE152 |
1 | ||
| 58311-12280 |
NZE151,ZRE152 ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58311-12350 |
NZE151,ZRE152 ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58313B - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-12310 |
NZE151,ZRE15# |
1 | ||
| 58314J - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-12310 |
NZE151,ZRE15# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12130 |
NZE151,ZRE152 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 58336-12090 |
NZE151,ZRE15# |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
2 | ||
| 58336-12090 |
NZE151,ZRE15# |
2 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-12060 |
NZE151,ZRE15# |
1 | ||
| 58351-12060 |
NZE151,ZRE15# ｳｪﾙｷｬﾌﾞ−助手席回転ｽﾗｲﾄﾞｼｰﾄ&手動車いす用収納装置 |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-12140 |
NZE151,ZRE15# |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-12200 |
NZE151,ZRE15# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
NZE151,ZRE15# |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
NZE151,ZRE15# |
2 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90109-06375 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90179-06314 | ||||
| 90189-06230 | ||||
| 90297-03004 | ||||
| 90467-05145 | ||||
| 91553-L1020 | ||||
| 91621-J0814 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
