AE92-ACPZF (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

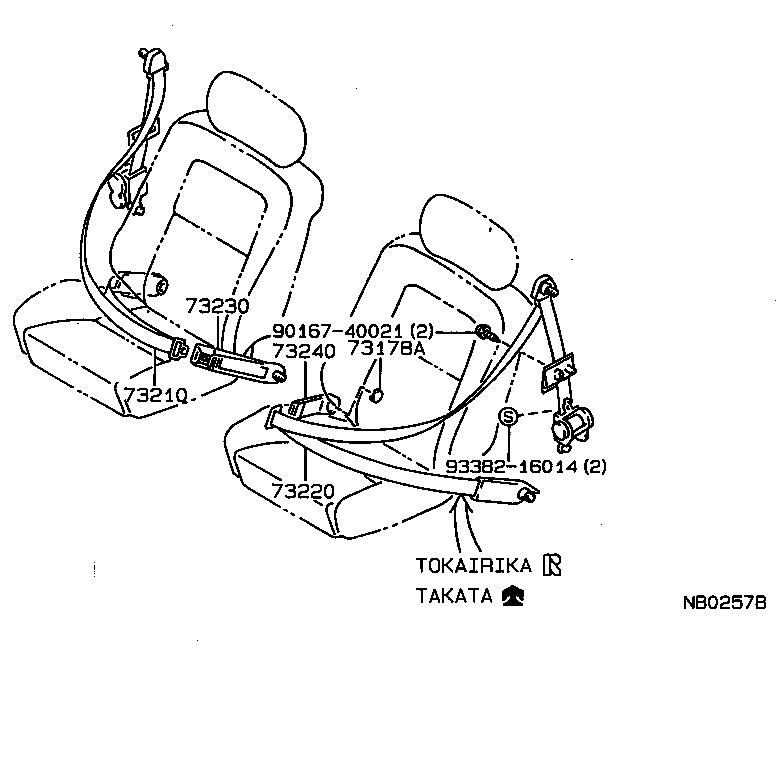

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 73178A 73210 73220 73230 73240 9016740021 9338216014
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16010J0

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#

 2
73178-1601013

AE9#

GRAY,TRIM1#

 2
73178-1601054

AE9#

DARK BLUE,TRIM8#

 2
73178-16010B0

AE9#

SHADOW GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1276003

AE9#

SHADOW GRAY,TRIM1#

 1
73210-1276004

AE9#

DARK BLUE,TRIM8#

 1
73210-1276104

AE9#..G,GT,GTAPX,GTZ,ZS

DARK BLUE,TRIM8#

 1
73210-1276103

AE9#

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1263004

AE9#

DARK BLUE,TRIM8#

 1
73220-1263003

AE9#

SHADOW GRAY,TRIM1#

 1
73220-1263104

AE9#..G,GT,GTAPX,GTZ,ZS

DARK BLUE,TRIM8#

 1
73220-1263103

AE9#

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1234003

AE9#

SHADOW GRAY,TRIM1#

 1
73230-1234104

AE9#..G,GT,GTAPX,GTZ,ZS

DARK BLUE,TRIM8#

 1
73230-1234004

AE9#

DARK BLUE,TRIM8#

 1
73230-1234103

AE9#

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1234004

AE9#

DARK BLUE,TRIM8#

 1
73230-1234003

AE9#

SHADOW GRAY,TRIM1#

 1
73230-1234103

AE9#

SHADOW GRAY,TRIM1#

 1
73230-1234104

AE9#..G,GT,GTAPX,GTZ,ZS

DARK BLUE,TRIM8#

 1
Common parts
90167-40021
93382-16014

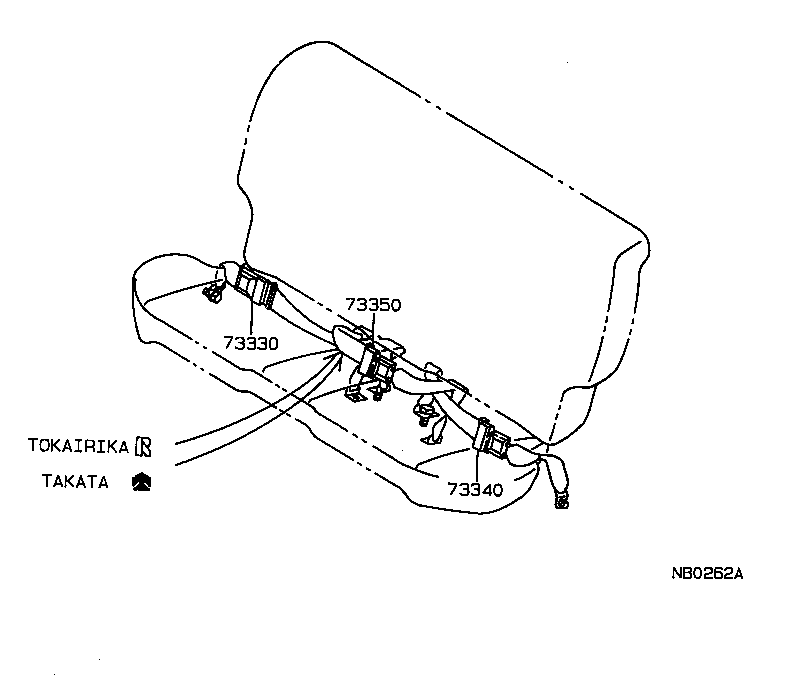

ILLUST NO. 2 OF 2(8705- )

Click highlighted areas on diagram

diagram 73330 73340 73350
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1231003

AE9#

SHADOW GRAY,TRIM1#,TAKATA

 1
73330-1231004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,TAKATA

 1
73330-1233004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,東海理化

 1
73330-1233003

AE9#

SHADOW GRAY,TRIM1#,東海理化

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1231004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,TAKATA

 1
73330-1233003

AE9#

SHADOW GRAY,TRIM1#,東海理化

 1
73330-1233004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,東海理化

 1
73330-1231003

AE9#

SHADOW GRAY,TRIM1#,TAKATA

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1215003

AE9#

SHADOW GRAY,TRIM1#,TAKATA

 1
73350-1216004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,東海理化

 1
73350-1215004

AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC)

DARK BLUE,TRIM8#,TAKATA

 1
73350-1216003

AE9#

SHADOW GRAY,TRIM1#,東海理化

 1
