AE92-ACPZF (1987)
Toyota Corolla Levin
Production
May 1987
-
Jun 1991
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )

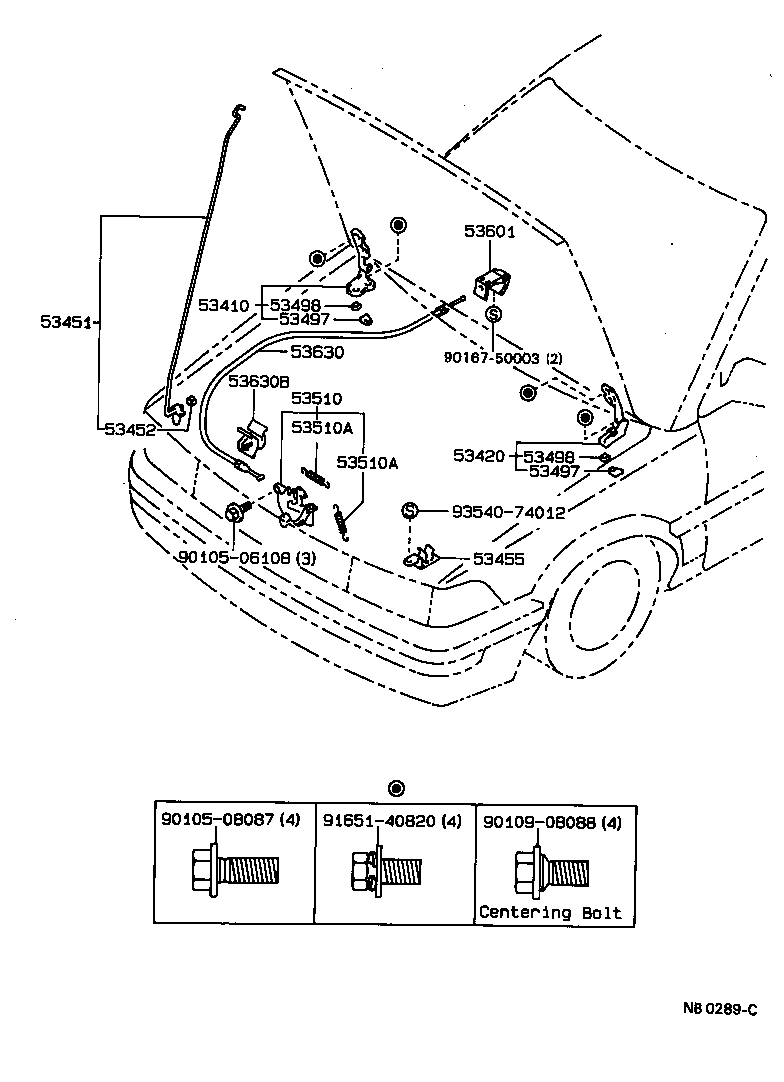

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12140 |
AE9# |
1 | ||
| 53410-12141 |
AE9# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12120 |
AE9# |
1 | ||
| 53420-12121 |
AE9# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-12130 |
AE9# |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-12020 |
AE9# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-12040 |
AE9# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE9# 厚さ=1.0 |
1 | ||
| 53497-12011 |
AE9# 厚さ=0.5 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12010 |
AE9# 厚さ=1.0 |
1 | ||
| 53497-12011 |
AE9# 厚さ=0.5 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE9# |
1 | ||
| 53498-12011 |
AE9# |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AE9# |
1 | ||
| 53498-12011 |
AE9# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12420 |
AE9# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
AE9# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-09029 |
AE9# 線径=0.9,WD=0.9,CW=26.5 |
1 | ||
| 90506-09008 |
AE9# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-20054 |
AE9# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
AE9# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-09029 |
AE9# 線径=0.9,WD=0.9,CW=26.5 |
1 | ||
| 90506-09008 |
AE9# 線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,CW=21.25 |
1 | ||
| 90506-20054 |
AE9# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-1002024 |
AE9# DARK BLUE,TRIM8# |
1 | ||
| 53601-10020B1 |
AE9# SHADOW GRAY,TRIM1# |
1 | ||
| 53601-10020J0 |
AE91..CBR,EFIS;AE9#..(G,GT,GTAPX,GTV,GTZ,ZI)..(EFI,SPC) DARK BLUE,TRIM8# |
1 | ||
| 53601-1002003 |
AE9# GRAY,TRIM1# |
1 | ||
| 53601-1002023 |
AE9# GRAY,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12280 |
AE9# |
1 | ||
| 53630-12260 |
AE9# |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90467-09043 |
AE9# |
1 | ||
| Common parts | ||||
| 90105-06108 | ||||
| 90105-08087 | ||||
| 90109-08088 | ||||
| 90167-50003 | ||||
| 91651-40820 | ||||
| 93540-74012 | ||||
