AE92-ACPXF (1987)

Toyota Corolla Levin

Production May 1987 - May 1989
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

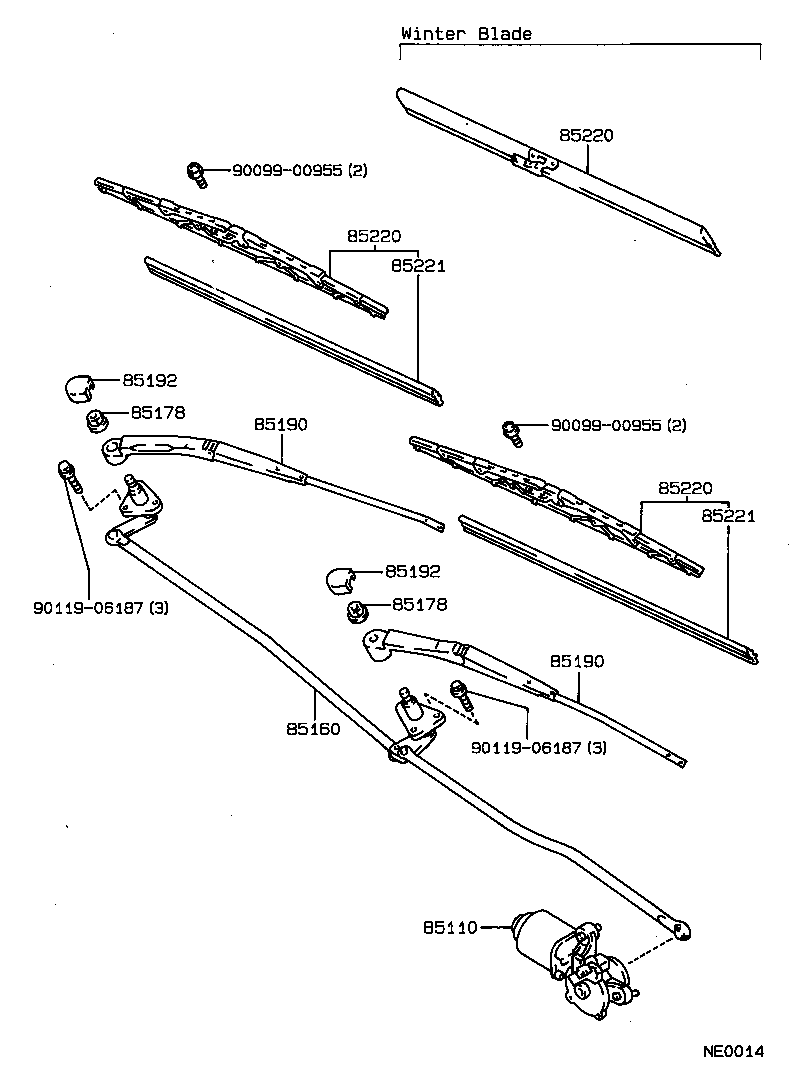

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 9009900955 9009900955 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12680

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-12681

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-12621

AE9#

 1
85110-12620

AE9#

 1
85110-12681

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-12590

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160-12590

AE9#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160-12560

AE9#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AE9#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AE9#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-12260

AE9#

左側

 1
85190-12890

AE9#

右側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-12260

AE9#

左側

 1
85190-12890

AE9#

右側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AE9#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AE9#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16320

AE9#

左側

 1
85220-16580

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-32550

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220-32540

AE9#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16320

AE9#

左側

 1
85220-16580

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-32550

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220-32540

AE9#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16320

AE9#

左側

 1
85220-16580

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85220-32550

AE9#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85220-32540

AE9#

右側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-24040

AE9#

右側

 1
85221-30120

AE9#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-24040

AE9#

右側

 1
85221-30120

AE9#

左側

 1
Common parts
90099-00955
90119-06187
