AE92-ACPXF (1987)
Toyota Corolla Levin

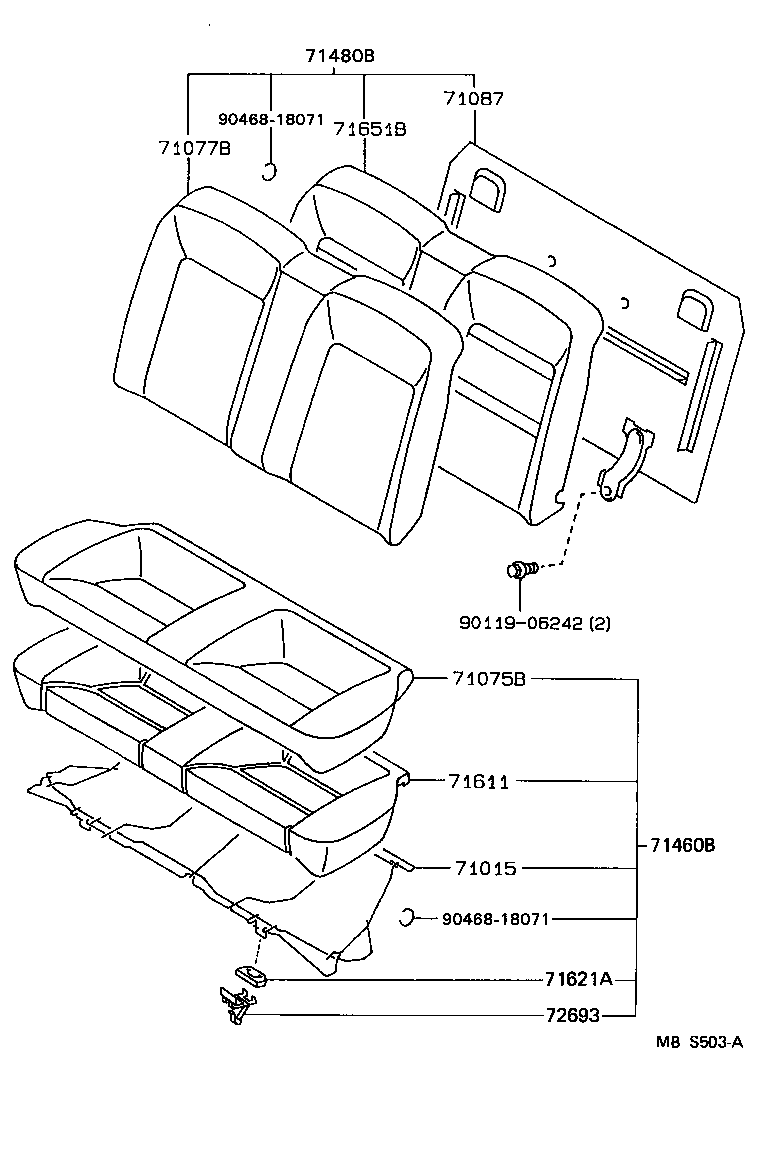

(8705- )GT,L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12280 |
AE9# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E27004 |
AE92..GTV,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71075-1E33003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E33004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71075-1E27003 |
AE92..GTV,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1K05004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71077-1K05003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-12070 |
AE9#..GT,L |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E30003 |
AE92..GTV,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E36004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E30004 |
AE92..GTV,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E36003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1K15004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1K15003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12580 |
AE9# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-12670 |
AE9#..GT,L |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE9# |
2 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||

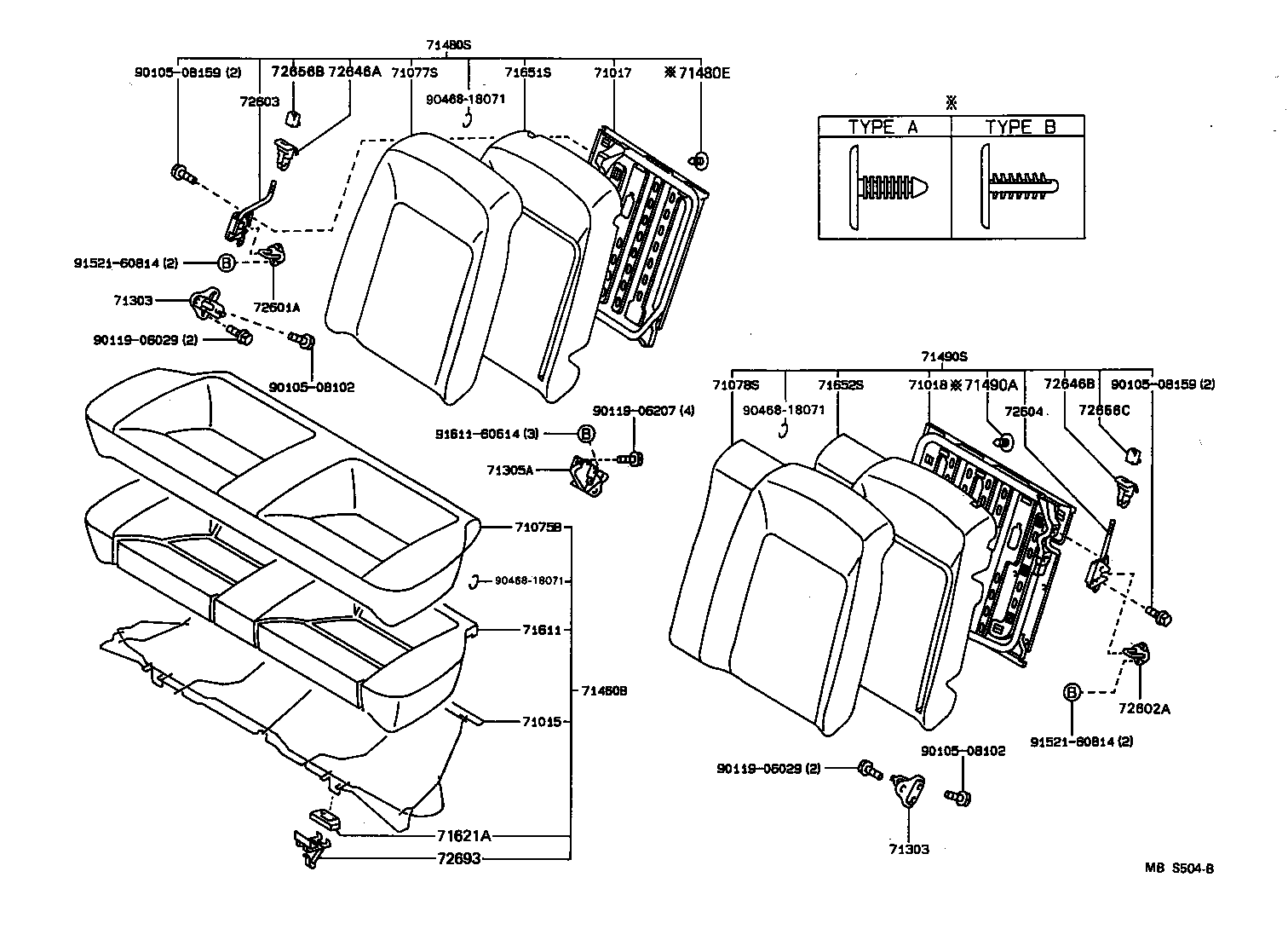

(8705- )G,GTAPX,GTV,GTZ,ZI,ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12280 |
AE9# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12310 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12080 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E27004 |
AE92..GTV,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71075-1E33003 |
AE92..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E33004 |
AE92..GT DARK BLUE,TRIM8# |
1 | ||
| 71075-1E27003 |
AE92..GTV,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1K03004 |
AE92..GTV,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71077-1K03003 |
AE92..GTV,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A62003 |
AE92..GTV,GTZ SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1A62004 |
AE92..GTV,GTZ DARK BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12080 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12080 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12080 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E30003 |
AE92..GTV,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E36004 |
AE92..GT ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E30004 |
AE92..GTV,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E36003 |
AE92..GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-0704913 |
AE9#..G,GTAPX,GTV,GTZ,ZI GRAY,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0603733 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS GRAY,TRIM1#,8#,ﾀｲﾌﾟ A |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1K12003 |
AE92..GTV,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1K12004 |
AE92..GTV,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-0704913 |
AE9#..GTAPX,GTV,GTZ,ZI GRAY,TRIM1#,8#,ﾀｲﾌﾟ B |
2 | ||
| 90467-0603733 |
AE9#..G,GTAPX,GTZ,ZI,ZS GRAY,TRIM1#,8#,ﾀｲﾌﾟ A |
2 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1A62004 |
AE92..GTV,GTZ ***,DARK BLUE,TRIM8# |
1 | ||
| 71490-1A62003 |
AE92..GTV,GTZ ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12580 |
AE9# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12640 |
AE9#..G,GTAPX,GTV,GTZ,ZI |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12450 |
AE9#..G,GTAPX,GTV,GTZ,ZI |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12100 |
AE9#..G,GTAPX,GTV,GTZ,ZI |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12150 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12150 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1205003 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 72646-1205004 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS DARK BLUE,TRIM8# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1205004 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS DARK BLUE,TRIM8# |
1 | ||
| 72646-1205003 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1202003 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 72661-1202004 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS DARK BLUE,TRIM8# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1202004 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS DARK BLUE,TRIM8# |
1 | ||
| 72661-1202003 |
AE9#..G,GTAPX,GTV,GTZ,ZI,ZS SHADOW GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE9# |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06029 | ||||
| 90119-06207 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
