AE92-ACPVF (1987)
Toyota Corolla Levin

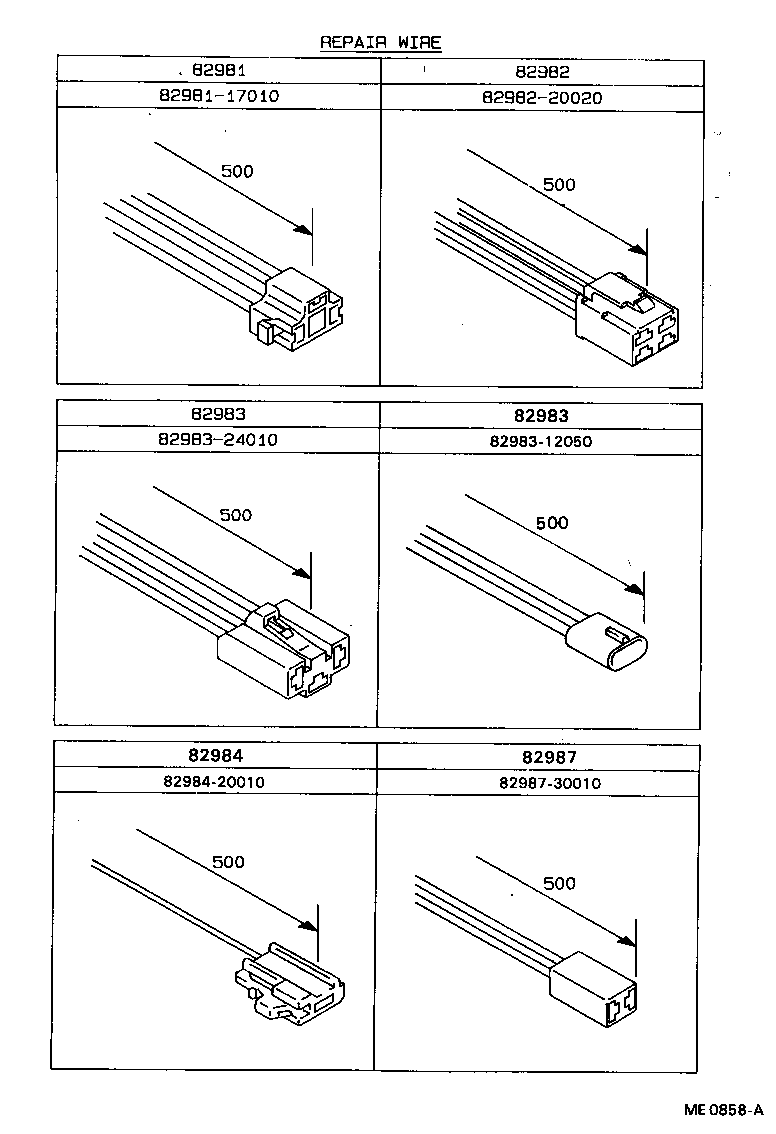

ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-17010 |
AE9# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20020 |
AE9# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-24010 |
AE9# |
1 | ||
| 82983-12050 |
AE9# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-24010 |
AE9# |
1 | ||
| 82983-12050 |
AE9# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE9# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-30010 |
AE9# |
1 | ||
| Common parts | ||||
| 82981-17010 | ||||
| 82982-20020 | ||||
| 82983-12050 | ||||
| 82983-24010 | ||||
| 82984-20010 | ||||
| 82987-30010 | ||||

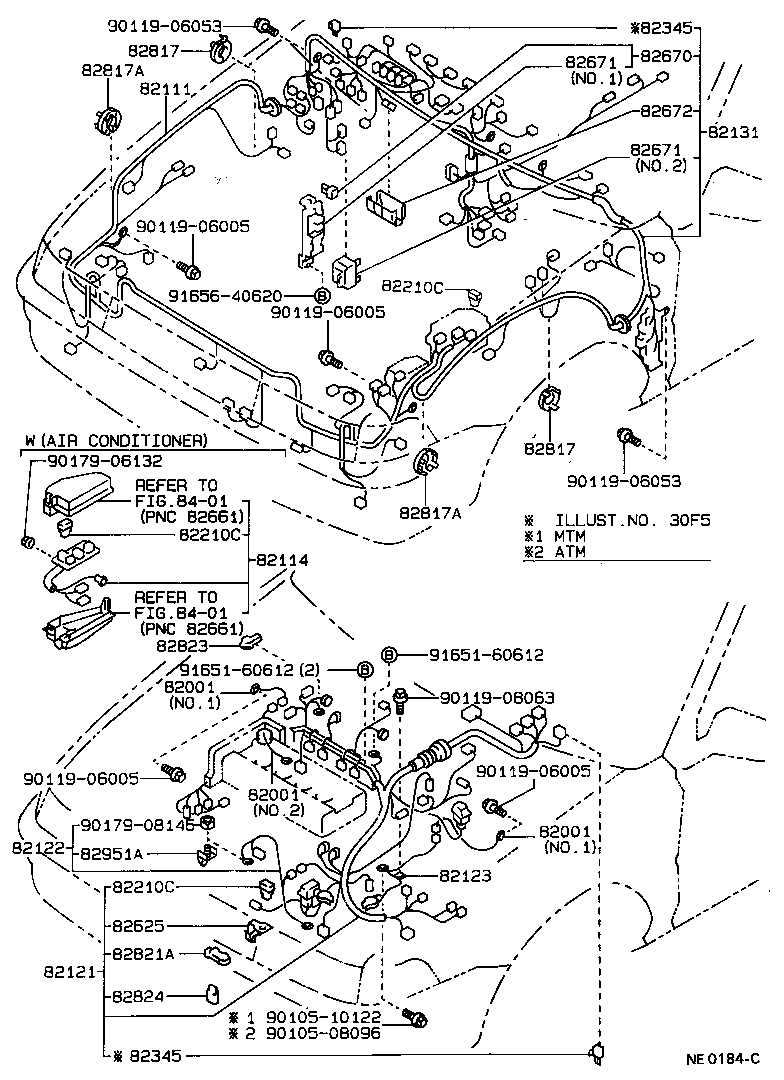

ILLUST NO. 1 OF 5(8705- )AE92..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 90980-07235 |
AE92 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 90980-07235 |
AE92 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE9# NO.1 |
2 | ||
| 90980-07235 |
AE92 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1E010 |
AE9#..GT,GTAPX,GTZ,ZS |
1 | ||
| 82111-1A390 |
AE9#..GT,GTV,GTZ,ZI |
1 | ||
| 82111-1E010 |
AE9#..GT,GTZ,ZS |
1 | ||
| 82111-1E040 |
AE9#..GT,GTAPX,GTZ,ZS ｱﾘ(ESC) |
1 | ||
| 82111-1E040 |
AE9#..GT,GTZ,ZS ｱﾘ(ESC) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE91..CBR,EFIS;AE9#..GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A190 |
AE92..4FC |
1 | ||
| 82121-1A191 |
AE92..4FC |
1 | ||
| 82121-1A192 |
AE92..4FC |
1 | ||
| 82121-1E230 |
AE92..4FC |
1 | ||
| 82121-1E231 |
AE92..4FC |
1 | ||
| 82121-1E250 |
AE92..4FC ｱﾘ(ESC) |
1 | ||
| 82121-1E251 |
AE92..4FC ｱﾘ(ESC) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-12310 |
AE92..EFI ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82122-12350 |
AE92..EFI |
1 | ||
| 82122-12300 |
AE92..EFI |
1 | ||
| 82122-12310 |
AE92..EFI ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12160 |
AE9#..4FC,5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1E271 |
AE92..4FC..(GT,GTV) |
1 | ||
| 82131-1E270 |
AE92..4FC..(GT,GTV) |
1 | ||
| 82131-1K400 |
AE92..4FC..GT |
1 | ||
| 82131-1K420 |
AE92..4FC..GT ｱﾘ(ESC) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE9#..EFI,EFIS,SPC 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08223 |
AE9#..EFI,SPC 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
AE9#..GT,GTAPX,GTZ,ZS 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
AE9#..EFI,SPC 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91..CBR;AE9#..GT,GTAPX,GTV,GTZ,ZI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
AE9# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE9#..EFI,EFIS,SPC 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08223 |
AE9#..EFI,SPC 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
AE9#..GT,GTAPX,GTZ,ZS 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
AE9#..EFI,SPC 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91..CBR;AE9#..GT,GTAPX,GTV,GTZ,ZI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
AE9# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08253 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08189 |
AE9#..EFI,EFIS,SPC 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08223 |
AE9#..EFI,SPC 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
AE9#..GT,GTAPX,GTZ,ZS 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
AE9#..EFI,SPC 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
AE91..CBR;AE9#..GT,GTAPX,GTV,GTZ,ZI 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
AE9# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08223 |
AE9# 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08203 |
AE9# 80A,ｵｽ端子,黒 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..EFI NO.2 |
1 | ||
| 82345-12050 |
AE9#..G,GT,L,ZS;AE92..5F..GTAPX NO.3 |
1 | ||
| 82345-32020 |
AE92..GT NO.7 |
3 | ||
| 82345-20040 |
AE92..EFI NO.4 |
3 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..EFI NO.2 |
1 | ||
| 82345-12050 |
AE9#..G,GT,L,ZS;AE92..5F..GTAPX NO.3 |
1 | ||
| 82345-32020 |
AE92..GT NO.7 |
3 | ||
| 82345-20040 |
AE92..EFI NO.4 |
3 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12030 |
AE92 |
1 | ||
| 82625-12050 |
AE9#..GT,GTAPX,GTZ,ZS ｱﾘ(ESC) |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE9# NO.1 |
1 | ||
| 82671-12020 |
AE9# NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
AE9# NO.1 |
1 | ||
| 82671-12020 |
AE9# NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12100 |
AE9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82817-32010 |
AE9#..GT,GTAPX,GTZ,ZS |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9# |
2 | ||
| 82817-32010 |
AE9#..GT,GTAPX,GTZ,ZS |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE92 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9# |
1 | ||
| 82951A - BRACKET, TERMINAL | ||||
| 82951-17010 |
AE92..EFI |
1 | ||
| 82951-17011 |
AE92..EFI |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90179-06132 | ||||
| 90179-08146 | ||||
| 91651-40620 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||

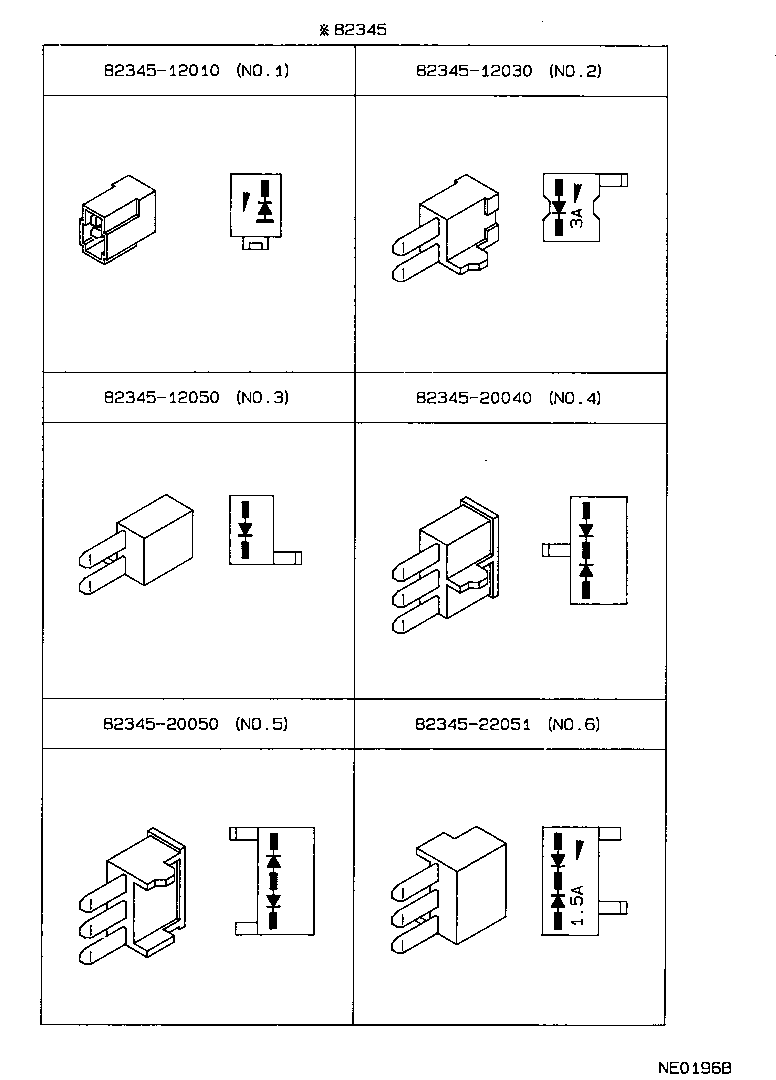

ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..EFI NO.2 |
1 | ||
| 82345-12050 |
AE9#..G,GT,L,ZS;AE92..5F..GTAPX NO.3 |
1 | ||
| 82345-32020 |
AE92..GT NO.7 |
3 | ||
| 82345-20040 |
AE92..EFI NO.4 |
3 | ||
| Common parts | ||||
| 82345-12010 | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9# NO.1 |
1 | ||
| 82991-12040 |
AE9# NO.2 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12030 |
AE9# NO.1 |
1 | ||
| 82991-12040 |
AE9# NO.2 |
1 | ||
| Common parts | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||

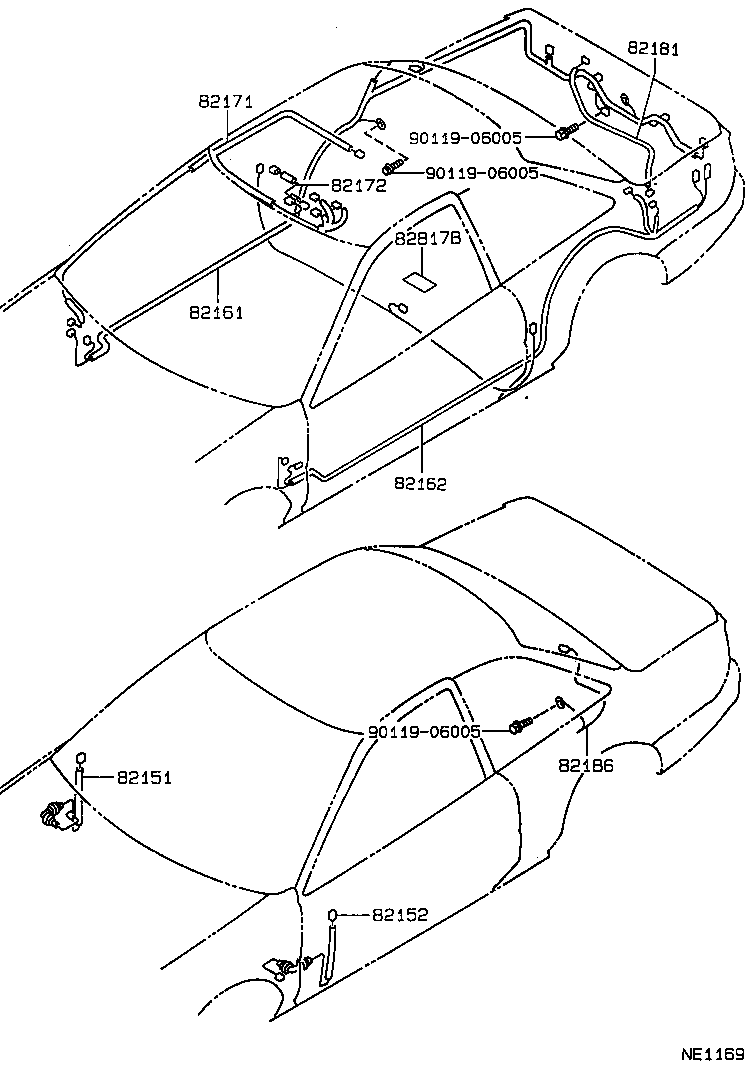

ILLUST NO. 2 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12420 |
AE9#..G,GTAPX,GTZ,ZI ｱﾘ(*PW) |
1 | ||
| 82151-12410 |
AE9#..G,GTAPX,GTV,GTZ,L,ZI |
1 | ||
| 82151-12420 |
AE9#..G,GTAPX,ZI ｱﾘ(*PW) |
1 | ||
| 82151-12700 |
AE9#..G,GT,GTZ,L,ZS ｱﾘ(*PW) |
1 | ||
| 82151-12410 |
AE9#..G,GT,GTZ,L,ZS |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12340 |
AE9#..G,GTAPX,ZI ｱﾘ(*PW) |
1 | ||
| 82152-12330 |
AE9#..G,GTAPX,GTV,GTZ,L,ZI |
1 | ||
| 82152-12340 |
AE9#..G,GTAPX,GTZ,ZI ｱﾘ(*PW) |
1 | ||
| 82152-12610 |
AE9#..G,GT,GTZ,L,ZS ｱﾘ(*PW) |
1 | ||
| 82152-12330 |
AE9#..G,GT,GTZ,L,ZS |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A860 |
AE92..GT |
1 | ||
| 82161-1H460 |
AE92..GT |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12270 |
AE9#..GT,GTAPX,GTZ,ZS |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12220 |
AE9# |
1 | ||
| 82171-12230 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-12310 |
AE9#..G,GT,GTAPX,GTZ,ZS ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20010 |
AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-12130 |
AE9#..GT,GTAPX,GTZ,ZS |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12130 |
AE9#..G,GT,GTV,GTZ,L,ZI |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE9# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

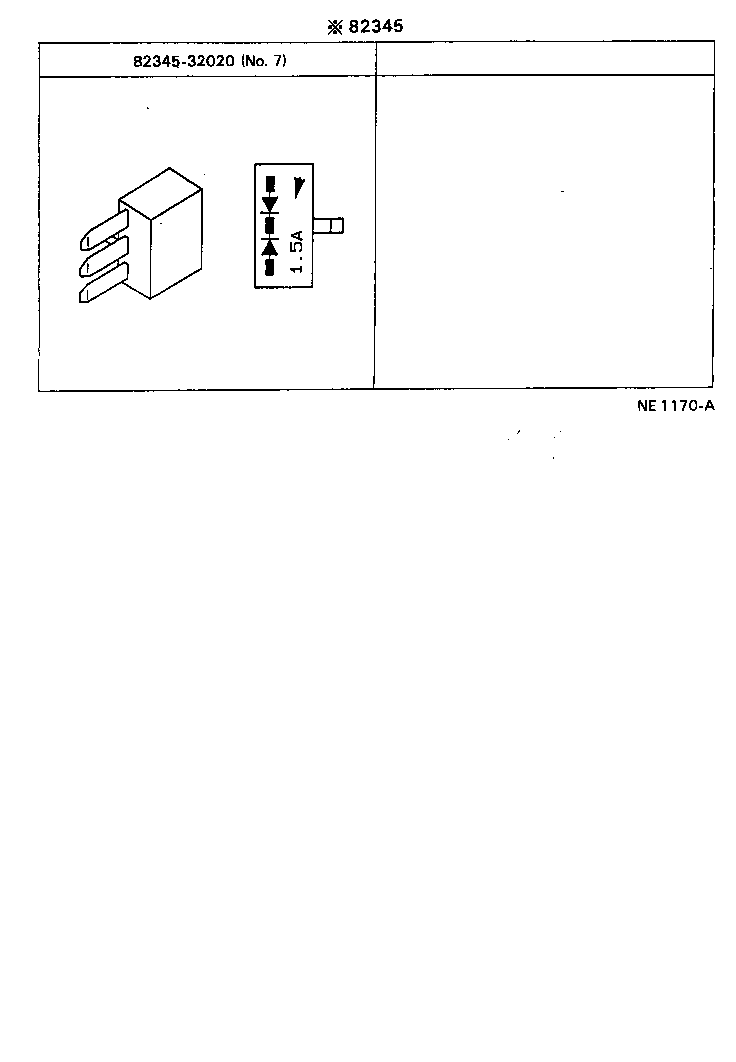

ILLUST NO. 3 OF 5(8905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..EFI NO.2 |
1 | ||
| 82345-12050 |
AE9#..G,GT,L,ZS;AE92..5F..GTAPX NO.3 |
1 | ||
| 82345-32020 |
AE92..GT NO.7 |
3 | ||
| 82345-20040 |
AE92..EFI NO.4 |
3 | ||
| Common parts | ||||
| 82345-32020 | ||||
