AE92-ACPVF (1987)

Toyota Corolla Levin

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

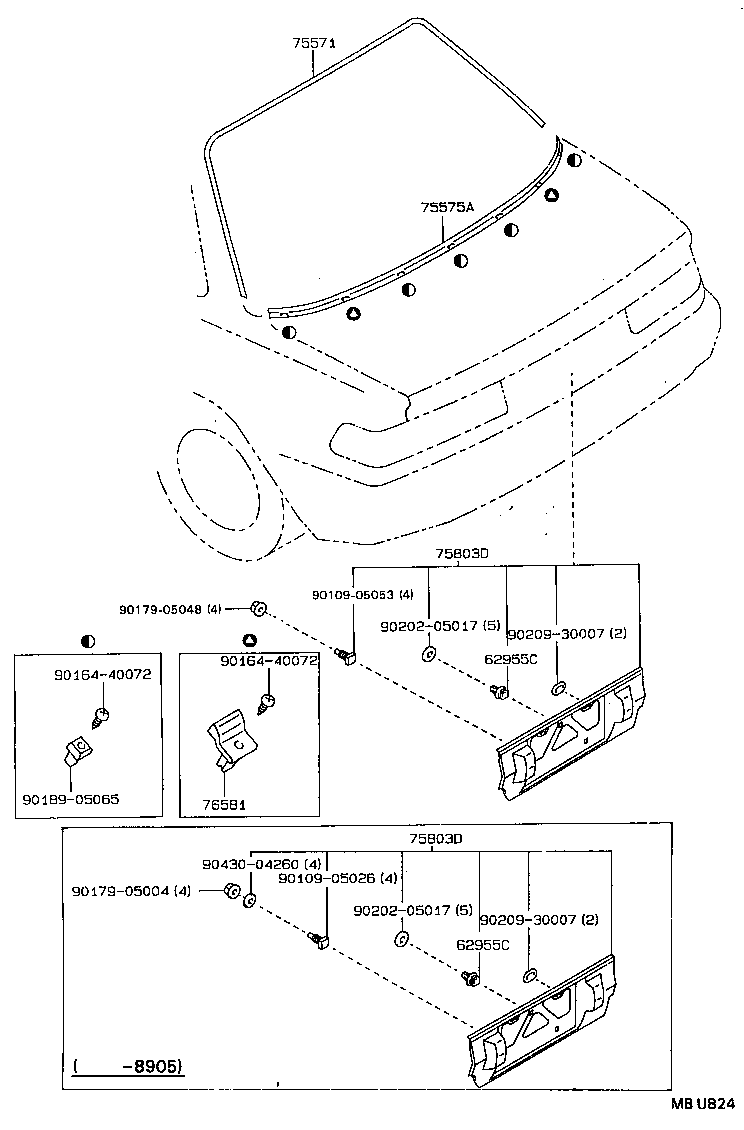

Click highlighted areas on diagram

diagram 62955C 62955C 75571 75575A 75803D 75803D 76581 9010905026 9010905053 9016440072 9016440072 9017905004 9017905048 9018905065 9020205017 9020205017 9020930007 9020930007 9043004260
Part # Description Qty Price
62955C - RETAINER, BACK DOOR MOULDING
62955-20020

AE9#

 1
62955-20020

AE9#

 5
62955C - RETAINER, BACK DOOR MOULDING
62955-20020

AE9#

 1
62955-20020

AE9#

 5
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12280

AE9#..G,GTAPX,L,ZI,ZS

 1
75571-12270

AE92..GT,GTV,GTZ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12280

AE92..GT,GTV,GTZ

 1
75575-12320

AE9#..G,GTAPX,L,ZS

ｶｺﾞｼﾏ ｼﾖｳ

 1
75575-12290

AE9#..G,GTAPX,L,ZI,ZS

 1
75803D - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE LOWER
75803-12100

AE9#

 1
75803-12110

AE9#

 1
75803D - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE LOWER
75803-12100

AE9#

 1
75803-12110

AE9#

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12010

AE9#

 2
Common parts
90109-05026
90109-05053
90164-40072
90179-05004
90179-05048
90189-05065
90202-05017
90209-30007
90430-04260
