AE92-ACPVF (1987)
Toyota Corolla Levin
Production
May 1987
-
Jun 1991
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )

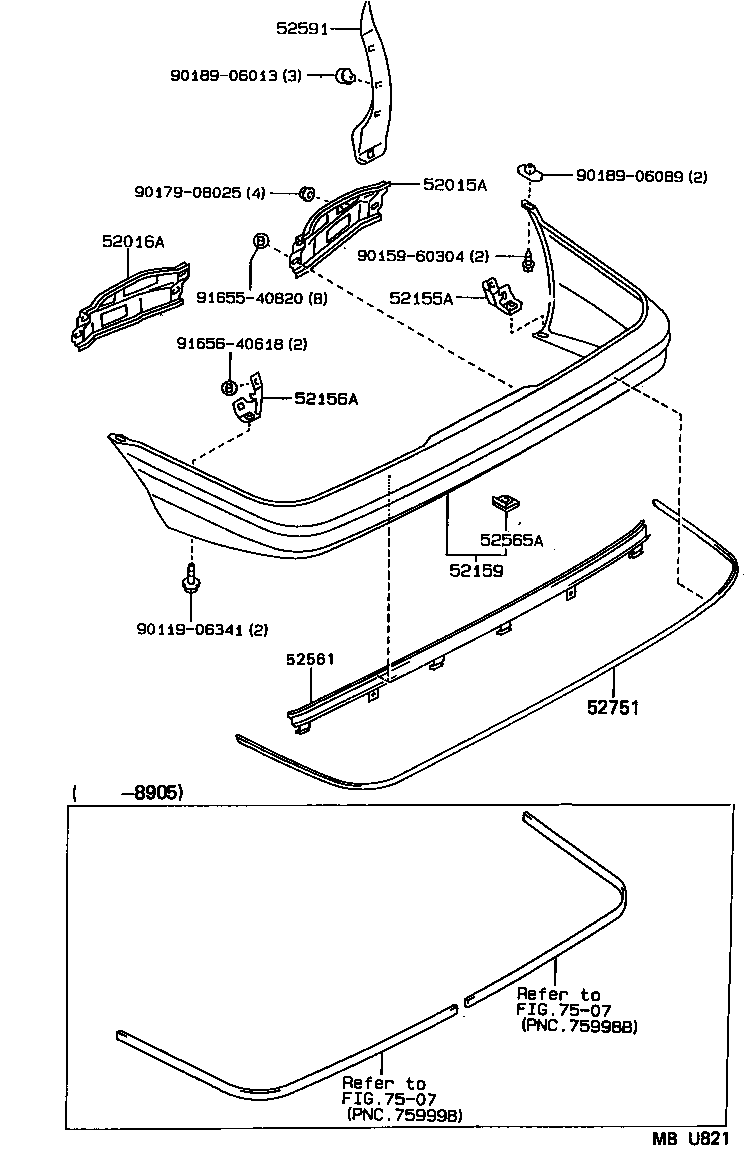

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52181-12300 |
AE9# |
1 | ||
| 52181-12370 |
AE9# |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52182-12250 |
AE9# |
1 | ||
| 52182-12290 |
AE9# |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12160 |
AE9# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12130 |
AE9# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1285003 |
AE9#..G,GTV,ZI GRAY M,168 |
1 | ||
| 52159-1285008 |
AE9#..G,GTV,ZI SUPER WHITE 2,040 |
1 | ||
| 52159-1285002 |
AE9#..G,GTV,ZI SUPER RED 2,3E5 |
1 | ||
| 52159-1286005 |
AE9#..G,GTAPX,GTV,GTZ,ZI BEIGE M,28E |
1 | ||
| 52159-12820 |
AE9#..GT,L |
1 | ||
| 52159-1285004 |
AE9#..G,GTV,ZI BLUE M,8D7 |
1 | ||
| 52159-1286013 |
AE9#..G,GTAPX,GTV,GTZ,ZI SILVER M,23E |
1 | ||
| 52159-1A25017 |
AE9#..G,GT,GTAPX,GTZ,ZS LIGHT OLIVEISH GRAY,23M |
1 | ||
| 52159-1A25008 |
AE92 SUPER WHITE 2,040 |
1 | ||
| 52159-1285014 |
AE9#..G,GTV,ZI BLUE M,8B5 |
1 | ||
| 52159-1A25004 |
AE92 DARK BLUE MICA M,8E9 |
1 | ||
| 52159-1A25002 |
AE92 SUPER RED 2,3E5 |
1 | ||
| 52159-1A25007 |
AE92 GRAYISH GREEN M,6K6 |
1 | ||
| 52159-1A25001 |
AE92 BLACK M,205 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52508-12020 |
AE9# |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE9# |
8 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12070 |
AE9# |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-12180 |
AE9# |
1 | ||
| Common parts | ||||
| 90119-06341 | ||||
| 90159-60304 | ||||
| 90179-08025 | ||||
| 90189-06013 | ||||
| 90189-06089 | ||||
| 91655-40820 | ||||
| 91656-40618 | ||||
| Linked diagrams | ||||
| 7507 | ||||
